| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 250 cd/m² |
| Screen shape | Curved |
| Display number of colours | 16.7 million colours |
| Native aspect ratio | 16:9 |
| Colour gamut | 90% |
| Maximum refresh rate | 180 Hz |
| HD type | Full HD |
| Display technology | LCD |
| Viewing angle/ horizontal | 178° |
| Viewing angle/ vertical | 178° |
| Pixel pitch | 0.311 x 0.311 mm |
| Viewable size/ horizontal | 59.8 cm |
| Viewable size/ vertical | 33.6 cm |
| Digital horizontal frequency | 250 - 250 kHz |
| Digital vertical frequency | 48 - 180 Hz |
| Backlight type | LED |
| Display resolution | 1920 x 1080 pixels |
| Response time | 1 ms |
| Display diagonal | 68.6 cm (27") |
| Contrast ratio (typical) | 3000:1 |
| Touchscreen | No |
| Panel type | Fast VA |
| Screen curvature rating | 1500R |
| Display diagonal (metric) | 68.6 cm |
| Colour gamut standard | DCI-P3 |
| Anti-glare screen | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Performance | |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Built-in camera | No |
| AMD FreeSync type | FreeSync |
| AMD FreeSync | Yes |
| Game mode | Yes |
| VESA Adaptive Sync support | Yes |
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| Shadow control | Yes |
| Motion blur reduction | Yes |
| Multimedia | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Built-in camera | No |
| Design | |
| Market positioning | Gaming |
| Feet colour | Black |
| Product colour | Black |
| Camera | |
| Built-in camera | No |
| Ports & interfaces | |
| Built-in USB hub | No |
| Headphone out | Yes |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| Headphone outputs | 1 |
| HDMI | Yes |
| HDMI version | 2.0 |
| DisplayPort version | 1.2 |
| HDCP version | 2.2 |
| Technical details | |
| Height (without stand) | 367 mm |
| Depth (without stand) | 80 mm |
| Width (without stand) | 610 mm |
| Feet colour | Black |
| Cable lock slot | Yes |
| HDMI | Yes |
| Product colour | Black |
| Game mode | Yes |
| Weight (with stand) | 4.9 kg |
| Touchscreen | No |
| Ergonomics | |
| Wall mountable | Yes |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| Tilt angle range | -5 - 23° |
| Height adjustment | No |
| Cable lock slot type | Kensington |
| Tilt adjustment | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 17 W |
| Power consumption (off) | 0.3 W |
| Power consumption (PowerSave) | 0.5 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | D |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 17 kWh |
| European Product Registry for Energy Labelling (EPREL) code | 1955715 |
| Weight & dimensions | |
| Height (without stand) | 367 mm |
| Depth (without stand) | 80 mm |
| Width (without stand) | 610 mm |
| Width (with stand) | 610 mm |
| Depth (with stand) | 193 mm |
| Height (with stand) | 456 mm |
| Weight (with stand) | 4.9 kg |
| Weight (without stand) | 4.2 kg |
| Package width | 680 mm |
| Package depth | 150 mm |
| Package height | 520 mm |
| Package weight | 6.3 kg |
| Packaging data | |
| Package width | 680 mm |
| Package depth | 150 mm |
| Package height | 520 mm |
| Package weight | 6.3 kg |
| Package type | Box |
| Sustainability | |
| European Product Registry for Energy Labelling (EPREL) code | 1955715 |
| Other features | |
| Shadow control | Yes |
| Motion blur reduction | Yes |
| Game mode | Yes |
| Height (without stand) | 367 mm |
| Depth (without stand) | 80 mm |
| Width (without stand) | 610 mm |
| HDMI | Yes |
| Energy efficiency scale | A to G |
| Touchscreen | No |
| Package type | Box |

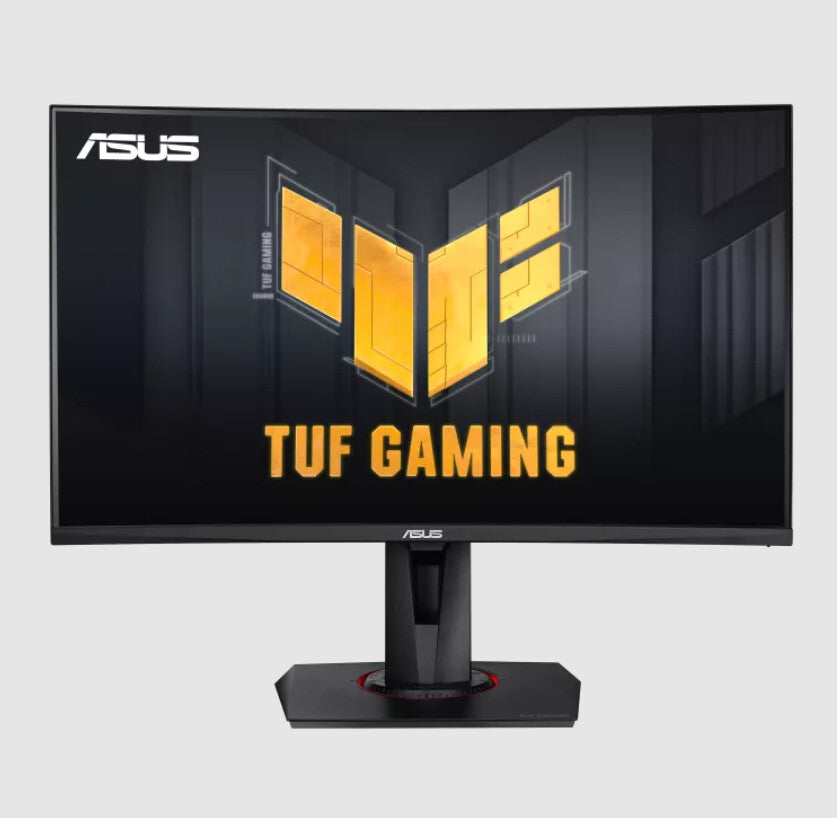

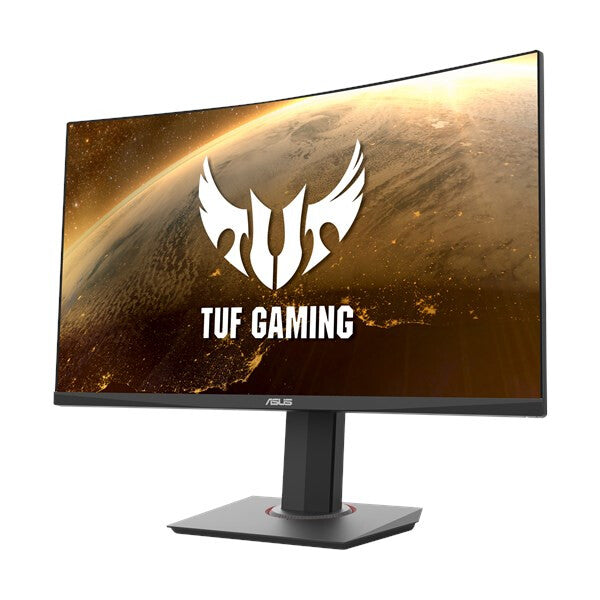

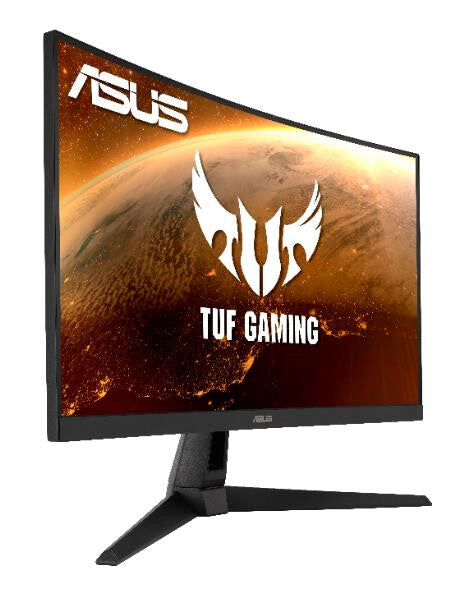

TUF Gaming VG27VQM is a 27-inch FHD (1920 x 1080) 1500R curved gaming monitor with an ultrafast 240 Hz refresh rate and 1 ms (MPRT) response time for extremely immersive gameplay. It features exclusive Extreme Low Motion Blur (ELMB) technology and AMD FreeSync™ Premium to eliminate ghosting and tearing. In addition, it also features High Dynamic Range technology, supporting the HDR10 format and covering 105% of the sRGB color gamut for great contrast and lifelike colors.
GAMING KEY SPEC
240HZ REFRESH RATE AND 1MS (MPRT) RESPONSE TIME
TUF Gaming VG27VQM delivers stunning visuals from all angles with an 1500R curvature that ensures every point is equidistant to your eyes. With 240Hz refresh rate decimates lag and motion blur to give you the upper hand in first person shooters, racers, real-time strategy, and sports titles. This ultrafast refresh rate lets you play at the highest visual settings and lets you react instantly to what's onscreen — so you'll get that first strike in.
GAMING KEY SPEC
ADAPTIVE-SYNC
AMD FreeSync Premium technology supported through DP and HDMI ports providing variable refresh rates for low latency, stuttering-free and tearing-free while gaming.
COLOR PERFORMANCE
HIGH DYNAMIC RANGE
TUF Gaming VG27VQM takes advantage of HDR technology to deliver more vivid colors and higher contrast levels compared to traditional monitors.
EXCLUSIVE GAMING FEATURE
EXTREME LOW MOTION BLUR (ELMB)
ASUS Extreme Low Motion Blur (ELMB) technology provides a 1 ms MPRT response time to eliminate smearing and motion blur. It makes moving objects appear even sharper, so gameplay is more fluid and responsive.
EXCLUSIVE GAMING FEATURE
VARIABLE OVERDRIVE
Integrated ASUS Variable Overdrive technology allows the display to dynamically alter its overdrive setting as frame rates fluctuate, ensuring optimal results for any game. You choose how strong you want the overall effect to be, then let the monitor take it from there.
INTUITIVE CONTROLS
ASUS DisplayWidget Lite is a software utility that lets you easily and quickly tweak settings or configure ASUS-exclusive features such as Shadow Boost, ASUS GameVisual, and more.
ERGONOMIC DESIGN
EXTENSIVE CONNECTIVITY
A multitude of connectivity options, including two HDMI 2.0, plus DisplayPort™ 1.2, ensures wide compatibility with a variety of input sources.
| Display | |
|---|---|
| Colour gamut | 105% |
| RGB colour space | sRGB |
| Digital vertical frequency | 48 - 240 Hz |
| Digital horizontal frequency | 292 - 292 kHz |
| Viewable size, vertical | 33.6 cm |
| Viewable size, horizontal | 29.8 cm |
| Vertical scan range | 48 - 240 Hz |
| Horizontal scan range | 30 - 292 kHz |
| Pixel pitch | 0.311 x 0.311 mm |
| Response time (fast) | 1 ms |
| Display number of colours | 16.7 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 240 Hz |
| Dynamic contrast ratio marketing name | ASUS Smart Contrast Ratio (ASCR) |
| Contrast ratio (dynamic) | 100000000:1 |
| Contrast ratio (typical) | 3000:1 |
| Screen curvature rating | 1500R |
| Screen shape | Curved |
| Anti-glare screen | Yes |
| Display brightness (typical) | 350 cd/m² |
| Backlight type | LED |
| Panel type | VA |
| HD type | Full HD |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 68.6 cm (27") |
| Performance | |
|---|---|
| Game mode | Yes |
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| AMD FreeSync type | FreeSync Premium |
| AMD FreeSync | Yes |
| Multimedia | |
|---|---|
| RMS rated power | 2 W |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Product colour | Black |
| Market positioning | Gaming |
| Ports & interfaces | |
|---|---|
| HDCP version | 2.2 |
| HDCP | Yes |
| Headphone outputs | 1 |
| Headphone out | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.0 |
| HDMI ports quantity | 2 |
| HDMI | Yes |
| USB Type-A downstream ports quantity | 2 |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub | Yes |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 25° |
| Swivel angle range | 90 - -90° |
| Swivelling | Yes |
| Height adjustment | 12 cm |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Energy efficiency scale | A to G |
| Energy consumption (HDR) per 1000 hours | 30 kWh |
| Energy consumption (SDR) per 1000 hours | 21 kWh |
| Energy efficiency class (HDR) | G |
| Energy efficiency class (SDR) | E |
| Weight & dimensions | |
|---|---|
| Weight (without stand) | 3.77 kg |
| Height (without stand) | 359.9 mm |
| Depth (without stand) | 44 mm |
| Width (without stand) | 609 mm |
| Weight (with stand) | 6 kg |
| Height (with stand) | 386.9 mm |
| Depth (with stand) | 211.2 mm |
| Width (with stand) | 609 mm |
| Packaging data | |
|---|---|
| Package weight | 8.2 kg |
| Package height | 209 mm |
| Package depth | 448 mm |
| Package width | 682 mm |
| Sustainability | |
|---|---|
| European Product Registry for Energy Labelling (EPREL) code | 1119299 |
| General | |
|---|---|
| Product Family | TUF Gaming |

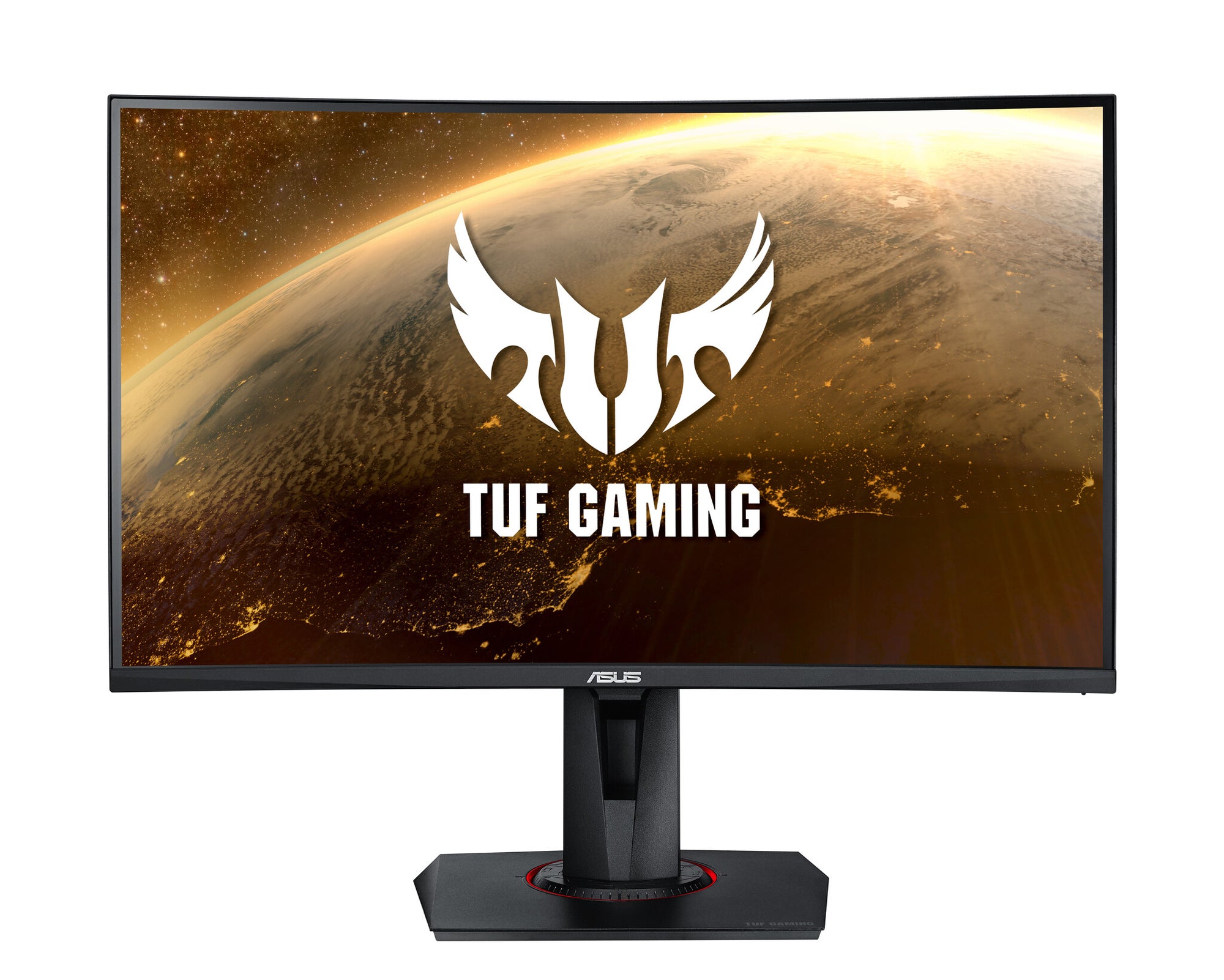

TUF gaming VG27WQ
TUF Gaming VG27WQ is a 27-inch, WQHD(2560 x 1440), curved display with an ultrafast 165Hz refresh rate designed for professional gamers and those seeking immersive gameplay. High Dynamic Range (HDR) technology with professional color gamut and contrast performance for DisplayHDR 400 certification.
27-inch immersive curvature
The 27-inch WQHD(2560 x 1440) panel of TUF Gaming VG27WQ delivers stunning visuals from all angles with an 1500R curvature that ensures every point is equidistant to your eyes. This contributes to greater viewing comfort — even during extended use —and lets you enjoy a wide viewing angle with less distortion and color shift when gaming and watching movies.
165Hz Refresh Rate
TUF Gaming VG27WQ has a super-fast 165Hz refresh rate, ensuring that even fast-paced games played at the highest visual settings look buttery smooth and completely lag-free. Get the upper hand in first-person-shooters, racing, real-time strategy and sports titles.
EXTREME LOW MOTION BLUR
VG27WQ Features the latest ASUS-exclusive Extreme Low Motion Blur technology, which achieves 1ms MPRT to eliminate smearing and motion blur, and makes objects in motion look sharper, so gameplay is more fluid and responsive.
HDR
Multi HDR Mode
Now you can choose from multiple HDR modes to adjust monitor HDR performance based on the current viewing scenario
DisplayHDR 400
High Dynamic Range (HDR) technology delivers professional color gamut and contrast performance that meets the requirement for DisplayHDR 400 certification.
IN−GAME ENHANCEMENTS
Shadow Boost
ASUS Shadow Boost technology clarifies dark areas of the game without overexposing brighter areas, improving overall viewing while also making it easier to spot enemies hidden in dark areas of the map.
GamePlus
The ASUS-exclusive, integrated GamePlus hotkey offers in-game enhancements that help you get more out of your game. This function is co-developed with input from pro gamers, allowing them to practice and improve their gaming skills.
GameVisual
ASUS GameVisual Technology has seven pre-set display modes to optimize visuals for different types of content. This unique feature can be easily accessed through a hotkey or the on-screen display settings menu
Flicker-Free technology
Flicker-Free technology reduces flicker to minimize eyestrain for improved comfort when you're embroiled in long gaming sessions.
Ultra-Low Blue Light technology
ASUS Ultra-Low Blue Light technology reduces the amount of potentially harmful blue light emitted by the display. Four different filter settings are available to control the amount of blue light reduction.
ENGINEERING
Rich connectivity
Extensive connectivity options, including, DisplayPort1.2x1, HDMI (v2.0)x2, Earphone Jack support a wide array of multimedia devices.
Ergonomic design
With an ergonomically-designed stand, TUF Gaming VG27WQ provides tilt, swivel and height adjustments so you can easily find your ideal viewing position. The display is also VESA-compatible for wall mounting.
| Display | |
|---|---|
| 3D | No |
| Screen curvature | 150 cm |
| sRGB coverage (typical) | 120% |
| RGB colour space | sRGB |
| High Dynamic Range (HDR) technology | High Dynamic Range (HDR) 400 |
| High Dynamic Range (HDR) supported | Yes |
| Digital vertical frequency | 30 - 185 Hz |
| Digital horizontal frequency | 30 - 185 kHz |
| Viewable size, vertical | 33.6 cm |
| Viewable size, horizontal | 59.8 cm |
| Pixel pitch | 0.233 x 0.233 mm |
| Response time (fast) | 1 ms |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 165 Hz |
| Contrast ratio (dynamic) | 3000:1 |
| Screen curvature rating | 1500R |
| Screen shape | Curved |
| Response time | 4 ms |
| Display brightness (typical) | 400 cd/m² |
| Display brightness (peak) | 400 cd/m² |
| Panel type | VA |
| HD type | Full HD |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 2560 x 1440 pixels |
| Display diagonal | 68.6 cm (27") |
| Performance | |
|---|---|
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| VESA Adaptive Sync support | Yes |
| AMD FreeSync type | FreeSync Premium |
| AMD FreeSync | Yes |
| Multimedia | |
|---|---|
| RMS rated power | 4 W |
| Number of speakers | 2 |
| Built-in camera | No |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Product colour | Black |
| Market positioning | Gaming |
| Ports & interfaces | |
|---|---|
| HDCP | Yes |
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Headphone out | Yes |
| Audio input | No |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.0 |
| HDMI ports quantity | 2 |
| HDMI | Yes |
| DVI port | No |
| Built-in USB hub | No |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 25° |
| Swivel angle range | -90 - 90° |
| Swivelling | Yes |
| Height adjustment | 12 cm |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Energy efficiency scale | A to G |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (off) | 0.5 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 22 W |
| Energy consumption (HDR) per 1000 hours | 30 kWh |
| Energy consumption (SDR) per 1000 hours | 25 kWh |
| Energy efficiency class (HDR) | G |
| Energy efficiency class (SDR) | F |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight (without stand) | 3.7 kg |
| Height (without stand) | 359.9 mm |
| Depth (without stand) | 44 mm |
| Width (without stand) | 609 mm |
| Weight (with stand) | 5.9 kg |
| Height (with stand) | 386.9 mm |
| Depth (with stand) | 211.2 mm |
| Width (with stand) | 609 mm |
| Packaging data | |
|---|---|
| Package weight | 9.3 kg |
| Package height | 558 mm |
| Package depth | 213 mm |
| Package width | 692 mm |
| Sustainability | |
|---|---|
| European Product Registry for Energy Labelling (EPREL) code | 388105 |
| General | |
|---|---|
| Product Family | TUF Gaming |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
| Other features | |
|---|---|
| TV tuner integrated | No |

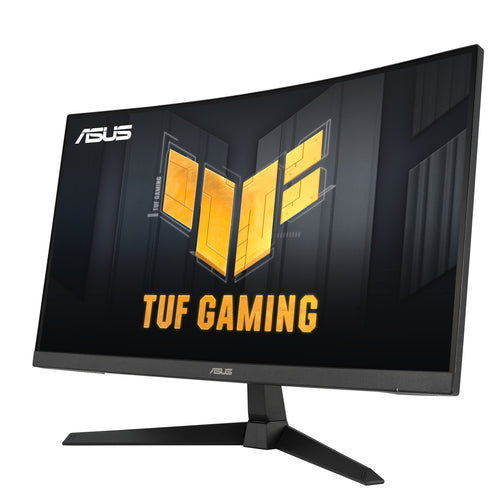

TUF gaming VG27WQ1B
TUF Gaming VG27WQ1B is a 27-inch, WQHD (2560x1440), curved display with an ultrafast 165Hz refresh rate designed for professional gamers and those seeking immersive gameplay. Those are some serious specs, but not even the most exciting thing the VG27WQ1B has in store. Its impressive curved display features a 165Hz refresh rate and Adaptive-Sync (FreeSync™ Premium) technology, for extremely fluid gameplay without tearing and stuttering.
27-inch immersive curvature
The 27-inch WQHD (2560 X 1440) panel of TUF Gaming VG27WQ1B delivers stunning visuals from all angles with an 1500R curvature that ensures every point is equidistant to your eyes. This contributes to greater viewing comfort — even during extended use —and lets you enjoy a wide viewing angle with less distortion and color shift when gaming and watching movies.
165Hz Refresh Rate
TUF Gaming VG27WQ1B 165Hz* refresh rate decimates lag and motion blur to give you the upper hand in first person shooters, racers, real-time strategy, and sports titles. This ultrafast refresh rate lets you play at the highest visual settings and lets you react instantly to what's onscreen — so you'll get that first strike in.
EXTREME LOW MOTION BLUR
VG27WQ1B Features the latest ASUS-exclusive Extreme Low Motion Blur technology, which achieves 1ms MPRT to eliminate smearing and motion blur, and makes objects in motion look sharper, so gameplay is more fluid and responsive.
Multi HDR Mode
Now you can choose from multiple HDR modes to adjust monitor HDR performance based on the current viewing scenario
HDR 10
To more fully realize gamers' vision, TUF Gaming VG27WQ1B is compatible with industry-standard HDR10 high dynamic range for color and brightness levels that exceed the capabilities of ordinary monitors.
Shadow Boost
ASUS Shadow Boost technology clarifies dark areas of the game without overexposing brighter areas, improving overall viewing while also making it easier to spot enemies hidden in dark areas of the map.
GamePlus
The ASUS-exclusive, integrated GamePlus hotkey offers in-game enhancements that help you get more out of your game. This function is co-developed with input from pro gamers, allowing them to practice and improve their gaming skills.
GameVisual
ASUS GameVisual Technology has seven pre-set display modes to optimize visuals for different types of content. This unique feature can be easily accessed through a hotkey or the on-screen display settings menu
Flicker-Free technology
Flicker-Free technology reduces flicker to minimize eyestrain for improved comfort when you're embroiled in long gaming sessions.
Ultra-Low Blue Light technology
ASUS Ultra-Low Blue Light technology reduces the amount of potentially harmful blue light emitted by the display. Four different filter settings are available to control the amount of blue light reduction.
Rich connectivity
Extensive connectivity options, including, DisplayPort(v1.2), HDMI (v2.0), Earphone Jack support a wide array of multimedia devices.
Ergonomic design
With an ergonomically-designed stand, TUF Gaming VG27WQ1B provides tilt, swivel so you can easily find your ideal viewing position. The display is also VESA-compatible for wall mounting.
| Display | |
|---|---|
| sRGB coverage (typical) | 120% |
| RGB colour space | sRGB |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| High Dynamic Range (HDR) supported | Yes |
| Digital vertical frequency | 48 - 165 Hz |
| Digital horizontal frequency | 30 - 185 kHz |
| Viewable size diagonal | 68.6 cm |
| Viewable size, vertical | 33.6 cm |
| Viewable size, horizontal | 59.7 cm |
| Pixel pitch | 0.233 x 0.233 mm |
| Display number of colours | 16.78 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 165 Hz |
| Dynamic contrast ratio marketing name | SmartContrast |
| Contrast ratio (dynamic) | 10000000:1 |
| Contrast ratio (typical) | 3000:1 |
| Aspect ratio | 16:9 |
| Supported graphics resolutions | 2560 x 1440 |
| Screen curvature rating | 1500R |
| Screen shape | Curved |
| Display surface | Matt |
| Response time | 1 ms |
| Display brightness (typical) | 250 cd/m² |
| Panel type | VA |
| HD type | Quad HD |
| Touchscreen | No |
| Display technology | LCD |
| Native aspect ratio | 16:9 |
| Display resolution | 2560 x 1440 pixels |
| Display diagonal | 68.6 cm (27") |
| Performance | |
|---|---|
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| AMD FreeSync type | FreeSync Premium |
| AMD FreeSync | Yes |
| Multimedia | |
|---|---|
| RMS rated power | 2 W |
| Number of speakers | 2 |
| Built-in camera | No |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Certification | TUV Flicker-free , TUV Low Blue Light |
| Feet colour | Black |
| Product colour | Black |
| Market positioning | Gaming |
| Ports & interfaces | |
|---|---|
| HDCP | Yes |
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Headphone out | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.0 |
| HDMI ports quantity | 2 |
| HDMI | Yes |
| DVI port | No |
| Built-in USB hub | No |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 23° |
| Swivel angle range | -15 - 15° |
| Swivelling | Yes |
| Height adjustment | No |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Energy efficiency scale | A to G |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (off) | 0.2 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (typical) | 32.1 W |
| Energy consumption (HDR) per 1000 hours | 51 kWh |
| Energy consumption (SDR) per 1000 hours | 32 kWh |
| Energy efficiency class (HDR) | G |
| Energy efficiency class (SDR) | G |
| Packaging content | |
|---|---|
| Cables included | AC |
| Stand included | Yes |
| Weight & dimensions | |
|---|---|
| Weight (without stand) | 5.5 kg |
| Height (without stand) | 367.3 mm |
| Depth (without stand) | 77.7 mm |
| Width (without stand) | 610.3 mm |
| Height (with stand) | 475.2 mm |
| Depth (with stand) | 213.8 mm |
| Width (with stand) | 610.3 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 8.2 kg |
| Package height | 520 mm |
| Package depth | 150 mm |
| Package width | 680 mm |
| General | |
|---|---|
| Product Family | TUF Gaming |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
TUF Gaming VG27WQ3B is a 27-inch QHD (2560 x 1440) 1500R curved gaming monitor with an ultrafast 180 Hz refresh rate and 0.5ms response time (minimum) for extremely immersive gameplay. It features exclusive Extreme Low Motion Blur technology and AMD FreeSync™ to eliminate ghosting and tearing. In addition, it also covering 90% of the DCI-P3 colour gamut for great contrast and lifelike colours.
180HZ Refresh Rate and 0.5ms (min.) Response Time
TUF Gaming VG27WQ3B delivers stunning visuals from all angles with an 1500R curvature that ensures every point is equidistant to your eyes. With 180Hz refresh rate decimates lag and motion blur to give you the upper hand in first person shooters, racers, real-time strategy, and sports titles. This ultrafast refresh rate lets you play at the highest visual settings and lets you react instantly to what's onscreen — so you'll get that first strike in.
Adaptive-Sync
AMD FreeSync technology supported through DP and HDMI ports providing variable refresh rates for low latency, stuttering-free and tearing-free while gaming.
High Dynamic Range
With HDR technology to deliver more vivid colours and higher contrast levels compared to traditional monitors.
Extreme Low Motion Blur
ASUS Extreme Low Motion Blur (ELMB) technology eliminate smearing and motion blur. It makes moving objects appear even sharper, so gameplay is more fluid and responsive.
Variable Overdrive
Integrated ASUS Variable Overdrive technology allows the display to dynamically alter its overdrive setting as frame rates fluctuate, ensuring optimal results for any game. You choose how strong you want the overall effect to be, then let the monitor take it from there.
Intuitive Controls
DisplayWidget Center software upgraded the user interface so that users can easily change monitor settings via a mouse - so there’s no need to access the OSD menu.
Shadow Boost
ASUS Shadow Boost technology clarifies dark areas of the game without overexposing brighter areas, improving overall viewing while also making it easier to spot enemies hidden in dark areas of the map.
GamePlus
The ASUS-exclusive, integrated GamePlus hotkey offers in-game enhancements that help you get more out of your game. This function is co-developed with input from pro gamers, allowing them to practice and improve their gaming skills.
GameVisual
ASUS GameVisual Technology has seven pre-set display modes to optimize visuals for different types of content. This unique feature can be easily accessed through a hotkey or the on-screen display settings menu.
Flicker-Free Technology
Flicker-Free technology reduces flicker to minimize eyestrain for improved comfort when you're embroiled in long gaming sessions.
Low Blue Light
ASUS Low Blue Light technology reduces the amount of potentially harmful blue light emitted by the display. Four different filter settings are available to control the amount of blue light reduction.
Extensive Connectivity
A multitude of connectivity options, including two HDMI 2.0, plus DisplayPort™ 1.2, ensures wide compatibility with a variety of input sources.
Ergonomic Design
It provides tilt from +23°~-5° so you can easily find your ideal viewing angle. The display is also VESA-compatible for wall mounting.
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 300 cd/m² |
| Screen shape | Curved |
| Display number of colours | 16.7 million colours |
| Native aspect ratio | 16:9 |
| Maximum refresh rate | 180 Hz |
| sRGB coverage (typical) | 125% |
| HD type | Quad HD |
| Display technology | LCD |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.233 x 0.233 mm |
| Viewable size, horizontal | 59.7 cm |
| Viewable size, vertical | 33.6 cm |
| Digital horizontal frequency | 267 - 267 kHz |
| Digital vertical frequency | 48 - 180 Hz |
| Display resolution | 2560 x 1440 pixels |
| Response time | 1 ms |
| Display diagonal | 68.6 cm (27") |
| Contrast ratio (typical) | 5000:1 |
| Touchscreen | No |
| High Dynamic Range (HDR) supported | Yes |
| Panel type | Fast VA |
| DCI-P3 coverage | 90% |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| Screen curvature rating | 1500R |
| Display diagonal (metric) | 69 cm |
| LED backlight | Yes |
| Colour gamut standard | DCI-P3, sRGB |
| Response time measurement type | GTG (Gray to Gray) |
| Anti-glare screen | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Performance | |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Built-in camera | No |
| AMD FreeSync type | FreeSync |
| AMD FreeSync | Yes |
| Game mode | Yes |
| VESA Adaptive Sync support | Yes |
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| Motion blur reduction | Yes |
| Multimedia | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Built-in camera | No |
| Design | |
| Market positioning | Gaming |
| Feet colour | Black |
| Product colour | Black |
| Camera | |
| Built-in camera | No |
| Ports & interfaces | |
| Built-in USB hub | No |
| Headphone out | Yes |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| Headphone outputs | 1 |
| HDMI | Yes |
| HDMI version | 2.0 |
| DisplayPort version | 1.4 |
| Technical details | |
| Height (without stand) | 367 mm |
| Depth (without stand) | 80 mm |
| Width (without stand) | 610 mm |
| Feet colour | Black |
| Cable lock slot | Yes |
| HDMI | Yes |
| Product colour | Black |
| Sustainability certificates | Forest Stewardship Council (FSC) Mix |
| Game mode | Yes |
| Weight (with stand) | 4.9 kg |
| Touchscreen | No |
| Ergonomics | |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| Tilt angle range | -5 - 23° |
| Height adjustment | No |
| Cable lock slot type | Kensington |
| Tilt adjustment | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 23 W |
| Power consumption (off) | 0.3 W |
| Power consumption (PowerSave) | 0.5 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | G |
| Energy consumption (SDR) per 1000 hours | 21 kWh |
| Energy consumption (HDR) per 1000 hours | 45 kWh |
| Weight & dimensions | |
| Height (without stand) | 367 mm |
| Depth (without stand) | 80 mm |
| Width (without stand) | 610 mm |
| Width (with stand) | 610 mm |
| Depth (with stand) | 193 mm |
| Height (with stand) | 456 mm |
| Weight (with stand) | 4.9 kg |
| Weight (without stand) | 4.2 kg |
| Package width | 680 mm |
| Package depth | 150 mm |
| Package height | 520 mm |
| Package weight | 6.9 kg |
| Packaging data | |
| Package width | 680 mm |
| Package depth | 150 mm |
| Package height | 520 mm |
| Package weight | 6.9 kg |
| Package type | Box |
| Sustainability | |
| Sustainability certificates | Forest Stewardship Council (FSC) Mix |
| Other features | |
| DCI-P3 coverage | 90% |
| Motion blur reduction | Yes |
| Game mode | Yes |
| Height (without stand) | 367 mm |
| Depth (without stand) | 80 mm |
| Width (without stand) | 610 mm |
| HDMI | Yes |
| Energy efficiency scale | A to G |
| Touchscreen | No |
| Package type | Box |
TUF gaming VG289Q
TUF Gaming VG289Q is a 28-inch, 4K UHD, IPS display with superior images, 90 % DCI-P3 color space designed for professional gamers.It also features FreeSync/Adaptive-Sync technology, for extremely fluid gameplay without tearing and stuttering.
28 inch 4K IPS display for detailed images and better color reproduction
The 28-inch 4K UHD (3840 X 2160) IPS panel of TUF Gaming VG289Q gives you four times the pixels of similar-sized Full HD 1080p displays so you get more detailed images when playing games or watching movies, as well as more onscreen desktop space for your various work windows. It draws you into immersive virtual worlds, with greatly-textured elements and terrain maps that boast impressive levels of detail.
High Dynamic Range (HDR) with DCI−P3 90%
VG289Q supports HDR technology across a range of luminance to deliver a wider color range and higher contrast than traditional monitors. The brightest whites and the darkest blacks bring out details like never before. It also delivers DCI-P3 90% color gamut and contrast performance.
HDR
Multi HDR Mode
Now you can choose from multiple HDR modes to adjust monitor HDR performance based on the current viewing scenario
HDR 10
To more fully realize gamers' vision, TUF Gaming is compatible with industry-standard HDR10 high dynamic range for color and brightness levels that exceed the capabilities of ordinary monitors.
ENGINEERING
Rich connectivity
Extensive connectivity options, including, DisplayPort1.2x1, HDMI (v2.0)x2, earphone jack support a wide array of multimedia devices.
Ergonomic design
With an ergonomically-designed stand, TUF Gaming VG289Q provides tilt, swivel, pivot and height adjustments so you can easily find your ideal viewing position. The display is also VESA-compatible for wall mounting.
| Display | |
|---|---|
| 3D | No |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| High Dynamic Range (HDR) supported | Yes |
| Digital vertical frequency | 40 - 60 Hz |
| Digital horizontal frequency | 24 - 120 kHz |
| Viewable size, vertical | 36 cm |
| Viewable size, horizontal | 63.2 cm |
| Pixel pitch | 0.16 x 0.16 mm |
| Display number of colours | 1.073 billion colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (typical) | 1000:1 |
| Screen shape | Flat |
| Response time | 5 ms |
| Display brightness (typical) | 350 cd/m² |
| Panel type | IPS |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 3840 x 2160 pixels |
| Display diagonal | 71.1 cm (28") |
| Performance | |
|---|---|
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| VESA Adaptive Sync support | Yes |
| AMD FreeSync type | FreeSync |
| AMD FreeSync | Yes |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| RMS rated power | 4 W |
| Number of speakers | 2 |
| Built-in camera | No |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Certification | EAC logo, BSMI, CB, CCC, CE, CEL level 1, FCC, PSB, PSE, TCO7.0, UL/cUL, VCCI, WEEE, WHQL (Windows 10, Windows 8, Windows 7), RCM, TUV Flicker-free , TUV Low Blue Light |
| Product colour | Black |
| Market positioning | Gaming |
| Ports & interfaces | |
|---|---|
| HDCP | Yes |
| Headphone out | Yes |
| Audio input | No |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.0 |
| HDMI ports quantity | 2 |
| HDMI | Yes |
| DVI port | No |
| Built-in USB hub | No |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 20° |
| Swivel angle range | -62 - 62° |
| Swivelling | Yes |
| Pivot angle | -90 - 90° |
| Pivot | Yes |
| Height adjustment | 15 cm |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Energy efficiency scale | A to G |
| Power consumption (off) | 0.2 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (typical) | 33.9 W |
| Energy consumption (HDR) per 1000 hours | 44 kWh |
| Energy consumption (SDR) per 1000 hours | 34 kWh |
| Energy efficiency class (HDR) | G |
| Energy efficiency class (SDR) | G |
| Weight & dimensions | |
|---|---|
| Weight (without stand) | 6.1 kg |
| Height (without stand) | 369.4 mm |
| Depth (without stand) | 54 mm |
| Width (without stand) | 639.5 mm |
| Weight (with stand) | 7.6 kg |
| Height (with stand) | 555.2 mm |
| Depth (with stand) | 233.4 mm |
| Width (with stand) | 639.5 mm |
| Packaging data | |
|---|---|
| Package weight | 9.6 kg |
| Package height | 451 mm |
| Package depth | 206 mm |
| Package width | 758 mm |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS, ENERGY STAR |
| General | |
|---|---|
| Product Family | TUF Gaming |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
| Other features | |
|---|---|
| TV tuner integrated | No |
| DCI-P3 coverage | 90% |
TUF gaming VG289Q
TUF Gaming VG289Q is a 28-inch, 4K UHD, IPS display with superior images, 90 % DCI-P3 color space designed for professional gamers.It also features FreeSync/Adaptive-Sync technology, for extremely fluid gameplay without tearing and stuttering.
28 inch 4K IPS display for detailed images and better color reproduction
The 28-inch 4K UHD (3840 X 2160) IPS panel of TUF Gaming VG289Q gives you four times the pixels of similar-sized Full HD 1080p displays so you get more detailed images when playing games or watching movies, as well as more onscreen desktop space for your various work windows. It draws you into immersive virtual worlds, with greatly-textured elements and terrain maps that boast impressive levels of detail.
High Dynamic Range (HDR) with DCI−P3 90%
VG289Q supports HDR technology across a range of luminance to deliver a wider color range and higher contrast than traditional monitors. The brightest whites and the darkest blacks bring out details like never before. It also delivers DCI-P3 90% color gamut and contrast performance.
HDR
Multi HDR Mode
Now you can choose from multiple HDR modes to adjust monitor HDR performance based on the current viewing scenario
HDR 10
To more fully realize gamers' vision, TUF Gaming is compatible with industry-standard HDR10 high dynamic range for color and brightness levels that exceed the capabilities of ordinary monitors.
IN−GAME ENHANCEMENTS
Shadow Boost
ASUS Shadow Boost technology clarifies dark areas of the game without overexposing brighter areas, improving overall viewing while also making it easier to spot enemies hidden in dark areas of the map.
GamePlus
The ASUS-exclusive, integrated GamePlus hotkey offers in-game enhancements that help you get more out of your game. This function is co-developed with input from pro gamers, allowing them to practice and improve their gaming skills.
GameVisual
ASUS GameVisual Technology has seven pre-set display modes to optimize visuals for different types of content. This unique feature can be easily accessed through a hotkey or the on-screen display settings menu
Flicker-Free technology
Flicker-Free technology reduces flicker to minimize eyestrain for improved comfort when you're embroiled in long gaming sessions.
Ultra-Low Blue Light technology
ASUS Ultra-Low Blue Light technology reduces the amount of potentially harmful blue light emitted by the display. Four different filter settings are available to control the amount of blue light reduction.
ENGINEERING
Rich connectivity
Extensive connectivity options, including, DisplayPort1.2x1, HDMI (v2.0)x2, earphone jack support a wide array of multimedia devices.
Ergonomic design
With an ergonomically-designed stand, TUF Gaming VG289Q provides tilt, swivel, pivot and height adjustments so you can easily find your ideal viewing position. The display is also VESA-compatible for wall mounting.
| Display | |
|---|---|
| Colour gamut | 90% |
| RGB colour space | DCI-P3 |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| High Dynamic Range (HDR) supported | Yes |
| Digital vertical frequency | 40 - 60 Hz |
| Digital horizontal frequency | 30 - 160 kHz |
| Viewable size, vertical | 34.1 cm |
| Viewable size, horizontal | 62.1 cm |
| Pixel pitch | 0.16 x 0.16 mm |
| Display number of colours | 1.073 billion colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 60 Hz |
| Dynamic contrast ratio marketing name | SmartContrast |
| Contrast ratio (dynamic) | 100000000:1 |
| Contrast ratio (typical) | 1000:1 |
| Screen shape | Flat |
| Response time | 5 ms |
| Display brightness (typical) | 350 cd/m² |
| Panel type | IPS |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 3840 x 2160 pixels |
| Display diagonal | 71.1 cm (28") |
| Performance | |
|---|---|
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| VESA Adaptive Sync support | Yes |
| AMD FreeSync type | FreeSync |
| AMD FreeSync | Yes |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| RMS rated power | 4 W |
| Number of speakers | 2 |
| Built-in camera | No |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Country of origin | China |
| Product colour | Black |
| Market positioning | Gaming |
| Ports & interfaces | |
|---|---|
| HDCP | Yes |
| Headphone out | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.0 |
| HDMI ports quantity | 2 |
| HDMI | Yes |
| Built-in USB hub | No |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 20° |
| Swivel angle range | -15 - 15° |
| Swivelling | Yes |
| Height adjustment | No |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Energy efficiency scale | A to G |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (PowerSave) | 0.5 W |
| Power consumption (off) | 0.5 W |
| Power consumption (typical) | 30 W |
| Energy consumption (HDR) per 1000 hours | 44 kWh |
| Energy consumption (SDR) per 1000 hours | 34 kWh |
| Energy efficiency class (HDR) | G |
| Energy efficiency class (SDR) | G |
| Packaging content | |
|---|---|
| Power adapter included | Yes |
| Weight & dimensions | |
|---|---|
| Weight (without stand) | 4.73 kg |
| Height (without stand) | 369.4 mm |
| Depth (without stand) | 65.7 mm |
| Width (without stand) | 639.5 mm |
| Weight (with stand) | 5.7 kg |
| Height (with stand) | 460.5 mm |
| Depth (with stand) | 213.8 mm |
| Width (with stand) | 639.5 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 8.12 kg |
| Package height | 178 mm |
| Package depth | 704 mm |
| Package width | 526 mm |
| General | |
|---|---|
| Product Family | TUF Gaming |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
ALL THE ESSENTIALS FOR NEXT-GEN GAMEPLAY
The 28-inch TUF Gaming VG28UQL1A 4K UHD gaming monitor featuring a Fast IPS panel and NVIDIA® G-SYNC® compatibility for blistering-fast 144 Hz gaming. Its clever combination of Display Stream Compression (DSC), ASUS Extreme Low Motion Blur Sync (ELMB Sync) and AMD FreeSync™ Premium technologies enables buttery-smooth gaming on PCs. Console gamers can get their fix, too, as TUF Gaming VG28UQL1A supports up to 4K 120 Hz visuals via HDMI® 2.1 without chroma subsampling. In addition, it meets DisplayHDR™ 400 compliance standards and has a 90% DCI-P3 gamut to offer exceptional colors and contrast.
GAMING KEY SPEC
144HZ REFRESH RATE AND 1MS (GTG) RESPONSE TIME
The liquid crystal elements in the ASUS Fast IPS display switches up to 4X faster than conventional IPS panels for swifter response, allowing you to enjoy the latest fast-paced games in all their glory with supersmooth lag-free visuals, even at the highest display settings.
GAMING KEY SPEC
ADAPTIVE-SYNC
TUF VG28UQL1A is NVIDIA G-SYNC compatible and includes AMD FreeSync Premium technology to ensure supersmooth, tear-free visuals with low latency.
COLOR PERFORMANCE
HIGH DYNAMIC RANGE
TUF Gaming VG28UQL1A takes advantage of HDR technology to deliver more vivid colors and higher contrast levels compared to traditional monitors.
EXCLUSIVE GAMING FEATURE
ELMB SYNC
TUF Gaming VG28UQL1A includes ELMB Sync* software that enables ELMB to work simultaneously with adaptive-sync technology to eliminate ghosting and tearing for extraordinarily sharp, high-frame-rate gaming.
*Ideal for Fast-paced games , works better over 85Hz.
EXCLUSIVE GAMING FEATURE
VARIABLE OVERDRIVE
Integrated ASUS Variable Overdrive technology allows the display to dynamically alter its overdrive setting as frame rates fluctuate, ensuring optimal results for any game. You choose how strong you want the overall effect to be, then let the monitor take it from there.
IN-GAME ENHANCEMENTS
INTUITIVE CONTROLS
ASUS DisplayWidget Lite is a software utility that lets you easily and quickly tweak settings or configure ASUS-exclusive features such as Shadow Boost, ASUS GameVisual, and more.
SHADOW BOOST
ASUS Shadow Boost technology clarifies dark areas of the game without overexposing brighter areas, improving overall viewing while also making it easier to spot enemies hidden in dark areas of the map.
GAMEPLUS
The ASUS-exclusive, integrated GamePlus hotkey offers in-game enhancements that help you get more out of your game. This function is co-developed with input from pro gamers, allowing them to practice and improve their gaming skills.
GAMEVISUAL
ASUS GameVisual Technology has seven pre-set display modes to optimize visuals for different types of content. This unique feature can be easily accessed through a hotkey or the on-screen display settings menu.
FLICKER-FREE TECHNOLOGY
Flicker-Free technology reduces flicker to minimize eyestrain for improved comfort when you're embroiled in long gaming sessions.
LOW BLUE LIGHT
The new hardware-based ASUS Low Blue Light technology reduces potentially harmful high-energy blue light emissions while offering color performance that’s better than monitors with software-only filtering solutions.
ENGINEERING
EXTENSIVE CONNECTIVITY
A multitude of connectivity options, including HDMI 2.0 and 2.1, plus DisplayPort™ 1.4 (DSC), ensures wide compatibility with a variety of input sources.
ERGONOMIC DESIGN
With an ergonomically-designed stand, it provides tilt, swivel, pivot, and height adjustments so you can easily find your ideal viewing position. The display is also VESA-compatible for wall mounting.
| Display | |
|---|---|
| Colour gamut | 90% |
| RGB colour space | DCI-P3 |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| High Dynamic Range (HDR) supported | Yes |
| Digital vertical frequency | 48 - 144 Hz |
| Digital horizontal frequency | 30 - 340 kHz |
| Viewable size, vertical | 34.1 cm |
| Viewable size, horizontal | 62.1 cm |
| Pixel pitch | 0.16 x 0.16 mm |
| Display number of colours | 1.073 billion colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 144 Hz |
| Dynamic contrast ratio marketing name | SmartContrast |
| Contrast ratio (dynamic) | 1000000:1 |
| Contrast ratio (typical) | 1000:1 |
| Screen shape | Flat |
| Response time | 1 ms |
| Display brightness (typical) | 300 cd/m² |
| Display brightness (peak) | 450 cd/m² |
| Backlight type | LED |
| Panel type | IPS |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Display technology | LCD |
| Native aspect ratio | 16:9 |
| Display resolution | 3840 x 2160 pixels |
| Display diagonal | 71.1 cm (28") |
| Performance | |
|---|---|
| Game mode | Yes |
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| AMD FreeSync type | FreeSync Premium |
| NVIDIA G-SYNC type | G-SYNC Compatible |
| AMD FreeSync | Yes |
| NVIDIA G-SYNC | Yes |
| Multimedia | |
|---|---|
| RMS rated power | 4 W |
| Number of speakers | 2 |
| Built-in camera | No |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Feet colour | Black |
| Detachable stand | Yes |
| Product colour | Black |
| Market positioning | Gaming |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Headphone out | Yes |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.0/2.1 |
| HDMI ports quantity | 4 |
| HDMI | Yes |
| USB Type-A downstream ports quantity | 2 |
| Number of upstream ports | 1 |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub | Yes |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| Tilt angle range | 20 - -5° |
| Swivel angle range | 15 - -15° |
| Swivelling | Yes |
| Pivot angle | 90 - -90° |
| Pivot | Yes |
| Height adjustment | 12 cm |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Energy efficiency scale | A to G |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (PowerSave) | 0.45 W |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (typical) | 33 W |
| Energy consumption (HDR) per 1000 hours | 60 kWh |
| Energy consumption (SDR) per 1000 hours | 33 kWh |
| Energy efficiency class (HDR) | G |
| Energy efficiency class (SDR) | G |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Cables included | AC, DisplayPort, HDMI, USB Type-A |
| Stand included | Yes |
| Weight & dimensions | |
|---|---|
| Weight (without stand) | 4.67 kg |
| Height (without stand) | 369.4 mm |
| Depth (without stand) | 65.7 mm |
| Width (without stand) | 639.5 mm |
| Weight (with stand) | 6.89 kg |
| Height (with stand) | 539.8 mm |
| Depth (with stand) | 213.8 mm |
| Width (with stand) | 639.5 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 10.4 kg |
| Package height | 446 mm |
| Package depth | 224 mm |
| Package width | 716 mm |
| Sustainability | |
|---|---|
| European Product Registry for Energy Labelling (EPREL) code | 699960 |
| General | |
|---|---|
| Product Family | TUF Gaming |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |

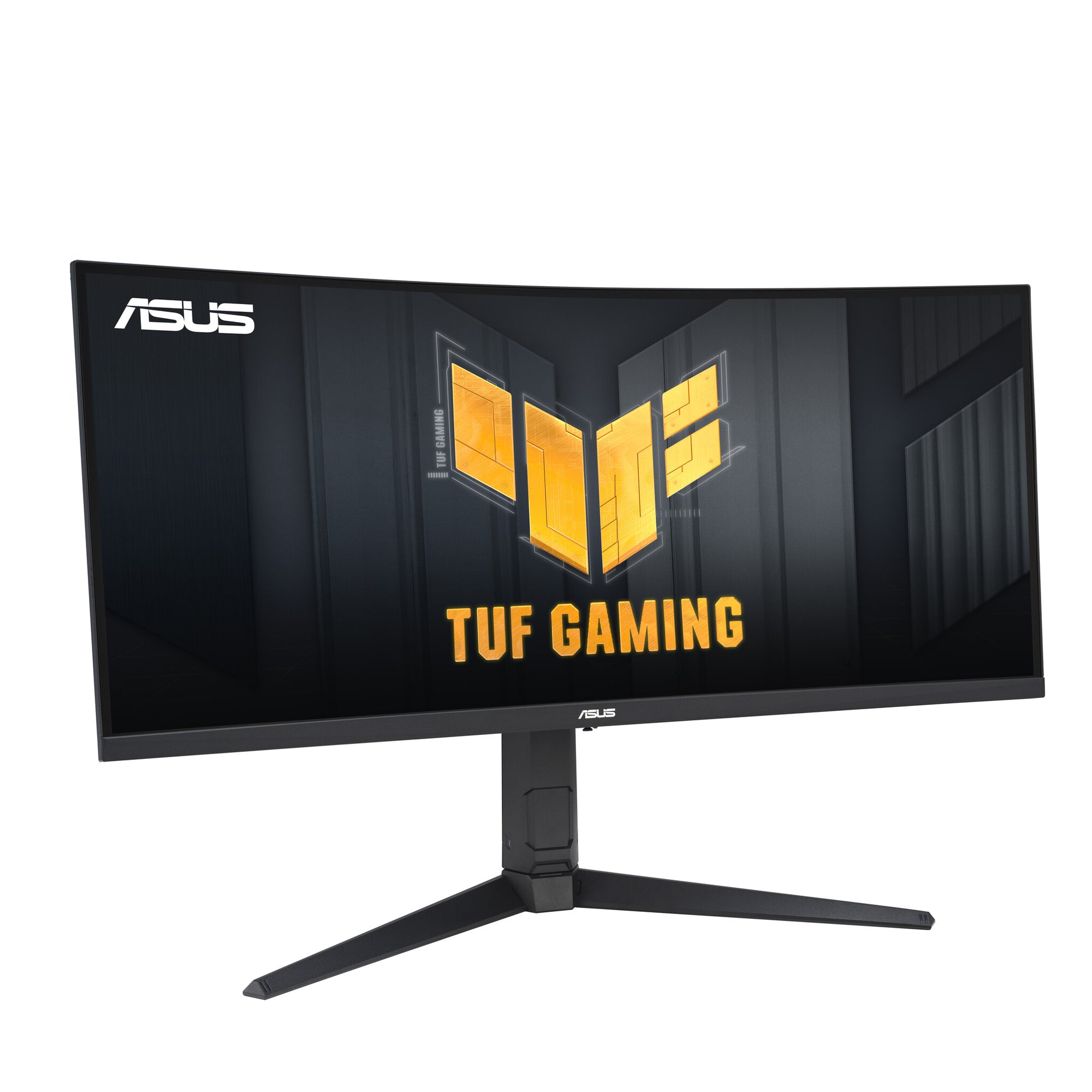

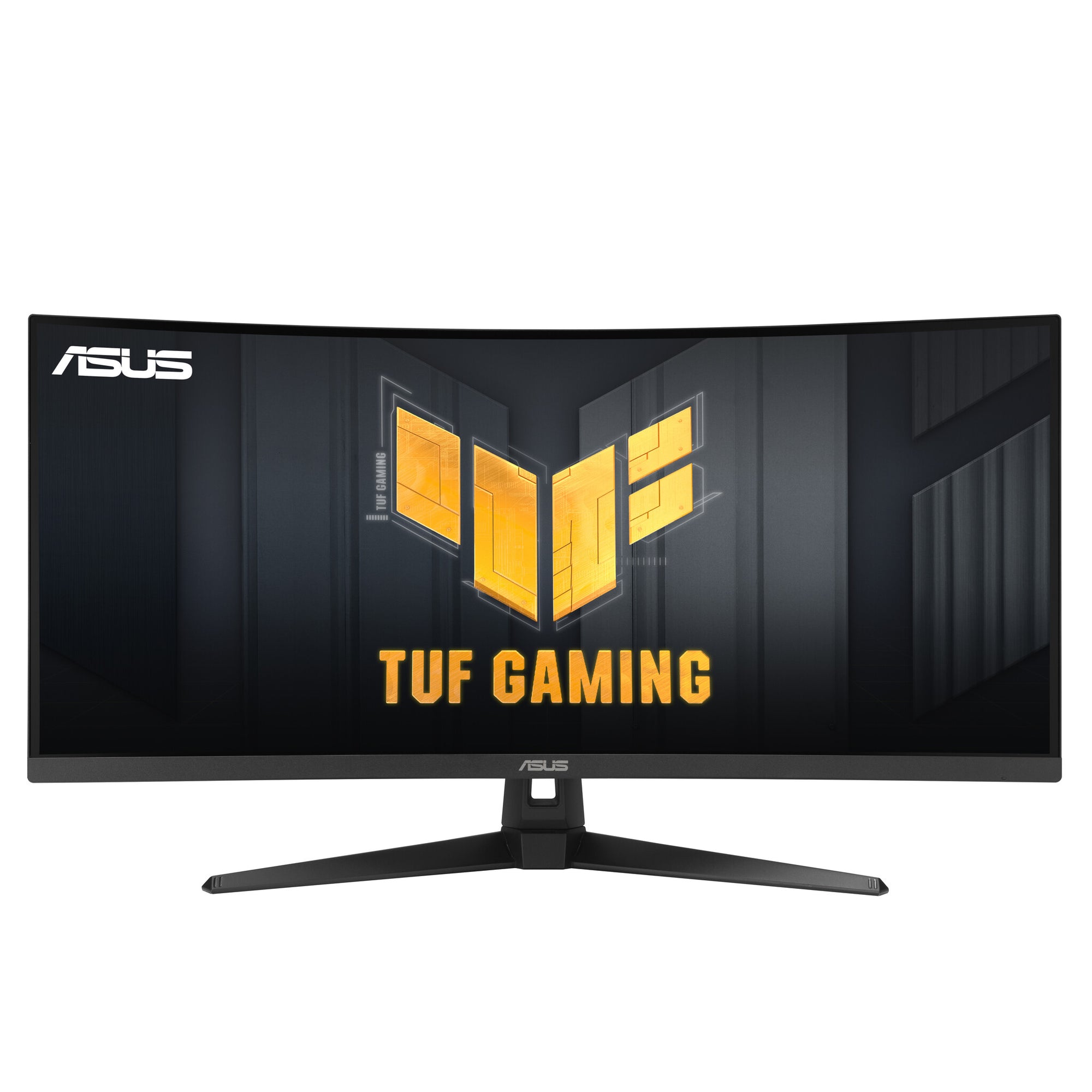

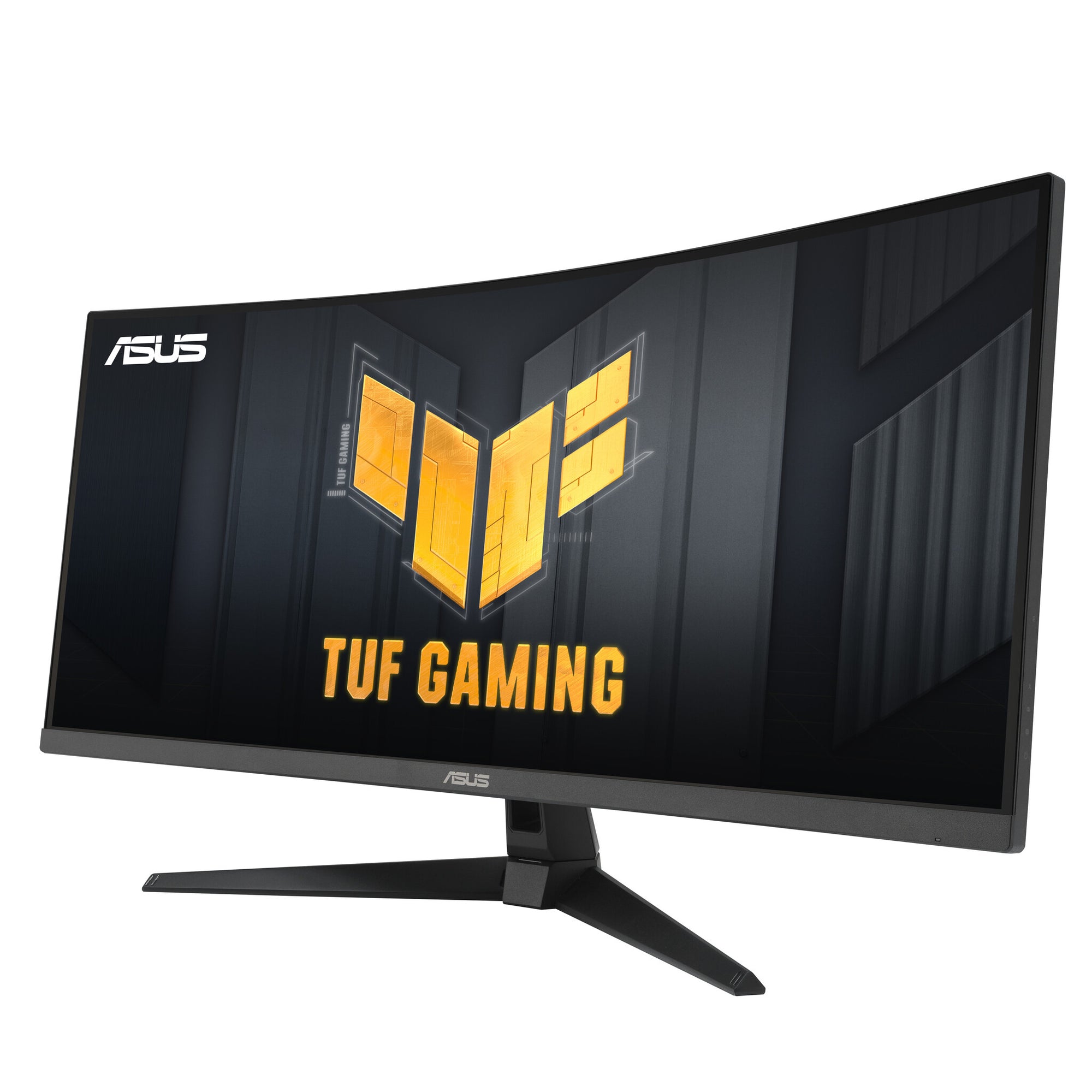

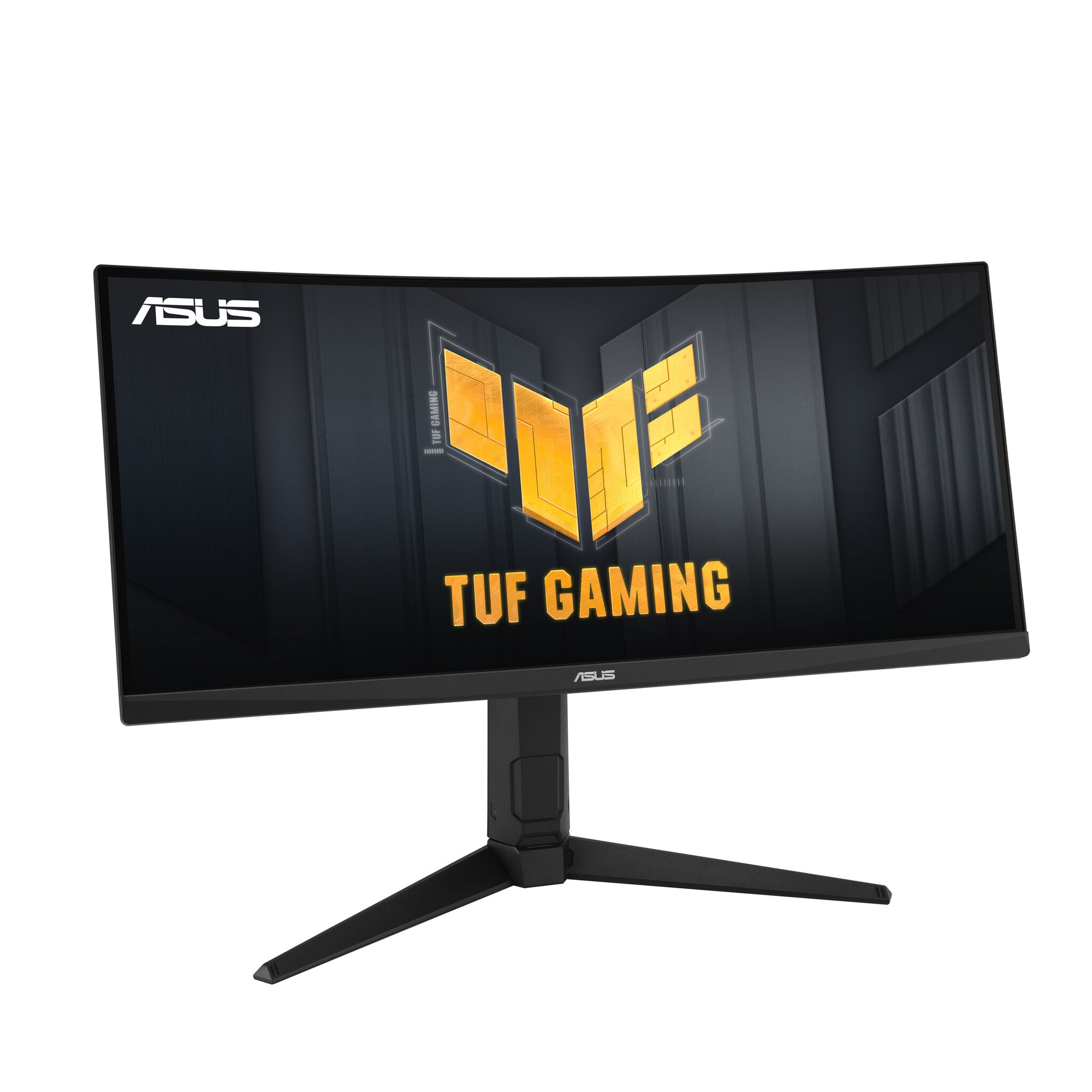

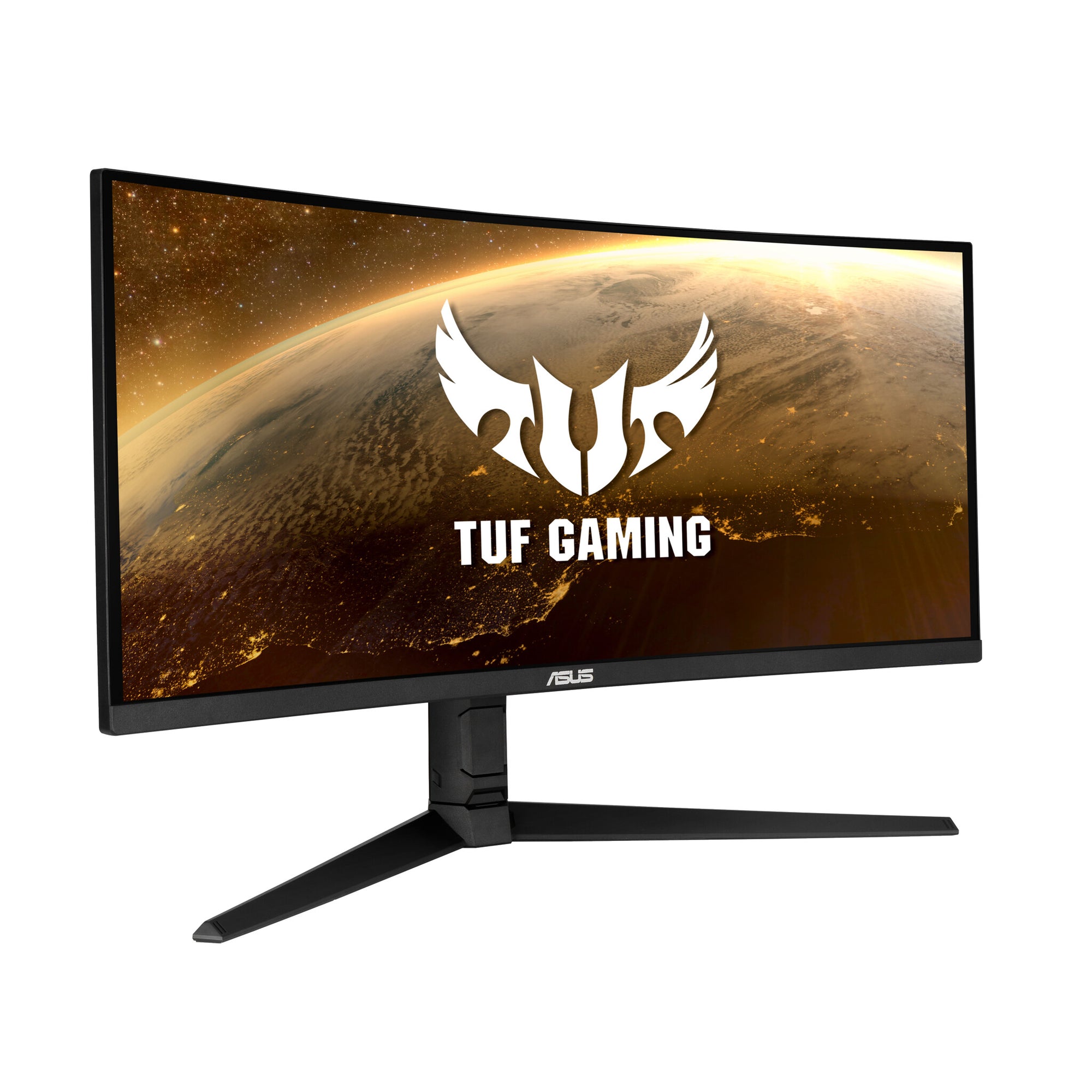

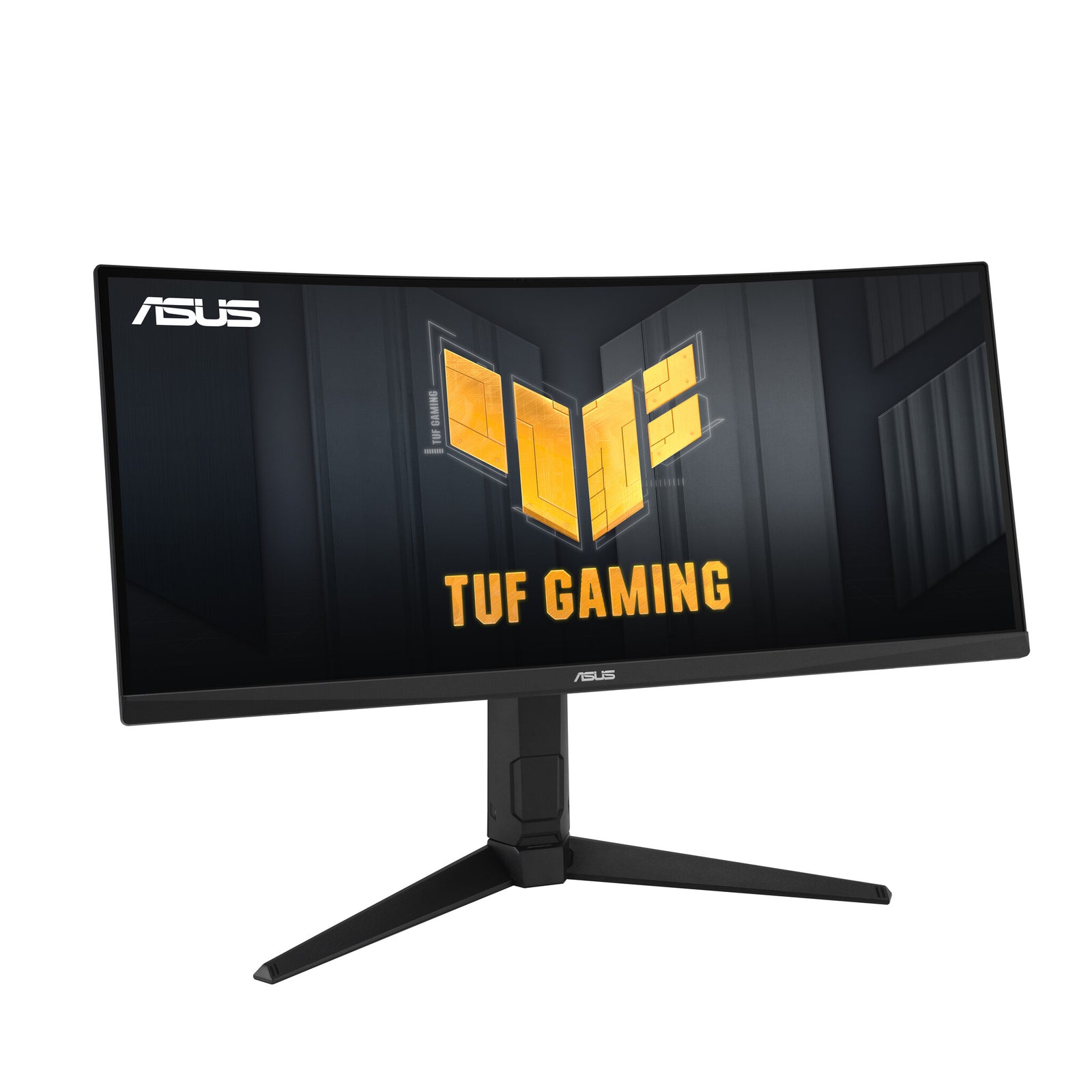

The TUF Gaming VG30VQL1A is a 29.5-inch WFHD (2560 x 1080) 1500R curved gaming monitor with an ultrafast 200 Hz refresh rate and 1 ms (MPRT) response time for extremely immersive gameplay. It features exclusive Extreme Low Motion Blur (ELMB) technology and AMD FreeSync™ Premium to eliminate ghosting and tearing. In addition, it also features High Dynamic Range technology, supporting the HDR10 format and covering 127% of the sRGB color gamut for great contrast and lifelike colors.
GAMING KEY SPEC
200HZ REFRESH RATE AND 1MS (MPRT) RESPONSE TIME
TUF Gaming VG30VQL1A delivers stunning visuals from all angles with an 1500R curvature that ensures every point is equidistant to your eyes. With 200Hz refresh rate decimates lag and motion blur to give you the upper hand in first person shooters, racers, real-time strategy, and sports titles. This ultrafast refresh rate lets you play at the highest visual settings and lets you react instantly to what's onscreen — so you'll get that first strike in.
GAMING KEY SPEC
ADAPTIVE-SYNC
AMD FreeSync Premium technology supported through DP and HDMI ports providing variable refresh rates for low latency, stuttering-free and tearing-free while gaming.
COLOR PERFORMANCE
HIGH DYNAMIC RANGE
TUF Gaming VG30VQL1A takes advantage of HDR technology to deliver more vivid colors and higher contrast levels compared to traditional monitors.
EXCLUSIVE GAMING FEATURE
EXTREME LOW MOTION BLUR (ELMB)
ASUS Extreme Low Motion Blur (ELMB) technology provides a 1 ms MPRT response time to eliminate smearing and motion blur. It makes moving objects appear even sharper, so gameplay is more fluid and responsive.
EXCLUSIVE GAMING FEATURE
VARIABLE OVERDRIVE
Integrated ASUS Variable Overdrive technology allows the display to dynamically alter its overdrive setting as frame rates fluctuate, ensuring optimal results for any game. You choose how strong you want the overall effect to be, then let the monitor take it from there.
INTUITIVE CONTROLS
ASUS DisplayWidget Lite is a software utility that lets you easily and quickly tweak settings or configure ASUS-exclusive features such as Shadow Boost, ASUS GameVisual, and more.
SHADOW BOOST
ASUS Shadow Boost technology clarifies dark areas of the game without overexposing brighter areas, improving overall viewing while also making it easier to spot enemies hidden in dark areas of the map.
GAMEPLUS
The ASUS-exclusive, integrated GamePlus hotkey offers in-game enhancements that help you get more out of your game. This function is co-developed with input from pro gamers, allowing them to practice and improve their gaming skills.
GAMEVISUAL
ASUS GameVisual Technology has seven pre-set display modes to optimize visuals for different types of content. This unique feature can be easily accessed through a hotkey or the on-screen display settings menu.
LICKER-FREE TECHNOLOGY
Flicker-Free technology reduces flicker to minimize eyestrain for improved comfort when you're embroiled in long gaming sessions.
FLICKER-FREE TECHNOLOGY
Flicker-Free technology reduces flicker to minimize eyestrain for improved comfort when you're embroiled in long gaming sessions.
LOW BLUE LIGHT
ASUS Low Blue Light technology reduces the amount of potentially harmful blue light emitted by the display. Four different filter settings are available to control the amount of blue light reduction.
EXTENSIVE CONNECTIVITY
A multitude of connectivity options, including two HDMI 2.0, plus DisplayPort™ 1.2, ensures wide compatibility with a variety of input sources.
ERGONOMIC DESIGN
With an ergonomically-designed stand, it provides tilt, swivel, pivot, and height adjustments so you can easily find your ideal viewing position. The display is also VESA-compatible for wall mounting.
| Display | |
|---|---|
| sRGB coverage (typical) | 127% |
| Colour gamut | 127% |
| RGB colour space | sRGB |
| High Dynamic Range (HDR) technology | High Dynamic Range 10+ (HDR10 Plus) |
| High Dynamic Range (HDR) supported | Yes |
| Digital vertical frequency | 48 - 180 Hz |
| Digital horizontal frequency | 30 - 205 kHz |
| Viewable size, vertical | 29.1 cm |
| Viewable size, horizontal | 69 cm |
| Pixel pitch | 0 x 0.27 mm |
| Display number of colours | 16.7 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 200 Hz |
| Contrast ratio (typical) | 3000:1 |
| Screen curvature rating | 1500R |
| Screen shape | Curved |
| Anti-glare screen | Yes |
| Response time | 1 ms |
| Display brightness (typical) | 300 cd/m² |
| Backlight type | LED |
| Panel type | VA |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 21:9 |
| Display resolution | 2560 x 1080 pixels |
| Display diagonal | 74.9 cm (29.5") |
| Performance | |
|---|---|
| Game mode | Yes |
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| ConnectShare (USB) | Yes |
| AMD FreeSync type | FreeSync Premium |
| AMD FreeSync | Yes |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| RMS rated power | 4 W |
| Number of speakers | 2 |
| Built-in camera | No |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Detachable stand | Yes |
| Product colour | Black |
| Market positioning | Gaming |
| Ports & interfaces | |
|---|---|
| AC (power) in | Yes |
| HDCP | Yes |
| Headphone out | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.0 |
| HDMI ports quantity | 2 |
| HDMI | Yes |
| Number of upstream ports | 2 |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub | Yes |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| Tilt angle range | 20 - -5° |
| Swivel angle range | 25 - -25° |
| Swivelling | Yes |
| Height adjustment | 13 cm |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Energy efficiency scale | A to G |
| Power consumption (PowerSave) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (typical) | 28 W |
| Energy consumption (HDR) per 1000 hours | 38 kWh |
| Energy consumption (SDR) per 1000 hours | 26 kWh |
| Energy efficiency class (HDR) | G |
| Energy efficiency class (SDR) | F |
| Weight & dimensions | |
|---|---|
| Weight (without stand) | 4.8 kg |
| Height (without stand) | 322 mm |
| Depth (without stand) | 52 mm |
| Width (without stand) | 703 mm |
| Weight (with stand) | 7 kg |
| Height (with stand) | 516 mm |
| Depth (with stand) | 215 mm |
| Width (with stand) | 703 mm |
| Sustainability | |
|---|---|
| European Product Registry for Energy Labelling (EPREL) code | 808698 |
| General | |
|---|---|
| Product Family | TUF Gaming |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |

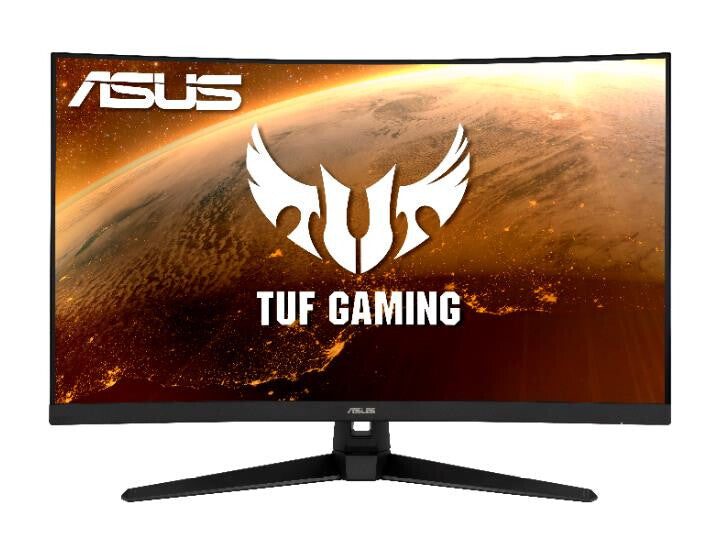

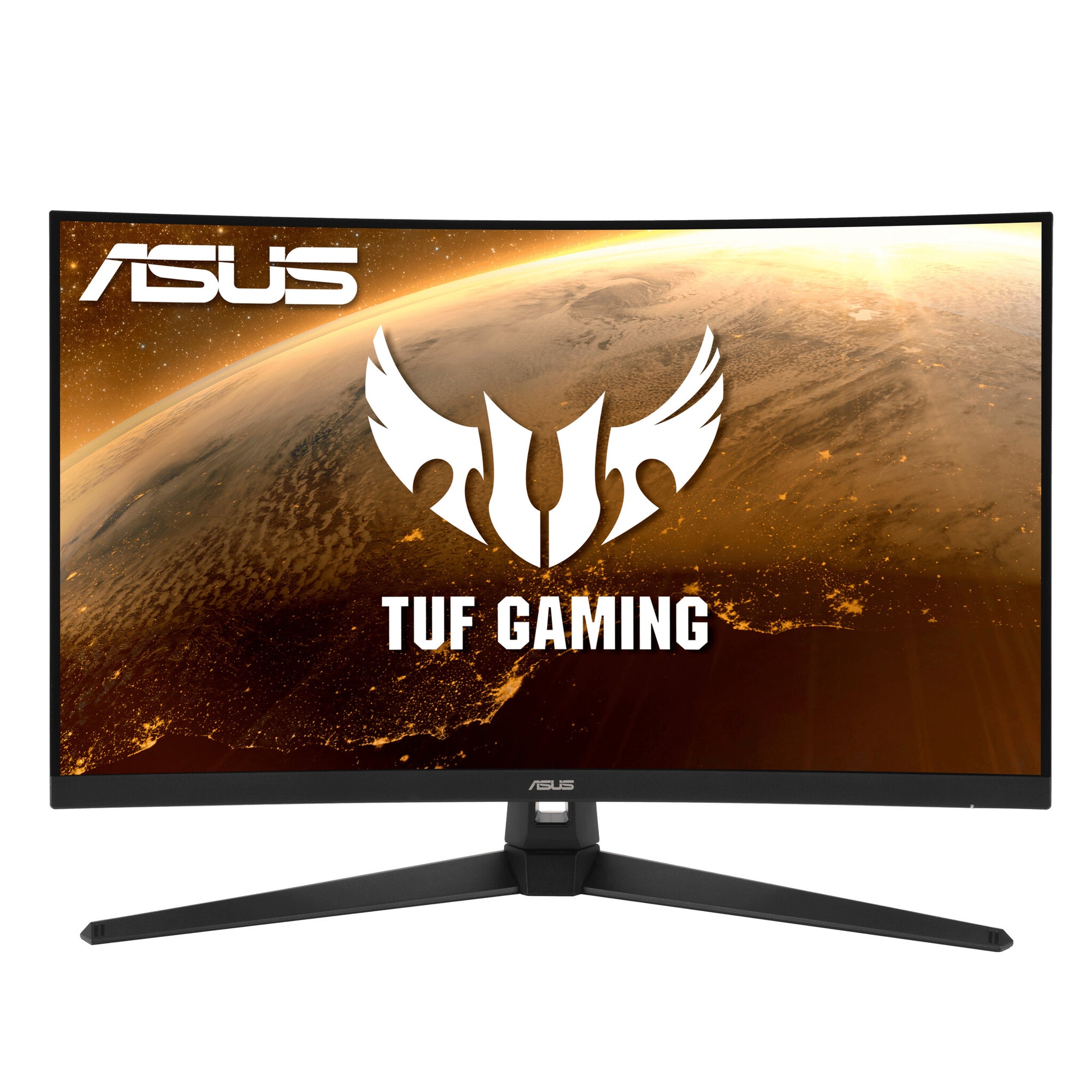

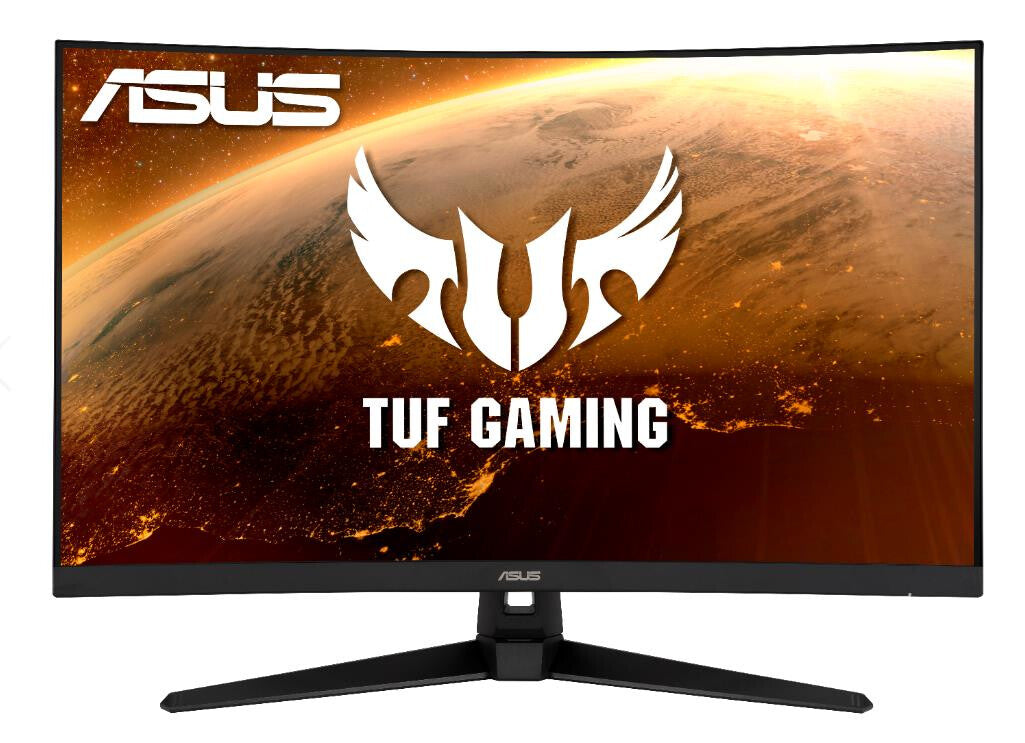

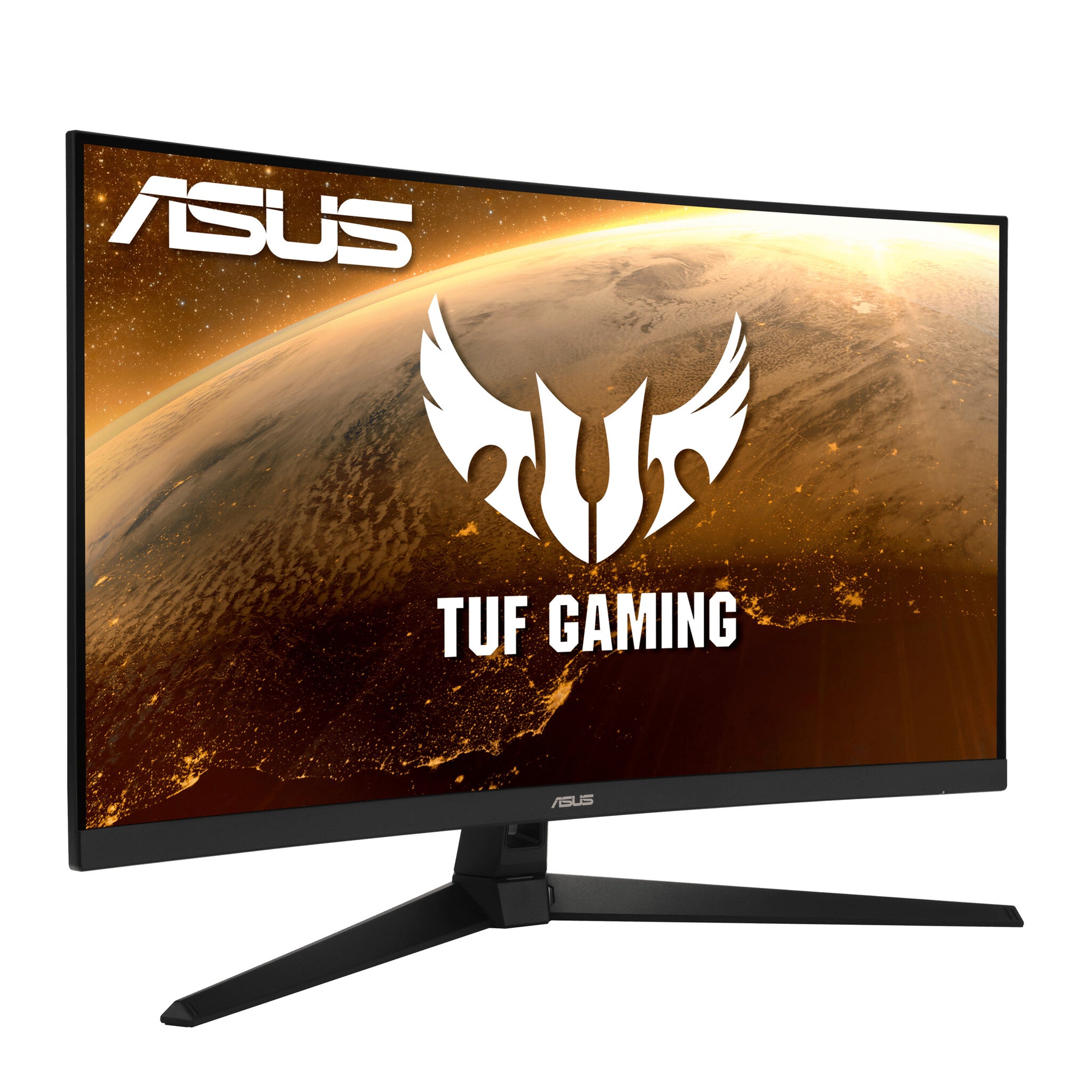

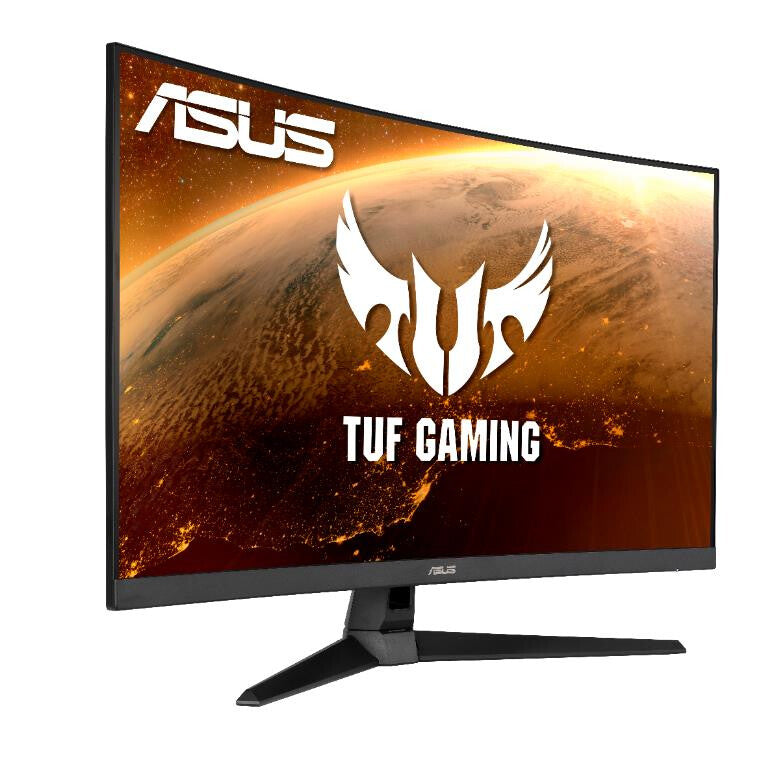

TUF gaming VG328H1B
TUF Gaming VG328H1B is a 31.5-inch, Full HD (1920x1080), curved display with an ultrafast 165Hz refresh rate designed for professional gamers and those seeking immersive gameplay. Those are some serious specs, but not even the most exciting thing the VG328H1B has in store.Its impressive curved display features a 165Hz refresh rate and Adaptive-Sync (FreeSync™ Premium) technology, for extremely fluid gameplay without tearing and stuttering.
31.5-inch immersive curvature
The 31.5-inch Full HD (1920 X 1080) panel of TUF Gaming VG328H1B delivers stunning visuals from all angles with an 1500R curvature that ensures every point is equidistant to your eyes. This contributes to greater viewing comfort — even during extended use —and lets you enjoy a wide viewing angle with less distortion and color shift when gaming and watching movies.
165Hz Refresh Rate
TUF Gaming VG328H1B 165Hz* refresh rate decimates lag and motion blur to give you the upper hand in first person shooters, racers, real-time strategy, and sports titles. This ultrafast refresh rate lets you play at the highest visual settings and lets you react instantly to what's onscreen — so you'll get that first strike in.
EXTREME LOW MOTION BLUR
VG328H1B Features the latest ASUS-exclusive Extreme Low Motion Blur technology, which achieves 1ms MPRT to eliminate smearing and motion blur, and makes objects in motion look sharper, so gameplay is more fluid and responsive.
Shadow Boost
ASUS Shadow Boost technology clarifies dark areas of the game without overexposing brighter areas, improving overall viewing while also making it easier to spot enemies hidden in dark areas of the map.
GamePlus
The ASUS-exclusive, integrated GamePlus hotkey offers in-game enhancements that help you get more out of your game. This function is co-developed with input from pro gamers, allowing them to practice and improve their gaming skills.
GameVisual
ASUS GameVisual Technology has seven pre-set display modes to optimize visuals for different types of content. This unique feature can be easily accessed through a hotkey or the on-screen display settings menu
Flicker-Free technology
Flicker-Free technology reduces flicker to minimize eyestrain for improved comfort when you're embroiled in long gaming sessions.
Ultra-Low Blue Light technology
ASUS Ultra-Low Blue Light technology reduces the amount of potentially harmful blue light emitted by the display. Four different filter settings are available to control the amount of blue light reduction.
Rich connectivity
Extensive connectivity options, including, HDMI (v2.0), D-sub, Earphone Jack support a wide array of multimedia devices.
Ergonomic design
With an ergonomically-designed stand, TUF Gaming VG328H1B provides tilt and swivel so you can easily find your ideal viewing position. The display is also VESA-compatible for wall mounting.
| Display | |
|---|---|
| sRGB coverage (typical) | 120% |
| RGB colour space | sRGB |
| DDC/CI | Yes |
| Digital vertical frequency | 48 - 165 Hz |
| Digital horizontal frequency | 24 - 180 kHz |
| Viewable size diagonal | 39.3 cm |
| Viewable size, vertical | 69.8 cm |
| Pixel pitch | 0.363 x 0.363 mm |
| Display number of colours | 16.78 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 165 Hz |
| Contrast ratio (typical) | 3000:1 |
| Aspect ratio | 16:9 |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Screen shape | Curved |
| Display surface | Matt |
| Response time | 1 ms |
| Display brightness (typical) | 250 cd/m² |
| Panel type | VA |
| HD type | Full HD |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 80 cm (31.5") |
| Performance | |
|---|---|
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| AMD FreeSync type | FreeSync Premium |
| AMD FreeSync | Yes |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| RMS rated power | 2 W |
| Number of speakers | 2 |
| Built-in camera | No |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Feet colour | Black |
| Frameless design | Yes |
| Product colour | Black |
| Market positioning | Gaming |
| Ports & interfaces | |
|---|---|
| PC Audio in | Yes |
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Headphone out | Yes |
| HDMI version | 2.0 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Built-in USB hub | No |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 23° |
| Swivel angle range | -15 - 15° |
| Swivelling | Yes |
| Height adjustment | No |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Energy efficiency scale | A to G |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (off) | 0.2 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (typical) | 33.2 W |
| Energy consumption (SDR) per 1000 hours | 33 kWh |
| Energy efficiency class (HDR) | Not available |
| Energy efficiency class (SDR) | G |
| Packaging content | |
|---|---|
| HDMI cable length | 1 m |
| Cables included | AC, Audio (3.5mm) |
| Stand included | Yes |
| Weight & dimensions | |
|---|---|
| Weight (without stand) | 6 kg |
| Height (without stand) | 426.1 mm |
| Depth (without stand) | 87.3 mm |
| Width (without stand) | 709.8 mm |
| Weight (with stand) | 7 kg |
| Height (with stand) | 507.1 mm |
| Depth (with stand) | 213.8 mm |
| Width (with stand) | 709.8 mm |
| Packaging data | |
|---|---|
| Package weight | 10.6 kg |
| Package height | 595 mm |
| Package depth | 226 mm |
| Package width | 810 mm |
| General | |
|---|---|
| Product Family | TUF Gaming |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
TUF Gaming VG328QA1A is a 31.5-inch Full HD (1920 x 1080) gaming monitor with an overclocking 170Hz refresh rate and 1 ms (MPRT) response time for extremely immersive gameplay. It features exclusive Extreme Low Motion Blur (ELMB) technology and AMD FreeSync™ Premium to eliminate ghosting and tearing. In addition, it also features 100% sRGB color gamut ensures exceptional contrast and color performance.
GAMING KEY SPEC
170HZ REFRESH RATE(OC) AND 1MS (MPRT) RESPONSE TIME
TUF Gaming VG328QA1A delivers stunning visuals from all angles. With overclock to 170Hz refresh rate decimates lag and motion blur to give you the upper hand in first person shooters, racers, real-time strategy, and sports titles. This ultrafast refresh rate lets you play at the highest visual settings and lets you react instantly to what's onscreen — so you'll get that first strike in.
GAMING KEY SPEC
ADAPTIVE-SYNC
AMD FreeSync Premium technology supported through DP and HDMI ports providing variable refresh rates for low latency, stuttering-free and tearing-free while gaming.
EXCLUSIVE GAMING FEATURE
EXTREME LOW MOTION BLUR (ELMB)
ASUS Extreme Low Motion Blur (ELMB) technology provides a 1 ms MPRT response time to eliminate smearing and motion blur. It makes moving objects appear even sharper, so gameplay is more fluid and responsive.
EXCLUSIVE GAMING FEATURE
VARIABLE OVERDRIVE
Integrated ASUS Variable Overdrive technology allows the display to dynamically alter its overdrive setting as frame rates fluctuate, ensuring optimal results for any game. You choose how strong you want the overall effect to be, then let the monitor take it from there.
INTUITIVE CONTROLS
DisplayWidget Center software upgraded the user interface so that users can easily change monitor settings via a mouse ― so there’s no need to access the OSD menu.
SHADOW BOOST
ASUS Shadow Boost technology clarifies dark areas of the game without overexposing brighter areas, improving overall viewing while also making it easier to spot enemies hidden in dark areas of the map.
GAMEPLUS
The ASUS-exclusive, integrated GamePlus hotkey offers in-game enhancements that help you get more out of your game. This function is co-developed with input from pro gamers, allowing them to practice and improve their gaming skills.
GAMEVISUAL
ASUS GameVisual Technology has seven pre-set display modes to optimize visuals for different types of content. This unique feature can be easily accessed through a hotkey or the on-screen display settings menu.
FLICKER-FREE TECHNOLOGY
Flicker-Free technology reduces flicker to minimize eyestrain for improved comfort when you're embroiled in long gaming sessions.
LOW BLUE LIGHT
ASUS Low Blue Light technology reduces the amount of potentially harmful blue light emitted by the display. Four different filter settings are available to control the amount of blue light reduction.
EXTENSIVE CONNECTIVITY
A multitude of connectivity options, including two HDMI 2.0, plus DisplayPort™ 1.2, ensures wide compatibility with a variety of input sources.
ERGONOMIC DESIGN
With an ergonomically-designed stand, it provides tilt so you can easily find your ideal viewing position. The display is also VESA-compatible for wall mounting.
| Display | |
|---|---|
| Colour gamut standard | sRGB |
| sRGB coverage (typical) | 100% |
| Colour gamut | 100% |
| Digital vertical frequency | 48 - 170 Hz |
| Digital horizontal frequency | 30 - 195 kHz |
| Viewable size, vertical | 39.3 cm |
| Viewable size, horizontal | 69.8 cm |
| Pixel pitch | 0.363 x 0.363 mm |
| Display number of colours | 16.7 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 170 Hz |
| Contrast ratio (typical) | 3000:1 |
| Screen shape | Flat |
| Anti-glare screen | Yes |
| Response time | 1 ms |
| Display brightness (typical) | 300 cd/m² |
| Backlight type | LED |
| Panel type | VA |
| HD type | Full HD |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 80 cm (31.5") |
| Performance | |
|---|---|
| Game mode | Yes |
| Shadow сontrol | Yes |
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| AMD FreeSync type | FreeSync Premium |
| AMD FreeSync | Yes |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| RMS rated power | 4 W |
| Number of speakers | 2 |
| Built-in camera | No |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Certification | TÜV Flicker-freeTÜV Low Blue LightAMD FreeSync Premium |
| Feet colour | Black |
| Detachable stand | Yes |
| Front bezel colour | Black |
| Product colour | Black |
| Market positioning | Gaming |
| Ports & interfaces | |
|---|---|
| AC (power) in | Yes |
| Headphone out | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.0 |
| HDMI ports quantity | 2 |
| HDMI | Yes |
| USB Type-A downstream ports quantity | 1 |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub | Yes |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 20° |
| Height adjustment | No |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Energy efficiency scale | A to G |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 23.5 W |
| Energy consumption (SDR) per 1000 hours | 32 kWh |
| Energy efficiency class (SDR) | F |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Cables included | AC, DisplayPort, HDMI |
| Stand included | Yes |
| Weight & dimensions | |
|---|---|
| Weight (without stand) | 5.9 kg |
| Height (without stand) | 426.9 mm |
| Depth (without stand) | 58 mm |
| Width (without stand) | 716.2 mm |
| Weight (with stand) | 6.8 kg |
| Height (with stand) | 497.2 mm |
| Depth (with stand) | 213.8 mm |
| Width (with stand) | 716.2 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 8.8 kg |
| Package height | 520 mm |
| Package depth | 185 mm |
| Package width | 800 mm |
| Sustainability | |
|---|---|
| European Product Registry for Energy Labelling (EPREL) code | 1503739 |
| General | |
|---|---|
| Product Family | TUF Gaming |
TUF Gaming VG32AQA1A is a 31.5-inch WQHD (2560 x 1440) gaming monitor with an overclocking 170Hz refresh rate and 1 ms (MPRT) response time for extremely immersive gameplay. It features exclusive Extreme Low Motion Blur (ELMB) technology and AMD FreeSync™ Premium to eliminate ghosting and tearing. In addition, it also features High Dynamic Range technology, supporting the HDR10 for great contrast and lifelike colors.
GAMING KEY SPEC
170HZ REFRESH RATE(OC) AND 1MS (GTG) RESPONSE TIME
The liquid crystal elements in the ASUS Fast IPS display switches up to 4X faster than conventional IPS panels for swifter response, allowing you to enjoy the latest fast-paced games in all their glory with supersmooth lag-free visuals, even at the highest display settings.
ADAPTIVE-SYNC
NVIDIA G-SYNC compatible and AMD FreeSync Premium technology ensure supersmooth, tear-free visuals with low latency.
COLOR PERFORMANCE
HIGH DYNAMIC RANGE
TUF Gaming VG32AQL1A takes advantage of HDR technology to deliver more vivid colors and higher contrast levels compared to traditional monitors.
EXCLUSIVE GAMING FEATURE
ELMB SYNC
ELMB Sync software that enables ELMB to work simultaneously with adaptive-sync technology to eliminate ghosting and tearing for extraordinarily sharp, high-frame-rate gaming.
EXCLUSIVE GAMING FEATURE
VARIABLE OVERDRIVE
Integrated ASUS Variable Overdrive technology allows the display to dynamically alter its overdrive setting as frame rates fluctuate, ensuring optimal results for any game. You choose how strong you want the overall effect to be, then let the monitor take it from there.
INTUITIVE CONTROLS
ASUS DisplayWidget Lite is a software utility that lets you easily and quickly tweak settings or configure ASUS-exclusive features such as Shadow Boost, ASUS GameVisual, and more.
SHADOW BOOST
ASUS Shadow Boost technology clarifies dark areas of the game without overexposing brighter areas, improving overall viewing while also making it easier to spot enemies hidden in dark areas of the map.
GAMEPLUS
The ASUS-exclusive, integrated GamePlus hotkey offers in-game enhancements that help you get more out of your game. This function is co-developed with input from pro gamers, allowing them to practice and improve their gaming skills.
GAMEVISUAL
ASUS GameVisual Technology has seven pre-set display modes to optimize visuals for different types of content. This unique feature can be easily accessed through a hotkey or the on-screen display settings menu.
FLICKER-FREE TECHNOLOGY
Flicker-Free technology reduces flicker to minimize eyestrain for improved comfort when you're embroiled in long gaming sessions.
LOW BLUE LIGHT
The new hardware-based ASUS Low Blue Light technology reduces potentially harmful high-energy blue light emissions while offering color performance that’s better than monitors with software-only filtering solutions.
EXTENSIVE CONNECTIVITY
A multitude of connectivity options, including two HDMI 2.0, plus DisplayPort™ 1.2, ensures wide compatibility with a variety of input sources.
ERGONOMIC DESIGN
With an ergonomically-designed stand, it provides tilt, swivel, pivot, and height adjustments so you can easily find your ideal viewing position. The display is also VESA-compatible for wall mounting.
| Display | |
|---|---|
| sRGB coverage (typical) | 125% |
| Digital vertical frequency | 48 - 144 Hz |
| Digital horizontal frequency | 30 - 223 kHz |
| Viewable size, vertical | 39.2 cm |
| Viewable size, horizontal | 69.7 cm |
| Pixel pitch | 0.272 x 0.272 mm |
| Display number of colours | 16.7 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 170 Hz |
| Dynamic contrast ratio marketing name | ASUS Smart Contrast Ratio (ASCR) |
| Contrast ratio (dynamic) | 100000000:1 |
| Contrast ratio (typical) | 3000:1 |
| Screen shape | Flat |
| Anti-glare screen | Yes |
| Response time | 1 ms |
| Display brightness (typical) | 300 cd/m² |
| Backlight type | LED |
| Panel type | VA |
| HD type | Wide Quad HD |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 2560 x 1440 pixels |
| Display diagonal | 80 cm (31.5") |
| Performance | |
|---|---|
| Game mode | Yes |
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| AMD FreeSync type | FreeSync Premium |
| AMD FreeSync | Yes |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| RMS rated power | 4 W |
| Number of speakers | 2 |
| Built-in camera | No |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Feet colour | Black |
| Product colour | Black |
| Market positioning | Gaming |
| Ports & interfaces | |
|---|---|
| HDCP version | 2.2 |
| HDCP | Yes |
| Headphone out | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.0 |
| HDMI ports quantity | 2 |
| HDMI | Yes |
| Built-in USB hub | No |
| Ergonomics | |
|---|---|
| Tilt angle range | -5 - 20° |
| Height adjustment | No |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (PowerSave) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Power consumption (typical) | 26 W |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Stand included | Yes |
| Weight & dimensions | |
|---|---|
| Weight (without stand) | 5.7 kg |
| Height (without stand) | 426.2 mm |
| Depth (without stand) | 54.9 mm |
| Width (without stand) | 716.3 mm |
| Weight (with stand) | 6.7 kg |
| Height (with stand) | 496.2 mm |
| Depth (with stand) | 213.8 mm |
| Width (with stand) | 716.3 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 9.72 kg |
| Package height | 187 mm |
| Package depth | 560 mm |
| Package width | 803 mm |
| General | |
|---|---|
| Product Family | TUF Gaming |
The 31.5-inch TUF Gaming VG32AQL1A WQHD gaming monitor featuring a Fast IPS panel and NVIDIA® G-SYNC® compatibility for blistering-fast 170 Hz gaming. ASUS Extreme Low Motion Blur Sync (ELMB Sync) and AMD FreeSync™ Premium technologies enables buttery-smooth gaming. In addition, it meets DisplayHDR™ 400 compliance standards and has a 99% DCI-P3 gamut to offer exceptional colors and contrast.
GAMING KEY SPEC
170HZ REFRESH RATE(OC) AND 1MS (GTG) RESPONSE TIME
The liquid crystal elements in the ASUS Fast IPS display switches up to 4X faster than conventional IPS panels for swifter response, allowing you to enjoy the latest fast-paced games in all their glory with supersmooth lag-free visuals, even at the highest display settings.
GAMING KEY SPEC
ADAPTIVE-SYNC
NVIDIA G-SYNC compatible and AMD FreeSync Premium technology ensure supersmooth, tear-free visuals with low latency.
COLOR PERFORMANCE
HIGH DYNAMIC RANGE
TUF Gaming VG32AQL1A takes advantage of HDR technology to deliver more vivid colors and higher contrast levels compared to traditional monitors.
EXCLUSIVE GAMING FEATURE
ELMB SYNC
ELMB Sync* software that enables ELMB to work simultaneously with adaptive-sync technology to eliminate ghosting and tearing for extraordinarily sharp, high-frame-rate gaming.
*Ideal for Fast-paced games , works better over 85Hz.
EXCLUSIVE GAMING FEATURE
VARIABLE OVERDRIVE
Integrated ASUS Variable Overdrive technology allows the display to dynamically alter its overdrive setting as frame rates fluctuate, ensuring optimal results for any game. You choose how strong you want the overall effect to be, then let the monitor take it from there.
INTUITIVE CONTROLS
ASUS DisplayWidget Lite is a software utility that lets you easily and quickly tweak settings or configure ASUS-exclusive features such as Shadow Boost, ASUS GameVisual, and more.
SHADOW BOOST
ASUS Shadow Boost technology clarifies dark areas of the game without overexposing brighter areas, improving overall viewing while also making it easier to spot enemies hidden in dark areas of the map.
GAMEPLUS
The ASUS-exclusive, integrated GamePlus hotkey offers in-game enhancements that help you get more out of your game. This function is co-developed with input from pro gamers, allowing them to practice and improve their gaming skills.
GAMEVISUAL
ASUS GameVisual Technology has seven pre-set display modes to optimize visuals for different types of content. This unique feature can be easily accessed through a hotkey or the on-screen display settings menu.
FLICKER-FREE TECHNOLOGY
Flicker-Free technology reduces flicker to minimize eyestrain for improved comfort when you're embroiled in long gaming sessions.
LOW BLUE LIGHT
The new hardware-based ASUS Low Blue Light technology reduces potentially harmful high-energy blue light emissions while offering color performance that’s better than monitors with software-only filtering solutions.
EXTENSIVE CONNECTIVITY
A multitude of connectivity options, including two HDMI 2.0, plus DisplayPort™ 1.2, ensures wide compatibility with a variety of input sources.
ERGONOMIC DESIGN
With an ergonomically-designed stand, it provides tilt, swivel, pivot, and height adjustments so you can easily find your ideal viewing position. The display is also VESA-compatible for wall mounting.
| Display | |
|---|---|
| Colour gamut | 99% |
| RGB colour space | DCI-P3 |
| High Dynamic Range (HDR) technology | High Dynamic Range (HDR) 400 |
| High Dynamic Range (HDR) supported | Yes |
| Digital vertical frequency | 48 - 144 Hz |
| Digital horizontal frequency | 30 - 223 kHz |
| Viewable size, vertical | 39.3 cm |
| Viewable size, horizontal | 69.8 cm |
| Pixel pitch | 0.273 x 0.273 mm |
| Display number of colours | 16.7 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 170 Hz |
| Dynamic contrast ratio marketing name | SmartContrast |
| Contrast ratio (dynamic) | 100000000:1 |
| Contrast ratio (typical) | 1000:1 |
| Screen shape | Flat |
| Anti-glare screen | Yes |
| Response time | 1 ms |
| Display brightness (typical) | 350 cd/m² |
| Backlight type | LED |
| Panel type | IPS |
| HD type | Wide Quad HD |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 2560 x 1440 pixels |
| Display diagonal | 80 cm (31.5") |
| Performance | |
|---|---|
| Game mode | Yes |
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| AMD FreeSync type | FreeSync Premium |
| NVIDIA G-SYNC type | G-SYNC Compatible |
| AMD FreeSync | Yes |
| NVIDIA G-SYNC | Yes |
| Multimedia | |
|---|---|
| RMS rated power | 4 W |
| Number of speakers | 2 |
| Built-in camera | No |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Certification | TÜV Flicker-freeTÜV Low Blue Light (Hardware Solution)VESA DisplayHDR 400AMD FreeSync PremiumG-SYNC Compatible |
| Product colour | Black |
| Market positioning | Gaming |
| Ports & interfaces | |
|---|---|
| HDCP | Yes |
| Headphone out | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.0 |
| HDMI ports quantity | 2 |
| HDMI | Yes |
| USB Type-A downstream ports quantity | 2 |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub | Yes |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 20° |
| Swivel angle range | -10 - 10° |
| Swivelling | Yes |
| Height adjustment | 9 cm |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Energy efficiency scale | A to G |
| Power consumption (typical) | 27.1 W |
| Energy consumption (HDR) per 1000 hours | 41 kWh |
| Energy consumption (SDR) per 1000 hours | 41 kWh |
| Energy efficiency class (HDR) | G |
| Energy efficiency class (SDR) | G |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Cables included | AC, DisplayPort, HDMI, USB Type-A to USB Type-B |
| Stand included | Yes |
| Weight & dimensions | |
|---|---|
| Weight (without stand) | 6.2 kg |
| Height (without stand) | 426 mm |
| Depth (without stand) | 54 mm |
| Width (without stand) | 716 mm |
| Weight (with stand) | 8.6 kg |
| Height (with stand) | 565 mm |
| Depth (with stand) | 240 mm |
| Width (with stand) | 716 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 12.4 kg |
| Package height | 645 mm |
| Package depth | 260 mm |
| Package width | 818 mm |
| Sustainability | |
|---|---|
| European Product Registry for Energy Labelling (EPREL) code | 685725 |
| General | |
|---|---|
| Product Family | TUF Gaming |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
TUF Gaming VG32UQA1A Gaming Monitor
The 31.5-inch TUF Gaming VG32UQA1A 4K UHD gaming monitor featuring a blistering-fast overclock 160 Hz refresh rate gaming. Its clever combination of Display Stream Compression (DSC), ASUS Extreme Low Motion Blur Sync (ELMB Sync) and AMD FreeSync™ Premium technologies enables buttery-smooth gaming on PCs. Console gamers can get their fix, too, as TUF Gaming VG32UQA1A supports up to 4K 120 Hz visuals via HDMI® 2.1 without chroma subsampling. In addition, it meets DisplayHDR™ 400 compliance standards and has a 120% sRGB gamut to offer exceptional colors and contrast.
NEXT-GEN PC GAMING
- 4K @ 160 Hz on PCs with the latest graphics cards
- DSC technology supports 4K visuals via a single DisplayPort 1.4 connection
NEXT-GEN CONSOLE GAMING
- Native 4K @120Hz visuals via HDMI 2.1 with full 48 Gbps bandwidth
- Variable Refresh Rate
- Auto Low Latency
GAMING KEY SPEC
160HZ REFRESH RATE(OC) AND 1MS (MPRT) RESPONSE TIME
TUF Gaming VG32UQA1A delivers stunning visuals from all angles. With overclock to 160Hz refresh rate decimates lag and motion blur to give you the upper hand in first person shooters, racers, real-time strategy, and sports titles. This ultrafast refresh rate lets you play at the highest visual settings and lets you react instantly to what's onscreen — so you'll get that first strike in.
ADAPTIVE-SYNC
AMD FreeSync Premium technology supported through DP and HDMI ports providing variable refresh rates for low latency, stuttering-free and tearing-free while gaming.
COLOR PERFORMANCE
HIGH DYNAMIC RANGE
TUF Gaming VG32UQA1A takes advantage of HDR technology to deliver more vivid colors and higher contrast levels compared to traditional monitors.
EXCLUSIVE GAMING FEATURE
ELMB SYNC
ELMB Sync enables ELMB to work simultaneously with adaptive-sync technology to eliminate ghosting and tearing for extraordinarily sharp, high-frame-rate gaming.
VARIABLE OVERDRIVE
Integrated ASUS Variable Overdrive technology allows the display to dynamically alter its overdrive setting as frame rates fluctuate, ensuring optimal results for any game. You choose how strong you want the overall effect to be, then let the monitor take it from there.
IN-GAME ENHANCEMENTS
INTUITIVE CONTROLS
ASUS DisplayWidget Lite is a software utility that lets you easily and quickly tweak settings or configure ASUS-exclusive features such as Shadow Boost, ASUS GameVisual, and more.
SHADOW BOOST
ASUS Shadow Boost technology clarifies dark areas of the game without overexposing brighter areas, improving overall viewing while also making it easier to spot enemies hidden in dark areas of the map.
GAMEPLUS
The ASUS-exclusive, integrated GamePlus hotkey offers in-game enhancements that help you get more out of your game. This function is co-developed with input from pro gamers, allowing them to practice and improve their gaming skills.
GAMEVISUAL
ASUS GameVisual Technology has seven pre-set display modes to optimize visuals for different types of content. This unique feature can be easily accessed through a hotkey or the on-screen display settings menu.
FLICKER-FREE TECHNOLOGY
Flicker-Free technology reduces flicker to minimize eyestrain for improved comfort when you're embroiled in long gaming sessions.
LOW BLUE LIGHT
ASUS Low Blue Light technology reduces the amount of potentially harmful blue light emitted by the display. Four different filter settings are available to control the amount of blue light reduction.
ENGINEERING
EXTENSIVE CONNECTIVITY
A multitude of connectivity options, including HDMI 2.1, DisplayPort™ 1.4 (DSC), ensures wide compatibility with a variety of input sources.
ERGONOMIC DESIGN
With an ergonomically-designed stand, it provides tilt so you can easily find your ideal viewing position. The display is also VESA-compatible for wall mounting.
| Display | |
|---|---|
| sRGB coverage (typical) | 120% |
| Colour gamut | 120% |
| RGB colour space | sRGB |
| High Dynamic Range (HDR) technology | DisplayHDR 400, High Dynamic Range 10 (HDR10) |
| High Dynamic Range (HDR) supported | Yes |
| Viewable size, vertical | 39.2 cm |
| Viewable size, horizontal | 69.7 cm |
| Vertical scan range | 48 - 160 Hz |
| Horizontal scan range | 180 - 317 kHz |
| Pixel pitch | 0.182 x 0.182 mm |
| Display number of colours | 1.073 billion colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 160 Hz |
| Contrast ratio (typical) | 2500:1 |
| Screen shape | Flat |
| Anti-glare screen | Yes |
| Display surface | Matt |
| Response time | 1 ms |
| Display brightness (typical) | 400 cd/m² |
| Display brightness (peak) | 450 cd/m² |
| Backlight type | LED |
| Panel type | VA |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Native aspect ratio | 16:9 |
| Display resolution | 3840 x 2160 pixels |
| Display diagonal | 80 cm (31.5") |
| Performance | |
|---|---|
| Game mode | Yes |
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| AMD FreeSync type | FreeSync Premium |
| AMD FreeSync | Yes |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| RMS rated power | 4 W |
| Number of speakers | 2 |
| Built-in camera | No |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Feet colour | Black |
| Product colour | Black |
| Market positioning | Gaming |
| Ports & interfaces | |
|---|---|
| HDCP version | 2.2 |
| HDCP | Yes |
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Headphone out | Yes |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 2 |
| HDMI | Yes |
| USB Type-A downstream ports quantity | 2 |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub | Yes |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| Tilt angle range | 15 - -5° |
| Height adjustment | No |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Wall mountable | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (PowerSave) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Power consumption (typical) | 45 W |
| Weight & dimensions | |
|---|---|
| Weight (without stand) | 6.6 kg |
| Height (without stand) | 427 mm |
| Depth (without stand) | 55 mm |
| Width (without stand) | 716 mm |
| Weight (with stand) | 7.5 kg |
| Height (with stand) | 496 mm |
| Depth (with stand) | 214 mm |
| Width (with stand) | 716 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 10.5 kg |
| Package height | 550 mm |
| Package depth | 156 mm |
| Package width | 950 mm |
| General | |
|---|---|
| Product Family | TUF Gaming |
TUF gaming VG32VQ
NEXT−GEN ADAPITVE−SYNC
TUF Gaming VG32V is a 32-inch, WQHD (2560x1440), curved HDR display with an ultrafast 144Hz refresh rate designed for professional gamers and those seeking immersive gameplay. Those are some serious specs, but not even the most exciting thing the VG32V has in store.
For the first time in any gaming monitor, Motion Blur Reduction and Adaptive-sync can be enabled at the same time. This new technology is called ASUS Extreme Low Motion Blur Sync (ELMB SYNC). ELMB SYNC works with FreeSync and other types of Adaptive-sync, allowing gamers to enjoy sharp, high speed frames.
31.5” WQHD curve
The 31.5-inch WQHD (2560 X 1440) panel of TUF Gaming VG32VQ delivers stunning visuals from all angles with an 1800R curvature that ensures every point is equidistant to your eyes. This contributes to greater viewing comfort — even during extended use —and lets you enjoy a wide viewing angle with less distortion and color shift when gaming and watching movies.
144Hz Refresh Rate
TUF Gaming VG32VQ has a super-fast 144Hz refresh rate, ensuring that even fast-paced games played at the highest visual settings look buttery smooth and completely lag-free. Get the upper hand in first-person-shooters, racing, real-time strategy and sports titles.
EXTREME LOW MOTION BLUR SYNC
With ELMB SYNC, you can enable ELMB (low-motion-blur technology) and FreeSync at the same time, eliminating ghosting and tearing for sharp visuals and high frame rates while gaming.
Multi HDR Mode
Now you can choose from multiple HDR modes to adjust monitor HDR performance based on the current viewing scenario
HDR 10
To more fully realize gamers' vision, TUF Gaming VG32V is compatible with industry-standard HDR10 high dynamic range for color and brightness levels that exceed the capabilities of ordinary monitors.
IN−GAME ENHANCEMENTS
Shadow Boost
ASUS Shadow Boost technology clarifies dark areas of the game without overexposing brighter areas, improving overall viewing while also making it easier to spot enemies hidden in dark areas of the map.
GamePlus
The ASUS-exclusive, integrated GamePlus hotkey offers in-game enhancements that help you get more out of your game. This function is co-developed with input from pro gamers, allowing them to practice and improve their gaming skills.
GameVisual
ASUS GameVisual Technology has seven pre-set display modes to optimize visuals for different types of content. This unique feature can be easily accessed through a hotkey or the on-screen display settings menu
Flicker-Free technology
Flicker-Free technology reduces flicker to minimize eyestrain for improved comfort when you're embroiled in long gaming sessions.
Ultra-Low Blue Light technology
ASUS Ultra-Low Blue Light technology reduces the amount of potentially harmful blue light emitted by the display. Four different filter settings are available to control the amount of blue light reduction.
ENGINEERING
Rich connectivity
Extensive connectivity options, including, DisplayPort 1.2, and HDMI (v1.4) port support a wide array of multimedia devices.
Ergonomic design
With an ergonomically-designed stand, TUF Gaming VG32VQ provides tilt, swivel, and height adjustments so you can easily find your ideal viewing position. The display is also VESA-compatible for wall mounting.
| Display | |
|---|---|
| 3D | No |
| Screen curvature | 180 cm |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| High Dynamic Range (HDR) supported | Yes |
| Digital vertical frequency | 48 - 144 Hz |
| Digital horizontal frequency | 22 - 222 kHz |
| Viewable size, vertical | 39.2 cm |
| Viewable size, horizontal | 69.7 cm |
| Pixel pitch | 0.272 x 0.272 mm |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 144 Hz |
| Contrast ratio (dynamic) | 3000:1 |
| Screen curvature rating | 1800R |
| Screen shape | Curved |
| Response time | 1 ms |
| Display brightness (peak) | 400 cd/m² |
| Panel type | VA |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 2560 x 1440 pixels |
| Display diagonal | 80 cm (31.5") |
| Performance | |
|---|---|
| Flicker-free technology | Yes |
| VESA Adaptive Sync support | Yes |
| AMD FreeSync type | FreeSync Premium |
| AMD FreeSync | Yes |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| RMS rated power | 4 W |
| Number of speakers | 2 |
| Built-in camera | No |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Product colour | Black |
| Market positioning | Gaming |
| Ports & interfaces | |
|---|---|
| HDCP | Yes |
| Headphone connectivity | 3.5 mm |
| Headphone out | Yes |
| Audio input | No |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.0 |
| HDMI ports quantity | 2 |
| HDMI | Yes |
| DVI port | No |
| Built-in USB hub | No |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 - 20° |
| Swivelling | No |
| Pivot | No |
| Height adjustment | 10 cm |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Energy efficiency scale | A to G |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 40.8 W |
| Energy consumption (HDR) per 1000 hours | 73 kWh |
| Energy consumption (SDR) per 1000 hours | 41 kWh |
| Energy efficiency class (HDR) | G |
| Energy efficiency class (SDR) | G |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Cables included | AC, DisplayPort, HDMI |
| Weight & dimensions | |
|---|---|
| Weight (without stand) | 5.83 kg |
| Height (without stand) | 425.7 mm |
| Depth (without stand) | 96.3 mm |
| Width (without stand) | 713.4 mm |
| Weight (with stand) | 9.13 kg |
| Height (with stand) | 480.8 mm |
| Depth (with stand) | 233.4 mm |
| Width (with stand) | 713.4 mm |
| Packaging data | |
|---|---|
| Package weight | 13.4 kg |
| Package height | 679 mm |
| Package depth | 253 mm |
| Package width | 815 mm |
| Sustainability | |
|---|---|
| European Product Registry for Energy Labelling (EPREL) code | 394151 |
| General | |
|---|---|
| Product Family | TUF Gaming |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
| Other features | |
|---|---|
| TV tuner integrated | No |
| Rotating | No |
| AC adapter included | Yes |
TUF gaming VG32VQ1BR
TUF Gaming VG32VQ1BR is a 31.5-inch, WQHD (2560x1440), curved display with an ultrafast 165Hz refresh rate designed for professional gamers and those seeking immersive gameplay. Those are some serious specs, but not even the most exciting thing the VG32VQ1BR has in store. Its impressive curved display features a 165Hz refresh rate and Adaptive-Sync (FreeSync™ Premium) technology, for extremely fluid gameplay without tearing and stuttering.
31.5-inch immersive curvature
The 31.5-inch WQHD (2560 X 1440) panel of TUF Gaming VG32VQ1BR delivers stunning visuals from all angles with an 1500R curvature that ensures every point is equidistant to your eyes. This contributes to greater viewing comfort — even during extended use —and lets you enjoy a wide viewing angle with less distortion and color shift when gaming and watching movies.
165Hz Refresh Rate
TUF Gaming VG32VQ1BR 165Hz refresh rate decimates lag and motion blur to give you the upper hand in first person shooters, racers, real-time strategy, and sports titles. This ultrafast refresh rate lets you play at the highest visual settings and lets you react instantly to what's onscreen — so you'll get that first strike in.
EXTREME LOW MOTION BLUR
VG32VQ1BR Features the latest ASUS-exclusive Extreme Low Motion Blur technology, which achieves 1ms MPRT to eliminate smearing and motion blur, and makes objects in motion look sharper, so gameplay is more fluid and responsive.
Multi HDR Mode
Now you can choose from multiple HDR modes to adjust monitor HDR performance based on the current viewing scenario
HDR 10
To more fully realize gamers' vision, TUF Gaming VG32VQ1BR is compatible with industry-standard HDR10 high dynamic range for color and brightness levels that exceed the capabilities of ordinary monitors.
Shadow Boost
ASUS Shadow Boost technology clarifies dark areas of the game without overexposing brighter areas, improving overall viewing while also making it easier to spot enemies hidden in dark areas of the map.
GamePlus
The ASUS-exclusive, integrated GamePlus hotkey offers in-game enhancements that help you get more out of your game. This function is co-developed with input from pro gamers, allowing them to practice and improve their gaming skills.
GameVisual
ASUS GameVisual Technology has seven pre-set display modes to optimize visuals for different types of content. This unique feature can be easily accessed through a hotkey or the on-screen display settings menu
Flicker-Free technology
Flicker-Free technology reduces flicker to minimize eyestrain for improved comfort when you're embroiled in long gaming sessions.
Ultra-Low Blue Light technology
ASUS Ultra-Low Blue Light technology reduces the amount of potentially harmful blue light emitted by the display. Four different filter settings are available to control the amount of blue light reduction.
Rich connectivity
Extensive connectivity options, including, DisplayPort(v1.2), HDMI (v2.0), Earphone Jack support a wide array of multimedia devices.
Ergonomic design
With an ergonomically-designed stand, TUF Gaming VG32VQ1BR provides tilt, swivel so you can easily find your ideal viewing position. The display is also VESA-compatible for wall mounting.
| Display | |
|---|---|
| sRGB coverage (typical) | 120% |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| High Dynamic Range (HDR) supported | Yes |
| Digital vertical frequency | 48 - 165 Hz |
| Digital horizontal frequency | 30 - 185 kHz |
| Viewable size, vertical | 39.2 cm |
| Viewable size, horizontal | 69.7 cm |
| Pixel pitch | 0.272 x 0.272 mm |
| Display number of colours | 1.073 billion colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 165 Hz |
| Dynamic contrast ratio marketing name | SmartContrast |
| Contrast ratio (dynamic) | 100000000:1 |
| Contrast ratio (typical) | 3000:1 |
| Aspect ratio | 16:9 |
| Supported graphics resolutions | 2560 x 1440 |
| Screen curvature rating | 1500R |
| Screen shape | Curved |
| Anti-glare screen | Yes |
| Response time | 1 ms |
| Display brightness (typical) | 250 cd/m² |
| Backlight type | LED |
| Panel type | VA |
| HD type | Quad HD |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 2560 x 1440 pixels |
| Display diagonal | 80 cm (31.5") |
| Performance | |
|---|---|
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| AMD FreeSync type | FreeSync Premium |
| AMD FreeSync | Yes |
| Multimedia | |
|---|---|
| RMS rated power | 4 W |
| Number of speakers | 2 |
| Built-in camera | No |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Certification | TÜV Flicker-freeTÜV Low Blue LightAMD FreeSync Premium |
| Country of origin | China |
| Feet colour | Black |
| Front bezel colour | Black |
| Product colour | Black |
| Market positioning | Gaming |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| HDCP | Yes |
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Headphone out | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.0 |
| HDMI ports quantity | 2 |
| HDMI | Yes |
| DVI port | No |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 15° |
| Swivel angle range | -10 - 10° |
| Swivelling | Yes |
| Height adjustment | No |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Energy efficiency scale | A to G |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (PowerSave) | 0.5 W |
| Power consumption (off) | 0.5 W |
| Power consumption (typical) | 28 W |
| Energy consumption (HDR) per 1000 hours | 53 kWh |
| Energy consumption (SDR) per 1000 hours | 41 kWh |
| Energy efficiency class (HDR) | G |
| Energy efficiency class (SDR) | G |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Cables included | AC, DisplayPort |
| Stand included | Yes |
| Weight & dimensions | |
|---|---|
| Weight (without stand) | 6.32 kg |
| Height (without stand) | 426.2 mm |
| Depth (without stand) | 87.3 mm |
| Width (without stand) | 709.8 mm |
| Weight (with stand) | 7.54 kg |
| Height (with stand) | 507.1 mm |
| Depth (with stand) | 243.3 mm |
| Width (with stand) | 709.8 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 10.2 kg |
| Package height | 223 mm |
| Package depth | 803 mm |
| Package width | 591 mm |
| Sustainability | |
|---|---|
| European Product Registry for Energy Labelling (EPREL) code | 407450 |
| General | |
|---|---|
| Product Family | TUF Gaming |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
TUF Gaming VG34VQ3B is a 34-inch WQHD (3440 x 1440) 1500R curved gaming monitor with an ultrafast 180 Hz refresh rate and 1 ms MPRT response time for extremely immersive gameplay. It features exclusive Extreme Low Motion Blur SYNC (ELMB SYNC) technology and AMD FreeSync Premium™ to eliminate ghosting and tearing. In addition, it also covering 90% of the DCI-P3 color gamut for great contrast and lifelike colors.
GAMING KEY SPEC
180HZ REFRESH RATE AND 1MS MPRT RESPONSE TIME
TUF Gaming VG34VQ3B delivers stunning visuals from all angles with an 1500R curvature that ensures every point is equidistant to your eyes. With 180Hz refresh rate decimates lag and motion blur to give you the upper hand in first person shooters, racers, real-time strategy, and sports titles. This ultrafast refresh rate lets you play at the highest visual settings and lets you react instantly to what's onscreen — so you'll get that first strike in.
GAMING KEY SPEC
ADAPTIVE-SYNC
AMD FreeSync Premium technology supported through DP and HDMI ports providing variable refresh rates for low latency, stuttering-free and tearing-free while gaming.
COLOR PERFORMANCE
HIGH DYNAMIC RANGE
TUF Gaming VG34VQ3B takes advantage of HDR technology to deliver more vivid colors and higher contrast levels compared to traditional monitors.
EXCLUSIVE GAMING FEATURE
ELMB SYNC
ELMB Sync* software that enables ELMB to work simultaneously with adaptive-sync technology to eliminate ghosting and tearing for extraordinarily sharp, high-frame-rate gaming.
*Ideal for Fast-paced games , works better over 85Hz.
EXCLUSIVE GAMING FEATURE
VARIABLE OVERDRIVE
Integrated ASUS Variable Overdrive technology allows the display to dynamically alter its overdrive setting as frame rates fluctuate, ensuring optimal results for any game. You choose how strong you want the overall effect to be, then let the monitor take it from there.
INTUITIVE CONTROLS
DisplayWidget Center software upgraded the user interface so that users can easily change monitor settings via a mouse ― so there’s no need to access the OSD menu.
SHADOW BOOST
ASUS Shadow Boost technology clarifies dark areas of the game without overexposing brighter areas, improving overall viewing while also making it easier to spot enemies hidden in dark areas of the map.
GAMEPLUS
The ASUS-exclusive, integrated GamePlus hotkey offers in-game enhancements that help you get more out of your game. This function is co-developed with input from pro gamers, allowing them to practice and improve their gaming skills.
GAMEVISUAL
ASUS GameVisual Technology has seven pre-set display modes to optimize visuals for different types of content. This unique feature can be easily accessed through a hotkey or the on-screen display settings menu.
FLICKER-FREE TECHNOLOGY
Flicker-Free technology reduces flicker to minimize eyestrain for improved comfort when you're embroiled in long gaming sessions.
LOW BLUE LIGHT
ASUS Low Blue Light technology reduces the amount of potentially harmful blue light emitted by the display. Four different filter settings are available to control the amount of blue light reduction.
EXTENSIVE CONNECTIVITY
A multitude of connectivity options, including two HDMI 2.0, two DisplayPort™ 1.2 and USB hub ensures wide compatibility with a variety of input sources.
ERGONOMIC DESIGN
It provides tilt from +23˚~-5˚ so you can easily find your ideal viewing angle. The display is also VESA-compatible for wall mounting.
SUSTAINING AN INCREDIBLE FUTURE
ECO-FRIENDLY PACKAGING
ASUS is committed to environmental responsibility. This monitor is shipped in packaging made from 100% recycled cardboard, minimizing waste and promoting sustainable practices.
| Display | |
|---|---|
| Colour gamut standard | DCI-P3 |
| LED backlight | Yes |
| Colour gamut | 90% |
| High Dynamic Range (HDR) technology | DisplayHDR 400 |
| High Dynamic Range (HDR) supported | Yes |
| Digital vertical frequency | 48 - 180 Hz |
| Digital horizontal frequency | 290 - 290 kHz |
| Viewable size, vertical | 33.4 cm |
| Viewable size, horizontal | 79.2 cm |
| Pixel pitch | 0.2318 x 0.2318 mm |
| Display number of colours | 16.7 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 180 Hz |
| Contrast ratio (typical) | 4000:1 |
| Screen curvature rating | 1500R |
| Screen shape | Curved |
| Anti-glare screen | Yes |
| Response time | 1 ms |
| Display brightness (typical) | 400 cd/m² |
| Display brightness (peak) | 400 cd/m² |
| Backlight type | LED |
| Panel type | VA |
| HD type | UltraWide Quad HD |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 21:9 |
| Display resolution | 3440 x 1440 pixels |
| Display diagonal | 86.4 cm (34") |
| Performance | |
|---|---|
| Game mode | Yes |
| Shadow сontrol | Yes |
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| VESA Adaptive Sync support | Yes |
| AMD FreeSync type | FreeSync Premium |
| AMD FreeSync | Yes |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| RMS rated power | 4 W |
| Number of speakers | 2 |
| Built-in camera | No |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Certification | TÜV Flicker-freeTÜV Low Blue LightVESA DisplayHDR 400AMD FreeSync Premium |
| Detachable stand | Yes |
| Product colour | Black |
| Market positioning | Gaming |
| Ports & interfaces | |
|---|---|
| AC (power) in | Yes |
| HDCP version | 2.2 |
| HDCP | Yes |
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Headphone out | Yes |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 2 |
| HDMI version | 2.0 |
| HDMI ports quantity | 2 |
| HDMI | Yes |
| USB Type-A downstream ports quantity | 4 |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub | Yes |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 23° |
| Height adjustment | No |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Wall mountable | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Energy efficiency scale | A to G |
| Power supply type | Internal |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (PowerSave) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Power consumption (typical) | 18 W |
| Energy consumption (HDR) per 1000 hours | 73 kWh |
| Energy consumption (SDR) per 1000 hours | 32 kWh |
| Energy efficiency class (HDR) | G |
| Energy efficiency class (SDR) | F |
| Packaging content | |
|---|---|
| Stand included | Yes |
| Weight & dimensions | |
|---|---|
| Weight (without stand) | 6.4 kg |
| Height (without stand) | 366 mm |
| Depth (without stand) | 107 mm |
| Width (without stand) | 809 mm |
| Weight (with stand) | 7.6 kg |
| Height (with stand) | 448 mm |
| Depth (with stand) | 213 mm |
| Width (with stand) | 809 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 10.8 kg |
| Package height | 466 mm |
| Package depth | 198 mm |
| Package width | 940 mm |
| Sustainability | |
|---|---|
| European Product Registry for Energy Labelling (EPREL) code | 2005910 |
| Sustainability certificates | Forest Stewardship Council (FSC) Mix |
| Sustainability compliance | Yes |
| General | |
|---|---|
| Product Family | TUF Gaming |
TUF Gaming VG34VQEL1A is a 34-inch Ultra Wide QHD (3440 x 1440) 1500R curved gaming monitor with an 100 Hz refresh rate and 1 ms (MPRT) response time for extremely immersive gameplay. It features exclusive Extreme Low Motion Blur (ELMB) technology and AMD FreeSync™ to eliminate ghosting and tearing. In addition, it also features High Dynamic Range technology, supporting the HDR10 format and covering 125% of the sRGB color gamut for great contrast and lifelike colors.
GAMING KEY SPEC
100HZ REFRESH RATE AND 1MS (MPRT) RESPONSE TIME
TUF Gaming VG34VQEL1A delivers stunning visuals from all angles with an 1500R curvature that ensures every point is equidistant to your eyes. With 100Hz refresh rate decimates lag and motion blur to give you the upper hand in first person shooters, racers, real-time strategy, and sports titles. This ultrafast refresh rate lets you play at the highest visual settings and lets you react instantly to what's onscreen — so you'll get that first strike in.
GAMING KEY SPEC
ADAPTIVE-SYNC
AMD FreeSync technology supported through DP and HDMI ports providing variable refresh rates for low latency, stuttering-free and tearing-free while gaming.
COLOR PERFORMANCE
HIGH DYNAMIC RANGE
TUF Gaming VG34VQEL1A takes advantage of HDR technology to deliver more vivid colors and higher contrast levels compared to traditional monitors.
EXCLUSIVE GAMING FEATURE
EXTREME LOW MOTION BLUR (ELMB)
ASUS Extreme Low Motion Blur (ELMB) technology provides a 1 ms MPRT response time to eliminate smearing and motion blur. It makes moving objects appear even sharper, so gameplay is more fluid and responsive.
EXCLUSIVE GAMING FEATURE
VARIABLE OVERDRIVE
Integrated ASUS Variable Overdrive technology allows the display to dynamically alter its overdrive setting as frame rates fluctuate, ensuring optimal results for any game. You choose how strong you want the overall effect to be, then let the monitor take it from there.
INTUITIVE CONTROLS
ASUS DisplayWidget Lite is a software utility that lets you easily and quickly tweak settings or configure ASUS-exclusive features such as Shadow Boost, ASUS GameVisual, and more.
SHADOW BOOST
ASUS Shadow Boost technology clarifies dark areas of the game without overexposing brighter areas, improving overall viewing while also making it easier to spot enemies hidden in dark areas of the map.
GAMEPLUS
The ASUS-exclusive, integrated GamePlus hotkey offers in-game enhancements that help you get more out of your game. This function is co-developed with input from pro gamers, allowing them to practice and improve their gaming skills.
GAMEVISUAL
ASUS GameVisual Technology has seven pre-set display modes to optimize visuals for different types of content. This unique feature can be easily accessed through a hotkey or the on-screen display settings menu.
FLICKER-FREE TECHNOLOGY
Flicker-Free technology reduces flicker to minimize eyestrain for improved comfort when you're embroiled in long gaming sessions.
LOW BLUE LIGHT
ASUS Low Blue Light technology reduces the amount of potentially harmful blue light emitted by the display. Four different filter settings are available to control the amount of blue light reduction.
EXTENSIVE CONNECTIVITY
A multitude of connectivity options, including two HDMI 2.0, plus DisplayPort™ 1.2, USB HUB ensures wide compatibility with a variety of input sources.
ERGONOMIC DESIGN
With an ergonomically-designed stand, it provides tilt, swivel, pivot, and height adjustments so you can easily find your ideal viewing position. The display is also VESA-compatible for wall mounting.
| Display | |
|---|---|
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| High Dynamic Range (HDR) supported | Yes |
| Digital vertical frequency | 48 - 100 Hz |
| Digital horizontal frequency | 30 - 149 kHz |
| Viewable size, vertical | 33.4 cm |
| Viewable size, horizontal | 79.7 cm |
| Pixel pitch | 0.231 x 0.231 mm |
| Display number of colours | 16.7 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 100 Hz |
| Dynamic contrast ratio marketing name | ASUS Smart Contrast Ratio (ASCR) |
| Contrast ratio (dynamic) | 100000000:1 |
| Contrast ratio (typical) | 3000:1 |
| Screen curvature rating | 1500R |
| Screen shape | Curved |
| Anti-glare screen | Yes |
| Response time | 1 ms |
| Display brightness (typical) | 300 cd/m² |
| Backlight type | LED |
| Panel type | VA |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 21:9 |
| Display resolution | 3440 x 1440 pixels |
| Display diagonal | 86.4 cm (34") |
| Performance | |
|---|---|
| Game mode | Yes |
| Motion blur reduction | Yes |
| Shadow сontrol | Yes |
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| AMD FreeSync type | FreeSync |
| AMD FreeSync | Yes |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| RMS rated power | 4 W |
| Number of speakers | 2 |
| Built-in camera | No |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Certification | TÜV Flicker-freeTÜV Low Blue LightAMD FreeSync |
| Feet colour | Black |
| Detachable stand | Yes |
| Product colour | Black |
| Market positioning | Gaming |
| Ports & interfaces | |
|---|---|
| AC (power) in | Yes |
| HDCP version | 2.2 |
| HDCP | Yes |
| Headphone out | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.0 |
| HDMI ports quantity | 2 |
| HDMI | Yes |
| USB Type-A downstream ports quantity | 2 |
| Number of USB Type-B upstream ports quantity | 1 |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub | Yes |
| Ergonomics | |
|---|---|
| Tilt angle range | -5 - 20° |
| Swivel angle range | -10 - 10° |
| Swivelling | Yes |
| Height adjustment | 13 cm |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Power supply type | Internal |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 29.5 W |
| Energy efficiency class (SDR) | F |
| Packaging content | |
|---|---|
| Cables included | AC, DisplayPort, HDMI, USB Type-A to USB Type-B |
| Stand included | Yes |
| Weight & dimensions | |
|---|---|
| Weight (without stand) | 5.79 kg |
| Height (without stand) | 370.3 mm |
| Depth (without stand) | 111 mm |
| Width (without stand) | 807.8 mm |
| Weight (with stand) | 8.07 kg |
| Height (with stand) | 540.6 mm |
| Depth (with stand) | 248.5 mm |
| Width (with stand) | 807.8 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 11.3 kg |
| Package height | 495 mm |
| Package depth | 280 mm |
| Package width | 915 mm |
| General | |
|---|---|
| Product Family | TUF Gaming |
All the Essentials for Smooth Gaming
TUF Gaming VG34VQL1B is a 34-inch UWQHD (3440 x 1440) HDR 21:9 display with an ultrafast 165Hz refresh rate. Designed for gamers and others seeking immersive gameplay, it offers some serious specs. But there's more ...
TUF Gaming VG34VQL1B also features exclusive Variable Overdrive fine-tuned the OD levels, making motion look more consistently at a wider range of variable framerates.
Ultra-wide immersive curvature
The 34-inch UWQHD (3440 X 1440) panel of TUF Gaming VG34VQL1B delivers stunning visuals from all angles with an 1500R curvature that ensures every point is equidistant to your eyes. This contributes to greater viewing comfort — even during extended use —and lets you enjoy a wide viewing angle with less distortion and color shift when gaming and watching movies
Super−fast 165Hz* refresh rate
An impressive 165Hz* refresh rate eliminates lag and motion blur to give you the upper hand in first-person shooter, racing, real-time strategy, and sports titles. This ultrafast refresh rate lets you play at the highest visual settings and react instantly to what's onscreen.
*Select graphics cards/GPUs can support 165Hz graphics source output (via DisplayPort). Please note that overclocking function/performance depends on the GPU or content displayed. Actual real-world performance is hardware-dependent.
Brighter HDR visuals
TUF Gaming VG34VQL1B features DisplayHDR™ 400 to provide smoother and finer contrast between the brightest and darkest areas of the screen. It also delivers an impressive peak luminance of 400 nits to enable brighter imagery.
Multi−HDR mode
Two HDR modes allow you to adjust the monitor’s HDR performance based on the current viewing scenario.
Intuitive controls
ASUS DisplayWidget Lite is a software utility that lets you easily and quickly tweak settings or configure ASUS-exclusive features such as Shadow Boost, ASUS GameVisual, and more.
See what’s lurking in the shadows
ASUS Shadow Boost technology clarifies dark areas of the game without overexposing brighter areas, improving overall viewing while also making it easier to spot enemies hidden in dark areas of the map.
GamePlus
The ASUS-exclusive, integrated GamePlus hotkey offers in-game enhancements that help you get more out of your game. This function is co-developed with input from pro gamers, allowing them to practice and improve their gaming skills.
GameVisual
ASUS GameVisual Technology has seven pre-set display modes to optimize visuals for different types of content. This unique feature can be easily accessed through a hotkey or the on-screen display settings menu
Flicker-Free technology
Flicker-Free technology reduces flicker to minimize eyestrain for improved comfort when you're embroiled in long gaming sessions.
Ultra-Low Blue Light technology
ASUS Ultra-Low Blue Light technology reduces the amount of potentially harmful blue light emitted by the display. Four different filter settings are available to control the amount of blue light reduction.
Rich connectivity
Enjoy extensive connectivity options, including two DisplayPort 1.4, two HDMI (V2.0), USB hub and a 3.5 mm earphone jack for connecting to a wide range of multimedia devices.
Ergonomic design
With an ergonomically-designed stand, TUF Gaming VG34VQL1B provides tilt, swivel, and height adjustments so you can easily find your ideal viewing position. The display is also VESA-compatible for wall mounting.
| Display | |
|---|---|
| High Dynamic Range (HDR) technology | High Dynamic Range (HDR) 400 |
| High Dynamic Range (HDR) supported | Yes |
| Digital vertical frequency | 48 - 165 Hz |
| Digital horizontal frequency | 30 - 260 kHz |
| Pixel pitch | 0.2325 x 0.2325 mm |
| Display number of colours | 16.7 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 165 Hz |
| Contrast ratio (typical) | 4000:1 |
| Screen curvature rating | 1500R |
| Screen shape | Curved |
| Response time | 1 ms |
| Display brightness (typical) | 550 cd/m² |
| Panel type | VA |
| HD type | UltraWide Quad HD |
| Touchscreen | No |
| Display technology | LED |
| Native aspect ratio | 21:9 |
| Display resolution | 3440 x 1440 pixels |
| Display diagonal | 86.4 cm (34") |
| Performance | |
|---|---|
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| AMD FreeSync type | FreeSync Premium |
| AMD FreeSync | Yes |
| Multimedia | |
|---|---|
| RMS rated power | 4 W |
| Number of speakers | 2 |
| Built-in camera | No |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Country of origin | China |
| Feet colour | Black |
| Detachable stand | Yes |
| Front bezel colour | Black |
| Product colour | Black |
| Market positioning | Gaming |
| Ports & interfaces | |
|---|---|
| HDCP | Yes |
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Headphone out | Yes |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 2 |
| HDMI version | 2.0 |
| HDMI ports quantity | 2 |
| HDMI | Yes |
| DVI port | No |
| USB Type-A downstream ports quantity | 3 |
| Number of USB Type-B upstream ports quantity | 1 |
| Number of upstream ports | 1 |
| Built-in USB hub | Yes |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 15° |
| Swivel angle range | -10 - 10° |
| Swivelling | Yes |
| Height adjustment | 13 cm |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Energy efficiency scale | A to G |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (PowerSave) | 0.3 W |
| Power consumption (off) | 0.3 W |
| Power consumption (typical) | 35 W |
| Energy consumption (HDR) per 1000 hours | 73 kWh |
| Energy consumption (SDR) per 1000 hours | 40 kWh |
| Energy efficiency class (HDR) | G |
| Energy efficiency class (SDR) | G |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Cables included | DisplayPort, HDMI |
| Stand included | Yes |
| Weight & dimensions | |
|---|---|
| Weight (without stand) | 6.6 kg |
| Height (without stand) | 366 mm |
| Depth (without stand) | 105 mm |
| Width (without stand) | 809 mm |
| Weight (with stand) | 9.01 kg |
| Height (with stand) | 546 mm |
| Depth (with stand) | 274 mm |
| Width (with stand) | 809 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 12.1 kg |
| Package height | 220 mm |
| Package depth | 974 mm |
| Package width | 510 mm |
| Sustainability | |
|---|---|
| European Product Registry for Energy Labelling (EPREL) code | 400681 |
| General | |
|---|---|
| Product Family | TUF Gaming |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
TUF Gaming VG34VQL3A is a 34-inch Ultra Wide QHD (3440 x 1440) 1500R curved gaming monitor with an 180 Hz refresh rate and 1 ms GTG response time for extremely immersive gameplay. ASUS Extreme Low Motion Blur and AMD FreeSync™ Premium Pro enables buttery-smooth gaming. In addition, it also features DisplayHDR 400 technology, supporting the HDR10 format and covering 125% sRGB color gamut for great contrast and lifelike colors.
180HZ REFRESH RATE AND 1MS (GTG) RESPONSE TIME
TUF Gaming VG34VQL3A delivers stunning visuals from all angles with an 1500R curvature that ensures every point is equidistant to your eyes. With 180Hz refresh rate decimates lag and motion blur to give you the upper hand in first person shooters, racers, real-time strategy, and sports titles. This ultrafast refresh rate lets you play at the highest visual settings and lets you react instantly to what's onscreen — so you'll get that first strike in.
ADAPTIVE-SYNC
AMD FreeSync Premium Pro technology supported through DP and HDMI ports providing variable refresh rates for low latency, stuttering-free and tearing-free while gaming.
HIGH DYNAMIC RANGE
TUF Gaming VG34VQL3A takes advantage of HDR technology to deliver more vivid colors and higher contrast levels compared to traditional monitors.
EXTREME LOW MOTION BLUR (ELMB)
ASUS Extreme Low Motion Blur (ELMB) technology provides a 1 ms MPRT response time to eliminate smearing and motion blur. It makes moving objects appear even sharper, so gameplay is more fluid and responsive.
*Ideal for Fast-paced games , works better over 85Hz.
VARIABLE OVERDRIVE
Integrated ASUS Variable Overdrive technology allows the display to dynamically alter its overdrive setting as frame rates fluctuate, ensuring optimal results for any game. You choose how strong you want the overall effect to be, then let the monitor take it from there.
IN-GAME ENHANCEMENTS
INTUITIVE CONTROLS
DisplayWidget Center software upgraded the user interface so that users can easily change monitor settings via a mouse ― so there’s no need to access the OSD menu.
SHADOW BOOST
ASUS Shadow Boost technology clarifies dark areas of the game without overexposing brighter areas, improving overall viewing while also making it easier to spot enemies hidden in dark areas of the map.
GAMEPLUS
The ASUS-exclusive, integrated GamePlus hotkey offers in-game enhancements that help you get more out of your game. This function is co-developed with input from pro gamers, allowing them to practice and improve their gaming skills.
GAMEVISUAL
ASUS GameVisual Technology has seven pre-set display modes to optimize visuals for different types of content. This unique feature can be easily accessed through a hotkey or the on-screen display settings menu.
FLICKER-FREE TECHNOLOGY
Flicker-Free technology reduces flicker to minimize eyestrain for improved comfort when you're embroiled in long gaming sessions.
LOW BLUE LIGHT
ASUS Low Blue Light technology reduces the amount of potentially harmful blue light emitted by the display. Four different filter settings are available to control the amount of blue light reduction.
ENGINEERING
EXTENSIVE CONNECTIVITY
A multitude of connectivity options, including two HDMI 2.0, plus DisplayPort™ 1.4, USB HUB ensures wide compatibility with a variety of input sources.
ERGONOMIC DESIGN
With an ergonomically-designed stand, it provides tilt, swivel and height adjustments so you can easily find your ideal viewing position. The display is also VESA-compatible for wall mounting.
| Display | |
|---|---|
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| High Dynamic Range (HDR) supported | Yes |
| Digital vertical frequency | 48 - 180 Hz |
| Digital horizontal frequency | 267 - 267 kHz |
| Viewable size, vertical | 33.4 cm |
| Viewable size, horizontal | 79.7 cm |
| Pixel pitch | 0.232 x 0.232 mm |
| Display number of colours | 16.7 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 180 Hz |
| Contrast ratio (typical) | 4000:1 |
| Screen curvature rating | 1500R |
| Screen shape | Curved |
| Anti-glare screen | Yes |
| Response time | 1 ms |
| Display brightness (typical) | 400 cd/m² |
| Display brightness (peak) | 400 cd/m² |
| Panel type | VA |
| HD type | UltraWide Quad HD |
| Touchscreen | No |
| Display technology | LCD |
| Native aspect ratio | 21:9 |
| Display resolution | 3440 x 1440 pixels |
| Display diagonal | 86.4 cm (34") |
| Performance | |
|---|---|
| Game mode | Yes |
| Motion blur reduction | Yes |
| Shadow сontrol | Yes |
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| AMD FreeSync type | FreeSync Premium Pro |
| AMD FreeSync | Yes |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| RMS rated power | 4 W |
| Built-in camera | No |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Certification | TÜV Flicker-freeTÜV Low Blue LightVESA DisplayHDR 400AMD FreeSync Premium Pro |
| Country of origin | China |
| Detachable stand | Yes |
| Product colour | Black |
| Market positioning | Gaming |
| Ports & interfaces | |
|---|---|
| AC (power) in | Yes |
| HDCP version | 2.2 |
| HDCP | Yes |
| Headphone out | Yes |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 2 |
| HDMI version | 2.0 |
| HDMI ports quantity | 2 |
| HDMI | Yes |
| USB Type-A downstream ports quantity | 3 |
| USB hub version | 3.2 Gen 2 (3.1 Gen 2) |
| Built-in USB hub | Yes |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 20° |
| Swivel angle range | -10 - 10° |
| Swivelling | Yes |
| Height adjustment | 13 cm |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Energy efficiency scale | A to G |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (PowerSave) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Power consumption (typical) | 27 W |
| Energy consumption (HDR) per 1000 hours | 42 kWh |
| Energy consumption (SDR) per 1000 hours | 28 kWh |
| Energy efficiency class (HDR) | G |
| Energy efficiency class (SDR) | F |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Cables included | AC, DisplayPort, HDMI, USB Type-A to USB Type-B |
| Stand included | Yes |
| Weight & dimensions | |
|---|---|
| Weight (without stand) | 5.8 kg |
| Height (without stand) | 364 mm |
| Depth (without stand) | 111 mm |
| Width (without stand) | 808 mm |
| Weight (with stand) | 8.1 kg |
| Height (with stand) | 541 mm |
| Depth (with stand) | 250 mm |
| Width (with stand) | 808 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 11.3 kg |
| Package height | 495 mm |
| Package depth | 280 mm |
| Package width | 915 mm |
| Sustainability | |
|---|---|
| European Product Registry for Energy Labelling (EPREL) code | 1586602 |
| General | |
|---|---|
| Product Family | TUF Gaming |
| Logistics data | |
|---|---|
| Commodity Classification Automated Tracking System (CCATS) | 8528521000 |
ARMED FOR FLOW
NVIDIA Ada Lovelace architecture elevated by buffed cooling and power delivery, and backed with an arsenal of rugged reinforcements to cover your six. Lock, load, and dominate with the TUF Gaming GeForce RTX™ 4070 Ti SUPER White Edition.
AXIAL-TECH UPGRADES
Air Superiority
Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 21% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.
NEW DIRECTION
Well-maintained Formation
The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55 Celsius, referencing a speed curve that balances performance and acoustics for work or play.
3.25-SLOT DESIGN
Phase That Blaze
A generously oversized heatsink combo efficiently soak up heat from the GeForce RTX 4070 Ti SUPER White Edition GPU so that it can be whisked away by the three Axial-tech fans.
MILITARY-GRADE 20K CAPACITORS
Resilient Squadron
A lineup of capacitors rated to last 20,000 hours at 105 Celsius brings higher temperature and ripple tolerance to the GPU power rail, arming the card for long-term deployment in challenging conditions.
METAL EXOSKELETON
Suit Up
A high-quality diecast shroud and aluminum backplate prevent PCB flex and feature large vents to further increase heat dissipation.
LOCK, LOAD, AND LET THE PERFORMANCE FLOW
The GeForce RTX™ 4070 Ti SUPER White Edition gloriously presented on a backdrop of low noise and rugged durability.
AUTO-EXTREME TECHNOLOGY
RELIABILITY BOOST
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
AURA SYNC
Light ‘em Up!
Aura-compatible ARGB lighting on the shroud adds a dash of customizable color or functional effects to your build. Pair up with a vast range of compatible system components and coordinate the glow to create a theme that’s uniquely you.
GRAPHICS CARD HOLDER
Pillar of Support
The bundled graphics card holder banishes sag and also contains a screwdriver to help you build.
SOFTWARE
GPU Tweak III
ASUS GPU Tweak III is more intuitive and feature-rich than ever before. A revamped interface offers greater accessibility by integrating core functions into a centralized dashboard, and our Voltage-Frequency tuner has been overhauled to make overclocking even easier. Additional goodies like 0dB fan technology, automatic profile swapping, a fully customizable on-screen display, and logging capabilities ensure that you get the most out of your graphics card.
QuantumCloud
QuantumCloud is a safe and easy-to-use application that lets you effortlessly earn extra money by sharing your graphics card’s computing power. Earnings are accessible through your PayPal or WeChat account, and QuantumCloud also supports multiple exchange methods, including Steam. In addition, QuantumCloud doesn’t collect any personal data, so your privacy stays protected. Get started right away with just one click!
NVIDIA DLSS 3
Max FPS. Max Quality. Powered by AI.
DLSS is a revolutionary breakthrough in AI graphics that multiplies performance. Powered by the new fourth-gen Tensor Cores and Optical Flow Accelerator on GeForce RTX 40 Series GPUs, DLSS 3 uses AI to create additional frames and improve image quality.
Further With AI, Faster on RTX
Get next-level AI performance on GeForce RTX.
Discover the RTX AI advantage. Built for the era of AI, GeForce RTX™ GPUs feature specialized AI Tensor Cores that deliver cutting-edge performance and revolutionary capabilities. From enhanced creativity and ultra-efficient productivity to blisteringly fast gaming, the ultimate in AI power on Windows PCs is on RTX.
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Processor frequency (OC mode) | 2670 MHz |
| Processor boost clock speed | 2640 MHz |
| CUDA cores | 8448 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4070 Ti SUPER |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Data transfer rate | 21 Gbit/s |
| Memory bus | 256 bit |
| Graphics card memory type | GDDR6X |
| Discrete graphics card memory | 16 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 2.1a |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 2 |
| Interface type | PCI Express 4.0 |
| Performance | |
|---|---|
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| HDCP version | 2.3 |
| Virtual Reality (VR) ready | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | White |
| Illumination | Yes |
| Illumination colour | Multi |
| Number of slots | 3.25 |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Bracket height | Full-Height (FH) |
| Number of fans | 3 fan(s) |
| Cooling technology | ASUS Axial-tech |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 1x 16-pin |
| Minimum system power supply | 750 W |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 11 |
| General | |
|---|---|
| Product Family | TUF Gaming |
| Weight & dimensions | |
|---|---|
| Depth | 305 mm |
| Height | 138 mm |
| Width | 65 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Manual | Yes |
ASUS TUF Gaming GeForce RTX™ 4070 Ti SUPER 16GB GDDR6X White OC Edition with DLSS 3, lower temps, and enhanced durability
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Processor frequency (OC mode) | 2670 MHz |
| Processor boost clock speed | 2640 MHz |
| CUDA cores | 8448 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4070 Ti SUPER |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 21 GB/s |
| Memory bus | 256 bit |
| Graphics card memory type | GDDR6X |
| Discrete graphics card memory | 16 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 2.1a |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 2 |
| Interface type | PCI Express 4.0 |
| Performance | |
|---|---|
| Dual Link DVI | No |
| HDCP | Yes |
| HDCP version | 2.3 |
| Virtual Reality (VR) ready | Yes |
| OpenGL version | 4.6 |
| Design | |
|---|---|
| Product colour | White |
| Number of slots | 3.25 |
| Number of fans | 3 fan(s) |
| Cooling technology | ASUS Axial-tech |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 1x 16-pin |
| Minimum system power supply | 750 W |
| System requirements | |
|---|---|
| Windows operating systems supported | Yes |
| General | |
|---|---|
| Product Family | TUF Gaming |
| Weight & dimensions | |
|---|---|
| Depth | 65 mm |
| Height | 138 mm |
| Width | 305 mm |
| Packaging data | |
|---|---|
| Package type | Box |
ASUS TUF GAMING X670E-PLUS takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
INTELLIGENT CONTROL
Comprehensive controls form the foundation of the ASUS TUF GAMING series. The TUF GAMING X670E motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Overclocking Technologies
Whether you’re looking to crush benchmarks or fine-tune your system for daily driving, TUF GAMING offers unique tools that let you exploit the intricacies of the latest Ryzen architecture.
AI OVERCLOCKING
Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
AI Cooling II
Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans.
Armoury Crate
The ASUS-exclusive Armoury Crate centralizes easy control of supported gaming products. A single intuitive interface lets you customize RGB lighting for all compatible devices and link them to Aura Sync for unified illumination. It also offers information and control for a select and growing hardware ecosystem, with input device settings, Fan Xpert 4 and Two-Way AI Noise Cancelation. Armoury Crate even features product registration, and a news section to stay in touch with the gaming community.
ROCK-SOLID PERFORMANCE
With upgraded power delivery and comprehensive cooling options to fuel AMD's latest CPUs, plus support for faster memory and storage, TUF GAMING X670E-PLUS is the perfect foundation for your next high-core-count AMD battle rig.
Teamed Power Stages
14+2 power stages are each rated to handle 70 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible AMD processors.
Eight-Layer PCB Design
The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.
8+8 PIN ProCool Power Connectors
Compared to traditional power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.
TUF Components
TUF Chokes
Certified military-grade TUF chokes deliver rock-solid power to the CPU, improving system stability.
TUF Capacitors
The TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X-longer lifespan than standard motherboard capacitors.
Digi+ VRM
The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.
DRAM Overclocking Performance
DDR5 OC 6400
Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With the TUF GAMING X670E-PLUS, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.
PCIe 5.0 Support
The TUF GAMING X670E-PLUS also features one PCIe 5.0 M.2 slot to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support for NVMe and SATA RAID configurations to take advantage of the latest available speeds.
Cooler By Design
The TUF GAMING X670E-PLUS is armed with a 3X enlarged VRM, PCH and three M.2 slots with heatsinks that provide the perfect balance of mass and surface area for heat dissipation.
Comprehensive Fan Controls
TUF GAMING X670E motherboards feature comprehensive fan controls that can be configured via Fan Xpert 4 utility in Armoury Crate or the award-winning ASUS UEFI BIOS.
Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 4 or via the UEFI.
A dedicated header supplies more than 3 amps* for high-performance PWM or DC water pumps, plus a second dedicated header for AIOs.
*AIO Pump header supports 1 amp, and Water Pump+ header supports 3 amps.
A dedicated integrated circuit protects each fan header from excess heat and electrical currents.
All onboard chassis fan headers support auto-detection of PWM or DC fans.
Connectivity
The TUF-GAMING X670E-PLUS reaches new heights of performance potential with the latest version of PCI Express, while an arsenal of USB ports includes three Type-C® connections, and Thunderbolt™ (USB4®) expands compatibility and bandwidth even further.
EASY PC DIY
The TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 4, hardware info, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.
Build With Confidence
TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.
SafeSlot Core+ & SafeDIMM
PCIe 5.0 is 2x faster than PCIe 4.0, so we adapted our SMT manufacturing process for the faster SafeSlot Core+, to ensure the highest data speeds. SafeSlot Core+ is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Meanwhile, strong ASUS SafeDIMM sheathes support and protect memory modules on select ASUS motherboards, empowering you to insert your modules with speed, accuracy and confidence.
ESD Guards
ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge — greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV. Surface-mounted TVS diodes in a dual in-line package help protect your PC from voltage spikes.
TUF LANGuard
TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.
Stainless Steel Back I/O Panel
TUF GAMING motherboards have a corrosion-resistant stainless steel back I/O panel bonded with chromium oxide to provide a lifespan that’s three times longer than traditional panels. With this protective feature, TUF GAMING motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing.
M.2 Q-Latch
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the M.2 SSD, neatly eliminating the need for screws.
Removable Captive Screws
Specialized M.2 slot screws reduce the risk of dropping or losing a screw somewhere in your case during M.2 heatsink removal.
Q-LED
The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components ― CPU, RAM, graphics card, storage devices ― are functioning normally during startup.
IMMERSIVE GAMING
TUF GAMING X670E motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.
2.5 Gb Ethernet
2.5 Gb on-board Ethernet kicks your LAN connection up a notch with a bandwidth improvement of up to 2.5X. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.
Two-Way AI Noise Cancelation
This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are removed so you can hear and be heard with perfect clarity while gaming or during calls.
*An audio splitter (3.5 mm audio jack Y-cable) is necessary when using a 3.5 mm headset.
Realtek 7.1 Surround Sound
S1220A Codec
TUF GAMING X670E series utilizes a unique audio codec designed in close collaboration with Realtek — the Realtek S1220A. It features an unprecedented 120 dB signal-to-noise (SNR) ratio for the stereo line out and a 113 dB SNR for the line in, providing pristine audio quality. Additionally, an impedance-sensing circuit automatically adjusts gain to ensure an optimal volume range for your headphones.
DTS Audio Processing
DTS® Audio Processing enhances gaming headset and speaker audio experiences by reducing distortion and by providing deeper bass, so games, movies and music sound better. It also allows you to customize audio settings.
Outshine The Competition
A well-tuned system deserves a matching aesthetic. TUF GAMING X670E series features edge lighting to enhance its rugged look, and ASUS Aura offers full RGB control with presets for built-in LEDs and third-party strips. It can all sync with an ever-growing portfolio of Aura-compatible hardware.
Addressable Gen 2 RGB Header
Three addressable Gen 2 RGB headers will support up to 500 LEDs on Gen 2 RGB devices, empowering Aura Sync to automatically tailor lighting effects across your whole system. The new headers also offer full backward compatibility with existing Aura Sync gear.
THIS CHANGES EVERYTHING
FROM THIS NEW PLATFORM,
YOU CAN SEE THE FUTURE
Build your next rig with an AMD Ryzen™ 7000 Series processor and ASUS TUF GAMING motherboards to experience advanced performance. With up to 16 “Zen 4” cores and 32 threads, boost clocks of up to 5.7GHz, and 80MB cache, the AMD Ryzen™ 7000 Series keeps you ahead of the game.1
You’ll also gain access to new features for gamers with AMD Socket AM5, from the speed of DDR5 memory to the increased bandwidth of PCIe® 5.0. AMD Ryzen™ 7000 Series processors and AMD socket AM5 motherboards are unlocked for overclocking to personalize your experience. Gain even more performance when you overclock your DDR5 memory with AMD EXPO™ technology.2
| Processor | |
|---|---|
| Supported processor sockets | Socket AM5 |
| Processor socket | Socket AM5 |
| Processor manufacturer | AMD |
| Memory | |
|---|---|
| Unbuffered memory | Yes |
| Maximum internal memory | 128 GB |
| Supported memory clock speed (max) | 6400 MHz |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz |
| Non-ECC | Yes |
| ECC | Yes |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Storage controllers | |
|---|---|
| RAID levels | 0, 1, 10 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| RGB LED pin header | Yes |
| Thunderbolt headers | 1 |
| Number of COM connectors | 1 |
| 12V power connector | Yes |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of chassis fan connectors | 4 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel connector | Yes |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 2.0 connectors | 3 |
| Rear panel I/O ports | |
|---|---|
| Microphone in | Yes |
| Headphone outputs | 1 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Power source type | ATX |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek S1220A |
| Motherboard chipset | AMD X670 |
| Motherboard chipset family | AMD |
| Motherboard form factor | ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x4 slots | 1 |
| BIOS | |
|---|---|
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Packaging data | |
|---|---|
| Package weight | 2.35 kg |
| Package height | 68 mm |
| Package depth | 273 mm |
| Package width | 338 mm |
| Weight & dimensions | |
|---|---|
| Depth | 244 mm |
| Width | 305 mm |
| Packaging content | |
|---|---|
| Drivers included | Yes |
| Cables included | SATA |
| User guide | Yes |
| Other features | |
|---|---|
| Special features | TUF PROTECTION- DIGI+ VRM (- Digital power design with DrMOS)- ESD Guards- LANGuard- Overvoltage Protection- Safeslot Core+- Stainless-Steel Back I/OASUS Q-Design- M.2 Q-Latch- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink- VRM heatsink designASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- Clear CMOS header- ProCool- Pre-mounted I/O shield- SafeSlot- SafeDIMMAURA Sync- AURA RGB header- Addressable Gen 2 headersTUF PROTECTION- DIGI+ VRM (- Digital power design with DrMOS)- ESD Guards- LANGuard- Overvoltage Protection- Safeslot- Stainless-Steel Back I/OASUS Q-Design- M.2 Q-Latch- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink- VRM heatsink designASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- Clear CMOS header- ProCool- Pre-mounted I/O shield- SafeSlot- SafeDIMMAURA Sync- AURA RGB header- Addressable Gen 2 headers |
| Packaging content | Cables2 x SATA 6Gb/s cablesMiscellaneous2 x Rubber packages for M.22 x Screw packages for M.2 SSDDocumentation1 x TUF certification card1 x User guide |
ASUS TUF GAMING X670E-PLUS WIFI takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
INTELLIGENT CONTROL
Comprehensive controls form the foundation of the ASUS TUF GAMING series. The TUF GAMING X670E motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Overclocking Technologies
Whether you’re looking to crush benchmarks or fine-tune your system for daily driving, TUF GAMING offers unique tools that let you exploit the intricacies of the latest Ryzen architecture.
AI OVERCLOCKING
Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
AI Cooling II
Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans.
Armoury Crate
The ASUS-exclusive Armoury Crate centralizes easy control of supported gaming products. A single intuitive interface lets you customize RGB lighting for all compatible devices and link them to Aura Sync for unified illumination. It also offers information and control for a select and growing hardware ecosystem, with input device settings, Fan Xpert 4 and Two-Way AI Noise Cancelation. Armoury Crate even features product registration, and a news section to stay in touch with the gaming community.
ROCK-SOLID PERFORMANCE
With upgraded power delivery and comprehensive cooling options to fuel AMD's latest CPUs, plus support for faster memory and storage, TUF GAMING X670E-PLUS WIFI is the perfect foundation for your next high-core-count AMD battle rig.
Teamed Power Stages
14+2 power stages are each rated to handle 70 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible AMD processors.
Eight-Layer PCB Design
The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.
8+8 PIN ProCool Power Connectors
Compared to traditional power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.
TUF Components
TUF Chokes
Certified military-grade TUF chokes deliver rock-solid power to the CPU, improving system stability.
TUF Capacitors
The TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X-longer lifespan than standard motherboard capacitors.
Digi+ VRM
The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.
DRAM Overclocking Performance
DDR5 OC 6400
Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With the TUF GAMING X670E-PLUS, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.
PCIe 5.0 Support
The TUF GAMING X670E-PLUS also features one PCIe 5.0 M.2 slot to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support for NVMe and SATA RAID configurations to take advantage of the latest available speeds.
Cooler By Design
The TUF GAMING X670E-PLUS is armed with a 3X enlarged VRM, PCH and three M.2 slots with heatsinks that provide the perfect balance of mass and surface area for heat dissipation.
Comprehensive Fan Controls
TUF GAMING X670E motherboards feature comprehensive fan controls that can be configured via Fan Xpert 4 utility in Armoury Crate or the award-winning ASUS UEFI BIOS.
Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 4 or via the UEFI.
A dedicated header supplies more than 3 amps* for high-performance PWM or DC water pumps, plus a second dedicated header for AIOs.
*AIO Pump header supports 1 amp, and Water Pump+ header supports 3 amps.
A dedicated integrated circuit protects each fan header from excess heat and electrical currents.
All onboard chassis fan headers support auto-detection of PWM or DC fans.
Connectivity
The TUF-GAMING X670E-PLUS reaches new heights of performance potential with the latest version of PCI Express, while an arsenal of USB ports includes three Type-C® connections, and Thunderbolt™ (USB4®) expands compatibility and bandwidth even further.
EASY PC DIY
The TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 4, hardware info, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.
Build With Confidence
TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.
SafeSlot Core+ & SafeDIMM
PCIe 5.0 is 2x faster than PCIe 4.0, so we adapted our SMT manufacturing process for the faster SafeSlot Core+, to ensure the highest data speeds. SafeSlot Core+ is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Meanwhile, strong ASUS SafeDIMM sheathes support and protect memory modules on select ASUS motherboards, empowering you to insert your modules with speed, accuracy and confidence.
ESD Guards
ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge — greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV. Surface-mounted TVS diodes in a dual in-line package help protect your PC from voltage spikes.
TUF LANGuard
TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.
Stainless Steel Back I/O Panel
TUF GAMING motherboards have a corrosion-resistant stainless steel back I/O panel bonded with chromium oxide to provide a lifespan that’s three times longer than traditional panels. With this protective feature, TUF GAMING motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing.
M.2 Q-Latch
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the M.2 SSD, neatly eliminating the need for screws.
Removable Captive Screws
Specialized M.2 slot screws reduce the risk of dropping or losing a screw somewhere in your case during M.2 heatsink removal.
Q-LED
The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components ― CPU, RAM, graphics card, storage devices ― are functioning normally during startup.
IMMERSIVE GAMING
TUF GAMING X670E motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.
2.5 Gb Ethernet
2.5 Gb on-board Ethernet kicks your LAN connection up a notch with a bandwidth improvement of up to 2.5X. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.
Two-Way AI Noise Cancelation
This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are removed so you can hear and be heard with perfect clarity while gaming or during calls.
*An audio splitter (3.5 mm audio jack Y-cable) is necessary when using a 3.5 mm headset.
Realtek 7.1 Surround Sound
S1220A Codec
TUF GAMING X670E series utilizes a unique audio codec designed in close collaboration with Realtek — the Realtek S1220A. It features an unprecedented 120 dB signal-to-noise (SNR) ratio for the stereo line out and a 113 dB SNR for the line in, providing pristine audio quality. Additionally, an impedance-sensing circuit automatically adjusts gain to ensure an optimal volume range for your headphones.
DTS Audio Processing
DTS® Audio Processing enhances gaming headset and speaker audio experiences by reducing distortion and by providing deeper bass, so games, movies and music sound better. It also allows you to customize audio settings.
Outshine The Competition
A well-tuned system deserves a matching aesthetic. TUF GAMING X670E series features edge lighting to enhance its rugged look, and ASUS Aura offers full RGB control with presets for built-in LEDs and third-party strips. It can all sync with an ever-growing portfolio of Aura-compatible hardware.
Addressable Gen 2 RGB Header
Three addressable Gen 2 RGB headers will support up to 500 LEDs on Gen 2 RGB devices, empowering Aura Sync to automatically tailor lighting effects across your whole system. The new headers also offer full backward compatibility with existing Aura Sync gear.
THIS CHANGES EVERYTHING
FROM THIS NEW PLATFORM,
YOU CAN SEE THE FUTURE
Build your next rig with an AMD Ryzen™ 7000 Series processor and ASUS TUF GAMING motherboards to experience advanced performance. With up to 16 “Zen 4” cores and 32 threads, boost clocks of up to 5.7GHz, and 80MB cache, the AMD Ryzen™ 7000 Series keeps you ahead of the game.1
You’ll also gain access to new features for gamers with AMD Socket AM5, from the speed of DDR5 memory to the increased bandwidth of PCIe® 5.0. AMD Ryzen™ 7000 Series processors and AMD socket AM5 motherboards are unlocked for overclocking to personalize your experience. Gain even more performance when you overclock your DDR5 memory with AMD EXPO™ technology.2
| Processor | |
|---|---|
| Supported processor sockets | Socket AM5 |
| Compatible processor series | AMD Ryzen 5 7th Gen, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen |
| Processor socket | Socket AM5 |
| Processor manufacturer | AMD |
| Memory | |
|---|---|
| Unbuffered memory | Yes |
| Maximum internal memory | 192 GB |
| Supported memory clock speed (max) | 6400 MHz |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7600,7800,8000 MHz |
| Non-ECC | Yes |
| ECC | Yes |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Storage controllers | |
|---|---|
| RAID levels | 0, 1, 10 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| Maximum resolution | 7680 x 4320 pixels |
| On-board graphics card | No |
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| RGB LED pin header | Yes |
| Thunderbolt headers | 1 |
| Number of COM connectors | 1 |
| 12V power connector | Yes |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of chassis fan connectors | 4 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel connector | Yes |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 2.0 connectors | 3 |
| Rear panel I/O ports | |
|---|---|
| S/PDIF out port | No |
| Microphone in | Yes |
| Line-in | Yes |
| Headphone outputs | 1 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| Network | |
|---|---|
| Bluetooth version | 5.2 |
| Bluetooth | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Power source type | ATX |
| Product colour | Black |
| Audio output channels | 7.1 channels |
| Motherboard chipset | AMD X670 |
| Motherboard chipset family | AMD |
| Motherboard form factor | ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x4 slots | 1 |
| BIOS | |
|---|---|
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Packaging data | |
|---|---|
| Package weight | 2.55 kg |
| Package height | 68 mm |
| Package depth | 273 mm |
| Package width | 338 mm |
| Weight & dimensions | |
|---|---|
| Depth | 244 mm |
| Width | 305 mm |
| Packaging content | |
|---|---|
| Drivers included | Yes |
| Cables included | SATA |
| User guide | Yes |
| Other features | |
|---|---|
| Special features | TUF PROTECTION- DIGI+ VRM (- Digital power design with DrMOS)- ESD Guards- LANGuard- Overvoltage Protection- Safeslot Core+- Stainless-Steel Back I/OASUS Q-Design- M.2 Q-Latch- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink- VRM heatsink designASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- Clear CMOS header- ProCool- Pre-mounted I/O shield- SafeSlot- SafeDIMMAURA Sync- AURA RGB header- Addressable Gen 2 headersTUF PROTECTION- DIGI+ VRM (- Digital power design with DrMOS)- ESD Guards- LANGuard- Overvoltage Protection- Safeslot- Stainless-Steel Back I/OASUS Q-Design- M.2 Q-Latch- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink- VRM heatsink designASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- Clear CMOS header- ProCool- Pre-mounted I/O shield- SafeSlot- SafeDIMMAURA Sync- AURA RGB header- Addressable Gen 2 headers |
| Packaging content | Cables2 x SATA 6Gb/s cablesMiscellaneous1 x ASUS Wi-Fi moving antenna2 x Rubber packages for M.22 x Screw packages for M.2 SSDDocumentation1 x TUF certification card1 x User guide |
