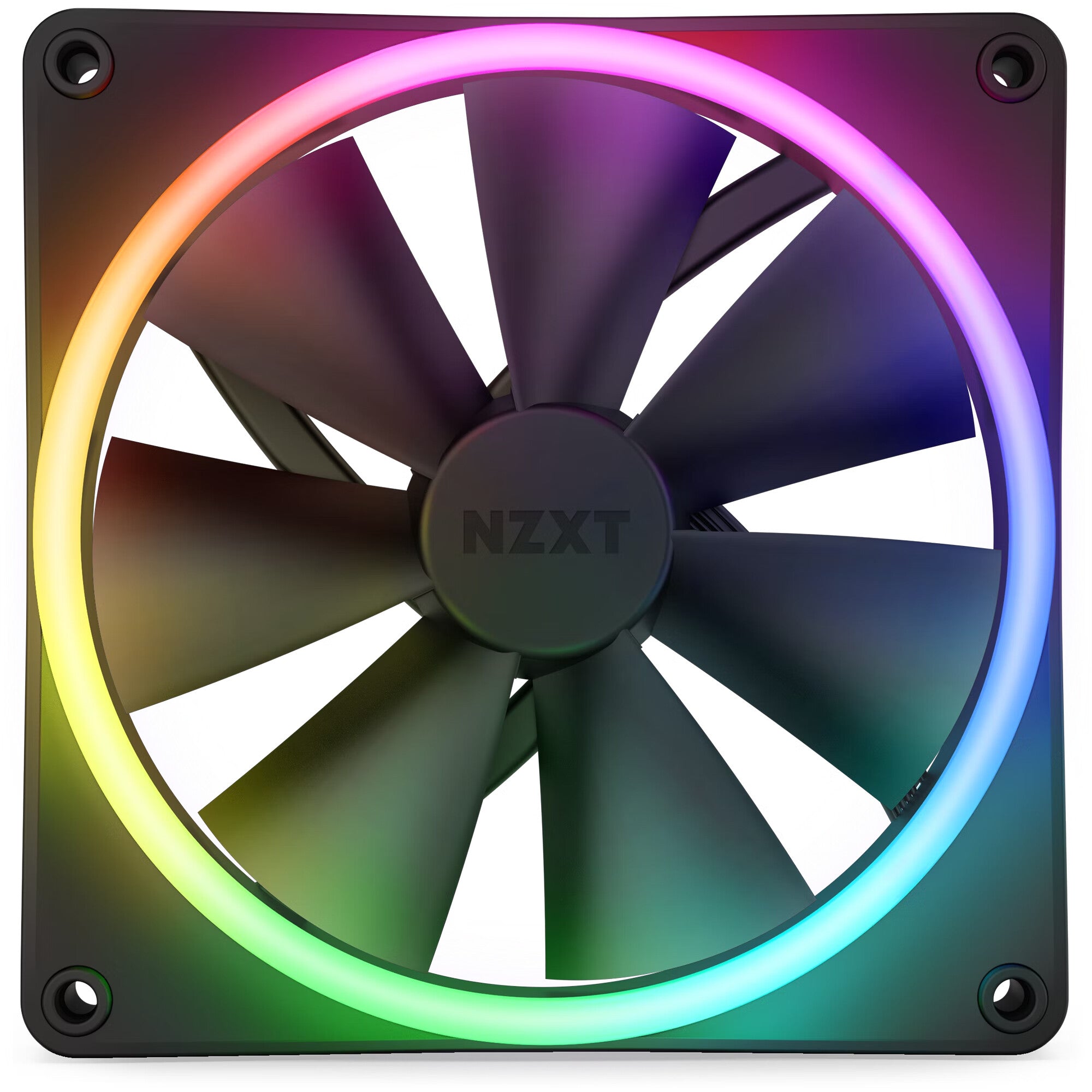

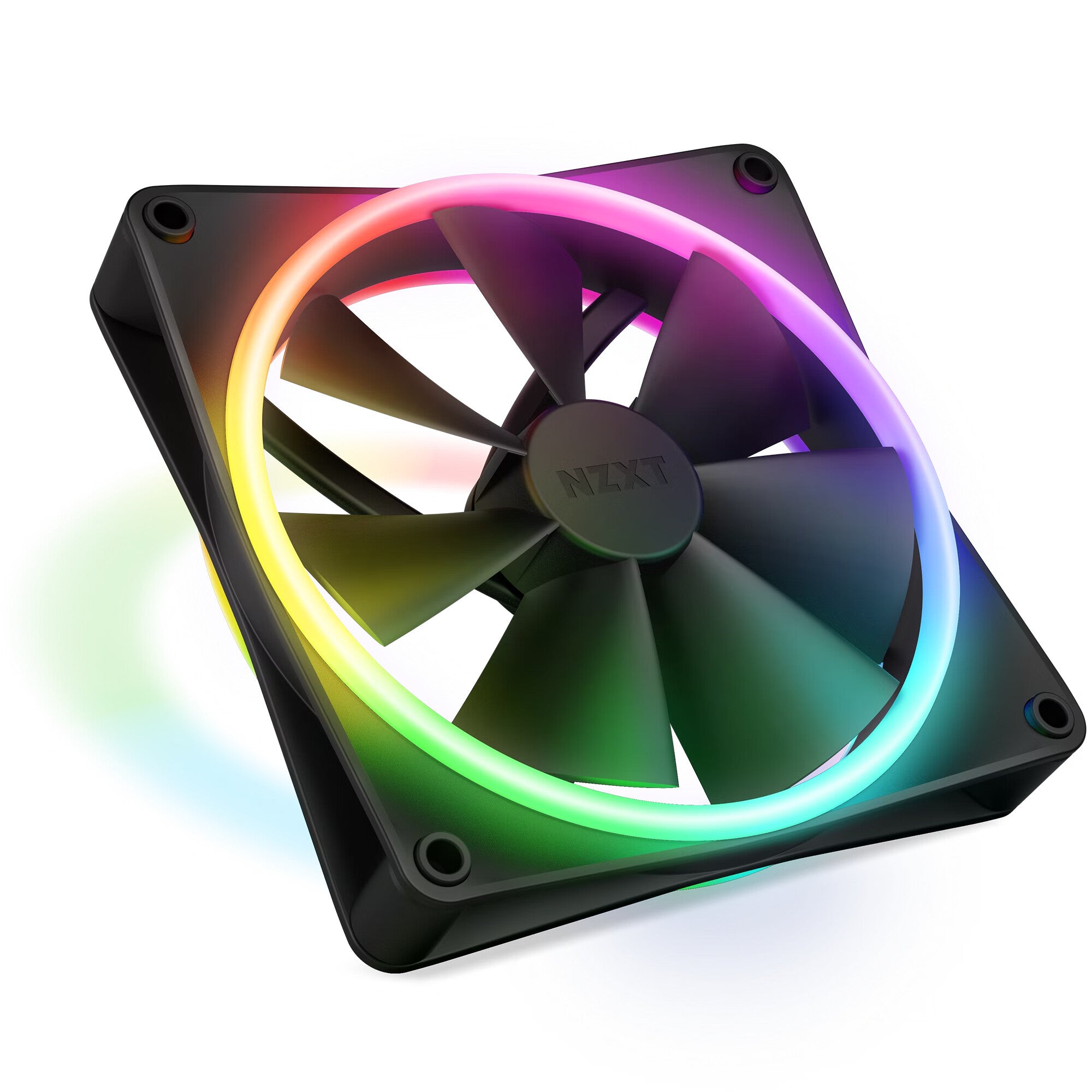

F120 RGB fans provide some flair while keeping things cool. This fan is a high airflow fan that provides ideal airflow for cooling. Fan controls and lighting effects are compatible with NZXT CAM.
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 60000 h |
| Quantity per pack | 1 pc(s) |
| Pump connector | 4-pin |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Maximum air pressure | 2.7 mmH2O |
| Minimum air pressure | 0.75 mmH2O |
| Maximum airflow | 50.18 cfm |
| Minimum airflow (imperial) | 13.94 cfm |
| Noise level (high speed) | 27.5 dB |
| Noise level (low speed) | 17.2 dB |
| Rotational speed (max) | 1800 RPM |
| Rotational speed (min) | 500 RPM |
| Fan diameter | 12 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Illumination colour | Multi |
| Number of LEDs | 18 |
| Illumination LED | Yes |
| Material | Plastic, Rubber |
| Product colour | Black |
| Power | |
|---|---|
| Rated current | 0.18 A |
| Rated voltage | 12 V |
| Power supply | 2.16 W |
| Weight & dimensions | |
|---|---|
| Fan dimensions (W x D x H) | 120 x 120 x 26 mm |
| Other features | |
|---|---|
| Country of origin | China |
This bundle contains three F120 RGB fans and a fan controller. F120mm fans are high airflow fans that provide the ideal balance between airflow and static pressure. Fan controls and lighting effects are compatible with NZXT CAM.
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 60000 h |
| Quantity per pack | 3 pc(s) |
| Pump connector | 4-pin |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Maximum air pressure | 2.7 mmH2O |
| Minimum air pressure | 0.75 mmH2O |
| Maximum airflow | 50.18 cfm |
| Minimum airflow (imperial) | 13.94 cfm |
| Noise level (high speed) | 27.5 dB |
| Noise level (low speed) | 17.2 dB |
| Rotational speed (max) | 1800 RPM |
| Rotational speed (min) | 500 RPM |
| Fan diameter | 12 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Illumination colour | Multi |
| Number of LEDs | 18 |
| Illumination LED | Yes |
| Material | Plastic, Rubber |
| Product colour | Black |
| Power | |
|---|---|
| Rated current | 0.18 A |
| Rated voltage | 12 V |
| Power supply | 2.16 W |
| Weight & dimensions | |
|---|---|
| Fan dimensions (W x D x H) | 120 x 120 x 26 mm |
| Other features | |
|---|---|
| Country of origin | China |

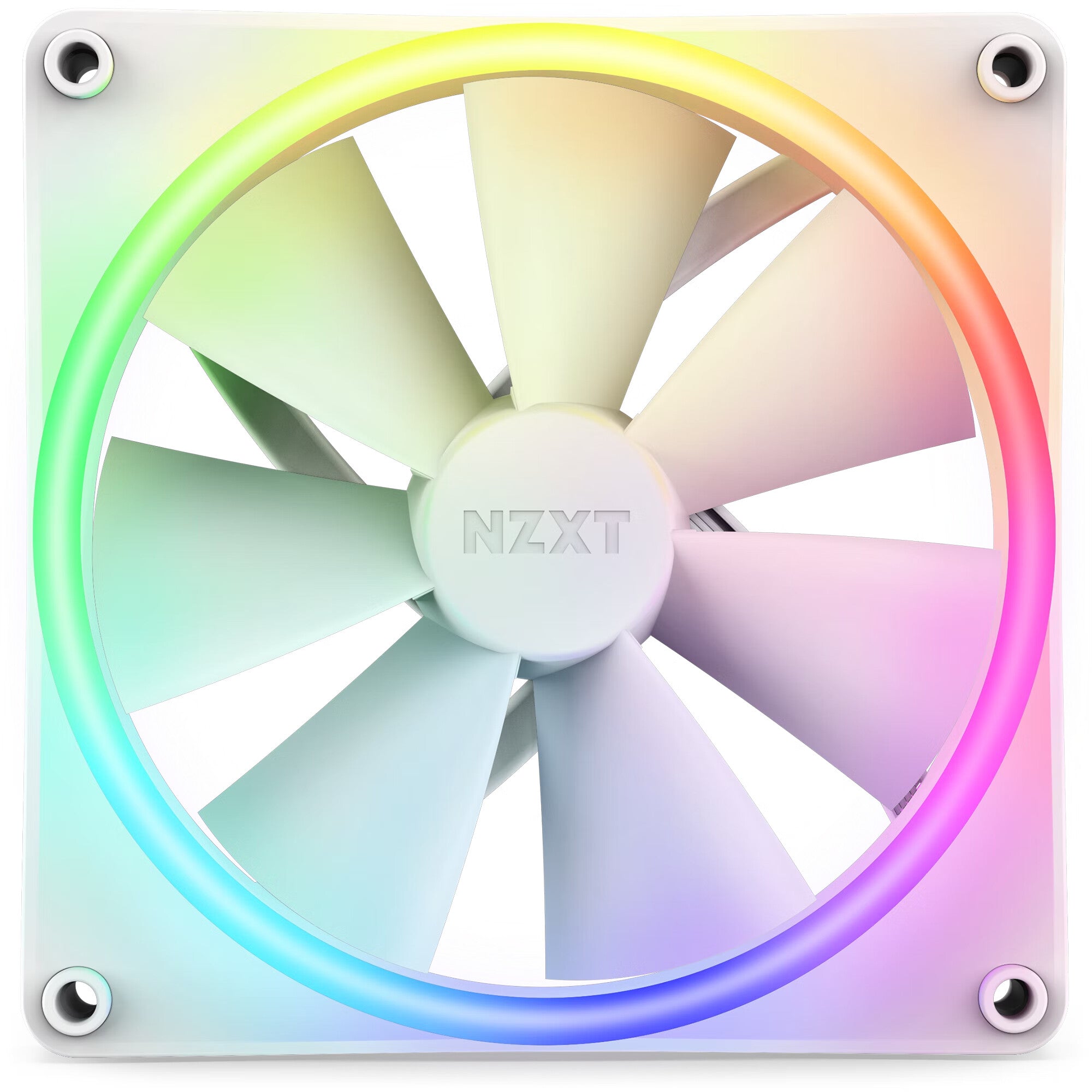

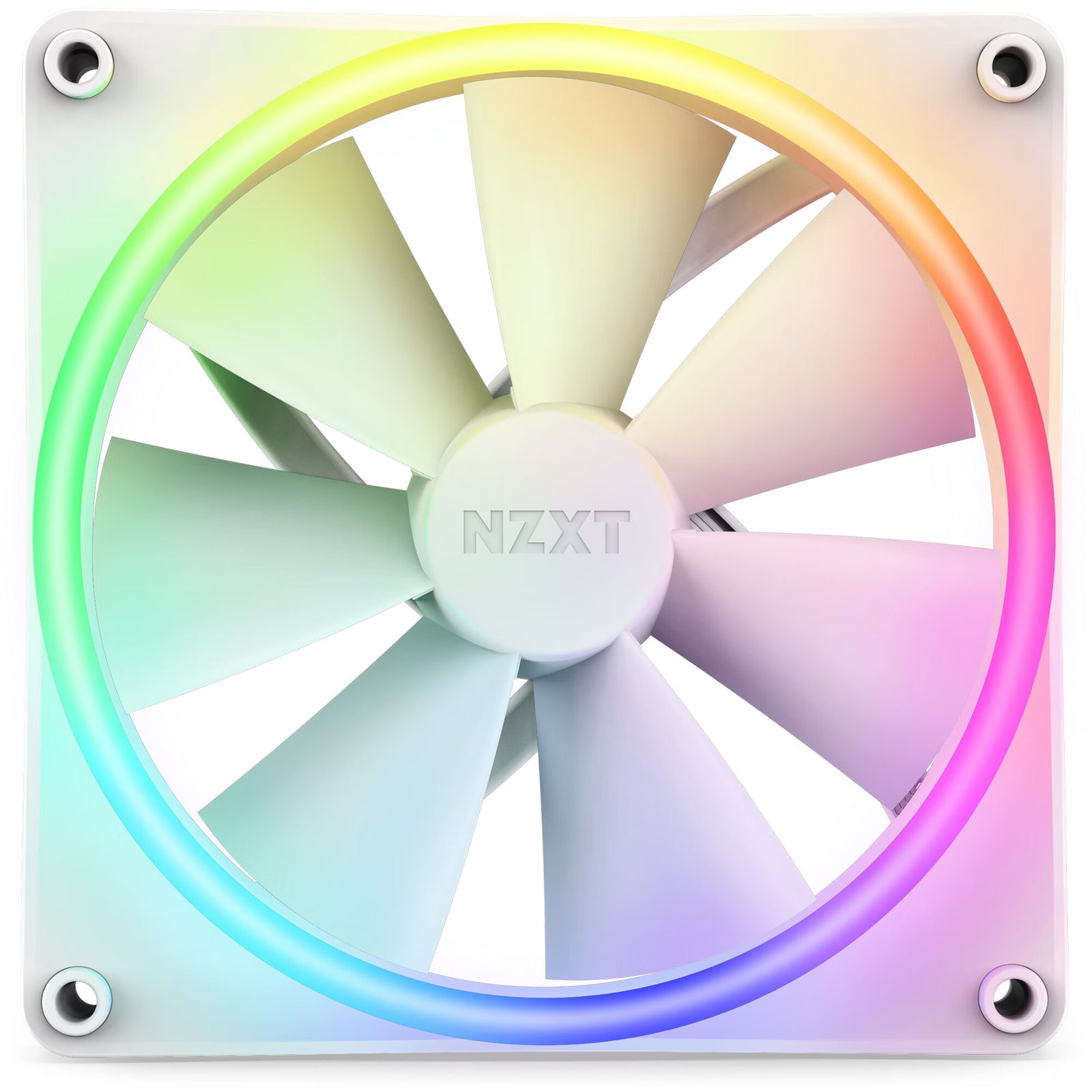

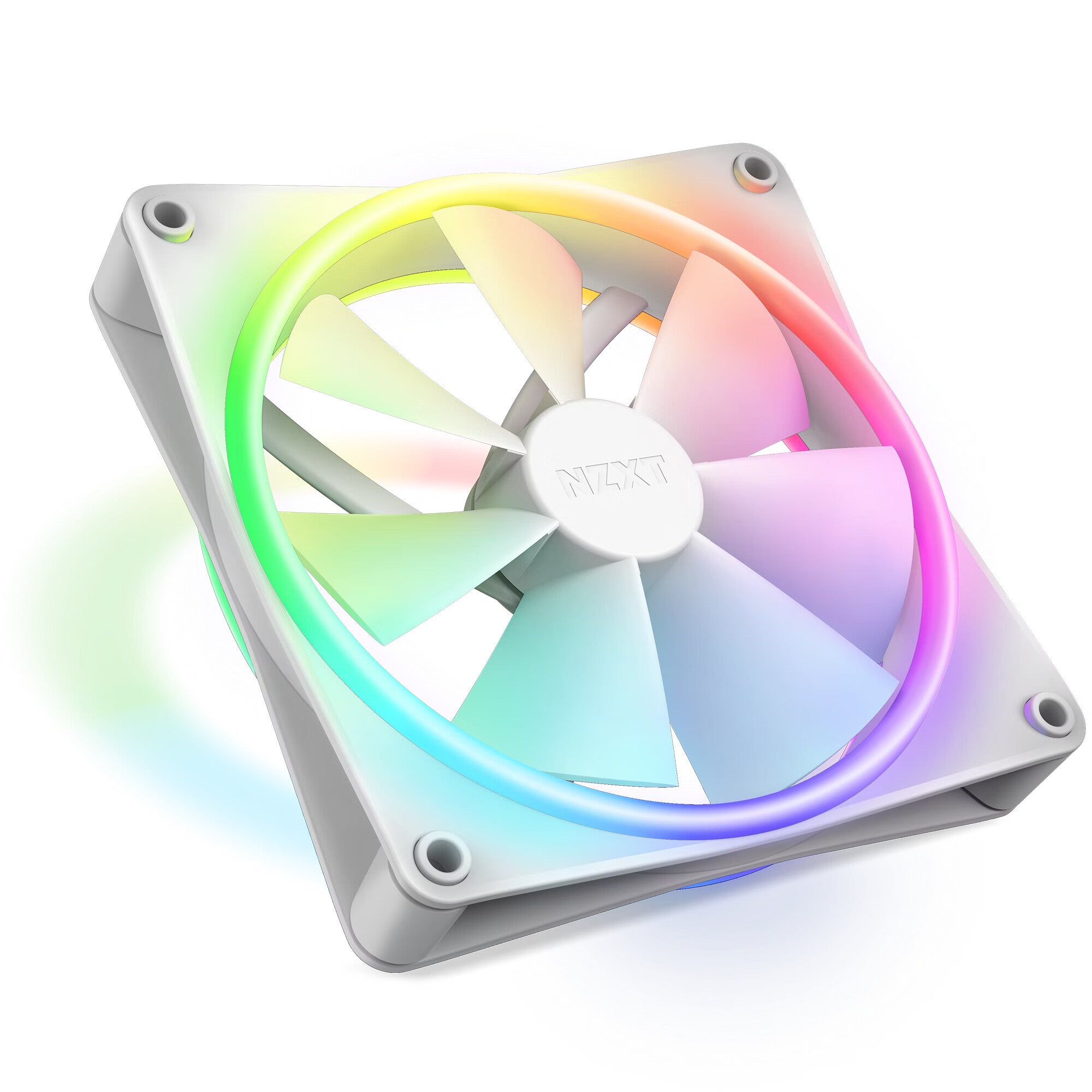

F120 RGB fans provide some flair while keeping things cool. This fan is a high airflow fan that provides ideal airflow for cooling. Fan controls and lighting effects are compatible with NZXT CAM.
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 60000 h |
| Quantity per pack | 1 pc(s) |
| Pump connector | 4-pin |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Maximum air pressure | 2.7 mmH2O |
| Minimum air pressure | 0.75 mmH2O |
| Maximum airflow | 50.18 cfm |
| Minimum airflow (imperial) | 13.94 cfm |
| Noise level (high speed) | 27.5 dB |
| Noise level (low speed) | 17.2 dB |
| Rotational speed (max) | 1800 RPM |
| Rotational speed (min) | 500 RPM |
| Fan diameter | 12 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Illumination colour | Multi |
| Number of LEDs | 18 |
| Illumination LED | Yes |
| Material | Plastic, Rubber |
| Product colour | White |
| Power | |
|---|---|
| Rated current | 0.18 A |
| Rated voltage | 12 V |
| Power supply | 2.6 W |
| Weight & dimensions | |
|---|---|
| Fan dimensions (W x D x H) | 120 x 120 x 26 mm |
| Other features | |
|---|---|
| Country of origin | China |
This bundle contains three F120 RGB fans and a fan controller. F120mm fans are high airflow fans that provide the ideal balance between airflow and static pressure. Fan controls and lighting effects are compatible with NZXT CAM.
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 60000 h |
| Quantity per pack | 3 pc(s) |
| Pump connector | 4-pin |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Maximum air pressure | 2.7 mmH2O |
| Minimum air pressure | 0.75 mmH2O |
| Maximum airflow | 50.18 cfm |
| Minimum airflow (imperial) | 13.94 cfm |
| Noise level (high speed) | 27.5 dB |
| Noise level (low speed) | 17.2 dB |
| Rotational speed (max) | 1800 RPM |
| Rotational speed (min) | 500 RPM |
| Fan diameter | 12 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Illumination colour | Multi |
| Number of LEDs | 18 |
| Illumination LED | Yes |
| Material | Plastic, Rubber |
| Product colour | White |
| Power | |
|---|---|
| Rated current | 0.18 A |
| Rated voltage | 12 V |
| Power supply | 2.16 W |
| Weight & dimensions | |
|---|---|
| Fan dimensions (W x D x H) | 120 x 120 x 26 mm |
| Other features | |
|---|---|
| Country of origin | China |
The F Series RGB Core Fans offer brilliant lighting with eight individually addressable RGB LEDs and premium cooling with high static pressure.
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 60000 h |
| Quantity per pack | 1 pc(s) |
| Bearing type | Hydro Dynamic Bearing (HDB) |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 2.57 mmH2O |
| Noise level (high speed) | 33.88 dB |
| Rotational speed (max) | 1800 RPM |
| Rotational speed (min) | 500 RPM |
| Fan diameter | 12 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Illumination colour | Multi |
| Number of LEDs | 8 |
| Illumination LED | Yes |
| Number of fans | 1 fan(s) |
| Material | Plastic |
| Product colour | Black |
| Power | |
|---|---|
| Rated current | 0.2 A |
| Fan power consumption | 2.4 W |
| Voltage | 12 V |
| Weight & dimensions | |
|---|---|
| Cable length | 0.6 m |
| Fan dimensions (W x D x H) | 120 x 26 x 120 mm |
| Packaging content | |
|---|---|
| Number of screws | 4 |
| Screws included | Yes |
The F Series RGB Core Fans offer brilliant lighting with eight individually addressable RGB LEDs and premium cooling with high static pressure.
Eight Individually addressable LEDs mounted on the fan hub are perfectly diffused through the semi-translucent blades for a sublime lighting effect.
A refined hub and blade design offer enhanced static pressure by pushing air through your radiator while providing great airflow. This allows for superior heat dissipation when paired with a liquid cooler or heatsink and used as intake, or exhaust.
Personalized lighting combinations through NZXT CAM software.
Seamlessly sync it with all your compatible NZXT lighting accessories.
The PWM-controlled fan allows speed adjustment, offering the best cooling possible without compromising noise level.
Fluid Dynamic Bearings deliver high rotational stability while reducing bearing noise and increasing fan lifespan up to 60,000 hours.
Anti-vibration rubber corners dampen vibration noise at any speed.
Triple and twin packs include an NZXT RGB Controller with three channels for synchronized lighting control.
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 6000 h |
| Fan static pressure | 2.57 mmH2O |
| Quantity per pack | 3 pc(s) |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Maximum airflow | 78.86 cfm |
| Rotational speed (max) | 1800 RPM |
| Rotational speed (min) | 500 RPM |
| Fan diameter | 12 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Number of LEDs | 8 |
| Illumination LED | Yes |
| Number of fans | 3 fan(s) |
| Material | Plastic, Rubber |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| Number of SATA connectors | 1 |
| Power | |
|---|---|
| Rated current | 0.2 A |
| Rated voltage | 12 V |
| Power consumption (typical) | 2.4 W |
| Weight & dimensions | |
|---|---|
| Cable length | 0.6 m |
| Weight | 52.8 g |
| Height | 53.2 mm |
| Depth | 12.8 mm |
| Width | 63.2 mm |
| Packaging content | |
|---|---|
| RGB controller included | Yes |
| Number of screws | 12 |
| Screws included | Yes |
The F Series RGB Core Fans offer brilliant lighting with eight individually addressable RGB LEDs and premium cooling with high static pressure.
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 60000 h |
| Quantity per pack | 1 pc(s) |
| Bearing type | Hydro Dynamic Bearing (HDB) |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 2.57 mmH2O |
| Noise level (high speed) | 33.88 dB |
| Rotational speed (max) | 1800 RPM |
| Rotational speed (min) | 500 RPM |
| Fan diameter | 12 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Illumination colour | Multi |
| Number of LEDs | 8 |
| Illumination LED | Yes |
| Number of fans | 1 fan(s) |
| Material | Plastic |
| Product colour | White |
| Power | |
|---|---|
| Rated current | 0.2 A |
| Fan power consumption | 2.4 W |
| Voltage | 12 V |
| Weight & dimensions | |
|---|---|
| Cable length | 0.6 m |
| Fan dimensions (W x D x H) | 120 x 26 x 120 mm |
| Packaging content | |
|---|---|
| Number of screws | 4 |
| Screws included | Yes |
Dual-sided Lighting
20 individually addressable RGB LEDs offer colorful customization and the dual-sided lighting makes any color scheme visible from every angle
Quiet and Cool
PWM fan control means fans cool quickly when needed, but stay quiet at lower loads for maximum efficiency
Light Your Way
Personalize RGB lighting effects and configure fan speeds with NZXT CAM.
Rubber Dampener
Rubber dampeners on the corners of the fans reduce vibration noise and keep things running cool and quiet.
| Performance | |
|---|---|
| Fan's mean time to failure (MTTF) | 60000 h |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 1800 RPM |
| Quantity per pack | 1 pc(s) |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Maximum air pressure | 2.42 mmH2O |
| Maximum airflow | 48.58 cfm |
| Noise level (high speed) | 29 dB |
| Rotational speed (max) | 1800 RPM |
| Rotational speed (min) | 500 RPM |
| Fan diameter | 12 cm |
| Type | Fan |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Illumination colour | Blue, Green, Red |
| Number of LEDs | 20 |
| Illumination LED | Yes |
| Number of fans | 1 fan(s) |
| Material | Plastic, Rubber |
| Product colour | Black |
| Power | |
|---|---|
| Rated current | 0.13 A |
| Voltage | 12 V |
| Power supply | 1.56 W |
| Weight & dimensions | |
|---|---|
| Height | 120 mm |
| Depth | 25 mm |
| Width | 120 mm |
Dual-sided Lighting
20 individually addressable RGB LEDs offer colorful customization and the dual-sided lighting makes any color scheme visible from every angle
Quiet and Cool
PWM fan control means fans cool quickly when needed, but stay quiet at lower loads for maximum efficiency
Light Your Way
Personalize RGB lighting effects and configure fan speeds with NZXT CAM.
Rubber Dampener
Rubber dampeners on the corners of the fans reduce vibration noise and keep things running cool and quiet.
| Performance | |
|---|---|
| Fan's mean time to failure (MTTF) | 60000 h |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 1800 RPM |
| Quantity per pack | 1 pc(s) |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Maximum air pressure | 2.42 mmH2O |
| Maximum airflow | 48.58 cfm |
| Noise level (high speed) | 29 dB |
| Rotational speed (max) | 1800 RPM |
| Rotational speed (min) | 500 RPM |
| Fan diameter | 12 cm |
| Type | Fan |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Illumination colour | Blue, Green, Red |
| Number of LEDs | 20 |
| Illumination LED | Yes |
| Number of fans | 1 fan(s) |
| Material | Plastic, Rubber |
| Product colour | White |
| Power | |
|---|---|
| Rated current | 0.13 A |
| Voltage | 12 V |
| Power supply | 1.56 W |
| Weight & dimensions | |
|---|---|
| Height | 120 mm |
| Depth | 25 mm |
| Width | 120 mm |
NZXT Quiet Airflow Fans offer high-performance, low-noise cooling for heat-prone PCs. Optimized blades and a chamfered frame provide powerful concentrated air, while fluid dynamic bearings and PWM control keep things quiet and efficient.
Optimized for Airflow
Nine sickle-style blades move large amounts of air, whether used for intake or exhaust.
Efficient Design
Minimal blade-to-frame gap maximizes the spinning area for optimal performance.
Powerful Cooling
Chamfered frame directs air in a concentrated pattern that travels far into the case.
Low Noise, Long Lasting
Fluid dynamic bearings ensure quiet operation with a 60,000-hour lifespan.
Speed Regulation
PWM control adjusts speed based on system temperatures for efficient, quiet cooling.
Silent & Stable
Sturdy frame and rubberized corners absorb vibration noise.
| Performance | |
|---|---|
| Suitable location | Computer case |
| Fan connector | 4-pin |
| Rotational speed (min) | 500 RPM |
| Rotational speed (max) | 1700 RPM |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Type | Fan |
| Fan diameter | 12 cm |
| Airflow | 74.26 m³/h |
| Quantity per pack | 1 pc(s) |
| Fan noise level (max) | 25.1 dB |
| Fan static pressure | 1.43 mmH2O |
| Design | |
| Fan connector | 4-pin |
| Material | Plastic, Rubber |
| Product colour | Black |
| Cable length | 0.6 m |
| Technical details | |
| Type | Fan |
| Fan diameter | 12 cm |
| Airflow | 74.26 m³/h |
| Material | Plastic, Rubber |
| Cable length | 0.6 m |
| Fan connector | 4-pin |
| Ports & interfaces | |
| Fan connector | 4-pin |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Width | 120 mm |
| Depth | 25 mm |
| Height | 120 mm |
| Cable length | 0.6 m |
Sublime RGB Lighting
8 individually addressable RGB LEDs mounted on fan hub are diffused through the semi-translucent blades.
Optimized Design
Fan hub and blades deliver high airflow and static pressure for both intake or exhaust locations.
Fluid Dynamic Bearing
Ensures low noise, high rotational stability, and a 60,000-hour fan lifespan.
Silent and Stable
Anti-vibration rubber corners and the sturdy frame provide quiet and stable operation.
PWM Control
Adjusts fan speed for optimal cooling only when needed for a quiet, efficient experience.
Customize with CAM
Control fan curves and speeds, personalize RGB lighting effects, and sync with other NZXT lighting products.
| Performance | |
|---|---|
| Fan's mean time to failure (MTTF) | 60000 h |
| Quantity per pack | 1 pc(s) |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 3.22 mmH2O |
| Maximum airflow | 90.79 cfm |
| Noise level (high speed) | 34.48 dB |
| Rotational speed (max) | 1500 RPM |
| Rotational speed (min) | 500 RPM |
| Fan diameter | 14 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Illumination colour | Multi |
| LED connector type | 4-pin |
| Number of LEDs | 8 |
| Illumination LED | Yes |
| Number of fans | 1 fan(s) |
| Material | Plastic, Rubber |
| Product colour | Black |
| Power | |
|---|---|
| Fan voltage | 12 V |
| Fan current | 0.24 A |
| Weight & dimensions | |
|---|---|
| Fan dimensions (W x D x H) | 140 x 26 x 140 mm |
| Packaging content | |
|---|---|
| Number of screws | 4 |
| Screws included | Yes |
The F Series RGB Core Fans offer brilliant lighting with eight individually addressable RGB LEDs and premium cooling with high static pressure.
| Performance | |
|---|---|
| Fan's mean time to failure (MTTF) | 60000 h |
| Quantity per pack | 1 pc(s) |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 3.22 mmH2O |
| Maximum airflow | 90.79 cfm |
| Noise level (high speed) | 34.48 dB |
| Rotational speed (max) | 1500 RPM |
| Rotational speed (min) | 500 RPM |
| Fan diameter | 14 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Illumination colour | Multi |
| Number of LEDs | 8 |
| Illumination LED | Yes |
| Number of fans | 1 fan(s) |
| Material | Plastic |
| Product colour | White |
| Power | |
|---|---|
| Fan voltage | 12 V |
| Fan current | 0.24 A |
| Fan power consumption | 2.88 W |
| Weight & dimensions | |
|---|---|
| Fan dimensions (W x D x H) | 140 x 26 x 140 mm |
| Packaging content | |
|---|---|
| Number of screws | 4 |
| Screws included | Yes |
The F Series RGB Core Fans offer brilliant lighting with eight individually addressable RGB LEDs and premium cooling with high static pressure.
| Performance | |
|---|---|
| Suitable location | Computer case |
| Fan connector | 4-pin |
| Pulse-width modulation (PWM) support | Yes |
| Rotational speed (min) | 500 RPM |
| Rotational speed (max) | 1800 RPM |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Noise level (low speed) | 20 dB |
| Noise level (high speed) | 32.5 dB |
| Type | Fan |
| Fan diameter | 14 cm |
| Minimum airflow (imperial) | 24.85 cfm |
| Maximum airflow | 89.48 cfm |
| Minimum air pressure | 0.94 mmH2O |
| Maximum air pressure | 3.39 mmH2O |
| Number of fans | 2 fan(s) |
| Quantity per pack | 2 pc(s) |
| Fan's mean time to failure (MTTF) | 60000 h |
| Design | |
| Fan connector | 4-pin |
| Number of fans | 2 fan(s) |
| Material | Plastic |
| Illumination colour | Multi |
| Product colour | White |
| Illumination LED | Yes |
| Number of LEDs | 8 |
| Technical details | |
| Noise level (low speed) | 20 dB |
| Noise level (high speed) | 32.5 dB |
| Type | Fan |
| Fan diameter | 14 cm |
| Minimum airflow (imperial) | 24.85 cfm |
| Maximum airflow | 89.48 cfm |
| Minimum air pressure | 0.94 mmH2O |
| Maximum air pressure | 3.39 mmH2O |
| Number of fans | 2 fan(s) |
| Material | Plastic |
| Fan connector | 4-pin |
| Illumination LED | Yes |
| Ports & interfaces | |
| Fan connector | 4-pin |
| Power | |
| Fan power consumption | 2.88 W |
| Fan voltage | 12 V |
| Fan current | 0.24 A |
| Colour | |
| Product colour | White |
| Weight & dimensions | |
| Fan dimensions (W x D x H) | 140 x 26 x 140 mm |
| Indication | |
| Illumination colour | Multi |
| Packaging content | |
| RGB controller included | Yes |
Dual-sided Lighting
20 individually addressable RGB LEDs offer colourful customization and the dual-sided lighting makes any colour scheme visible from every angle
Quiet and Cool
PWM fan control means fans cool quickly when needed, but stay quiet at lower loads for maximum efficiency
Light Your Way
Personalize RGB lighting effects and configure fan speeds with NZXT CAM.
Rubber Dampener
Rubber dampeners on the corners of the fans reduce vibration noise and keep things running cool and quiet.
| Performance | |
|---|---|
| Fan connector | 4-pin |
| Rotational speed (min) | 500 RPM |
| Rotational speed (max) | 1800 RPM |
| Noise level (high speed) | 36 dB |
| Type | Fan |
| Fan diameter | 14 cm |
| Maximum airflow | 84.75 cfm |
| Maximum air pressure | 2.72 mmH2O |
| Number of fans | 1 fan(s) |
| Quantity per pack | 1 pc(s) |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 1800 RPM |
| Fan's mean time to failure (MTTF) | 60000 h |
| Design | |
| Fan connector | 4-pin |
| Number of fans | 1 fan(s) |
| Material | Plastic, Rubber |
| Illumination colour | Blue, Green, Red |
| Product colour | Black |
| Illumination LED | Yes |
| Number of LEDs | 20 |
| Technical details | |
| Noise level (high speed) | 36 dB |
| Type | Fan |
| Fan diameter | 14 cm |
| Maximum airflow | 84.75 cfm |
| Maximum air pressure | 2.72 mmH2O |
| Number of fans | 1 fan(s) |
| Material | Plastic, Rubber |
| Fan connector | 4-pin |
| Illumination LED | Yes |
| Ports & interfaces | |
| Fan connector | 4-pin |
| RGB ports quantity | 1 |
| Power | |
| Voltage | 12 V |
| Rated current | 0.26 A |
| Power supply | 3.12 W |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Width | 140 mm |
| Depth | 25 mm |
| Height | 140 mm |
| Indication | |
| Illumination colour | Blue, Green, Red |
Dual-sided Lighting
20 individually addressable RGB LEDs offer colorful customization and the dual-sided lighting makes any color scheme visible from every angle
Quiet and Cool
PWM fan control means fans cool quickly when needed, but stay quiet at lower loads for maximum efficiency
Light Your Way
Personalize RGB lighting effects and configure fan speeds with NZXT CAM.
Rubber Dampener
Rubber dampeners on the corners of the fans reduce vibration noise and keep things running cool and quiet.
| Performance | |
|---|---|
| Fan's mean time to failure (MTTF) | 60000 h |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 1800 RPM |
| Quantity per pack | 1 pc(s) |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Maximum air pressure | 2.72 mmH2O |
| Maximum airflow | 84.75 cfm |
| Noise level (high speed) | 36 dB |
| Rotational speed (max) | 1800 RPM |
| Rotational speed (min) | 500 RPM |
| Fan diameter | 14 cm |
| Type | Fan |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Illumination colour | Blue, Green, Red |
| Number of LEDs | 20 |
| Illumination LED | Yes |
| Number of fans | 1 fan(s) |
| Material | Plastic, Rubber |
| Product colour | White |
| Ports & interfaces | |
|---|---|
| RGB ports quantity | 1 |
| Power | |
|---|---|
| Rated current | 0.26 A |
| Voltage | 12 V |
| Power supply | 3.12 W |
| Weight & dimensions | |
|---|---|
| Height | 140 mm |
| Depth | 25 mm |
| Width | 140 mm |
NZXT F Series RGB Core single-frame fans seamlessly integrate multiple fans for effortless installation while offering superior cooling, whisper-quiet performance, and striking RGB visuals.
All-in-one Design
Single-frame unit with integrated fans streamlines installation, setup, and lighting control.
Versatile Connectivity
Simply connect a single cable to an NZXT controller (sold separately) for lighting and speed control via NZXT CAM software. Or, connect to any motherboard's 5V ARGB header using the included splitter cable.
Optimal Performance
Blade design boosts static pressure to push air through tight spaces with superior airflow.
Fluid Dynamic Bearings
Ensures low noise, high rotational stability, and a 60,000-hour fan lifespan.
Radiant RGB Lighting
8 aRGB LEDs per fan hub shine through semi-translucent blades and frame side windows.
PWM Control
Dynamically adjusts fan speeds based on PC temperatures for optimal efficiency*.
Silent Operation
Anti-vibration rubber corners dampen noise and Zero RPM Mode* shuts fans off during light loads.
NZXT CAM LogoNZXT CAM Logo
Do More with CAM
Control fan speeds, personalize lighting effects, and sync with other NZXT products*.
| Performance | |
|---|---|
| Fan noise level (max) | 30 dB |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Maximum air pressure | 3.3 mmH2O |
| Maximum airflow | 75.12 cfm |
| Rotational speed (max) | 2400 RPM |
| Rotational speed (min) | 500 RPM |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 8-pin |
| Illumination colour | Multi |
| Number of LEDs | 8 |
| Illumination LED | Yes |
| Material | Plastic, Rubber |
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Height | 240 mm |
| Depth | 26 mm |
| Width | 120 mm |
NZXT F Series RGB Core single-frame fans seamlessly integrate multiple fans for effortless installation while offering superior cooling, whisper-quiet performance, and striking RGB visuals.
All-in-one Design
Single-frame unit with integrated fans streamlines installation, setup, and lighting control.
Versatile Connectivity
Simply connect a single cable to an NZXT controller (sold separately) for lighting and speed control via NZXT CAM software. Or, connect to any motherboard's 5V ARGB header using the included splitter cable.
Optimal Performance
Blade design boosts static pressure to push air through tight spaces with superior airflow.
Fluid Dynamic Bearings
Ensures low noise, high rotational stability, and a 60,000-hour fan lifespan.
Radiant RGB Lighting
8 aRGB LEDs per fan hub shine through semi-translucent blades and frame side windows.
PWM Control
Dynamically adjusts fan speeds based on PC temperatures for optimal efficiency*.
*Requires PWM connection to motherboard or controller (sold separately)
Silent Operation
Anti-vibration rubber corners dampen noise and Zero RPM Mode* shuts fans off during light loads.
NZXT CAM LogoNZXT CAM Logo
Do More with CAM
Control fan speeds, personalize lighting effects, and sync with other NZXT products*.
| Performance | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Fan noise level (max) | 34.5 dB |
| Maximum air pressure | 3.2 mmH2O |
| Maximum airflow | 98.61 cfm |
| Rotational speed (max) | 2000 RPM |
| Rotational speed (min) | 500 RPM |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 8-pin |
| Illumination colour | Multi |
| Number of LEDs | 8 |
| Illumination LED | Yes |
| Material | Plastic, Rubber |
| Product colour | White |
| Power | |
|---|---|
| Power supply | 2.25 W |
| Weight & dimensions | |
|---|---|
| Height | 280 mm |
| Depth | 26 mm |
| Width | 140 mm |
NZXT F Series RGB Core single-frame fans seamlessly integrate multiple fans for effortless installation while offering superior cooling, whisper-quiet performance, and striking RGB visuals.
All-in-one Design
Single-frame unit with integrated fans streamlines installation, setup, and lighting control.
Versatile Connectivity
Simply connect a single cable to an NZXT controller (sold separately) for lighting and speed control via NZXT CAM software. Or, connect to any motherboard's 5V ARGB header using the included splitter cable.
Optimal Performance
Blade design boosts static pressure to push air through tight spaces with superior airflow.
Fluid Dynamic Bearings
Ensures low noise, high rotational stability, and a 60,000-hour fan lifespan.
Radiant RGB Lighting
8 aRGB LEDs per fan hub shine through semi-translucent blades and frame side windows.
PWM Control
Dynamically adjusts fan speeds based on PC temperatures for optimal efficiency*.
Silent Operation
Anti-vibration rubber corners dampen noise and Zero RPM Mode* shuts fans off during light loads.
NZXT CAM LogoNZXT CAM Logo
Do More with CAM
Control fan speeds, personalize lighting effects, and sync with other NZXT products.
| Performance | |
|---|---|
| Fan noise level (max) | 30 dB |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Maximum air pressure | 3.3 mmH2O |
| Maximum airflow | 75.12 cfm |
| Rotational speed (max) | 2400 RPM |
| Rotational speed (min) | 500 RPM |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 8-pin |
| Illumination colour | Multi |
| Number of LEDs | 8 |
| Illumination LED | Yes |
| Material | Plastic, Rubber |
| Product colour | White |
| Weight & dimensions | |
|---|---|
| Height | 240 mm |
| Depth | 26 mm |
| Width | 120 mm |
NZXT F Series RGB Core single-frame fans seamlessly integrate multiple fans for effortless installation while offering superior cooling, whisper-quiet performance, and striking RGB visuals.
All-in-one Design
Single-frame unit with integrated fans streamlines installation, setup, and lighting control.
Versatile Connectivity
Simply connect a single cable to an NZXT controller (sold separately) for lighting and speed control via NZXT CAM software. Or, connect to any motherboard's 5V ARGB header using the included splitter cable.
Optimal Performance
Blade design boosts static pressure to push air through tight spaces with superior airflow.
Fluid Dynamic Bearings
Ensures low noise, high rotational stability, and a 60,000-hour fan lifespan.
Radiant RGB Lighting
8 aRGB LEDs per fan hub shine through semi-translucent blades and frame side windows.
PWM Control
Dynamically adjusts fan speeds based on PC temperatures for optimal efficiency*.
*Requires PWM connection to motherboard or controller (sold separately)
Silent Operation
Anti-vibration rubber corners dampen noise and Zero RPM Mode* shuts fans off during light loads.
NZXT CAM LogoNZXT CAM Logo
Do More with CAM
Control fan speeds, personalize lighting effects, and sync with other NZXT products*.
| Performance | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Fan noise level (max) | 34.5 dB |
| Maximum air pressure | 3.2 mmH2O |
| Minimum airflow (imperial) | 98.61 cfm |
| Rotational speed (max) | 2000 RPM |
| Rotational speed (min) | 500 RPM |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 8-pin |
| Illumination colour | Multi |
| Number of LEDs | 8 |
| Illumination LED | Yes |
| Material | Plastic, Rubber |
| Product colour | Black |
| Power | |
|---|---|
| Power supply | 2.25 W |
| Weight & dimensions | |
|---|---|
| Height | 280 mm |
| Depth | 26 mm |
| Width | 140 mm |
NZXT F Series RGB Core single-frame fans seamlessly integrate multiple fans for effortless installation while offering superior cooling, whisper-quiet performance, and striking RGB visuals.
All-in-one Design
Single-frame unit with integrated fans streamlines installation, setup, and lighting control.
Versatile Connectivity
Simply connect a single cable to an NZXT controller (sold separately) for lighting and speed control via NZXT CAM software. Or, connect to any motherboard's 5V ARGB header using the included splitter cable.
Optimal Performance
Blade design boosts static pressure to push air through tight spaces with superior airflow.
Fluid Dynamic Bearings
Ensures low noise, high rotational stability, and a 60,000-hour fan lifespan.
Radiant RGB Lighting
8 aRGB LEDs per fan hub shine through semi-translucent blades and frame side windows.
PWM Control
Dynamically adjusts fan speeds based on PC temperatures for optimal efficiency*.
*Requires PWM connection to motherboard or controller (sold separately)
Silent Operation
Anti-vibration rubber corners daampen noise and Zero RPM Mode* shuts fans off during light loads.
*Requires an NZXT controller or NZXT motherboard, each sold separately.
| Performance | |
|---|---|
| Fan noise level (max) | 30 dB |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Maximum air pressure | 3.3 mmH2O |
| Airflow | 75.12 m³/h |
| Rotational speed (max) | 2400 RPM |
| Rotational speed (min) | 500 RPM |
| Fan diameter | 36 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 8-pin |
| Illumination colour | Multi |
| Number of LEDs | 8 |
| Illumination LED | Yes |
| Material | Plastic, Rubber |
| Product colour | White |
| Weight & dimensions | |
|---|---|
| Cable length | 0.6 m |
| Height | 360 mm |
| Depth | 26 mm |
| Width | 120 mm |

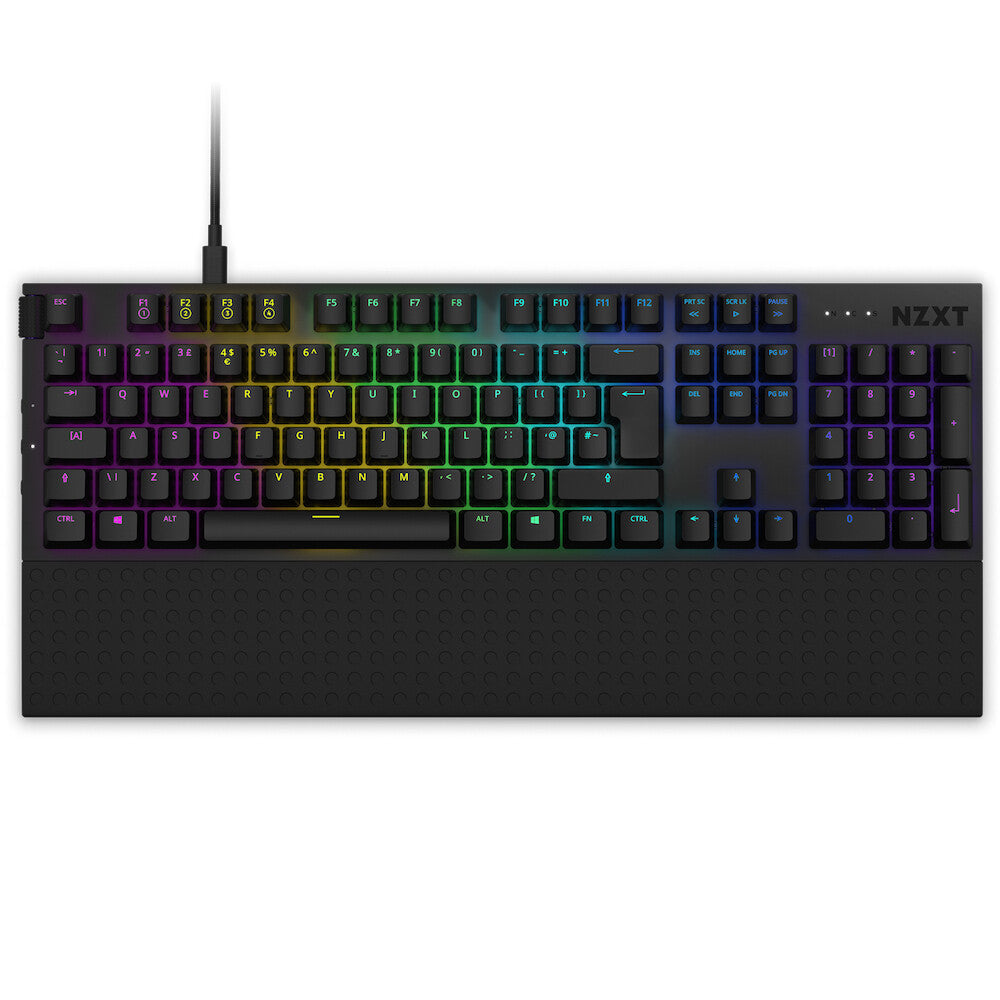

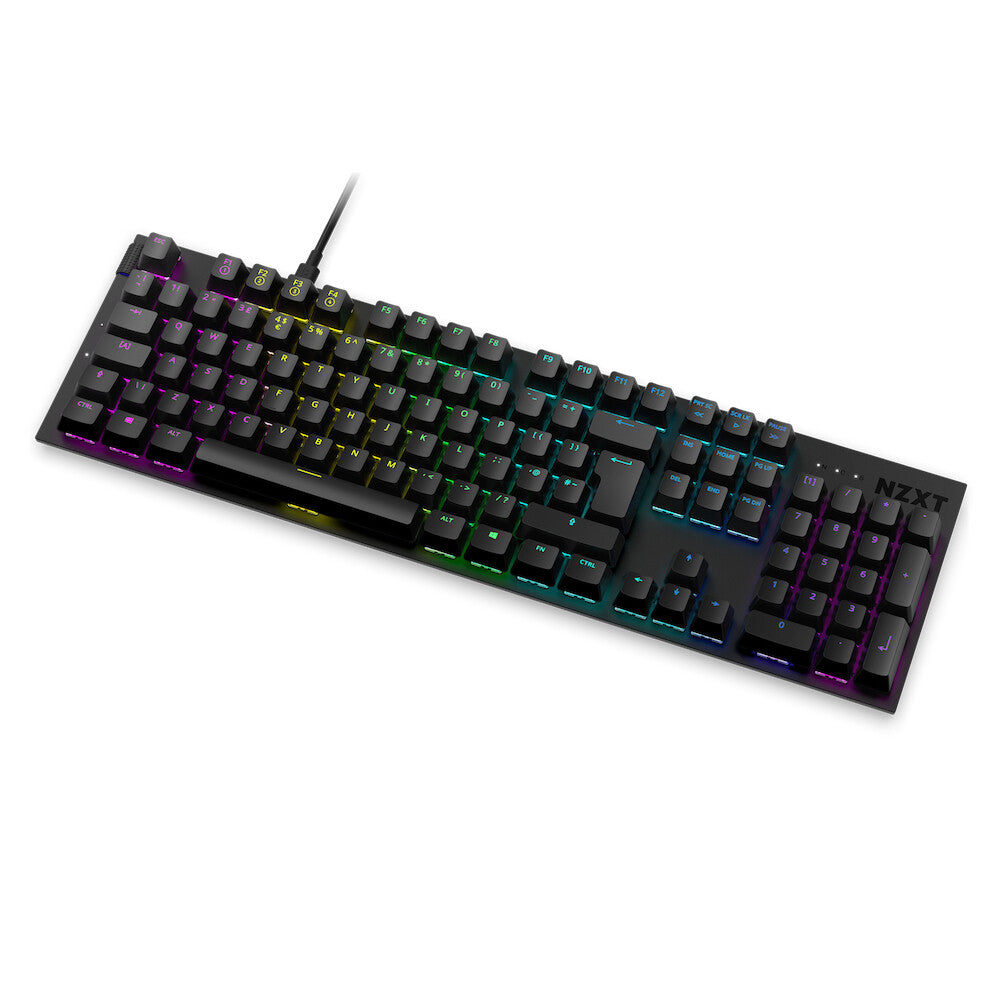

For those who desire a full-size keyboard without a large footprint, the NZXT Function Full Keyboard packs 104 keys into the sleekest form possible.
- MX compatible 5-pin hot-swappable sockets for changing out mechanical switches
- Standard bottom row design enables installation of any standard aftermarket keycaps
- Durable aluminum top plate with a low-profile, minimalist design
- CAM-powered and easy-to-customize per-key RGB, macro control, and lighting effects with four onboard profiles
- Removable USB-C cable – ready for customized cables
| Keyboard | |
|---|---|
| Built-in memory | Yes |
| Rollover | N-key rollover |
| Keyboard keys operating life | 50 million characters |
| Keyboard number of keys | 104 |
| Keyboard key switch technology | Gateron Red |
| Keycaps material | Acrylonitrile butadiene styrene (ABS) |
| Physical layout | ISO |
| Numeric keypad | Yes |
| Keyboard form factor | Full-size (100%) |
| Pointing device | No |
| Keyboard language | UK English |
| Keyboard layout | QWERTY |
| Keyboard key switch | Mechanical |
| Device interface | USB |
| Recommended usage | Universal |
| Design | |
|---|---|
| Built-in display | No |
| Material | Aluminium, Plastic |
| Product colour | Black |
| Wrist rest | Yes |
| Backlight type | RGB LED |
| Backlight | Yes |
| Features | |
|---|---|
| Anti-ghosting | Yes |
| Hot-swap | Yes |
| Cable length | 2 m |
| USB connector type | USB Type-C |
| Power | |
|---|---|
| Power source type | USB |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11 |
| Weight & dimensions | |
|---|---|
| Keyboard weight | 910 g |
| Keyboard dimensions (WxDxH) | 442 x 127.8 x 40.3 mm |
| Packaging data | |
|---|---|
| Warranty period | 2 year(s) |
| Package type | Box |
| Number of products included | 5 pc(s) |
| Adapters included | USB |
| Other features | |
|---|---|
| Quantity per pack | 1 pc(s) |

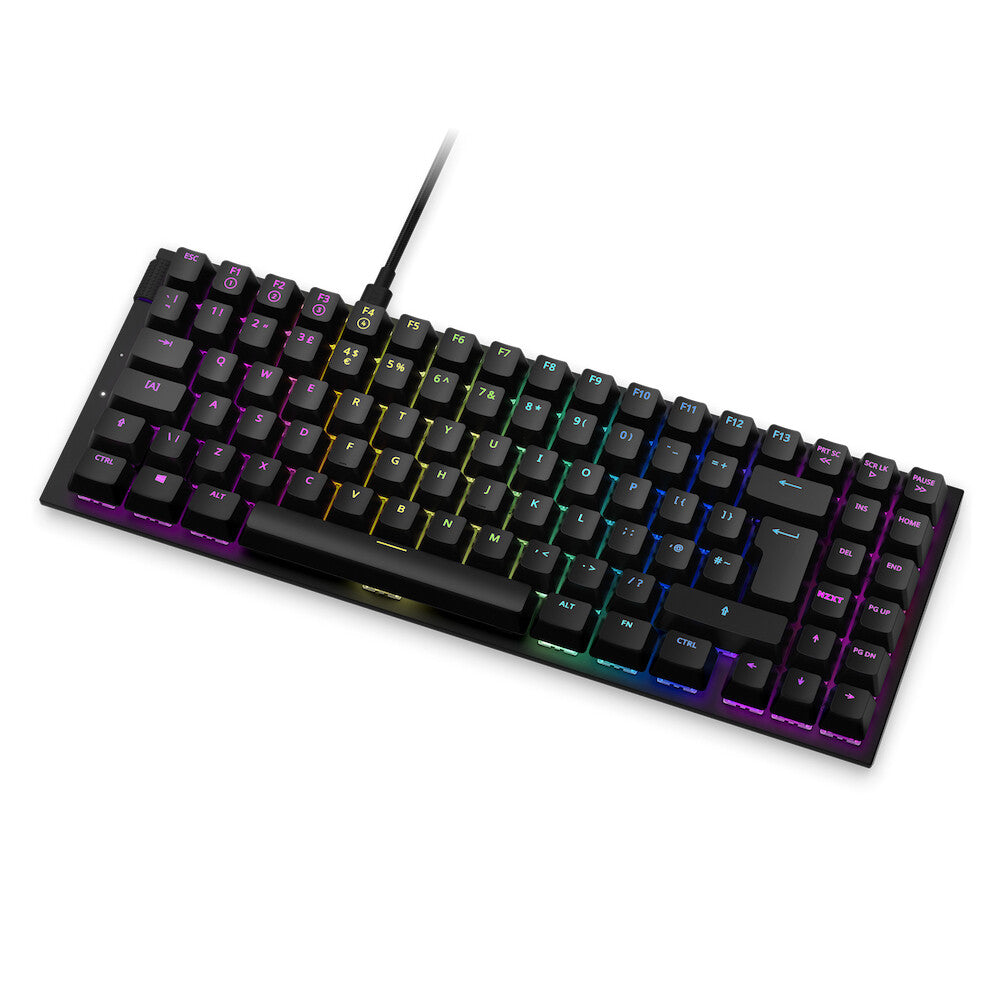

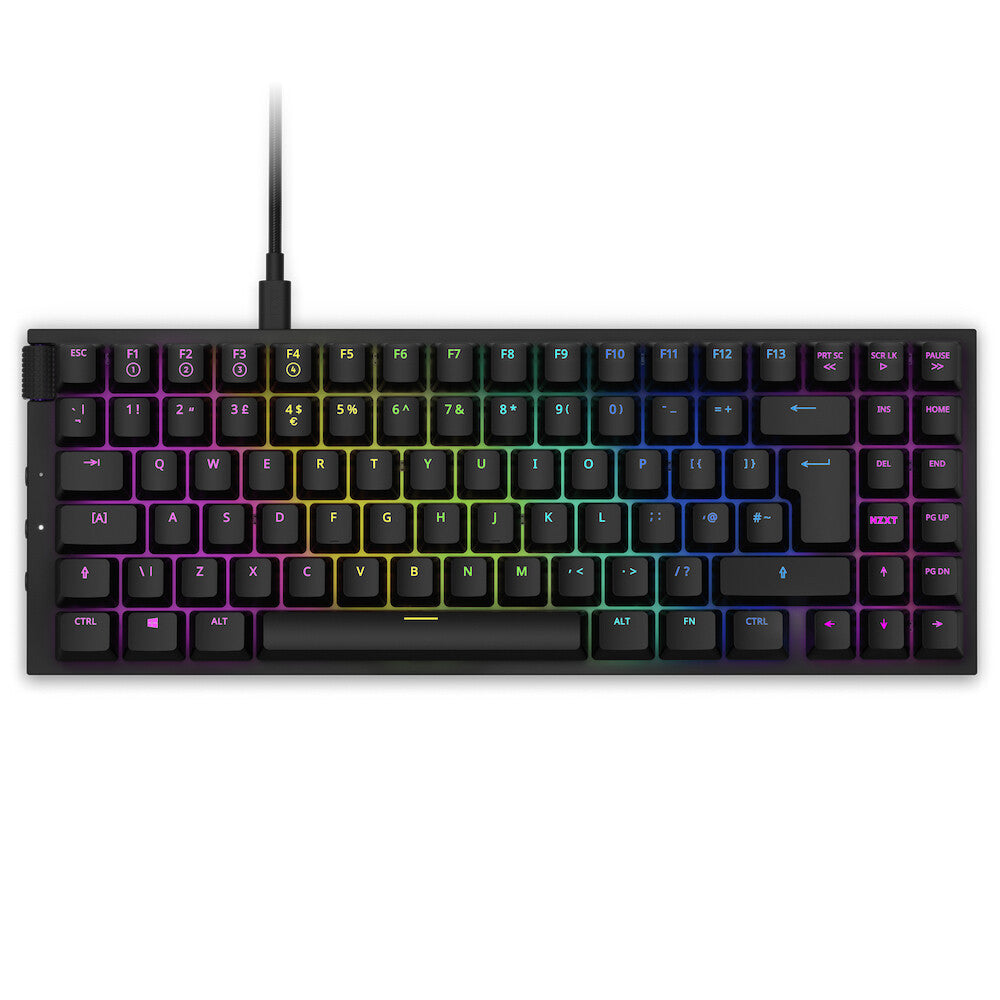

The unique MiniTKL form factor impressively packs all 87 keys of a conventional tenkeyless keyboard into the smallest size possible—and even manages to squeeze in an extra dedicated macro key.
- MX compatible 5-pin hot-swappable sockets for changing out mechanical switches
- Standard bottom row design enables installation of any standard aftermarket keycaps
- Durable aluminum top plate with a low-profile, minimalist design
- CAM-powered and easy-to-customize per-key RGB, macro control, and lighting effects with four onboard profiles
- Removable USB-C cable – ready for customized cables
| Keyboard | |
|---|---|
| Rollover | N-key rollover |
| Keyboard key profile | Low-profile |
| Keyboard keys operating life | 50 million characters |
| Keyboard number of keys | 87 |
| Keyboard key switch technology | Gateron Red |
| Keycaps material | Acrylonitrile butadiene styrene (ABS) |
| Physical layout | ISO |
| Numeric keypad | No |
| Keyboard form factor | Mini |
| Pointing device | No |
| Keyboard language | UK English |
| Keyboard layout | QWERTY |
| Keyboard key switch | Mechanical |
| Device interface | USB |
| Recommended usage | Universal |
| Design | |
|---|---|
| Material | Aluminium, Plastic |
| Product colour | Black |
| Wrist rest | No |
| Backlight type | RGB LED |
| Backlight | Yes |
| Features | |
|---|---|
| Anti-ghosting | Yes |
| Hot-swap | Yes |
| Cable length | 2 m |
| USB connector type | USB Type-C |
| Power | |
|---|---|
| Power source type | USB |
| Mouse | |
|---|---|
| Mouse included | No |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11 |
| Weight & dimensions | |
|---|---|
| Keyboard weight | 718 g |
| Keyboard dimensions (WxDxH) | 338.5 x 123.4 x 40.3 mm |
| Packaging data | |
|---|---|
| Warranty period | 2 year(s) |
| Package type | Box |
| Number of products included | 4 pc(s) |
| Adapters included | USB |
| Other features | |
|---|---|
| Quantity per pack | 1 pc(s) |
Compact Mechanical Keyboard
The unique MiniTKL form factor impressively packs all 87 keys of a conventional tenkeyless keyboard into the smallest size possible—and even manages to squeeze in an extra dedicated macro key.
| Keyboard | |
|---|---|
| Keyboard form factor | Mini |
| Pointing device | No |
| Keyboard language | German |
| Keyboard layout | QWERTZ |
| Device interface | USB |
| Recommended usage | Office |
| Design | |
|---|---|
| Surface coloration | Monochromatic |
| Product colour | Black |
| Power | |
|---|---|
| Power source type | USB |
| Mouse | |
|---|---|
| Mouse included | No |
| Packaging data | |
|---|---|
| Number of products included | 1 pc(s) |
Compact Mechanical Keyboard
The unique MiniTKL form factor impressively packs all 87 keys of a conventional tenkeyless keyboard into the smallest size possible—and even manages to squeeze in an extra dedicated macro key.
| Keyboard | |
|---|---|
| Keyboard form factor | Mini |
| Pointing device | No |
| Keyboard language | German |
| Keyboard layout | QWERTZ |
| Device interface | USB |
| Recommended usage | Office |
| Design | |
|---|---|
| Surface coloration | Monochromatic |
| Product colour | Black, White |
| Power | |
|---|---|
| Power source type | USB |
| Mouse | |
|---|---|
| Mouse included | No |
| Packaging data | |
|---|---|
| Number of products included | 1 pc(s) |
