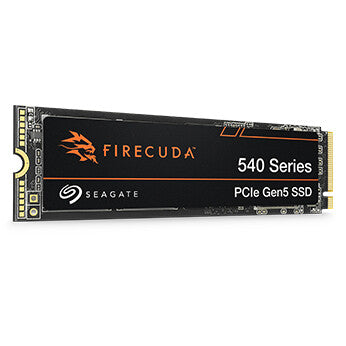

2 TB, M.2 2280-D2, PCIe Gen5 x4 NVMe 2.0, 10000 MB/s
With speeds up to 10,000 MB/s, this PCIe Gen5 takes no-prisoners, toppling Gen4 speeds by 50% and going 17 times faster than SATA SSDs. DirectStorage support brings faster load times to games and applications. Plus, handles upwards of 2000 TB total bytes written, perfect for powering through constant abuse. This SSD isn’t for the faint of heart.
FireCuda 540 is also compatible with PS5™ systems when combined with effective heat dissipation and an added cooling structure — such as a heatsink or a heat transfer sheet.
Waste No Time
Performance has a new name — featuring speeds up to 10,000 MB/s means the full power of PCIe Gen5 speeds are yours to wield.
Full Tilt Speeds
Up to 10,000 MB/s means the full power of PCIe Gen5 speeds are yours to wield.
Built to Last
Up to 2,000 TB TBW (total bytes written) means you can write and delete 90% of the drive capacity, every day, for five years.
Faster. Faster. Faster.
Transfer speeds up to 50% faster than PCIe Gen4 NVMe SSDs and up to 17× faster than SATA SSDs.
Storage Expansion for PS5
The FireCuda 540 is compatible with PS5™ consoles and meets PS5 specs on performance and dimensions. Plus, the FireCuda with heatsink combo makes for an easy drop-in expansion solution with no additional parts needed.
Visit our article on How to Install a M.2 SSD into a PS5 for more information and step-by-step instructions.
Rescue Data Recovery Services
We’ve Got Your Back
When the unexpected happens — like water damage or natural disaster — Rescue Services help you defend against data loss and retrieval costs so you can rest easier.
DiscWizard and SeaTools — Making Drive Management Easier
Seagate makes it easy to add new drives to your computer and monitor their health and performance with the free DiscWizard™ and SeaTools™ software. Easily clone your current drive to your new Seagate drive, create and format partitions, transfer data, and back up data with DiscWizard — and then seamlessly monitor drive health, performance, and firmware updates using SeaTools.
| Features |
|---|
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Windows 10, Windows 11 |
| Mean time between failures (MTBF) |
1800000 h |
| S.M.A.R.T. support |
Yes |
| TRIM support |
Yes |
| Sequential write speed (ATTO) |
10000 MB/s |
| Sequential read speed (ATTO) |
10000 MB/s |
| Random write (4KB) |
1500000 IOPS |
| Random read (4KB) |
1490000 IOPS |
| Component for |
Server/workstation |
| NVMe version |
2.0 |
| NVMe |
Yes |
| Memory type |
3D TLC |
| Interface |
PCI Express 5.0 |
| SSD capacity |
2 TB |
| SSD form factor |
M.2 |
| Power |
|---|
| Power consumption (idle) |
0.144 W |
| Average power consumption (read) |
10.5 W |
| Average power consumption (write) |
11.5 W |
| Power consumption (average) |
11 W |
| Operational conditions |
|---|
| Non-operating shock |
1500 G |
| Non-operating vibration |
1.52 G |
| Storage relative humidity (H-H) |
0 - 93% |
| Operating relative humidity (H-H) |
0 - 90% |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating temperature (T-T) |
0 - 70 °C |
| General |
|---|
| Product Family |
FireCuda |
| Technical details |
|---|
| Warranty period |
5 year(s) |
| Sustainability compliance |
Yes |
| Sustainability certificates |
RoHS |
| Weight & dimensions |
|---|
| Weight |
7.4 g |
| Height |
3.58 mm |
| Depth |
80.2 mm |
| Width |
22.1 mm |
| Packaging data |
|---|
| Package weight |
70 g |
| Package height |
155 mm |
| Package depth |
24 mm |
| Package width |
109 mm |
| Logistics data |
|---|
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case gross weight |
970 g |
| Master (outer) case height |
140 mm |
| Master (outer) case length |
292 mm |
| Master (outer) case width |
153 mm |
| Layers per pallet |
7 pc(s) |
| Master (outer) cases per pallet |
168 pc(s) |
