Building on the core functionality of market favorites like Dynamic and Prisma, the Aspect series brings an exciting new aesthetic to the Fractal range of fans. Notable features include aerodynamic stator struts for lower turbulence, Trip Wire technology for enhanced blade efficiency, rifle bearings and built-in chaining support to simplify cable management.
In living color

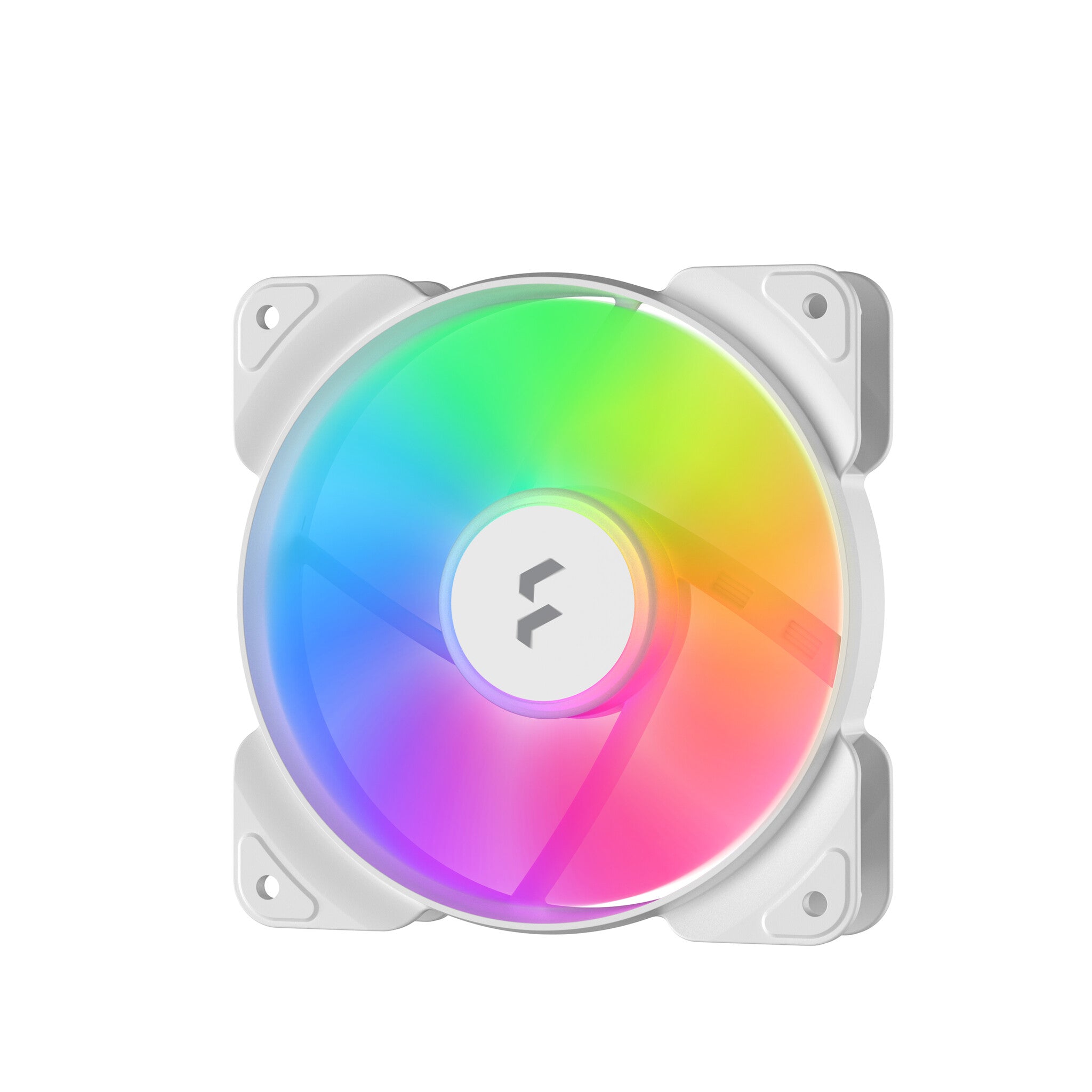

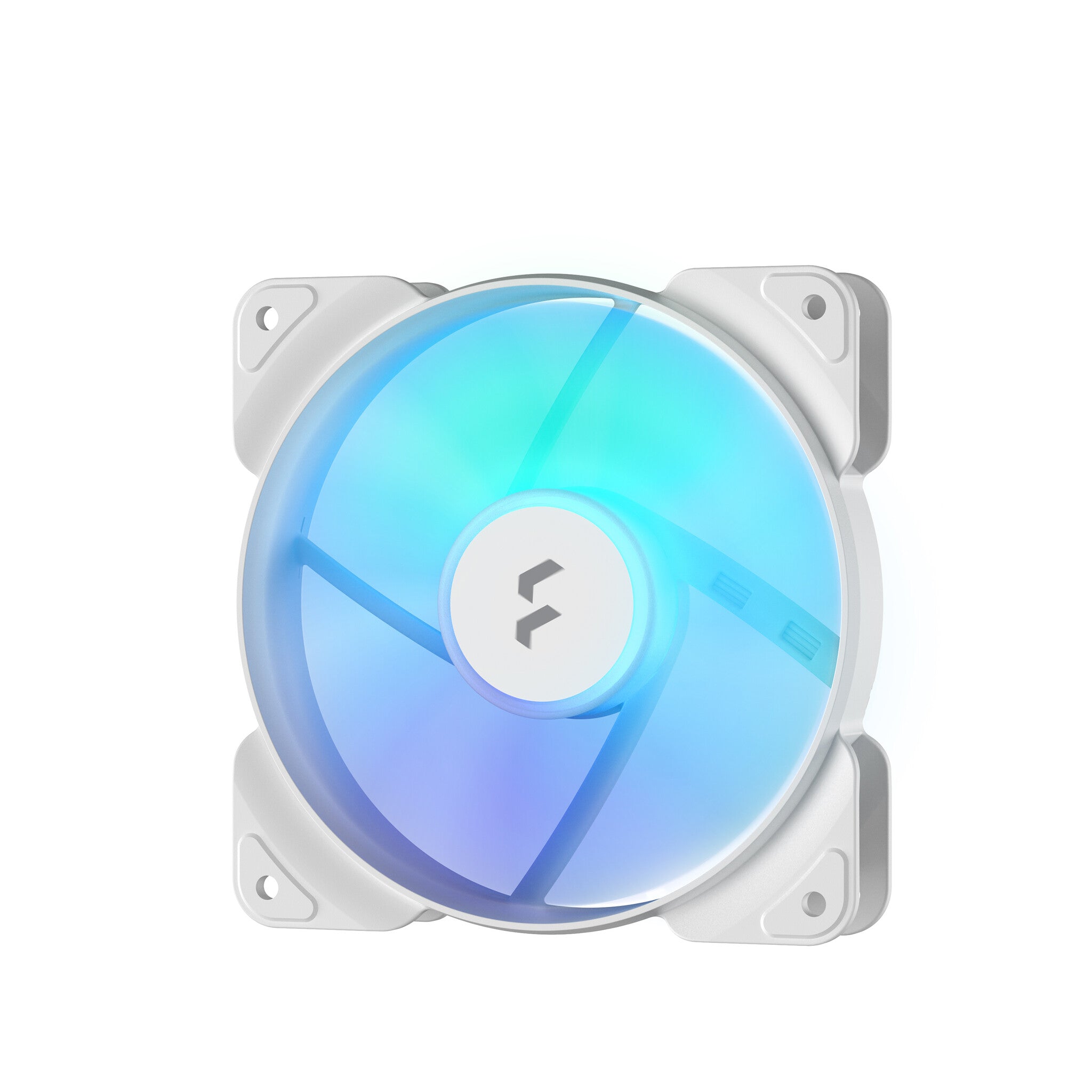

- Let your system shine with six individually addressable hub-mounted RGB LEDs
- The aerodynamic stator struts decrease turbulence and noise caused by flowing air
- The Aspect frame offers aesthetics without compromising on performance
Extensive support
Compatible with ASUS AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome and Razer Chroma
Rifle bearings
More efficient than standard sleeve bearings
Trip Wire Technology
Introducing a micro-turbulent layer for enhanced blade efficiency
Chain Feature

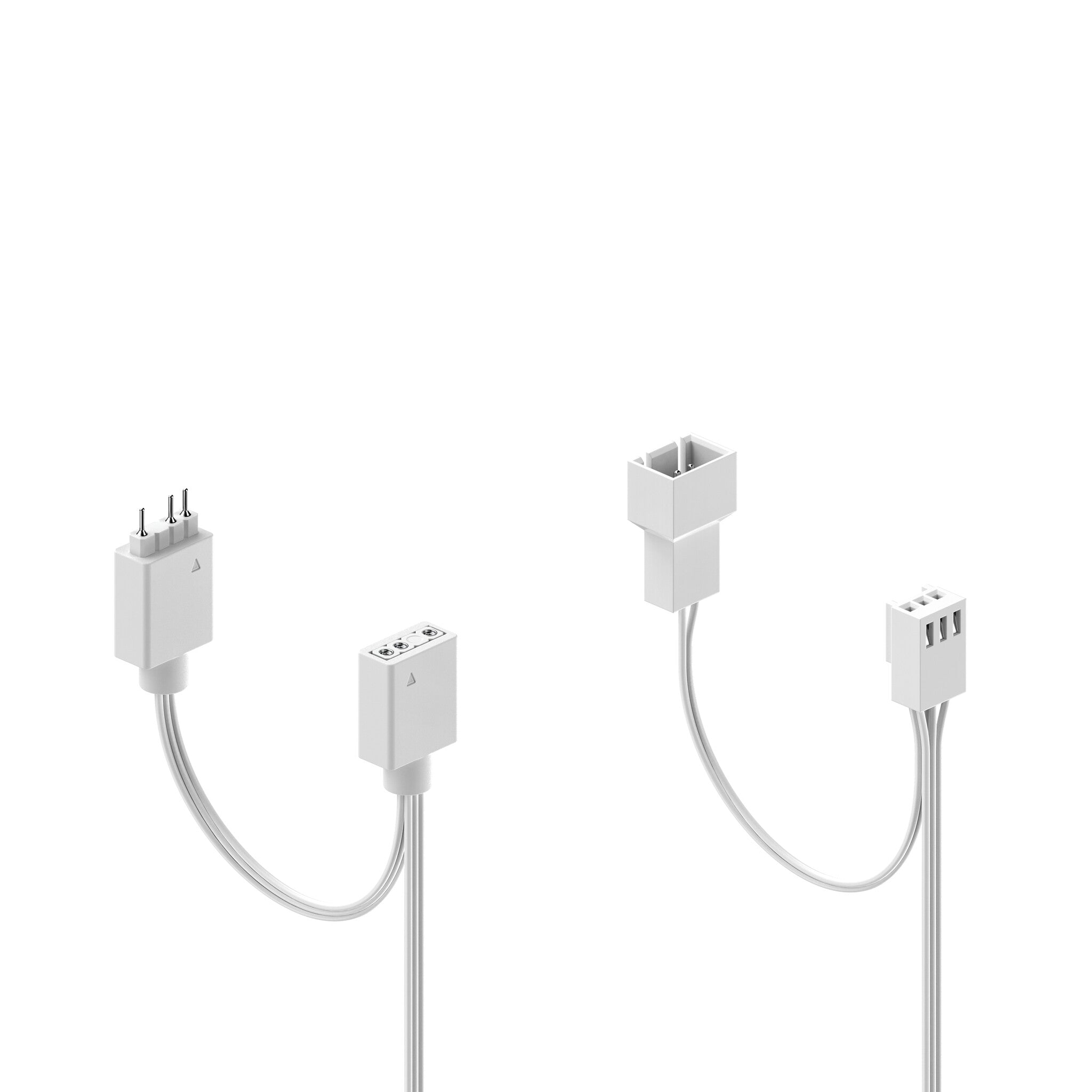

Simplify cable management by using the Aspect chain feature for multiple units
Performance | |
---|---|
Mean time between failures (MTBF) | 90000 h |
Quantity per pack | 1 pc(s) |
Bearing type | Rifle bearing |
Maximum air pressure | 1.2 mmH2O |
Airflow | 54.4 m³/h |
Maximum airflow | 32 cfm |
Noise level (high speed) | 18.3 dB |
Rotational speed (max) | 1200 RPM |
Compatible processor series | Not supported |
Supported processor sockets | Not supported |
Fan diameter | 12 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 3-pin |
Illumination colour | Multi |
Illumination LED | Yes |
Number of fan blades | 7 |
Number of fans | 1 fan(s) |
Product colour | White |
Power | |
---|---|
Maximum current | 0.16 A |
Starting voltage | 7 V |
Rated voltage | 5 V |
Voltage | 12 V |
Power consumption (typical) | 0.96 W |
Weight & dimensions | |
---|---|
Package weight | 155 g |
Package height | 30 mm |
Package depth | 192 mm |
Package width | 123 mm |
Cable length | 0.5 m |
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Weight | 135 g |
Packaging content | |
---|---|
Number of screws | 4 |
Screws included | Yes |
Other features | |
---|---|
Country of origin | China |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
