700 W, ATX 2.4, 1x ATX 20+4-pin, 6x SATA, 3x PATA, FDD, 4x PCI-E 6+2-pin, 1x P4+4, 120mm fan, 25.9dB max.
Exceptionally Quiet, Superior Reliability, Great Value
Pure Power 11 700W offers peerless dependability and best-in-class features. Whether you’re assembling a very quiet system, building a multi-GPU gaming system, or upgrading an existing PC, your build will benefit from this PSU that simply has the best combination of features at a very popular price.
80 PLUS® GOLD CERTIFICATION
Very high operating efficiency
Pure Power 11 700W is certified 80 PLUS Gold with an efficiency rating of up to 92% – a truly outstanding level for this class of PSU. The most compelling benefit: lower power consumption and consequently lower costs, and cooler, quieter operation.
POWER AND COMPATIBILITY FOR YOUR SYSTEM
The best combination of features and performance at a very popular price
Pure Power 11 offers 700W of continuous power with 2 independent 12V rails for signal stability and 4 PCI express connectors for multi-GPU systems. It is suited to very quiet systems, for upgrading or building multimedia or multi-GPU gaming systems.
INNOVATIVE TECHNOLOGIES
DC-to-DC, Active Clamp and Synchronous Rectifier
The use of Active Clamp and Synchronous Rectifier technologies provides very stable operation. The PSU is equipped with DC-to-DC conversion for even tighter voltage regulation under heavy cross-loading conditions. This ensures secure operation for next generation processors and graphics cards.
EXCEPTIONALLY SILENT OPERATION
Achieved by a silence-optimized 120mm be quiet! fan
The silence-optimized 120mm be quiet! fan is thermally governed to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class quiet functionality and the almost inaudible operation that be quiet! is famous for.

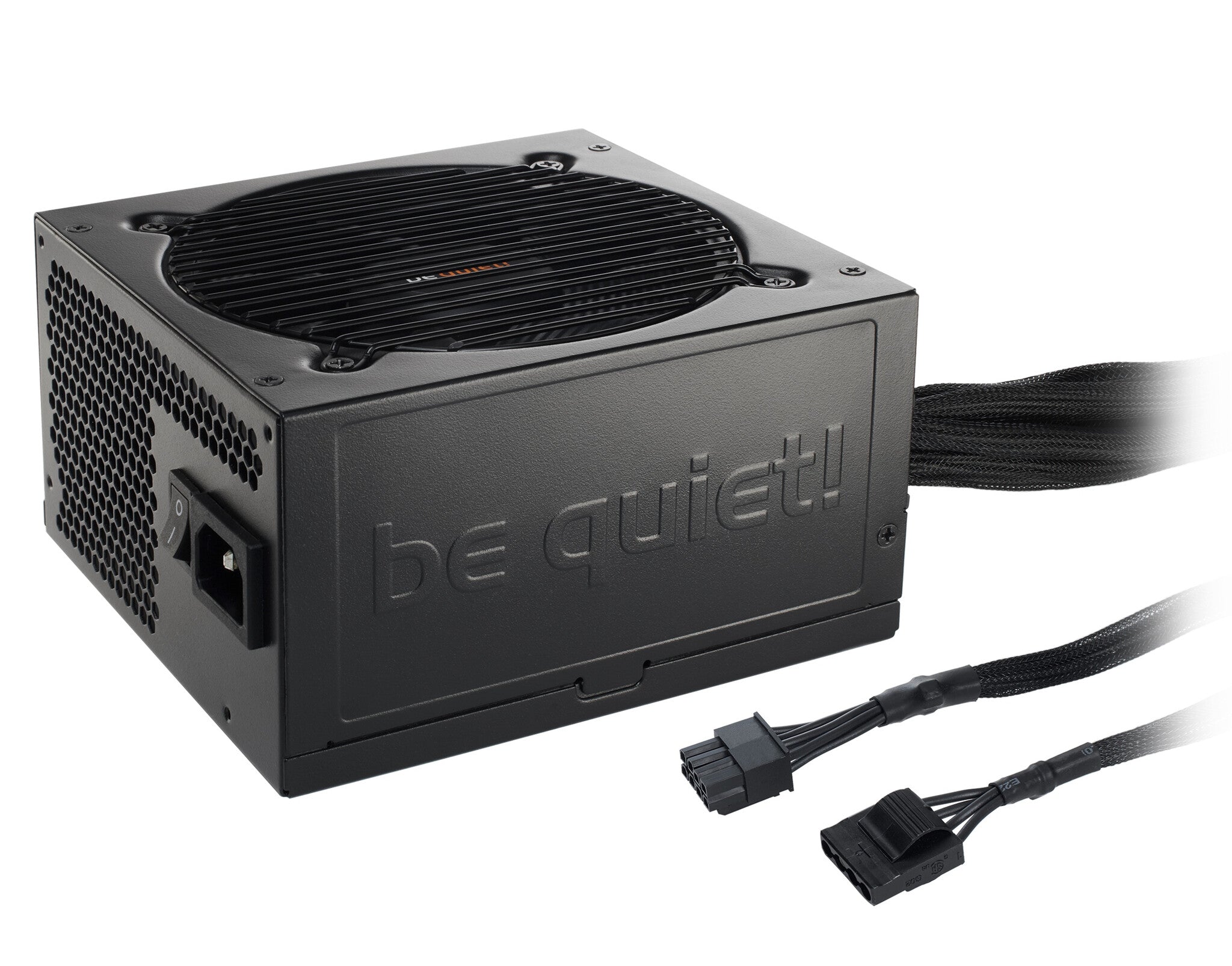

HIGH-QUALITY SLEEVED CABLES
Keeping your system tidy and good-looking
Pure Power 700W is equipped with high-quality sleeved cables that simplify component installation, increase airflow and improve cooling. The All-in-one cable has a convenient easy-plug HDD connector.
| Power |
|---|
| Power protection features |
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Hold time |
25 ms |
| Efficiency |
92% |
| Max output current (+5Vsb) |
3 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5V) |
20 A |
| Max output current (+12V2) |
30 A |
| Max output current (+12V1) |
36 A |
| Max output current (+3.3V) |
25 A |
| Combined power (+5Vsb) |
15 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5V) |
150 W |
| Combined power (+12V) |
672 W |
| Combined power (+3.3V) |
150 W |
| Power Factor Correction (PFC) type |
Active |
| Power factor |
0.99 |
| Input current |
10 A |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Peak power |
750 W |
| Total power |
700 W |
| Ports & interfaces |
|---|

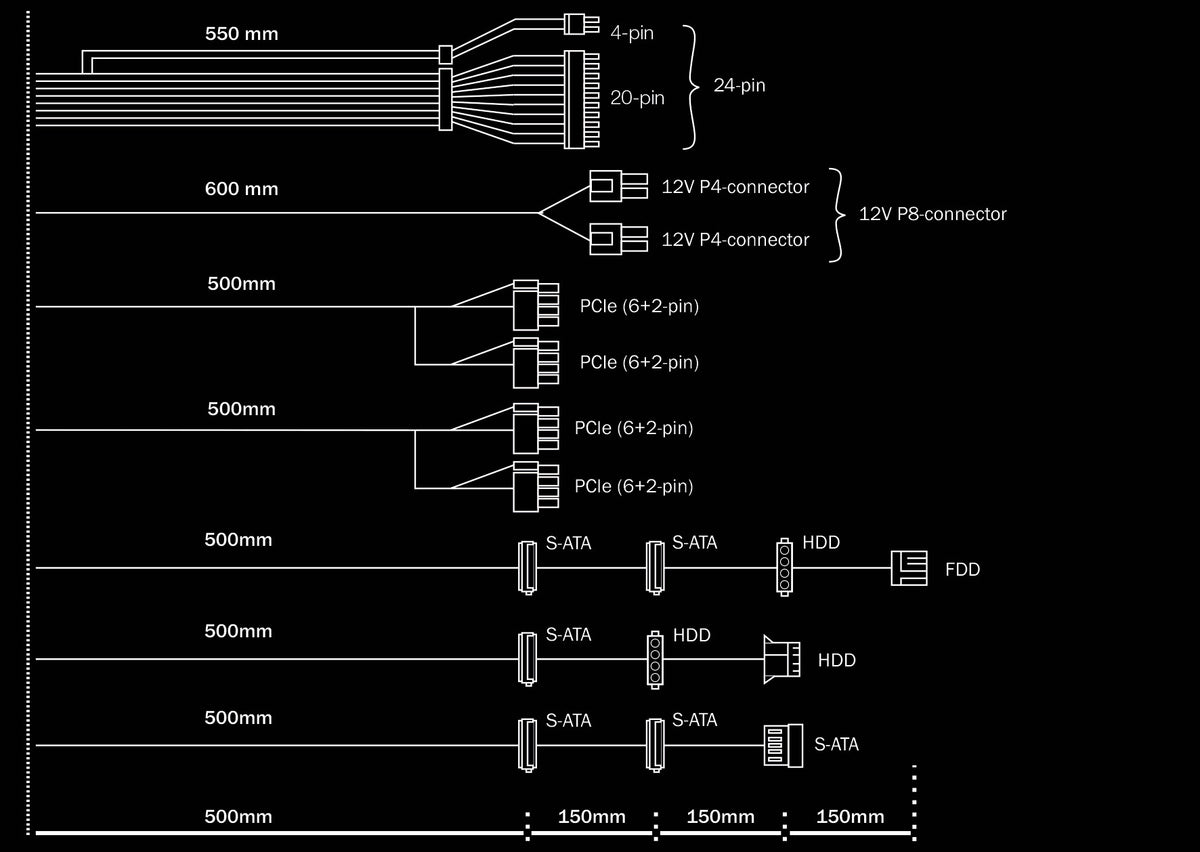

| Cabling type |
Non-Modular |
| Floppy disk drive connector |
Yes |
| CPU power cable length |
60 cm |
| CPU power connector (4+4 pin) |
Yes |
| PCI Express power cable length |
50 cm |
| PCI Express power connectors (6+2 pin) |
4 |
| SATA power cable length |
500,650,800 mm |
| Number of SATA power connectors |
6 |
| Number of PATA power connectors |
3 |
| Motherboard power cable length |
55 cm |
| Motherboard power connector |
20+4 pin ATX |
| Performance |
|---|
| Certification |
ErP, WEEE |
| Safety |
CE, CB, TÜV, FCC, cTUVus, RCM, BSMI, CU, CCC |
| Bearing technology |
Rifle |
| EPS version |
2.92 |
| ATX version |
2.4 |
| 80 PLUS certification |
80 PLUS Gold |
| Power supply unit (PSU) form factor |
ATX |
| Purpose |
PC |
| Design |
|---|
| Number of fans |
1 fan(s) |
| Fan diameter |
12 cm |
| Product colour |
Black |
| Weight & dimensions |
|---|
| Weight |
2.11 kg |
| Height |
86 mm |
| Depth |
150 mm |
| Width |
150 mm |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
2.39 kg |
| Package height |
96 mm |
| Package depth |
240 mm |
| Package width |
210 mm |
| Manual |
Yes |
| Technical details |
|---|
| Sustainability certificates |
ENERGY STAR |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Products per master (outer) case |
6 pc(s) |
| Master (outer) case gross weight |
15.4 kg |
| Harmonized System (HS) code |
84733020 |
| Master (outer) case height |
241 mm |
| Master (outer) case length |
514 mm |
| Master (outer) case width |
326 mm |
| Other features |
|---|

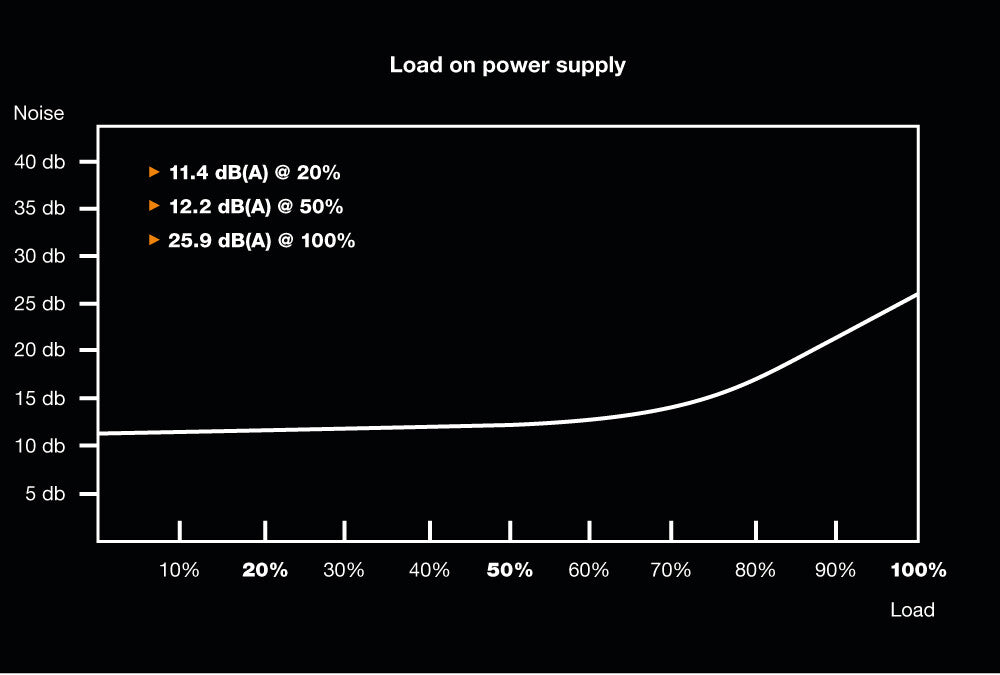

| Noise level (full-load mode, 100%) |
25.9 dB |
| Noise level (quiet mode, 50%) |
12.2 dB |
| Noise level (silent mode, |
11.4 dB |

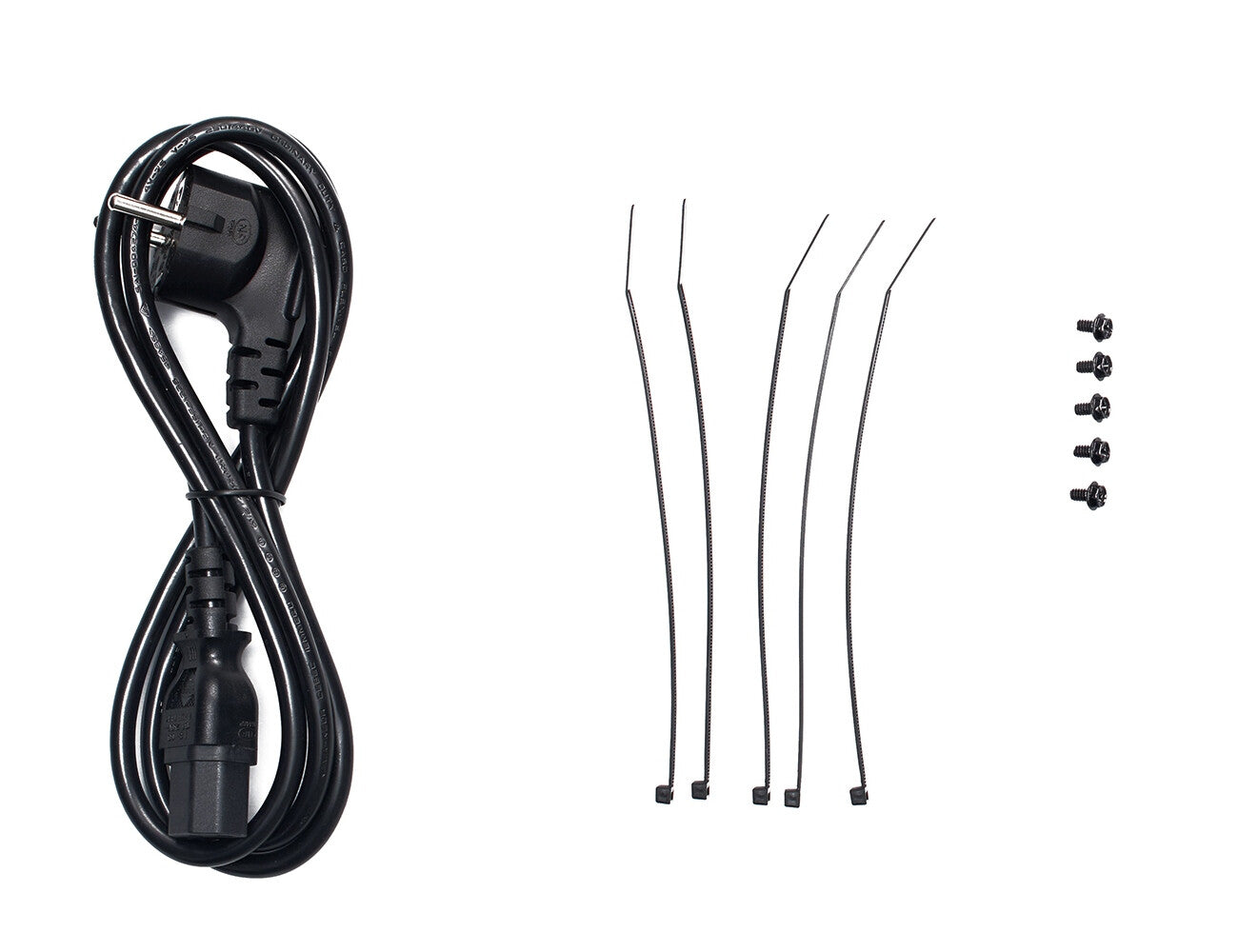

| Cable ties included |
Yes |
| Screws included |
Yes |
