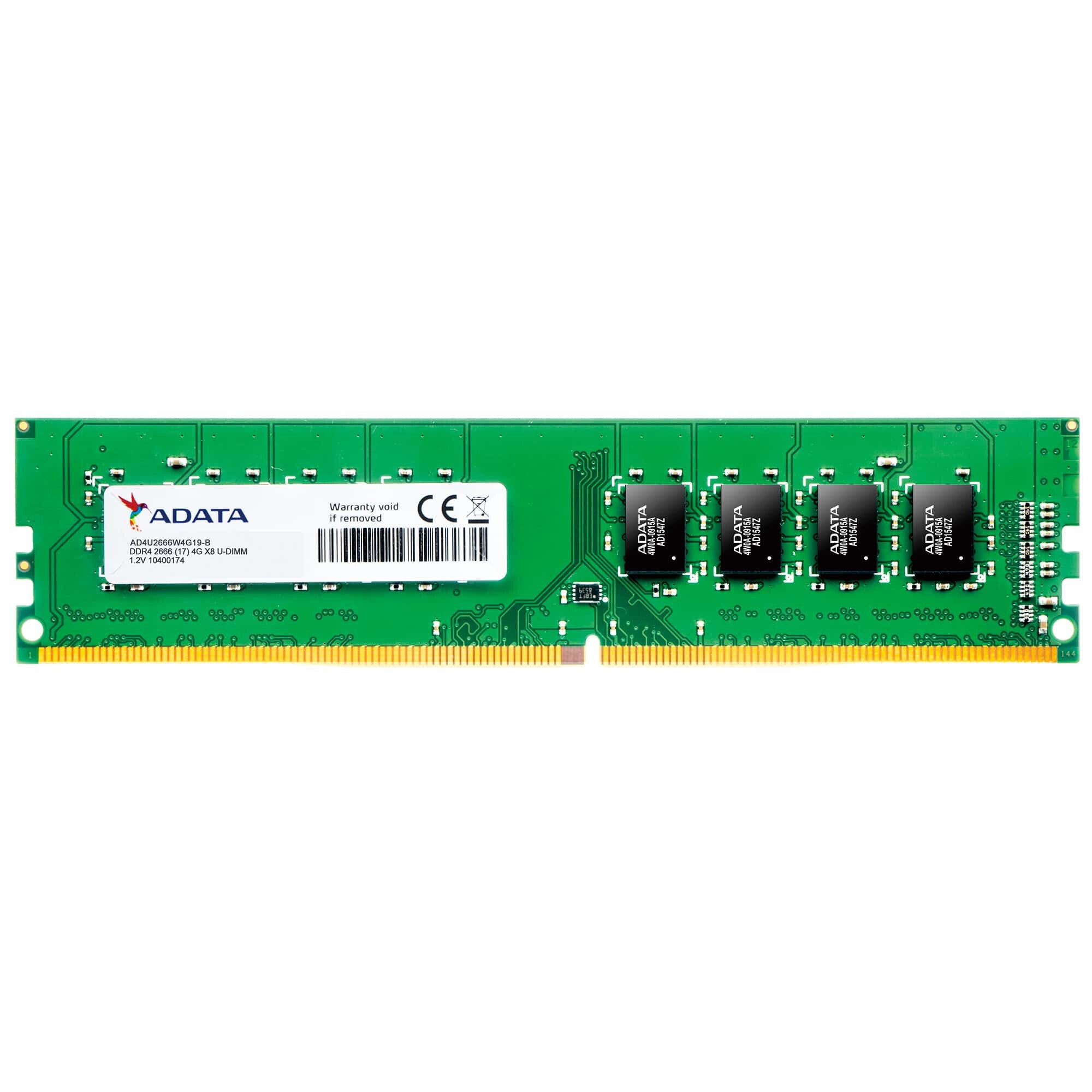

ADATA Premier DDR4 2666 unbuffered-DIMM memory is the latest upgrade solution that supports Intel's newest platforms for faster data transfer and enhanced power efficiency. Utilizing a 288-pin design, operating voltage has been reduced from 1.5V on DDR3 to 1.2V, which not only helps save power by 20%, but also boosts transfer bandwidth speed to 21.3GB/s. Every chip in ADATA memory modules meets strict JEDEC and RoHS standards, ensuring compatibility, stability, and environmentally friendly products.
Lightning speed PCIe Gen3x4
- Complies with JEDEC standards
- RoHS compliant
- Supports Intel Skylake-X and Kaby Lake-X CPU
Lifetime Warranty
All ADATA memory modules are produced and tested using a rigorous quality control process for rapid computing and stable operation. In addition, ADATA memory modules provide customers a lifetime warranty for maximum assurance with excellent service.
Features | |
---|---|
Module configuration | 512M x 16 |
Memory voltage | 1.2 V |
CAS latency | 19 |
Memory form factor | 288-pin DIMM |
Component for | PC/Server |
Memory clock speed | 2666 MHz |
Internal memory type | DDR4 |
Memory layout (modules x size) | 1 x 4 GB |
Internal memory | 4 GB |
Buffered memory type | Unregistered (unbuffered) |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 - 85 °C |
Sustainability | |
---|---|
Sustainability certificates | RoHS |
Weight & dimensions | |
---|---|
Height | 31.2 mm |
Packaging data | |
---|---|
Package weight | 25 g |
Package height | 9 mm |
Package depth | 55 mm |
Package width | 170 mm |
Logistics data | |
---|---|
Products per master (outer) case | 300 pc(s) |
Master (outer) case net weight | 7.5 kg |
Master (outer) case gross weight | 8.25 kg |
Master (outer) case height | 278 mm |
Master (outer) case length | 545 mm |
Master (outer) case width | 255 mm |
