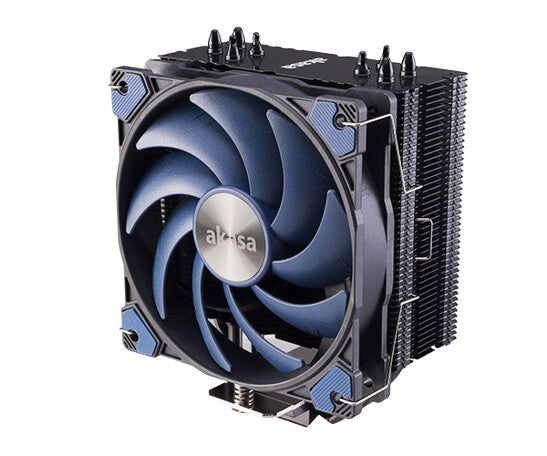

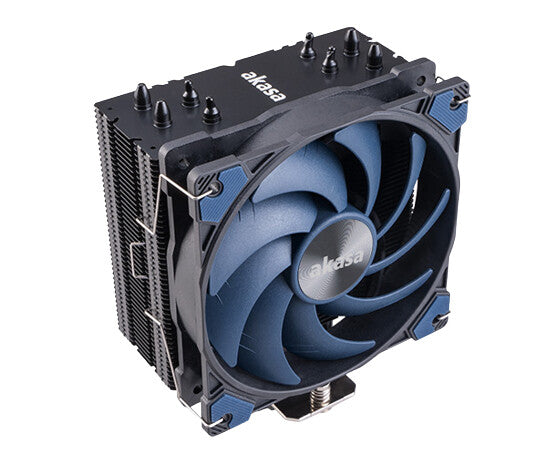

Alucia H4 Plus
High performance premium CPU cooler with 120mm fan, featuring intelligent PWM speed control and efficient copper pipes. Sleek all-black heatsink and tranquil blue fan that channels the calm and power of oceanic waves. Designed for CPUs with a maximum TDP of 185W.
Designed for LGA 1700
Increased contact surface area allows for more heat to be dissipated at a time
Maximum Reliability in Cooling Performance
4 high performing copper heat pipes with Direct Touch Technology (DTT) for efficient heat dissipation. Superior rotor design with Hydro Dynamic bearing for improved lubrication, reducing fan noise and extending fan life up to 40,000 hours. Ensuring the cooler is able to support CPU’s up to 185W TDP.
Advanced Fan
Alucia fan with advanced blade technology, intelligent PWM synced speed control, and damping pads to reduce operating vibration.
Premium Badge
Metallic Akasa badge reinforces the premium feel and overall aesthetics.
Sleek Black Fins
High density design for maximum thermal distribution to ensure CPU has superb cooling. Electro-painted in black for corrosion resistance and sleek aesthetics.
Four Heatpipes
Highly conductive with Direct Contact Technology that maximises efficient heat transfer from the CPU to the fins.
Easy Installation & Wide Compatibility
Mounting kit offers easy and secure installation for a wide range of Intel® and AMD motherboards.
Multi-Platform
For most Intel® and AMD sockets: LGA2066/2011/1700/1156/1155/1151/1150/1200 and AM4.
Memory Compatibility
Slanted heatsink designs for RAM compatibility including mini-ITX motherboards.
Included Ultra-Performance Thermal Paste
T5 Pro-Grade Plus thermal paste is included with hybrid silicone and nano-diamond particles for ultra-performance. Outperforming other top selling ultra-performance competitor thermal pastes.
Performance | |
---|---|
Fan speed (min) | 500 RPM |
Fan speed (max) | 2000 RPM |
Quantity per pack | 1 pc(s) |
Fan bearing technology | Hydro Dynamic Bearing (HDB) |
Bearing type | Hydro Dynamic Bearing (HDB) |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 1.94 mmH2O |
Maximum airflow | 56.3 cfm |
Noise level (high speed) | 33.1 dB |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4 |
Fan diameter | 12 cm |
Type | Air cooler |
Suitable location | Processor |
Design | |
---|---|
Fan connector | 4-pin |
Number of heat pipes | 4 |
Fins material | Aluminium |
Number of fans | 1 fan(s) |
Material | Aluminium, Copper |
Product colour | Black, Blue |
Power | |
---|---|
Thermal Design Power (TDP) | 185 W |
Fan voltage | 12 V |
Fan current | 0.2 A |
Weight & dimensions | |
---|---|
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Weight | 643.7 g |
Height | 92 mm |
Depth | 120 mm |
Width | 148 mm |
Packaging content | |
---|---|
CPU bracket(s) | Yes |
Number of clips | 4 |
Number of nuts | 4 |
Number of screws | 4 |
Screws included | Yes |
Mounting kit | Yes |
Cables included | 4-pin |
Other features | |
---|---|
Product life | 40000 h |
