Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
Processor | |
---|---|
Maximum internal memory supported by processor | 128 GB |
Supported processor sockets | Socket AM4 |
Maximum number of SMP processors | 1 |
Compatible processor series | 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9 |
Processor socket | Socket AM4 |
Processor manufacturer | AMD |
Memory | |
---|---|
Unbuffered memory | Yes |
Maximum internal memory | 128 GB |
Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB |
Supported memory clock speed (max) | 4733 MHz |
Supported memory clock speeds | 2133,2400,2667,2933,3200,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4733 MHz |
Non-ECC | Yes |
ECC | Yes |
Memory channels | Dual-channel |
Memory slots type | DIMM |
Number of memory slots | 4 |
Supported memory types | DDR4-SDRAM |
Storage controllers | |
---|---|
RAID levels | 0, 1, 10 |
Number of HDDs supported | 4 |
Number of storage drives supported | 6 |
Supported storage drive interfaces | SATA III |
Supported storage drive types | HDD & SSD |
Graphics | |
---|---|
DirectX version | 12.0 |
HDCP | Yes |
Maximum resolution | 4096 x 2160 pixels |
Internal I/O | |
---|---|
RGB LED pin header | Yes |
Serial port headers | 1 |
TPM connector | Yes |
12V power connector | Yes |
Number of chassis fan connectors | 2 |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
Front panel connector | Yes |
Front panel audio connector | Yes |
Number of SATA III connectors | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
USB 2.0 connectors | 1 |

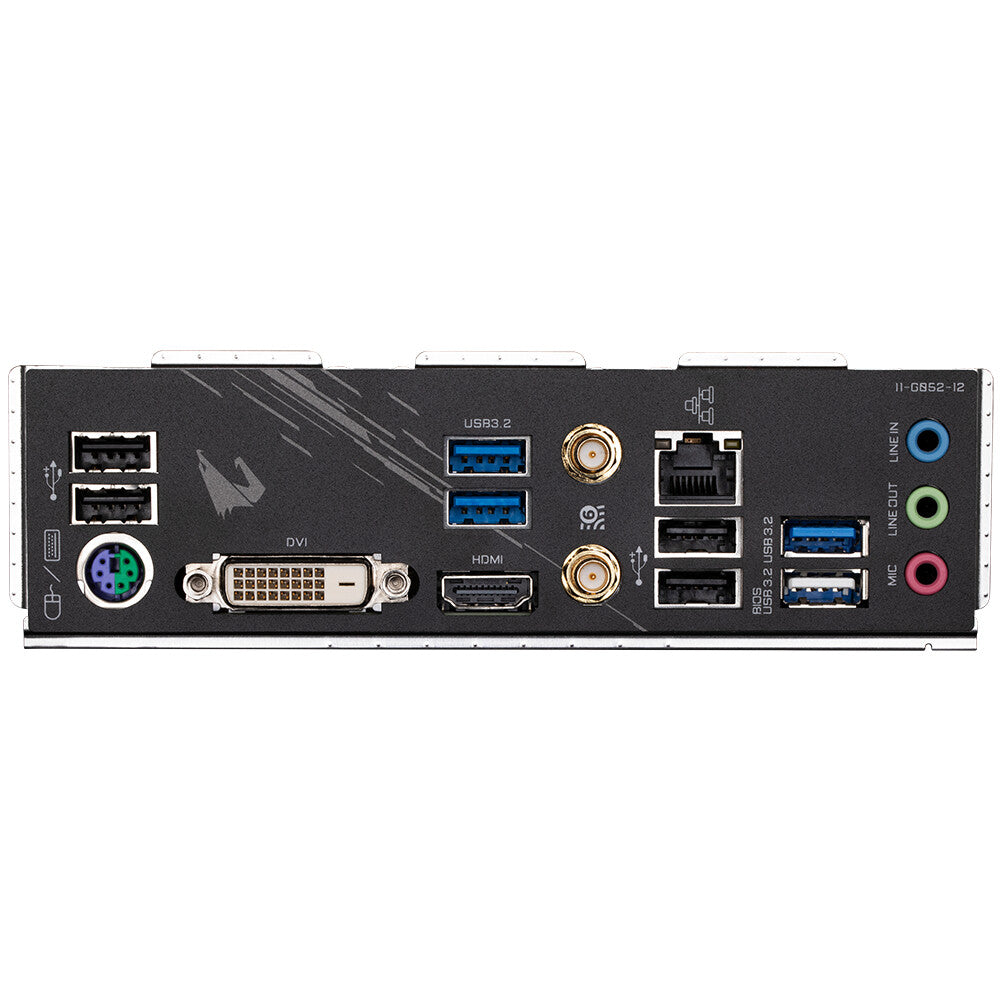

Rear panel I/O ports | |
---|---|
USB connector type | USB Type-A, USB Type-C |
DVI-D ports quantity | 1 |
HDMI version | 2.1 |
HDMI ports quantity | 1 |
PS/2 ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
USB 2.0 ports quantity | 4 |
Network | |
---|---|
Bluetooth version | 5.3 |
Bluetooth | Yes |
WLAN controller model | Realtek RTL8852CE |
Wi-Fi standards | Wi-Fi 6E (802.11ax) |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Wi-Fi | Yes |
Ethernet interface type | Gigabit Ethernet |
Ethernet LAN | Yes |
Features | |
---|---|
Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
PC health monitoring | Fan, Temperature, Voltage |
Product colour | Brown |
Audio output channels | 7.1 channels |
Motherboard chipset | AMD B550 |
Motherboard chipset family | AMD |
Motherboard form factor | micro ATX |
Component for | PC |
Expansion slots | |
---|---|
Number of M.2 (M) slots | 2 |
PCI Express x16 (Gen 4.x) slots | 1 |
PCI Express x16 slots | 1 |
PCI Express x1 (Gen 3.x) slots | 1 |
BIOS | |
---|---|
Desktop Management Interface (DMI) version | 2.7 |
System Management BIOS (SMBIOS) version | 2.7 |
Clear CMOS jumper | Yes |
ACPI version | 5.0 |
BIOS memory size | 128 Mbit |
BIOS type | UEFI AMI |
Battery | |
---|---|
Battery type | CR2032 |
Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
Number of battery cells | 1 |
Battery weight | 3 g |
Lithium weight per battery | 0.07 g |
Logistics data | |
---|---|
Country of origin | China |
Products per shipping (inner) case | 1 pc(s) |
Packaging data | |
---|---|
Package weight | 1.27 kg |
Package height | 65 mm |
Package depth | 265 mm |
Package width | 265 mm |
Weight & dimensions | |
---|---|
Height | 35 mm |
Depth | 244 mm |
Width | 244 mm |
Packaging content | |
---|---|
Bundled software | Norton Internet Security (OEM)Realtek 8118 Gaming LAN Bandwidth Control Utility |
Cables included | SATA |
Batteries included | Yes |
Technical details | |
---|---|
Warranty period | 3 year(s) |
