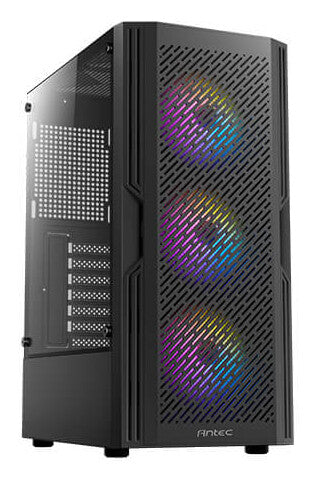

Unique Design & Powerful Heat Dissipation

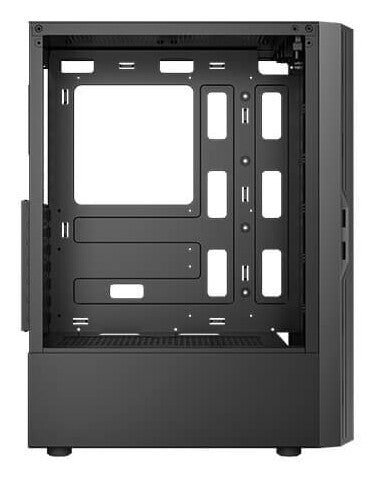

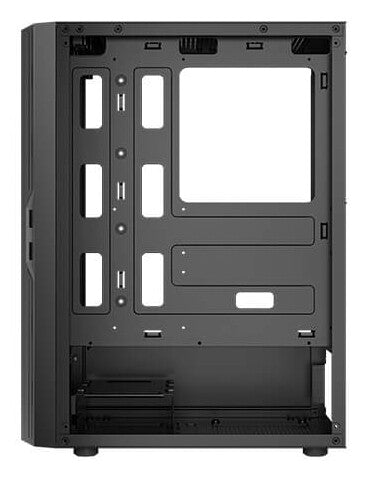

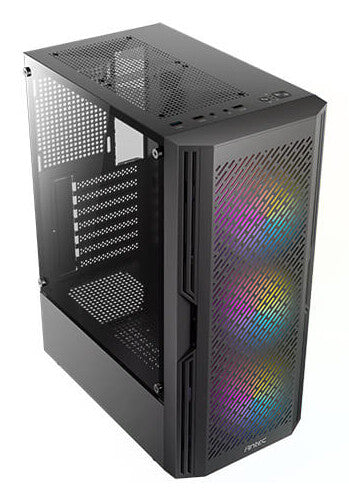

AX20 features a slanted bar air intake design and an exceptional dense mesh for massive heat dissipation. The half-view tempered glass side panel design allows you to show off your gaming configurations without obstacles. The AX20 supports up to 8 x 120 mm fans simultaneously and provides users with diverse cooling options.

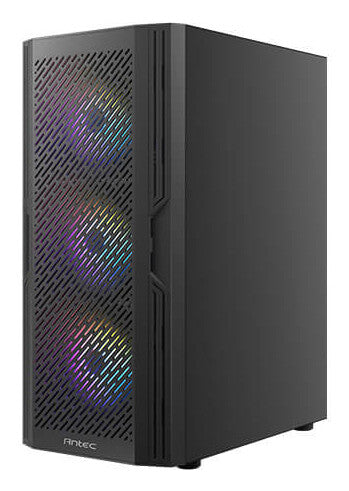

Slanted Bar Air Intake Design
Featuring dense mesh for massive airflow and efficient dust prevention.

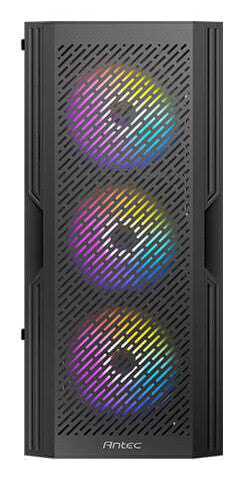

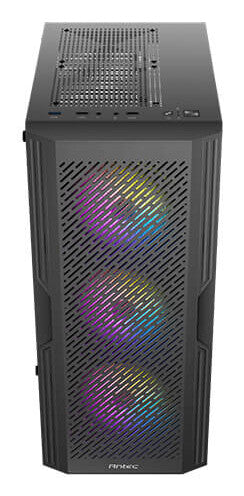

High-Airflow Front Panel

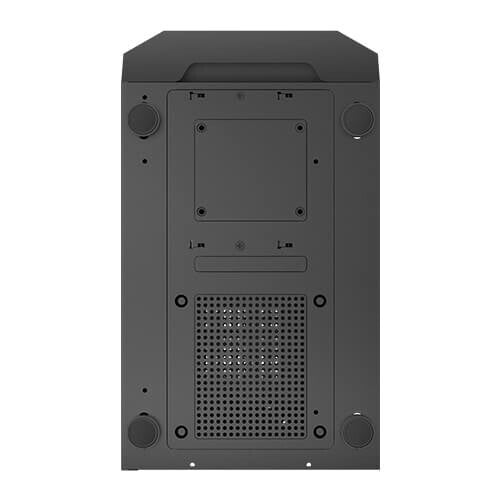

Massive air intake at the front, top, and bottom. Creating multiple airflow paths.
Design | |
---|---|
Maximum PSU length | 17 cm |
Maximum graphics card length | 27 cm |
Maximum CPU cooler height | 15.5 cm |
On/off button | Yes |
Reset button | Yes |
Anti-dust filter | Yes |
Side window | Yes |
Number of expansion slots | 7 |
Number of 2.5" bays | 3 |
Number of 3.5" bays | 2 |
Supported motherboard form factors | ATX, ITX, micro ATX |
Product colour | Black |
Material | Plastic, Steel, Tempered glass |
Type | PC |
Form factor | Midi Tower |
Power supply | |
---|---|
Power supply included | No |

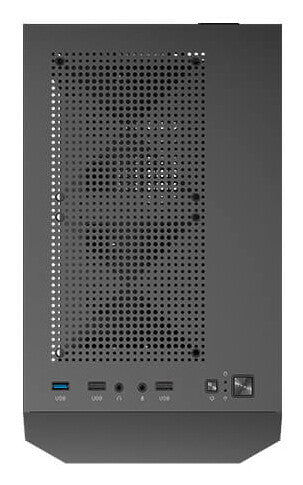

Ports & interfaces | |
---|---|
Audio output | Yes |
Audio input | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
USB 2.0 ports quantity | 2 |
Cooling | |
---|---|
Front radiator sizes supported | 120,140,240,280 mm |
Top fans diameters supported | 120 mm |
Number of top fans supported (max) | 2 |
Top fans installed | 2x 120 mm |

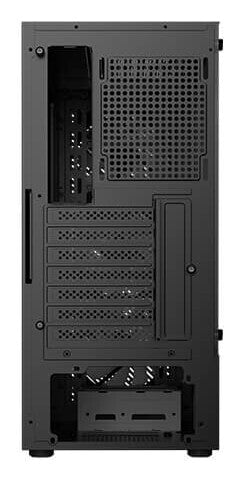

Rear fans diameters supported | 120 mm |
Number of rear fans supported (max) | 1 |
Rear fans installed | 1x 120 mm |
Front fans diameters supported | 120,140 mm |
Number of front fans supported (max) | 3 |
Weight & dimensions | |
---|---|
Weight | 4 kg |
Height | 451 mm |
Depth | 358 mm |
Width | 207 mm |
Packaging data | |
---|---|
Package weight | 4.71 kg |
