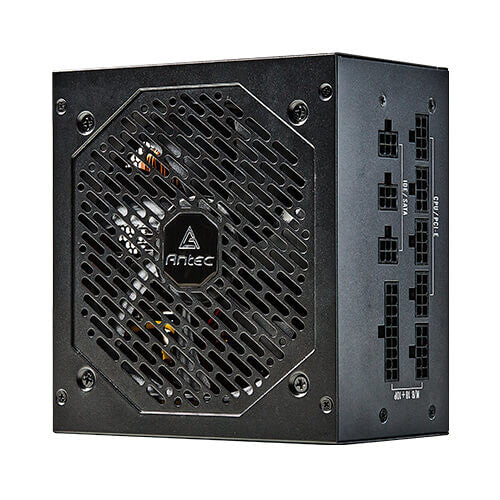

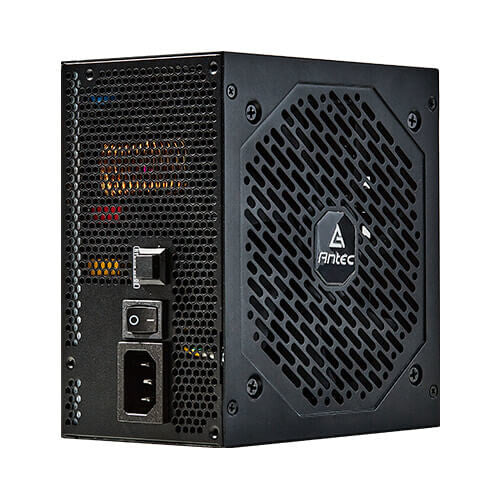

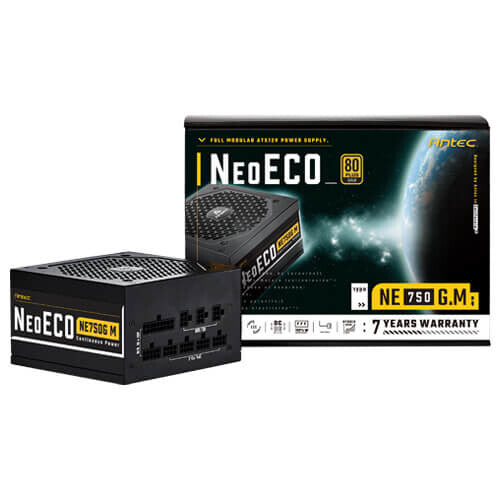

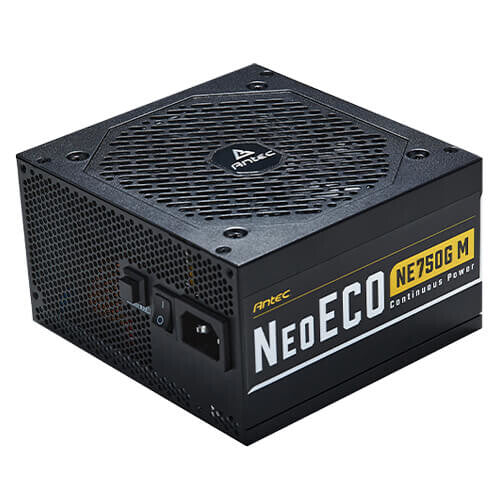

The brand-new NeoECO Gold Modular series was born ready for the best DIY-PC experience seekers, and it also serves exceptional performance and outstanding stability. Featured 100% full modular design and 80 PLUS Gold certification, the NeoECO Gold Modular series keeps your PC hardware installation convenient and clean. It still provides highly efficient power to your system and reduces your electricity bills. The advanced thermal control with the Zero RPM mode enables to turn the fan off at low loads to provide absolute silence. With the 120mm silent fan, the NeoECO Gold Modular can optimize the balance between cooling and noise. High-quality Japanese heavy-duty caps allow your system has more stable performance. The CircuitShield™ design serves your industry-grade protection to make your system safe in any environment. With the 7-year warranty, the NeoECO Gold Modular series will be the ideal choice for professional modders and PC gamers.

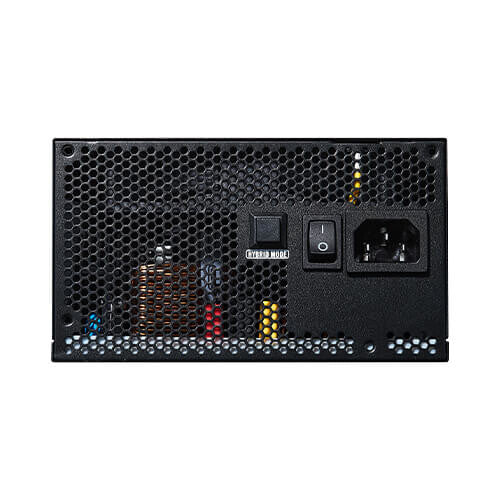

Zero RPM Mode
The Zero RPM fan mode further automatically ensures zero fan speed at low loads to reduce plenty of noise and keep absolute silence.
Japanese Heavy-Duty Caps
Japanese capacitors ensure the tightest DC stability and regulation, for eliability that you and your system can count on.
PhaseWave LLC + DC to DC Design
A server-class Half-Bridge LLC design with synchronous rectification based on a DC-DC topology to improve performance and stability.

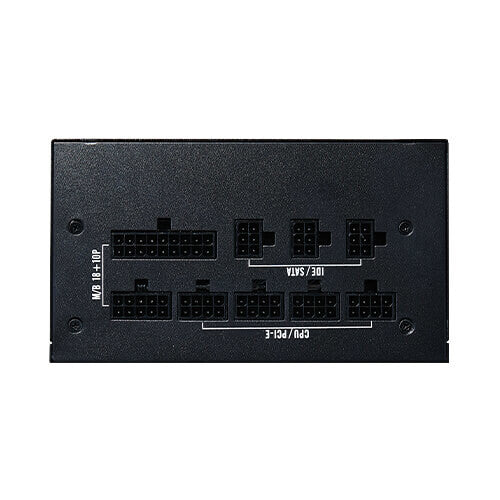

100% Full Modular
Enables users to use only the cables which are needed and help clear out excess cables that can obstruct and reduce airflow.
Power | |
---|---|
Power protection features | Over power, Over voltage, Overcharge, Short circuit, Under voltage |
Efficiency | 92% |
Max output current (+5Vsb) | 2.5 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 20 A |
Max output current (+12V) | 62 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 12.5 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 100 W |
Combined power (+12V) | 744 W |
Combined power (+3.3V) | 100 W |
Power Factor Correction (PFC) type | Active |
Input current | 10 A |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Total power | 750 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
PCI Express connector | Yes |
Floppy drive power connector | 1 |
Floppy disk drive connector | Yes |
ATX power connector (20+4 pin) | Yes |
CPU power connector (4+4 pin) | Yes |
PCI Express power connectors (6+2 pin) | 4 |
Peripheral (Molex) power connectors (4-pin) | 4 |
Number of SATA power connectors | 8 |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Certification | cTUVus / TUV / CB / RCM / CE / FCC / BIS / BSMI / KC / UKCA / ICES |
Silent mode | Yes |
ATX version | 2.4 |
80 PLUS certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Number of fans | 1 fan(s) |

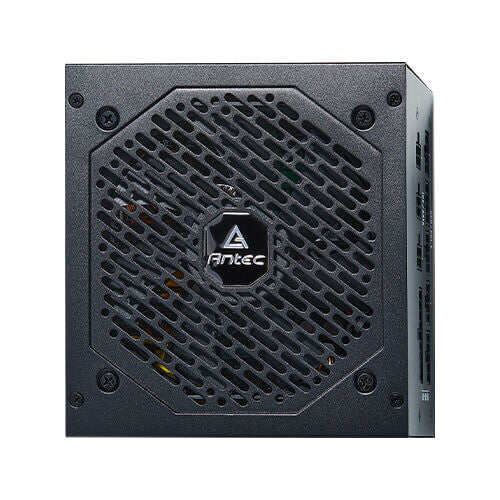

Fan diameter | 12 cm |
Cooling type | Active |
Product colour | Black |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 - 40 °C |
General | |
---|---|
Product Family | Neo ECO Modular |
Packaging content | |
---|---|
Cables included | PCIe, Peripheral (Molex), SATA |
Weight & dimensions | |
---|---|
Weight | 1.37 kg |
Height | 86 mm |
Depth | 150 mm |
Width | 140 mm |
Packaging data | |
---|---|
Package type | Box |
Package weight | 2.53 kg |
Technical details | |
---|---|
Warranty period | 7 year(s) |
