Unique Design &
Powerful Heat
Dissipation

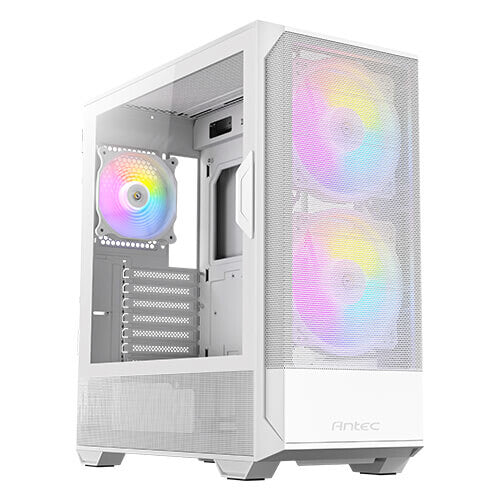

The NX416L features a unique design and excellent cooling performance. The mesh around the case and the fans on the PSU shroud create the possibility for a better heat dissipation of the graphics card.
11 x 120mm fans can be installed simultaneously.

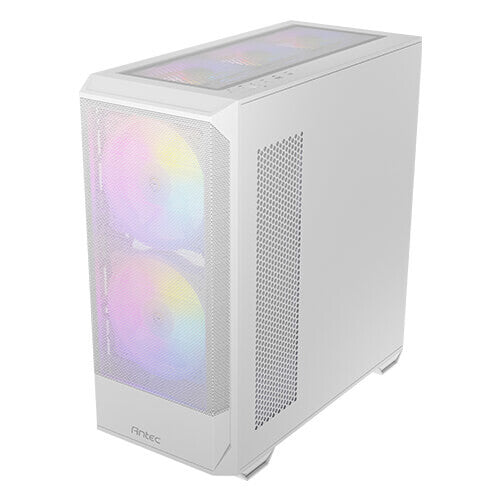

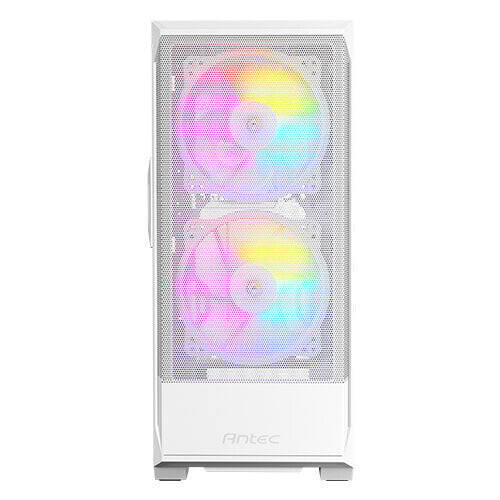

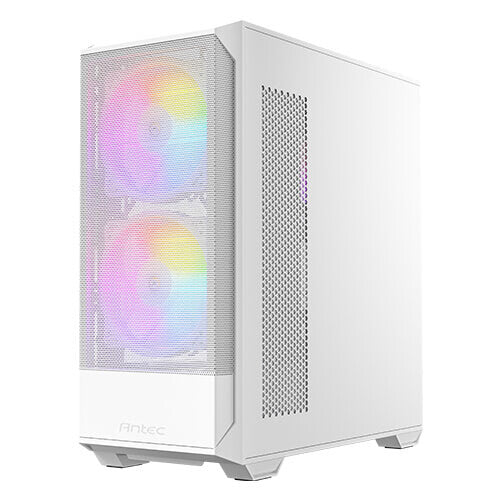

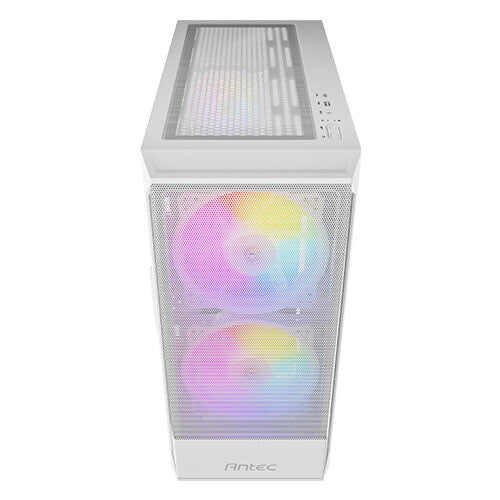

High-Airflow mesh front
panel with 2 pre-installed
160mm ARGB Fans
2 pre-installed 160mm ARGB fans and the vast of mesh ensure massive airflow and maximum cooling performance without giving into dust prevention.

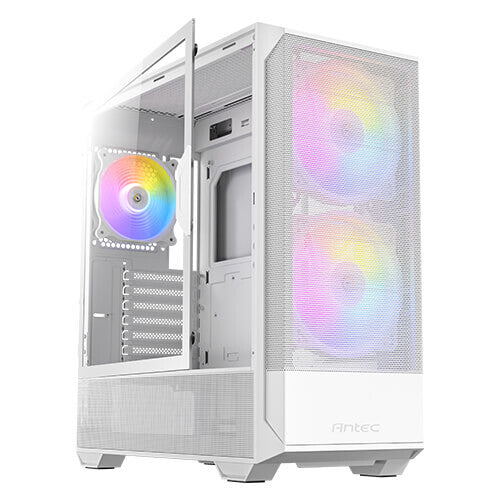

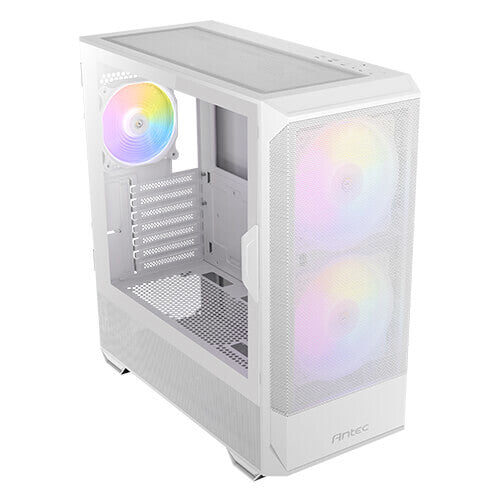

Swing-Opening Tempered Glass Side Panel
The swing-opening left panel made of tempered glass makes interior components easy to access, more convenient for installation and cleaning.
Powerful Cooling

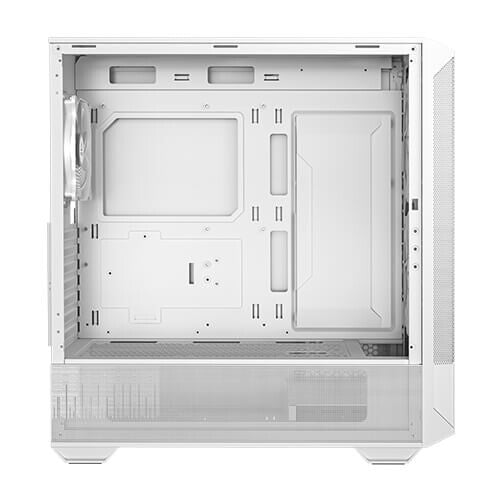

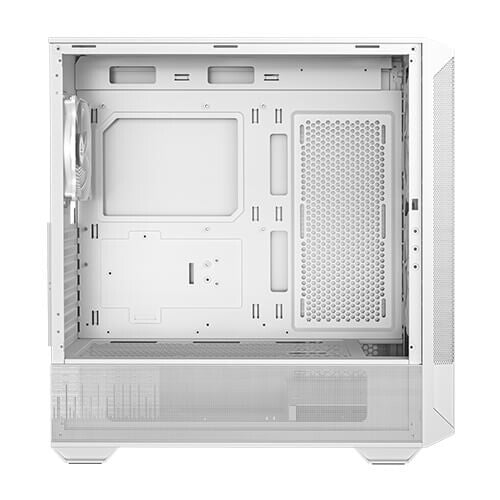

Install a 240mm radiator with decorative storage panel removed.
Optimized
Storage Panel

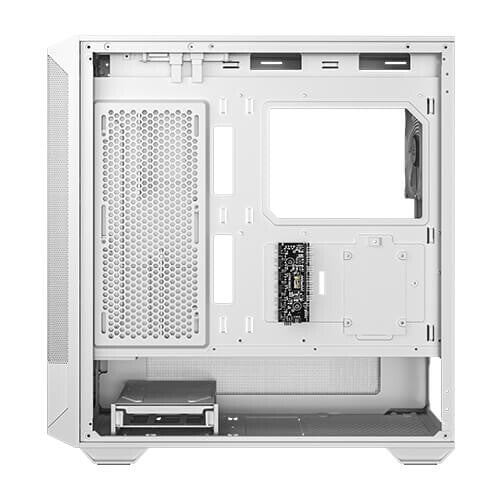

Install two 2.5" SSD in the decorative panel beside the MB area.
Build-in LED &
PWM Fan Controller
The built-in control hub can sync with the motherboard or switch the ARGB lighting modes with the ARGB control button for your personalized setup.
Design | |
---|---|
Maximum PSU length | 24 cm |
Maximum graphics card length | 41.5 cm |
Maximum CPU cooler height | 16.5 cm |
On/off button | Yes |
Reset button | Yes |
RGB control button | Yes |
Cable management | Yes |
Anti-dust filter | Yes |
Tempered glass panel(s) | Yes |
Illumination location | Back, Case fans, Front, Top |
Illumination colour | Multi |
Illumination | Yes |
Suitable for | Gaming |
Side window | Yes |
Number of expansion slots | 7 |
Number of 2.5" bays | 3 |
Number of 3.5" bays | 2 |
Supported motherboard form factors | ATX, ITX, micro ATX |
Product colour | White |
Material | Plastic, Steel |
Type | PC |
Form factor | Midi Tower |
Power supply | |
---|---|
Supported power supply form factors | ATX, ITX, MicroATX |

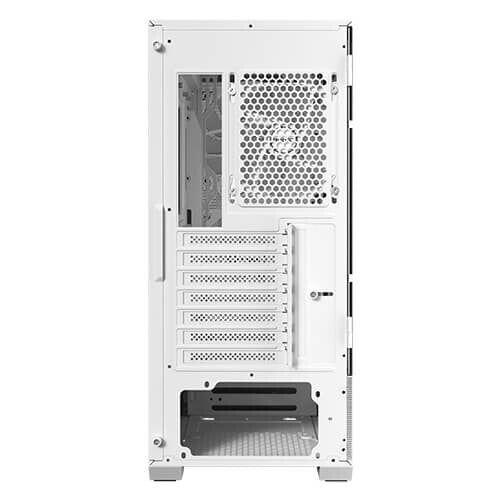

Power supply location | Rear |
Number of power supply units | 1 |
Ports & interfaces | |
---|---|
USB Type-C ports quantity | 1 |
Audio output | Yes |
Audio input | Yes |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
Cooling | |
---|---|
Top radiator sizes supported | 120,140,240,280,360 mm |
Rear radiator sizes supported | 120 mm |
Side radiator sizes supported | 120,240 mm |
Front radiator sizes supported | 120,140,240,280,360 mm |
Liquid cooling capability | Yes |
Suitable location | Computer case |
Top fans diameters supported | 120,140 mm |
Number of top fans supported (max) | 3 |
Rear fans diameters supported | 120 mm |
Number of rear fans supported (max) | 1 |
Rear fans installed | 1x 120 mm |
Side fans diameters supported | 120 mm |
Number of side fans supported (max) | 2 |
Front fans diameters supported | 120,140,160 mm |
Number of front fans supported (max) | 3 |
Front fans installed | 2x 160 mm |
Storage | |
---|---|
SSD form factor | 2.5" |
Supported HDD sizes | 3.5" |
Packaging content | |
---|---|
Manual | Yes |
Weight & dimensions | |
---|---|
Weight | 6.4 kg |
Height | 486 mm |
Depth | 471 mm |
Width | 210 mm |
Packaging data | |
---|---|
LED controller | Yes |
