Unique Design &
Powerful Heat
Dissipation

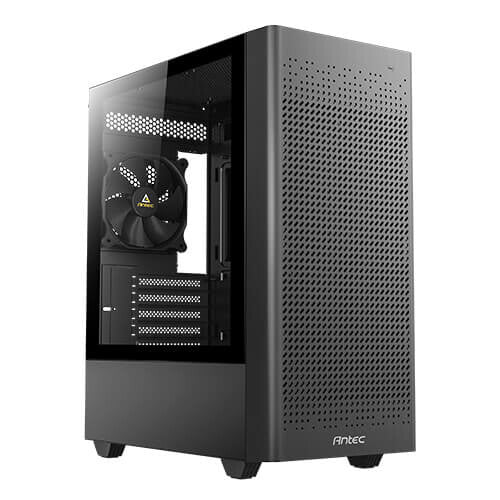

The NX500M features a unique design and excellent cooling performance. The half-view tempered glass side panel design allows you to show off your gaming configurations without any obstacles. 6 x 120mm fans can be installed simultaneously.
Powerful Cooling
Supports a 360mm (Length ≤ 397mm) Radiator at the front and a 240mm radiator at the top.
Removable HDD
Drive Cage
The HDD drive cage is removable to increase PSU installation space. With the drive cage installed, the PSU compartment can accommodate PSUs up to 165mm in length. With the drive cage removed, the PSU compartment can accommodate PSUs up to 325mm in length.
Design | |
---|---|
Maximum PSU length | 32.5 cm |
Maximum graphics card length | 32 cm |
Maximum CPU cooler height | 15.5 cm |
On/off button | Yes |
Reset button | Yes |
Cable management | Yes |
Anti-dust filter | Yes |
Tempered glass panel(s) | Yes |
Illumination location | Case fans, Front, Top |
Illumination colour | Multi |
Illumination | Yes |
Suitable for | Gaming |
Side window | Yes |
Number of expansion slots | 5 |
Number of 2.5" bays | 2 |
Number of 3.5" bays | 2 |
Supported motherboard form factors | ITX, micro ATX |
Product colour | Black |
Material | Plastic, Steel |
Type | PC |
Form factor | Midi Tower |
Power supply | |
---|---|
Power supply location | Rear |
Number of power supply units | 1 |
Power supply included | No |
Ports & interfaces | |
---|---|
USB Type-C ports quantity | 1 |
Audio output | Yes |
Audio input | Yes |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
USB 2.0 ports quantity | 2 |
Cooling | |
---|---|
Top radiator sizes supported | 120,240 mm |
Rear radiator sizes supported | 120 mm |
Front radiator sizes supported | 120,140,240,280,360 mm |
Top fans diameters supported | 120,140 mm |
Number of top fans supported (max) | 4 |
Rear fans diameters supported | 120 mm |
Number of rear fans supported (max) | 1 |
Rear fans installed | 1x 120 mm |
Front fans diameters supported | 120,140 mm |
Number of front fans supported (max) | 5 |
Storage | |
---|---|
Number of HDDs supported | 2 |
SSD form factor | 2.5" |
HDD/SSD combo cage | Yes |
Supported HDD sizes | 3.5" |
Packaging content | |
---|---|
Manual | Yes |
Weight & dimensions | |
---|---|
Weight | 3.7 kg |
Height | 451 mm |
Depth | 384 mm |
Width | 200 mm |
Packaging data | |
---|---|
Package weight | 4.45 kg |
