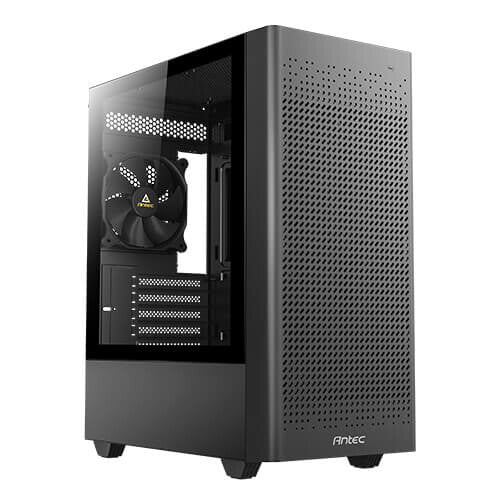

Unique Design & Powerful Heat Dissipation
The NX500M features a unique design and excellent cooling performance. The half-view tempered glass side panel design allows you to show off your gaming configurations without any obstacles. 6 x 120mm fans can be installed simultaneously.

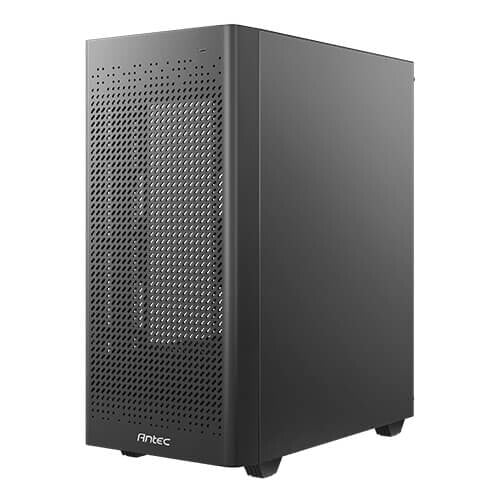

Sleek Design with Massive Air Intake
The sleek and elegant exterior design provides ample airflow to your system for maximum cooling while ensuring minimal dust intake. The panel comes equipped with a Type-C port for added convenience in use.
Powerful Cooling
Supports a 360mm (Length ≤ 397mm) Radiator at the front and a 240mm radiator at the top.
Powerful Fan Compatibility
Supports 3 x 120mm fans at the front.

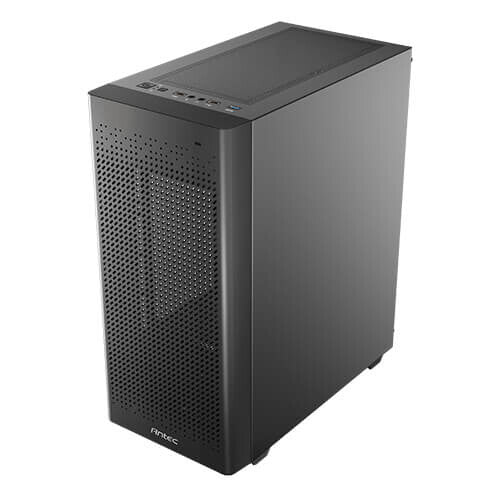

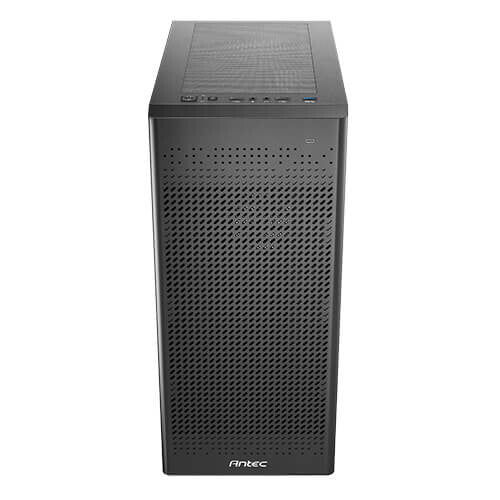

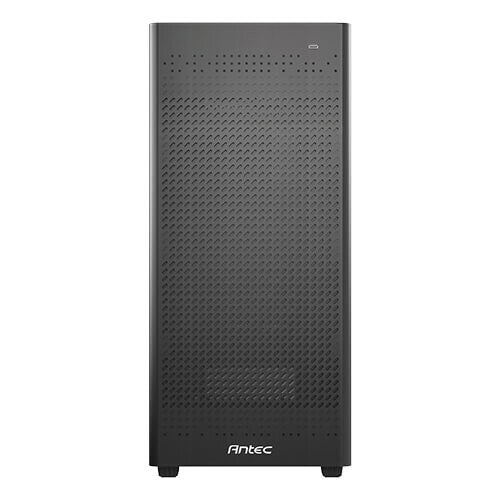

High-Airflow Mesh Front Panel
Massive air intake at the front provides ample airflow.

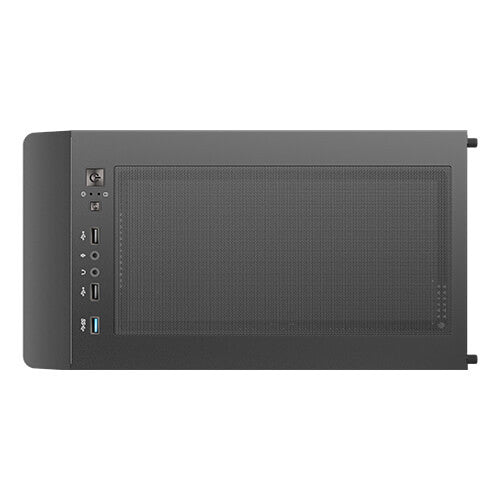

I/O Panel
Power, Reset, Type-C 3.2 Gen 2 x 1, USB3.0 x 1, USB2.0 x 2 , MIC/HD-AUDIO

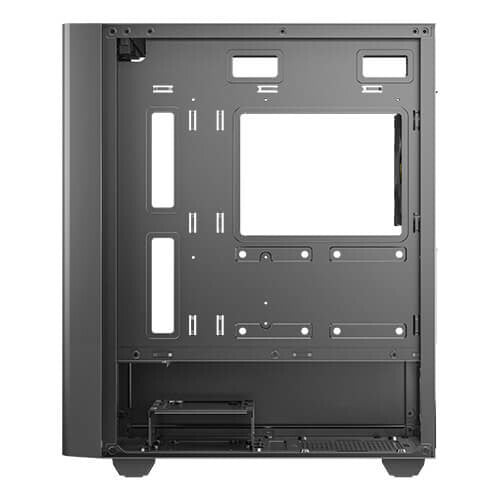

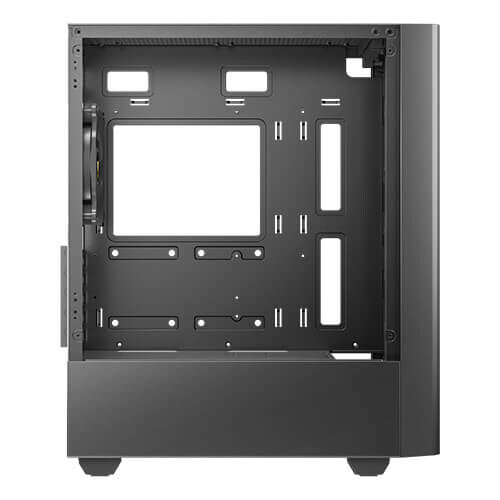

Neat Build within Reach
20 mm space for cable management ensures your PC build looks neat.

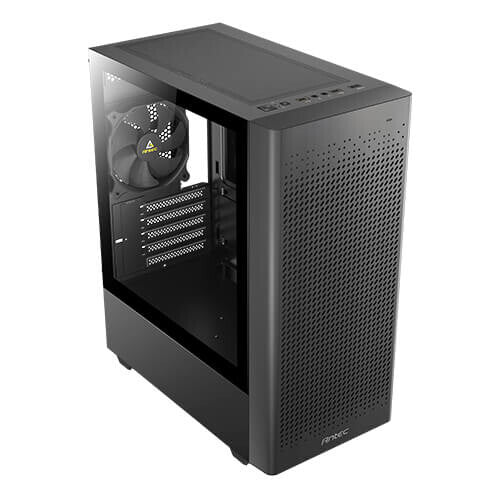

Tempered Glass Side Panel
Showcase your personalized hardware and custom water-cooling system.
Up to 6 x 120mm Fans Simultaneously
Unlimited Performance
Max. GPU Length : 320 mm (Fans are installed at the exterior)
Removable HDD Drive Cage
The HDD drive cage is removable to increase PSU installation space. With the drive cage installed, the PSU compartment can accommodate PSUs up to 165mm in length. With the drive cage removed, the PSU compartment can accommodate PSUs up to 325mm in length.
Design | |
---|---|
Maximum PSU length | 32.5 cm |
Maximum graphics card length | 32 cm |
Maximum CPU cooler height | 15.5 cm |
On/off button | Yes |
Reset button | Yes |
Cable management | Yes |
Anti-dust filter | Yes |
Tempered glass panel(s) | Yes |
Suitable for | Gaming |
Side window | Yes |
Number of expansion slots | 5 |
Number of 2.5" bays | 2 |
Number of 3.5" bays | 2 |
Supported motherboard form factors | ITX, micro ATX |
Product colour | Black |
Material | Plastic, Steel |
Type | PC |
Form factor | Mini Tower |
Power supply | |
---|---|
Power supply included | No |
Ports & interfaces | |
---|---|
Audio output | Yes |
Audio input | Yes |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 2.0 ports quantity | 2 |
Cooling | |
---|---|
Top radiator sizes supported | 120,240 mm |
Rear radiator sizes supported | 120 mm |
Front radiator sizes supported | 120,140,240,280,360 mm |
Top fans diameters supported | 120,140 mm |
Number of top fans supported (max) | 2 |
Rear fans diameters supported | 120 mm |
Number of rear fans supported (max) | 1 |
Rear fans installed | 1x 120 mm |
Front fans diameters supported | 120,140 mm |
Number of front fans supported (max) | 3 |
Storage | |
---|---|
Supported HDD sizes | 2.5,3.5" |
Weight & dimensions | |
---|---|
Weight | 3.7 kg |
Height | 451 mm |
Depth | 483 mm |
Width | 200 mm |
Packaging data | |
---|---|
Package weight | 4.45 kg |
