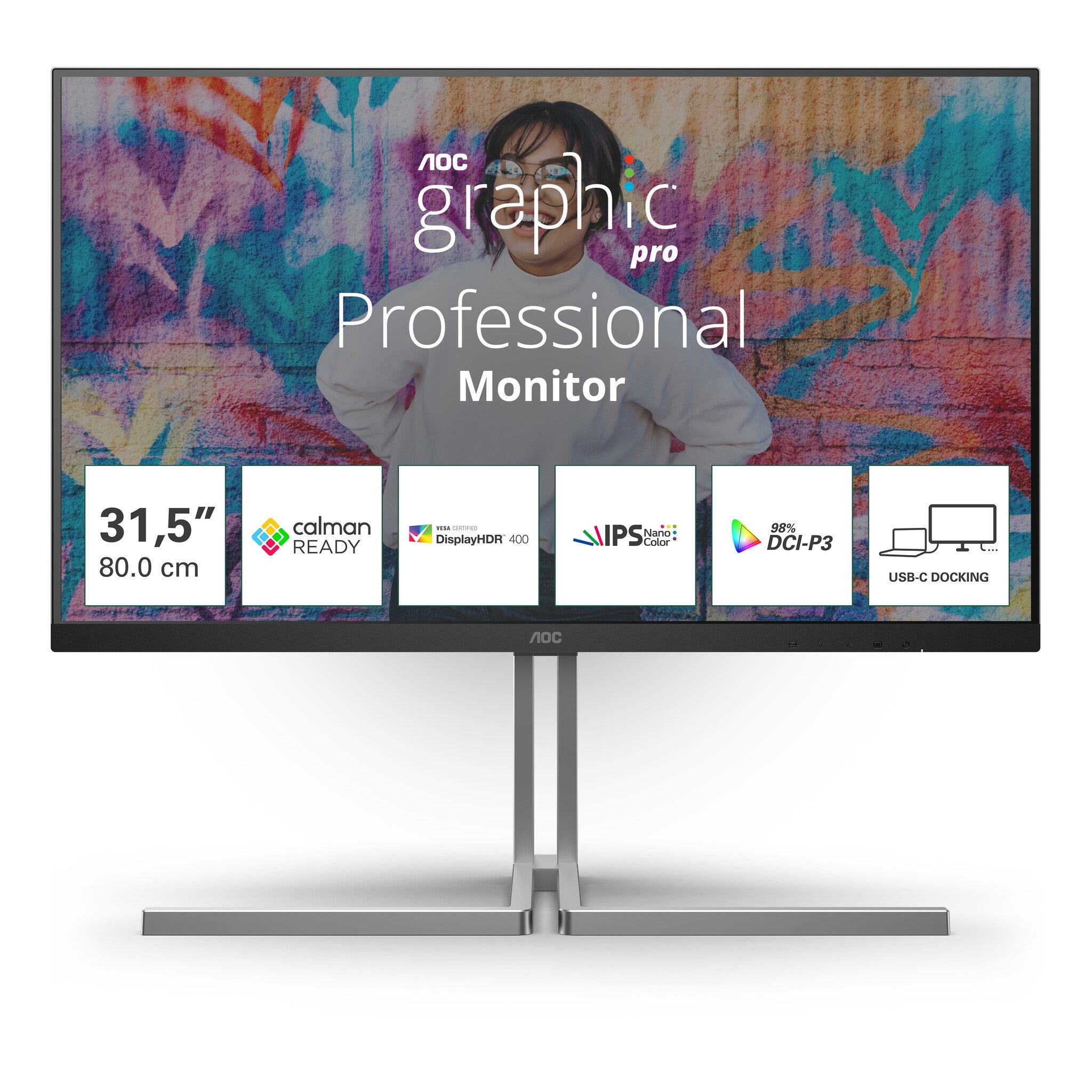

Precision-engineered for graphics excellence with hardware-calibrated precision (Delta E<2), calman ready calibration, and UHD Nano IPS display
The AOC Graphic Pro U32U3CV delivers outstanding color accuracy right out of the box, courtesy of its hardware calibration achieving Delta E<2 (sRGB). Easily adjust settings for peak performance with the Calman Ready feature. With a remarkable 98% coverage of the DCI P3, 100% of the sRGB and 100% of the Rec 709 color space, it's tailor-made for graphic and photo editing, offering superior quality compared to standard monitors. Its Delta E < 2 accuracy ensures precise color rendering that exceeds human eye perception. Enhanced with a UHD Nano IPS display, Vesa DisplayHDR 400, USB-C docking station, and sleek design, it stands out as the ultimate choice for professionals.
Graphic Pro
Bigger, brighter, and better monitor to unleash creativity.The AOC U3 Graphic Pro monitors convey stunning and accurate colors, sharp details, and smooth motion to meet the needs of creative professionals who work with high-quality visuals. Setting up, adjusting, and connecting with your devices is also easy.
Red Dot Winner 2023
The AOC U3 Graphic Pro Monitorwon the category of product design. The Red Dot Award is among the most valued international competitions for product design, communication design, and design concepts.
UHD (4K) Resolution
4K Ultra High-Definition (3840 x 2160) resolution delivers ultra-crisp picture quality and allows users to see more on the screen at one time. This provides more screen 'real estate' and shows more detail for sharper and more brilliant images. Whether working on the next beautiful photo, or design, or even just used for productivity, users will marvel at the true, crisp image that only a UHD display can provide.
Vesa Certified DisplayHDR™ 400
Even the lowest level of High Dynamic Range (HDR) feature poses a significant upgrade to common monitors. The peak luminance of 400 cd/m² enables your display to hone the picture quality with a manifold colour spectrum and more diverse contrast. The VESA-certificate ensures richness of detail and realistic portrayals of game and film worlds.
USB-C Docking
Simplify the connections with one cable only. The USB-C connection provides DisplayPort Alternate Mode for transferring high-resolution video signals from a notebook to the monitor while simultaneously charging the notebook’s battery from the monitor with USB power delivery.
98% DCI-P3
The AOC U3 Graphic Pro Monitor covers 98% of the DCI P3 color space, making it ideal for graphic and photo editing as it can reproduce more shades of red and green than a standard sRGB monitor.
HDMI
HDMI (High-Definition Multimedia Interface) is supported by the current gaming consoles, current GPUs, set-top boxes, supporting the HDCP digital content protection system. HDMI 1.3-1.4b versions support up to 144 Hz refresh rate@1080p and 75 Hz@1440p, while HDMI 2.0-2.0b versions support 240Hz@1080p, 144Hz@1440p and 60 Hz@2160p (4K).
Calman Ready
Calman Ready displays and devices are equipped with the ability to communicate directly with Portrait Displays’ Calman® color calibration software. Devices that are Calman Ready can quickly connect with the software and leverage its precise and automated calibration capabilities (AutoCal™). Calman Ready allows for easy, precise and quick calibrations with your brand-new AOC display.
Nano IPS
Nano IPS technology involves nanoparticles which are applied to a LED backlight of an IPS-panel display. These particles absorb excessive light wavelenghts in order to increase color gamut of a display.
Power Delivery 90W
USB-C is a rising technology that allows fast data transfer, display signal and power delivery to recharge your devices while working. Through a single slim cable, AOC USB-C technology powers up to 90W, charging conventional low/high power devices (such as your mouse or keyboard), smartphones and laptops.
Display | |
---|---|
Colour gamut standard | DCI-P3 |
LED backlight | Yes |
Colour gamut | 98% |
Surface hardness | 3H |
Haze rate | 25% |
DDC/CI | Yes |
High Dynamic Range (HDR) technology | DisplayHDR 400 |
High Dynamic Range (HDR) supported | Yes |
Display diagonal (metric) | 80 cm |
Viewable size, vertical | 39.2 cm |
Viewable size, horizontal | 69.7 cm |
Vertical scan range | 23 - 75 Hz |
Horizontal scan range | 30 - 140 kHz |
Pixel pitch | 0.18159 x 0.18159 mm |
Display number of colours | 1.073 billion colours |
Viewing angle, vertical | 178° |
Viewing angle, horizontal | 178° |
Maximum refresh rate | 60 Hz |
Contrast ratio (typical) | 1000:1 |
Screen shape | Flat |
Anti-glare screen | Yes |
Response time | 4 ms |
Display brightness (typical) | 400 cd/m² |
Backlight type | W-LED |
Panel type | Nano IPS |
HD type | 4K Ultra HD |
Touchscreen | No |
Display technology | LCD |
Native aspect ratio | 16:9 |
Display resolution | 3840 x 2160 pixels |
Display diagonal | 80 cm (31.5") |
Performance | |
---|---|
Flicker-free technology | Yes |
VESA Adaptive Sync support | Yes |
Fast charging | Yes |
Multimedia | |
---|---|
RMS rated power | 6 W |
Number of speakers | 2 |
Built-in camera | No |
Built-in speaker(s) | Yes |
Design | |
---|---|
Feet colour | Grey |
Detachable stand | Yes |
Frameless design | Yes |
Product colour | Black |
Market positioning | Graphics design |
Ports & interfaces | |
---|---|
AC (power) in | Yes |
Headphone outputs | 1 |
Headphone out | Yes |
DisplayPort version | 1.4 |
DisplayPorts quantity | 1 |
HDMI version | 2.0 |
HDMI ports quantity | 2 |
HDMI | Yes |
USB Power Delivery up to | 96 W |
USB Power Delivery | Yes |
USB Type-C DisplayPort Alternate Mode | Yes |
USB Type-C downstream ports quantity | 1 |
USB Type-A downstream ports quantity | 4 |
Number of upstream ports | 2 |
USB upstream port type | USB Type-C |
USB hub version | 3.2 Gen 2 (3.1 Gen 2) |
Built-in USB hub | Yes |
Network | |
---|---|
Ethernet LAN | Yes |
Ergonomics | |
---|---|
Tilt adjustment | Yes |
Plug and Play | Yes |
Picture-in-Picture | Yes |
Tilt angle range | -6.5 - 23° |
Swivel angle range | -15 - 15° |
Swivelling | Yes |

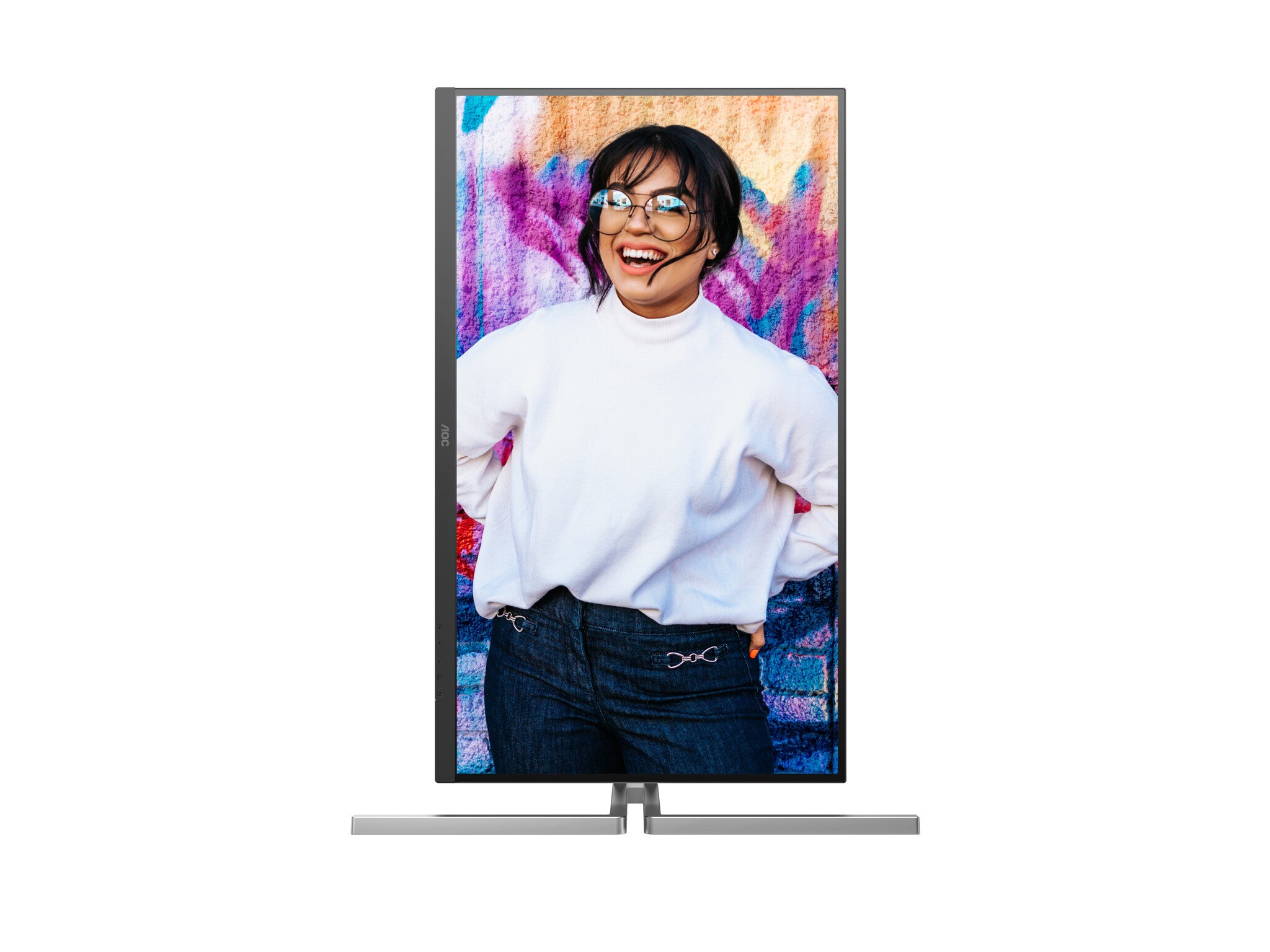

Pivot angle | -90 - 90° |
Pivot | Yes |
Height adjustment | 15 cm |
Height adjustment | Yes |
Panel mounting interface | 100 x 100 mm |
VESA mounting | Yes |
Power | |
---|---|
Input current | 3 A |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Power consumption (max) | 215 W |
Power consumption (standby) | 0.3 W |
Power consumption (typical) | 46 W |
Operational conditions | |
---|---|
Non-operating altitude | 0 - 12192 m |
Operating altitude | 0 - 5000 m |
Storage relative humidity (H-H) | 5 - 93% |
Operating relative humidity (H-H) | 10 - 85% |
Storage temperature (T-T) | -25 - 55 °C |
Operating temperature (T-T) | 0 - 40 °C |
Packaging content | |
---|---|
Quick start guide | Yes |
Cables included | AC |
Stand included | Yes |
Weight & dimensions | |
---|---|
Weight (with stand) | 8.46 kg |
Height (with stand) | 609.3 mm |
Depth (with stand) | 258.6 mm |
Width (with stand) | 714.4 mm |
Packaging data | |
---|---|
Package type | Box |
