FUTURE-PROOF COMPATIBILITY
At the end of 2022, AMD is expected to release the AM5 socket, the successor to its popular AM4 platform. Because all mechanical dimensions remain identical, we are able to guarantee the compatibility of ARCTIC coolers with AMD's new processors.
Additionally, all coolers shipped by ARCTIC are already compatible with Intel's Alder Lake LGA1700 processors.
Coolers purchased from resellers, however, may still have been shipped without the corresponding accessories. In this case, please contact our customer support.
LF2-Series-Feature-Offset-Mount_EN
OPTIMISED FOR AMD RYZEN
AMD has been using a new multi-die layout for its high-end AM4 processors for a few generations now. In these processors, the hotspot is not centered by the IHS (Integrated Heat Spreader). To still allow for optimal heat dissipation, we have developed a special mounting kit for the Liquid Freezer II that allows the cold plate to be placed directly over the hotspot of the CPU. AMD's upcoming 7000 series AM5 processors are also come with multi-die layouts and can therefore benefit from the Liquid Freezer II's unique offset mounting.
lf2-series-feature-eha-2022
BEST CPU WATER COOLER
The Liquid Freezer II series has been tested numerous times by independent reviewers and praised for its performance, price and quietness. It consistently exceeds all expectations and sets new standards in compact water cooling. As a further mark of recognition, the Liquid Freezer II series was awarded the “European Hardware Award 2022” for the best CPU water cooler.
LFII_280-Feature-Colours
CREATE YOUR OWN LOOK
The Liquid Freezer II A-RGB combines the Liquid Freezer II series' efficient, proprietary PWM water pump with ARCTIC's new A-RGB fans optimized for static pressure. This allows for perfectly matched, multi-color lighting effects. With the help of the advanced A-RGB Gen.2 technology and customizable LEDs, you can design your system with your very own look.
lf2-series-feature-pump_2
EFFICIENT, PROPRIETARY PUMP
While many competitors use a generic water pump, we‘ve gone to great lengths to develop our own. The results? Quieter operation and higher efficiency. And, like the Liquid Freezer II’s fans, the water pump is PWM-controlled and adjusts its speed accordingly. This not only leads to significantly lower noise levels at low and typical loads, but also a much lower power consumption for all components of the AiO.
lf2-series-feature-radiator

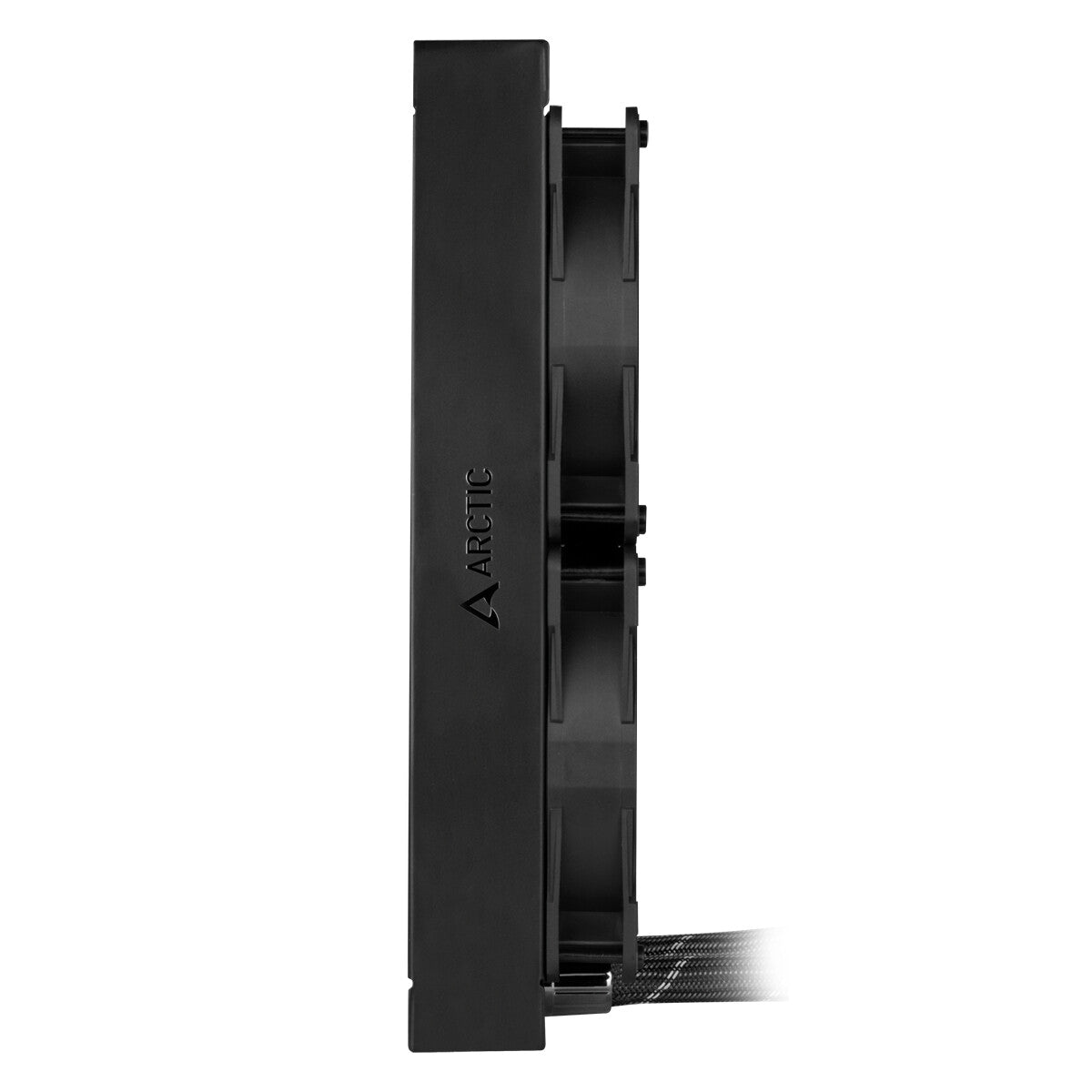

PREMIUM CLASS RADIATOR
Unlike most all-in-one liquid cooling manufacturers, we rely on 38mm thick radiators with a high fin density. This allows a larger amount of water to be used in the circuit and significantly increases the cooling surface area.
Water has a much higher heat capacity than aluminum or copper. This leads to a slower and an up to 5 °C lower temperature increase in the time-limited turbo mode of modern CPUs.
lf2-series-feature-voltage-regulator
QUIET VRM FAN
Small fans have the reputation of being particularly loud and not very durable; that’s why we set out to develop a quiet, sturdy diagonal fan especially for the Liquid Freezer II. We’re 100% convinced that this 40 mm fan is just as durable as our other case fans. If the fan doesn’t live up to our claims, our customer service team will send you a replacement free of charge (without you having to replace the entire unit).
The fan is PWM-controlled and can cool your voltage converters and the socket area almost inaudibly by up to 15 °C especially in overclocking scenarios, with insufficient VRM cooling or in cases with low airflow and thus allows continuous high load. Provided there is sufficient VRM cooling, it can be turned off at will.
LF2-Series-Feature-Cable_Management_ARGB_2-fans
HIGH QUALITY TUBING WITH INTEGRATED CABLE MANAGEMENT
The Liquid Freezer II's fiber-reinforced 45 cm tubing allows for installation even in large cases and effectively prevents coolant evaporation, so you don't have to worry about refilling your compact water cooling system.
Plus, our sophisticated cable management hides both the RGB and PWM cables of your radiator fans in the sleeving.
This makes installation easy and tidy: you only have to connect two connectors to the mainboard, and there are no other cables to hide.
LF2-Series-Feature-Optimised-Pressure_A-RGB
FANS OPTIMIZED FOR STATIC PRESSURE
The illuminated P-fans are already mounted on the radiator from the factory. During the development of the new P-serie fans, special emphasis was placed on a focused airflow and thus a high static pressure. The fans guarantee extremely efficient cooling, even with increased air resistance. Therefore, the P-series fans are particularly suitable for use on heatsinks and radiators.

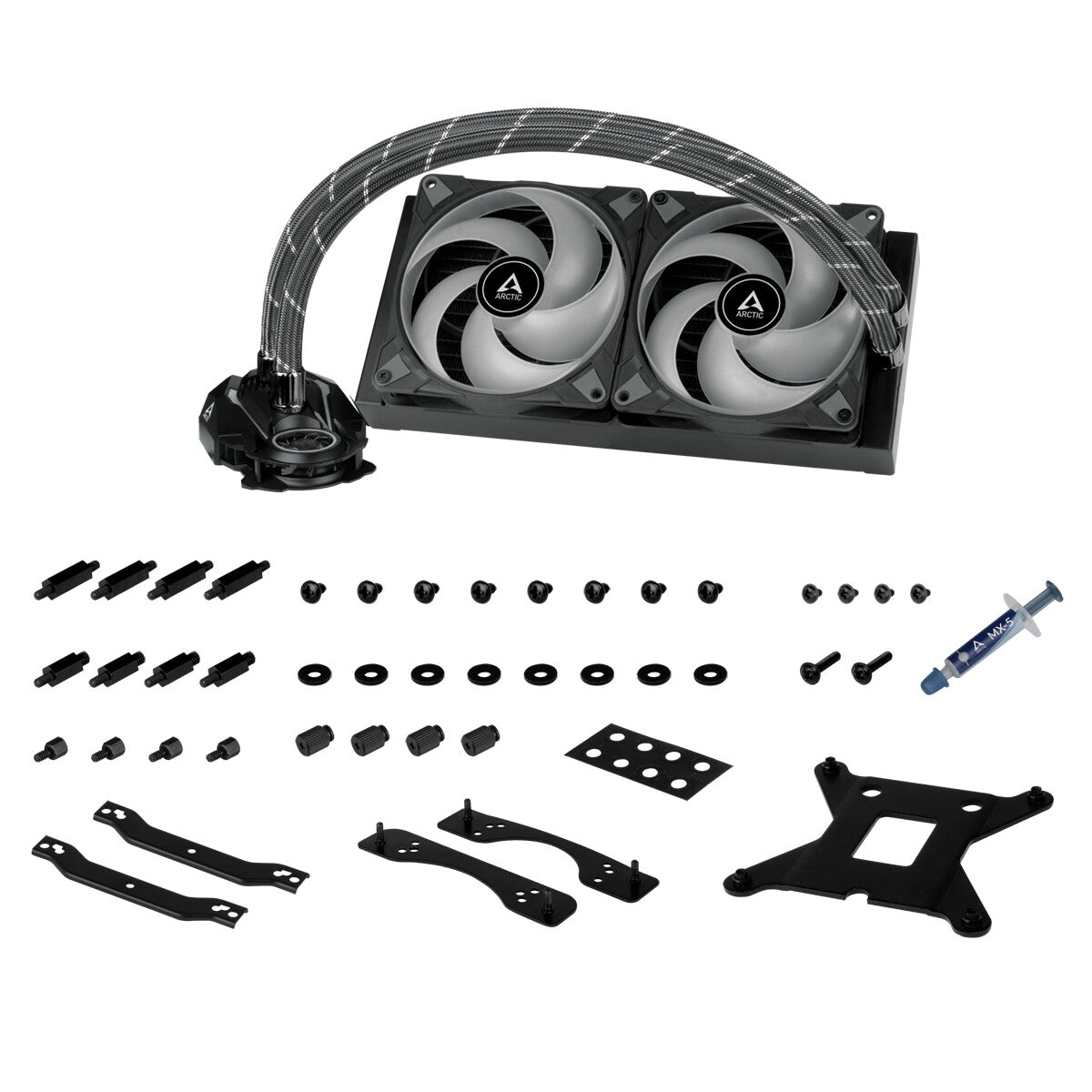

THE RIGHT CONFIGURATION FOR EVERYONE
With its long tubing, availability in five sizes, and various lighting options, the Liquid Freezer II series is extremely versatile. It has high compatibility and can be used in Small Form Factor PCs (note radiator thickness!) as well as in Full Towers.
The Liquid Freezer II is the successor to the well-respected Liquid Freezer water cooler from ARCTIC.
Performance | |
---|---|
Fan static pressure | 2 mmH2O |
VRM fan speed (min) | 1000 RPM |
VRM fan speed (max) | 3000 RPM |
Pump motor speed (min) | 800 RPM |
Pump motor speed (max) | 2000 RPM |
Fan speed (min) | 200 RPM |
Fan speed (max) | 1900 RPM |
Quantity per pack | 1 pc(s) |
Fan bearing technology | Fluid Dynamic Bearing (FDB) |
Pulse-width modulation (PWM) support | Yes |
Maximum airflow | 68.9 cfm |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5 |
Fan diameter | 14 cm |
Type | All-in-one liquid cooler |
Suitable location | Processor |
Design | |
---|---|
Fan controller | Yes |
Fan connector | 3-pin + 4-pin |
Number of fans | 2 fan(s) |
Power | |
---|---|
Fan voltage | 12 V |
Fan current | 0.17 A |
VRM fan power consumption | 2.7 W |
Pump power consumption | 0.5 W |
Weight & dimensions | |
---|---|
Package weight | 2.12 kg |
Package height | 170 mm |
Package depth | 335 mm |
Package width | 155 mm |
Fan dimensions (W x D x H) | 140 x 140 x 27 mm |
Weight | 1.6 kg |
Pump height | 9.8 cm |
Pump depth | 7.8 cm |
Pump width | 5.3 cm |
Tube diameter | 1.24 cm |
Tube inner diameter | 6 mm |
VRM fan diameter | 4 cm |
Tube length | 0.45 mm |
Radiator height | 13.8 cm |
Radiator depth | 31.7 cm |
Radiator width | 3.8 cm |
Packaging content | |
---|---|
Package type | Box |
Other features | |
---|---|
Country of origin | China |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
