Processor | |
---|---|
Supported processor sockets | Socket AM4 |
Maximum number of SMP processors | 1 |
Compatible processor series | AMD A |
Processor socket | Socket AM4 |
Processor manufacturer | AMD |
Memory | |
---|---|
Unbuffered memory | Yes |
Maximum internal memory | 128 GB |
Supported memory module capacities | 4GB, 8GB, 16GB, 32GB |
Supported memory clock speed (max) | 3533 MHz |
Supported memory clock speeds | 2133,2400,2667,2933,3200,3533 MHz |
Non-ECC | Yes |
ECC | Yes |
Memory channels | Dual-channel |
Memory slots type | DIMM |
Number of memory slots | 4 |
Supported memory types | DDR4-SDRAM |
Storage controllers | |
---|---|
RAID levels | 0, 1, 10 |
RAID support | Yes |
Supported storage drive interfaces | M.2, SATA III |
Supported storage drive types | HDD & SSD |
Graphics | |
---|---|
DirectX version | 12.0 |
HDCP | Yes |
Maximum resolution | 4096 x 2160 pixels |
Parallel processing technology support | CrossFireX, Quad-GPU CrossFireX |
Maximum graphics card memory | 2048 MB |
Internal I/O | |
---|---|
RGB LED pin header | Yes |
Number of COM connectors | 1 |
TPM connector | Yes |
12V power connector | Yes |
EPS power connector (8-pin) | Yes |
Peripheral (Molex) power connectors (4-pin) | 1 |
Chassis intrusion connector | Yes |
Number of chassis fan connectors | 3 |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
Front panel connector | Yes |
Front panel audio connector | Yes |
Number of SATA III connectors | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
USB 2.0 connectors | 2 |

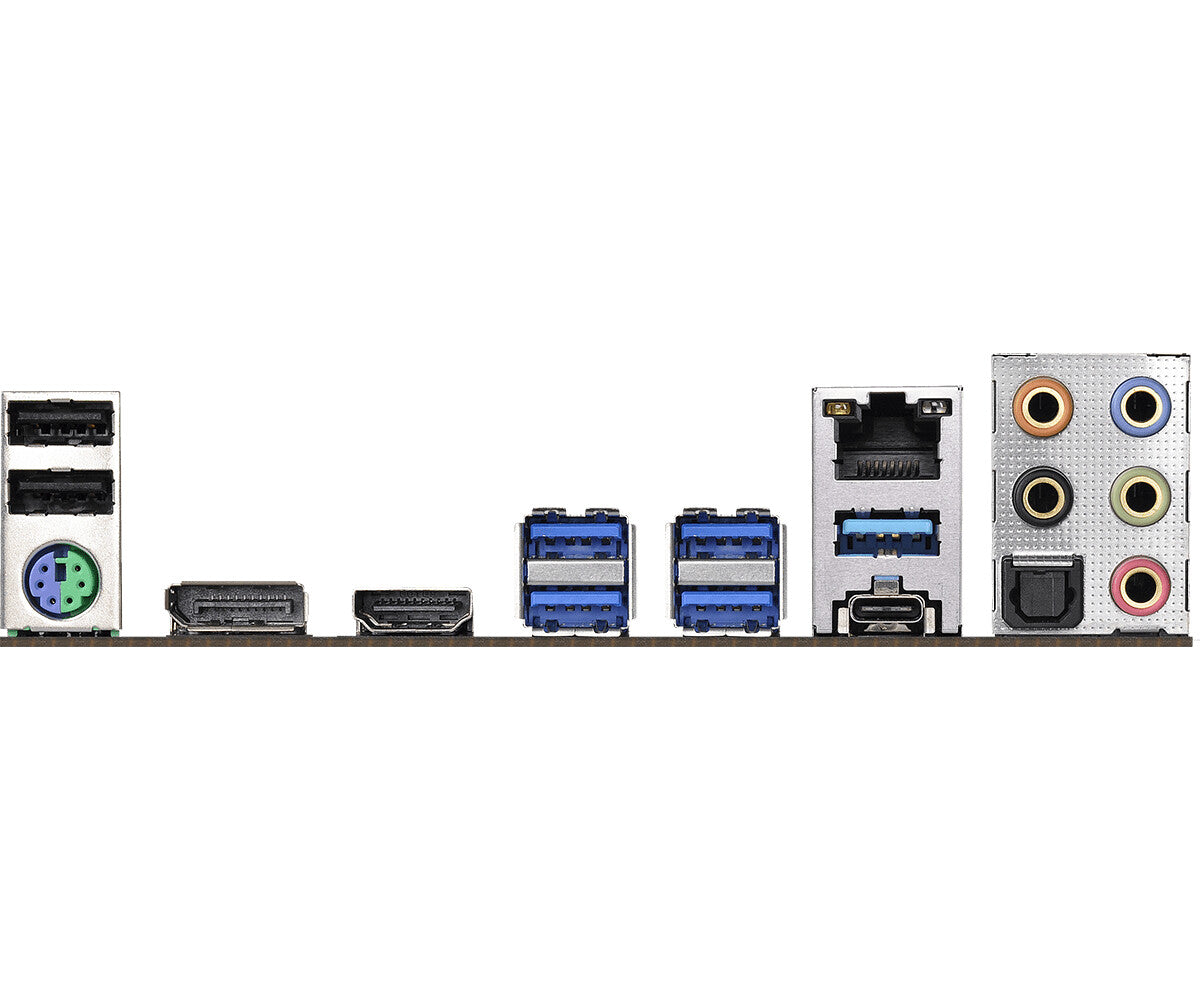

Rear panel I/O ports | |
---|---|
S/PDIF out port | Yes |
Microphone in | Yes |
DisplayPort version | 1.2 |
DisplayPorts quantity | 1 |
HDMI version | 1.4 |
HDMI ports quantity | 1 |
PS/2 ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
USB 2.0 ports quantity | 2 |
Network | |
---|---|
Wi-Fi | No |
Wake-on-LAN ready | Yes |
LAN controller | Realtek RTL8111H |
Ethernet interface type | Gigabit Ethernet |
Ethernet LAN | Yes |
Features | |
---|---|
Certification | FCC, CE |
Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
PC health monitoring | CPU, Fan, Temperature, Voltage |
Audio output channels | 7.1 channels |
Audio chip | Realtek ALC892 / Realtek ALC897 |
Motherboard chipset | AMD B450 |
Motherboard chipset family | AMD |
Motherboard form factor | ATX |
Component for | PC |
Expansion slots | |
---|---|
Number of M.2 (M) slots | 2 |
PCI Express x16 (Gen 3.x) slots | 1 |
PCI Express x16 (Gen 2.x) slots | 1 |
PCI Express x1 (Gen 2.x) slots | 1 |
BIOS | |
---|---|
System Management BIOS (SMBIOS) version | 2.3 |
ACPI version | 5.1 |
BIOS memory size | 128 Mbit |
BIOS type | UEFI AMI |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733020 |
Weight & dimensions | |
---|---|
Depth | 244 mm |
Width | 305 mm |
Packaging content | |
---|---|
Drivers included | Yes |
Cables included | SATA |
