AMD StoreMI Technology
A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive. SSDs are fast, but expensive, and offer minimal capacity. Mechanical hard drives boast large capacity for a low price, but are much slower than an SSD. AMD StoreMI technology “combines” these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds: SSD responsiveness, and mechanical hard disk capacity. You can also use up to 2GB of RAM as a last-level cache for ultra-fast data.
Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs.
Triple Monitor
Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.
4K x 2K
Composed by a minimum of 3840 x 2160 pixels, which is twice the horizontal and vertical resolution of the 1080p format.
Solid Capacitor Design
ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.
ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.
Digi Power
This motherboard uses a next generation Hybrid Digi Power design to bring precise control and smooth power. With the ensured efficient and clean power delivery to the CPU, the stability and lifespan of motherboard is also greatly enhanced.
A-Tuning
A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
more
Processor | |
---|---|
Compatible processor series | AMD Athlon, AMD Ryzen 2000 Series, AMD Ryzen 3000 Series |
Processor socket | Socket AM4 |
Processor manufacturer | AMD |
Memory | |
---|---|
Unbuffered memory | Yes |
Maximum internal memory | 32 GB |
Supported memory clock speeds | 2133,2400,2667,2933,3200 MHz |
ECC сompatibility | ECC & Non-ECC |
Memory channels | Dual-channel |
Memory slots type | DIMM |
Number of memory slots | 2 |
Supported memory types | DDR4-SDRAM |
Storage controllers | |
---|---|
RAID levels | 0, 1, 10 |
Supported storage drive interfaces | M.2, PCI Express 3.0, SATA III |
Supported storage drive types | HDD & SSD |
Graphics | |
---|---|
DirectX version | 12.0 |
HDCP | Yes |
Maximum resolution | 4096 x 2160 pixels |
Graphics card family | AMD |
On-board graphics card | Yes |
Parallel processing technology support | Not supported |
Internal I/O | |
---|---|
Number of COM connectors | 1 |
TPM connector | Yes |
12V power connector | Yes |
Chassis intrusion connector | Yes |
Number of chassis fan connectors | 2 |
CPU fan connector | Yes |
Front panel audio connector | Yes |
Number of SATA III connectors | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
USB 2.0 connectors | 2 |

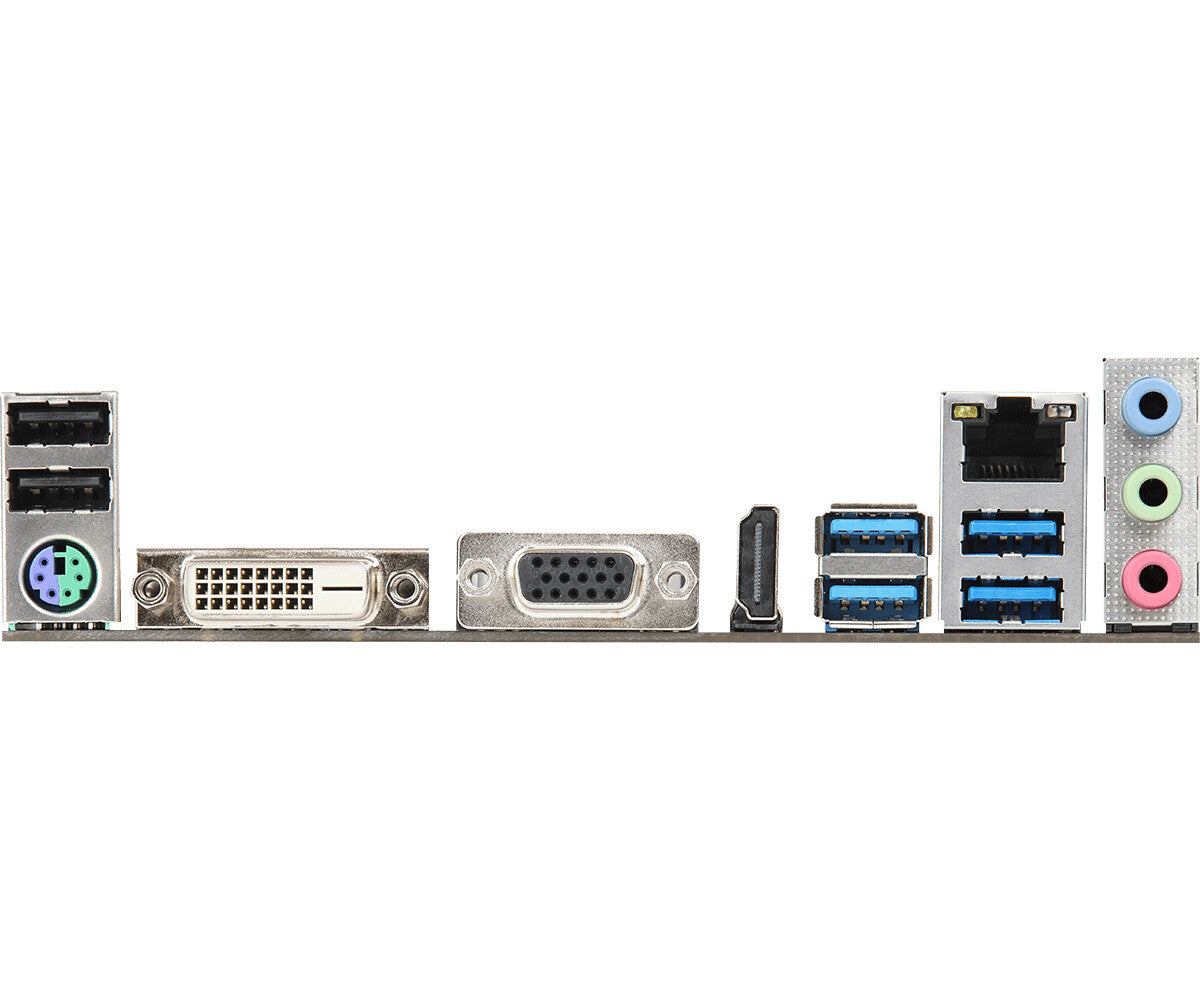

Rear panel I/O ports | |
---|---|
Microphone in | Yes |
Headphone outputs | 1 |
DVI-D ports quantity | 1 |
HDMI ports quantity | 1 |
VGA (D-Sub) ports quantity | 1 |
PS/2 ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
USB 2.0 ports quantity | 2 |
Network | |
---|---|
Wi-Fi | No |
Wake-on-LAN ready | Yes |
LAN controller | Realtek RTL8111H |
Ethernet interface type | Gigabit Ethernet |
Ethernet LAN | Yes |
Features | |
---|---|
Certification | - FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required) |
Windows operating systems supported | Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64 |
Audio output channels | 7.1 channels |
Audio chip | Realtek ALC887 |
Motherboard chipset | AMD B450 |
Motherboard chipset family | AMD |
Motherboard form factor | micro ATX |
Component for | PC |
Expansion slots | |
---|---|
PCI Express x16 (Gen 3.x) slots | 3 |
PCI Express x1 (Gen 2.x) slots | 1 |
BIOS | |
---|---|
System Management BIOS (SMBIOS) version | 2.3 |
Clear CMOS jumper | Yes |
ACPI version | 5.1 |
BIOS memory size | 128 Mbit |
BIOS type | UEFI AMI |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733020 |
Weight & dimensions | |
---|---|
Height | 70 mm |
Depth | 201 mm |
Width | 230 mm |
Packaging content | |
---|---|
Bundled software | AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
Drivers included | Yes |
Cables included | SATA |
Other features | |
---|---|
Utilities included | Yes |
Quick installation guide | Yes |
Weight | 465 g |
