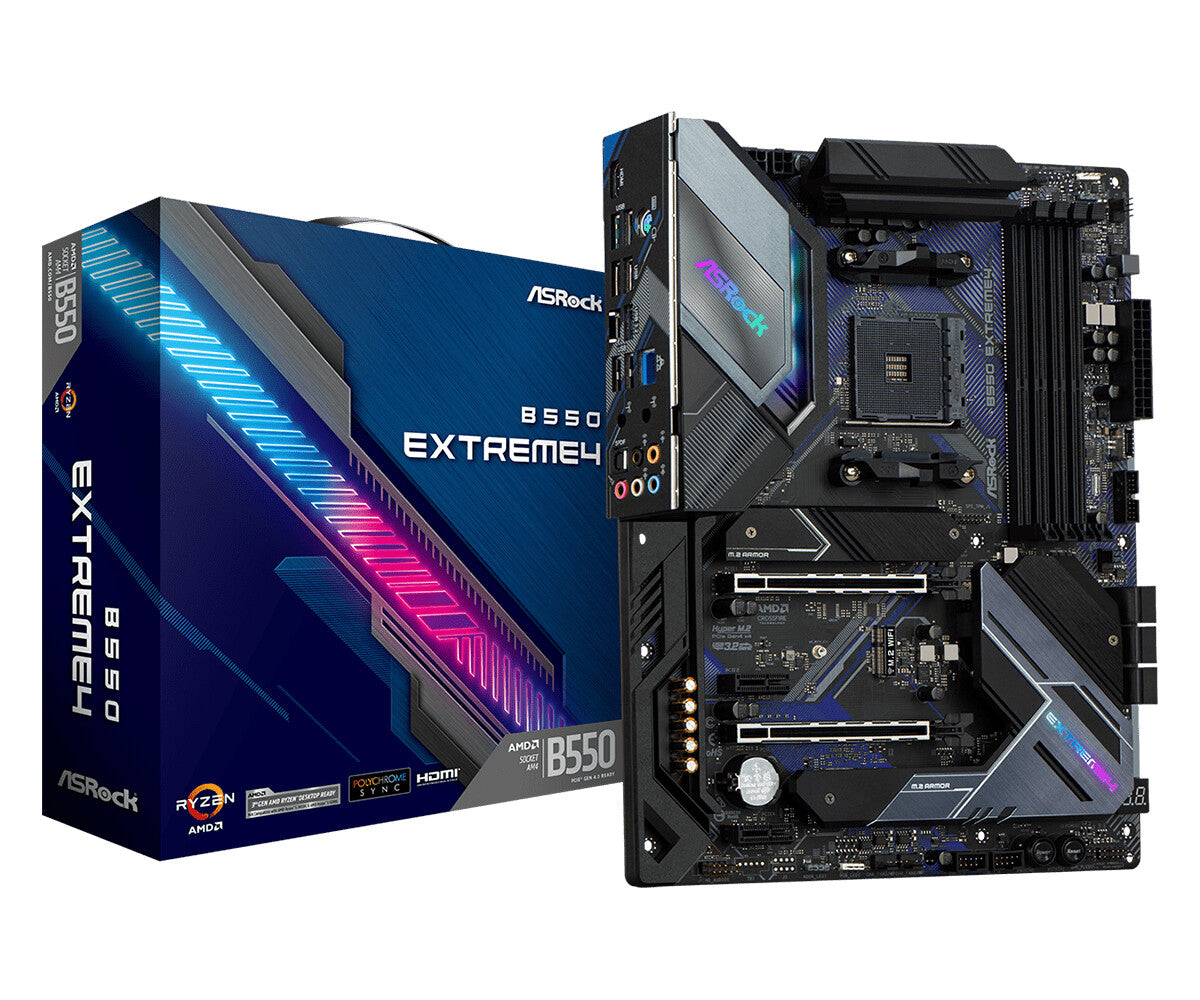

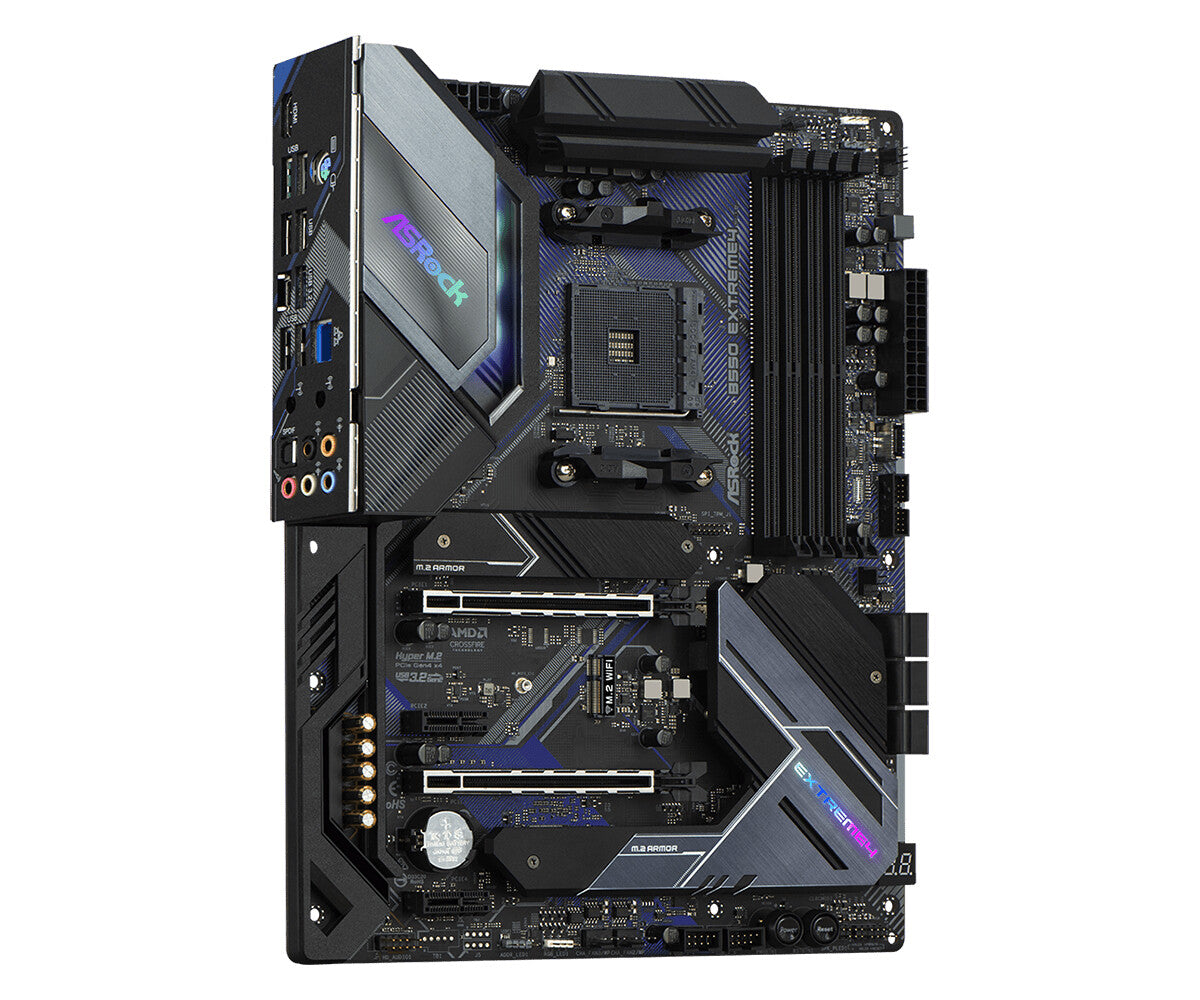

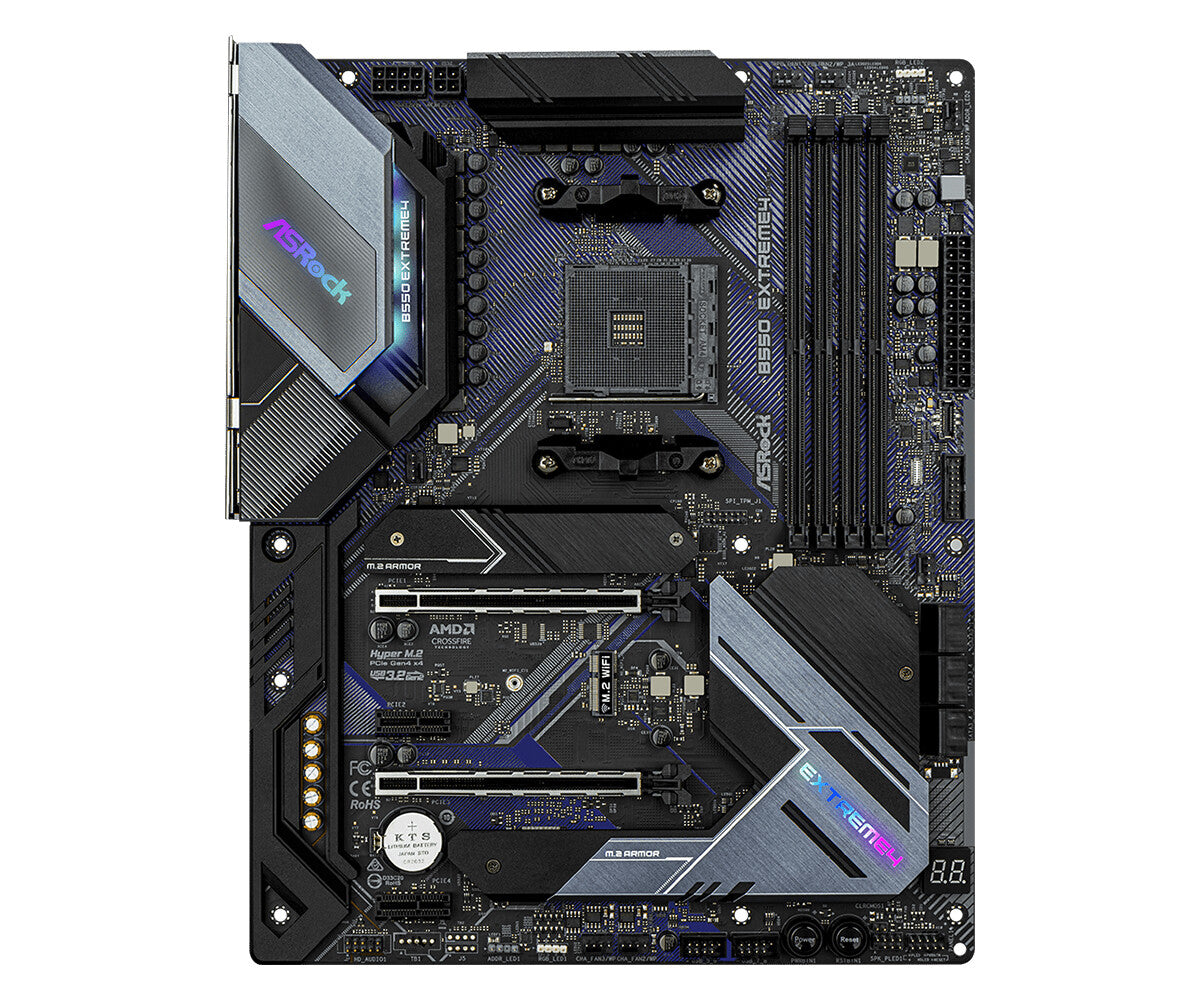

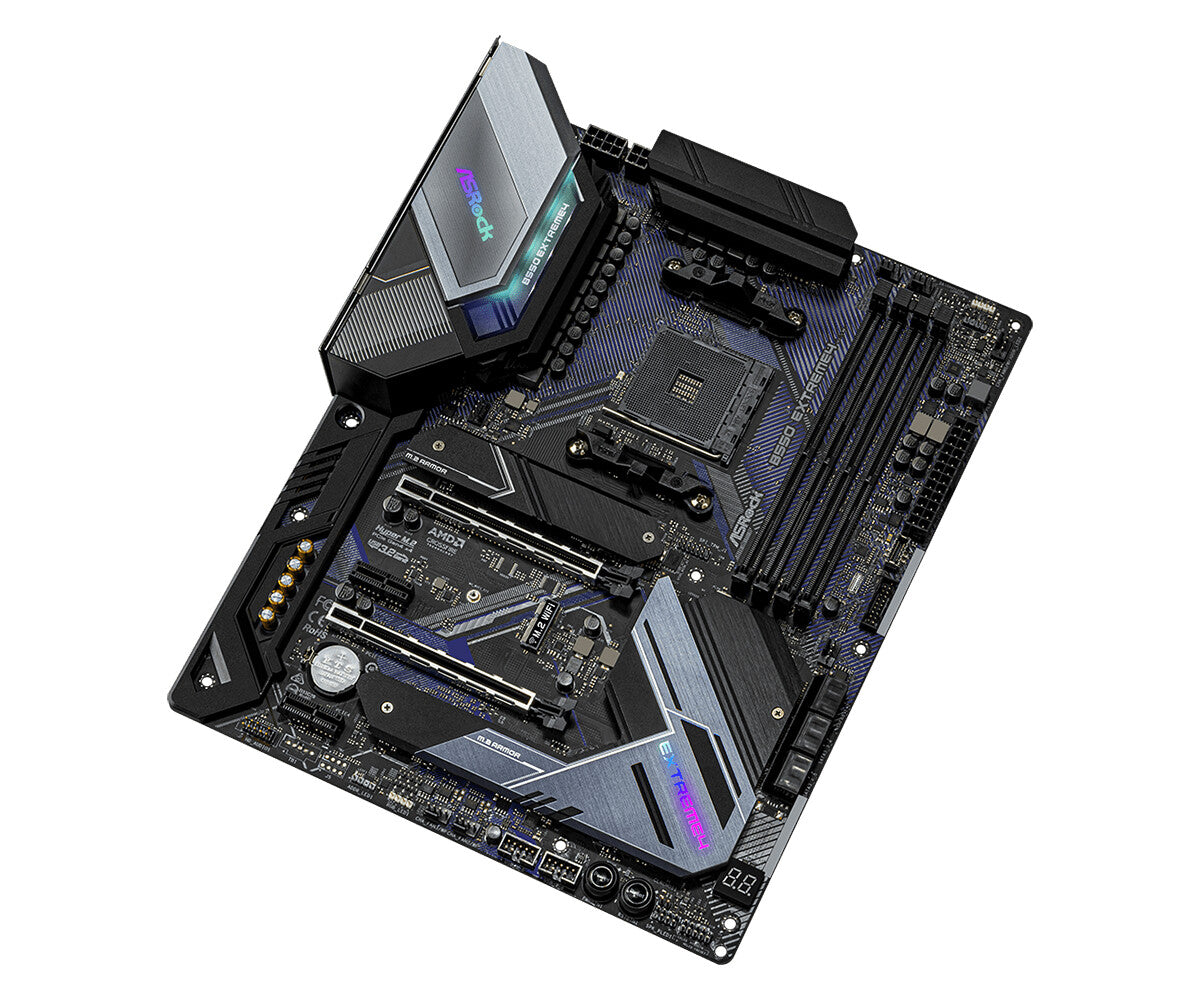

    Asrock B550 Extreme4 ATX motherboard - AMD B550 Socket AM4

    Asrock B550 Extreme4 ATX motherboard - AMD B550 Socket AM4

    (UK Consumers)
    ex. VAT (Rest of World)
    PayPal Credit 0% for 4 months
    IN STOCK
    EAN: 4710483931567 SKU: 86112817 MPN: 90-MXBDE0-A0UAYZ
    GLOBAL SHIPPING – UPS & DHL
    BUSINESS CUSTOMERS – please email: Sales@clove.co.uk
    FAST SHIPPING – All orders

    Key Features

    • Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors
    • 14 Power Phase Design, Digi Power, Dr. MOS
    • Supports DDR4 4733+ (OC)
    • 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
    • Graphics Output Options: HDMI
    • AMD CrossFireX™
    • 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nahimic Audio
    • 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
    • 2 USB 3.2 Gen2 (Rear Type A+C), 5 USB 3.2 Gen1 (2 Front, 2 Rear, 1 Front Type-C)
    • Dragon 2.5G LAN

    AMD B550, 4 x DDR4 DIMM, 7.1 CH HD Audio, 2.5 Gigabit LAN, 256Mb AMI UEFI

    WAKE THE PERFORMANCE
    Gets The Job Done with EXTREME

    Unbeatable Heatsink Armor
    Forged with aluminum alloy heatsinnk top cover that effectively improves heat dissipation. Underneath its solid strong cover lie two gaming required M.2 Key M sockets for high speed SSDs.

    Dual M.2 Sockets for SSD
    Hyper M.2 socket that supports PCIe Gen4 x4 while M.2 socket is capable of running PCIe Gen3 x2 and SATA3 mode.

    Nahimic Audio
    Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

    The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

    Hi-Density Power Connector
    Reduces 23% power loss and decreases the connector’s temperature by 22 degrees Celsius.
    8+4 12V Power Connectors
    24-pin ATX Power Connector

    2oz Copper PCB
    2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance!

    RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB
    ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.

    Dragon 2.5 Gb/s LAN
    The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

    Automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge.

    Reinforced Steel Slot [PCIe 4.0 Version]

    The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include:
    ✔ Extra anchor points
    ✔ Stronger latch
    ✔ Ensure signal stability
    ✔ Make sure heavy graphics cards to be well-installed.

    Front USB 3.2 Gen1 Type-C
    Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

    Dual USB 3.2 Gen2 (Type-A + Type-C)
    This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

    Processor
    Maximum number of SMP processors 1
    Compatible processor series 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9
    Processor socket Socket AM4
    Processor manufacturer AMD
    Memory
    Unbuffered memory Yes
    Maximum internal memory 128 GB
    Supported memory clock speeds 2133,2400,2667,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4533,4600,4666,4733 MHz
    Non-ECC Yes
    ECC Yes
    Memory channels Dual-channel
    Memory slots type DIMM
    Number of memory slots 4
    Supported memory types DDR4-SDRAM
    Storage controllers
    Supported storage drive interfaces M.2, SATA III
    Internal I/O
    RGB LED pin header Yes
    EPS power connector (8-pin) Yes
    Peripheral (Molex) power connectors (4-pin) 1
    CPU fan connector Yes
    ATX Power connector (24-pin) Yes
    Front panel audio connector Yes
    Number of SATA III connectors 6
    USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
    USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
    USB 2.0 connectors 2

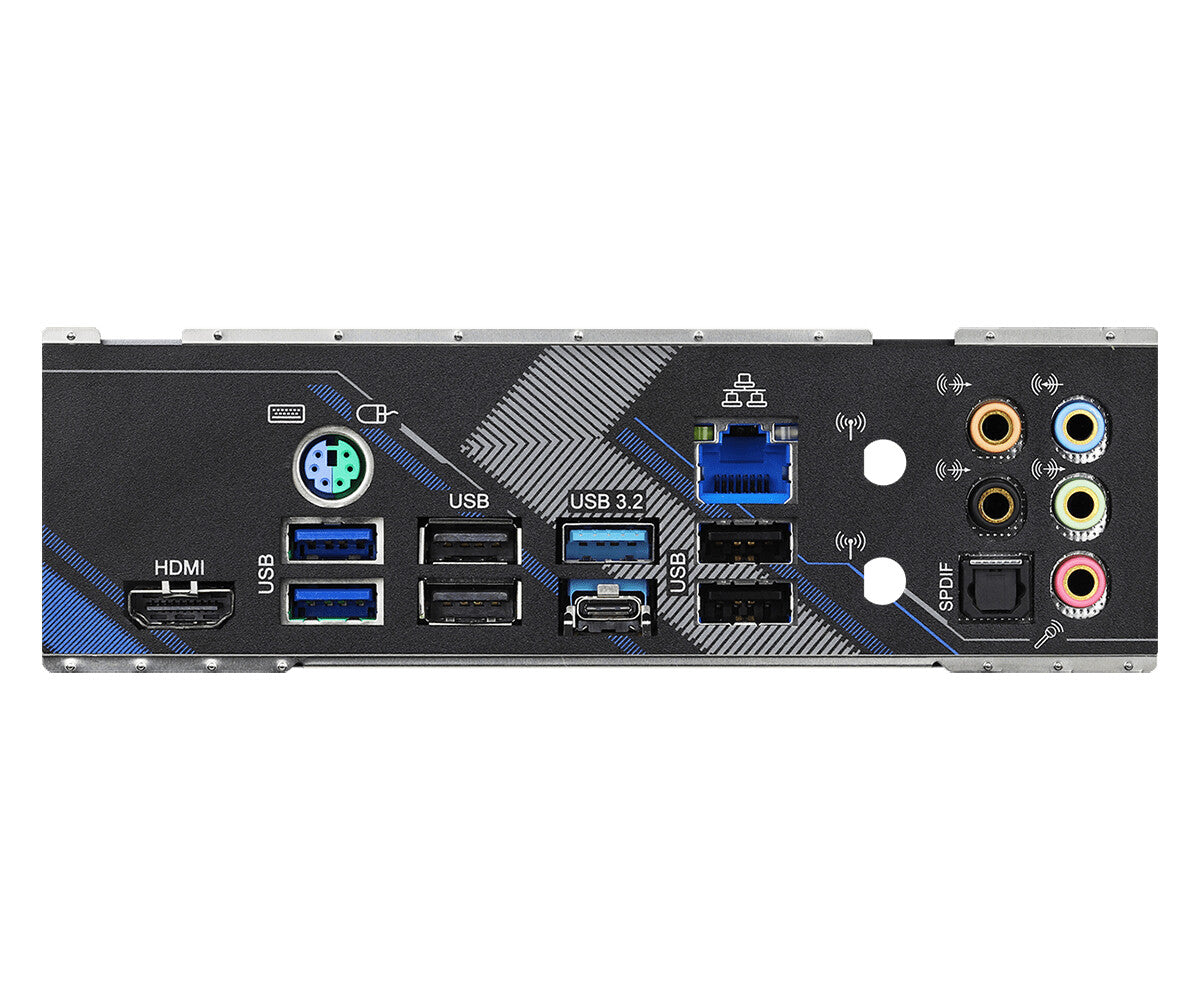

    Rear panel I/O ports
    S/PDIF out port Yes
    HDMI ports quantity 1
    PS/2 ports quantity 1
    Ethernet LAN (RJ-45) ports 1
    USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
    USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
    Network
    Wi-Fi No
    Wake-on-LAN ready Yes
    LAN controller Dragon RTL8125BG
    Ethernet interface type 2.5 Gigabit Ethernet
    Ethernet LAN Yes
    Features
    Audio output channels 7.1 channels
    Audio chip Realtek ALC1220
    Motherboard chipset AMD B550
    Motherboard chipset family AMD
    Motherboard form factor ATX
    Component for PC
    BIOS
    BIOS type UEFI AMI
    Logistics data
    Harmonized System (HS) code 84733020
    Weight & dimensions
    Height 70 mm
    Depth 244 mm
    Width 305 mm
    Packaging content
    Drivers included Yes
    Other features
    Weight 465 g
