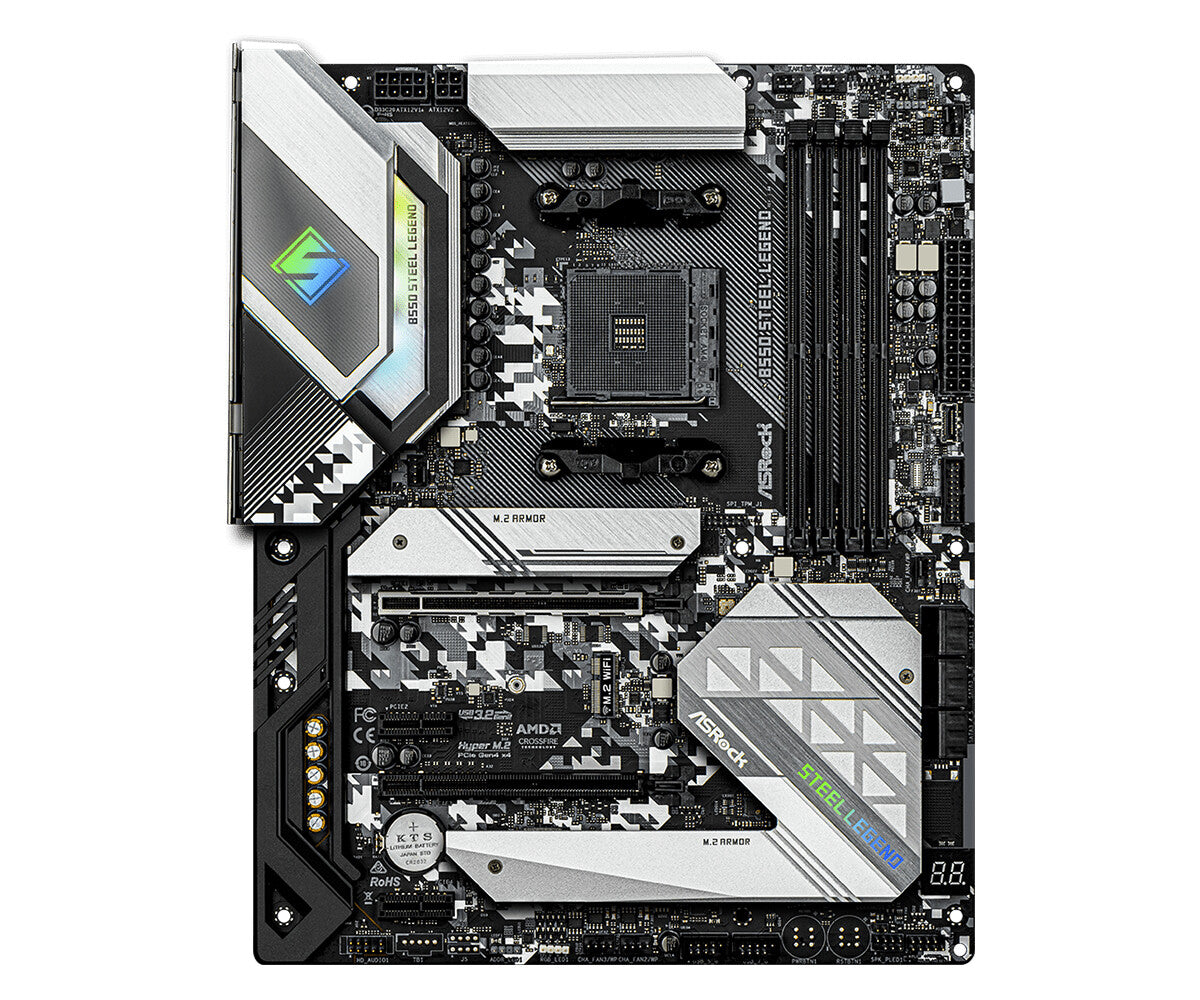

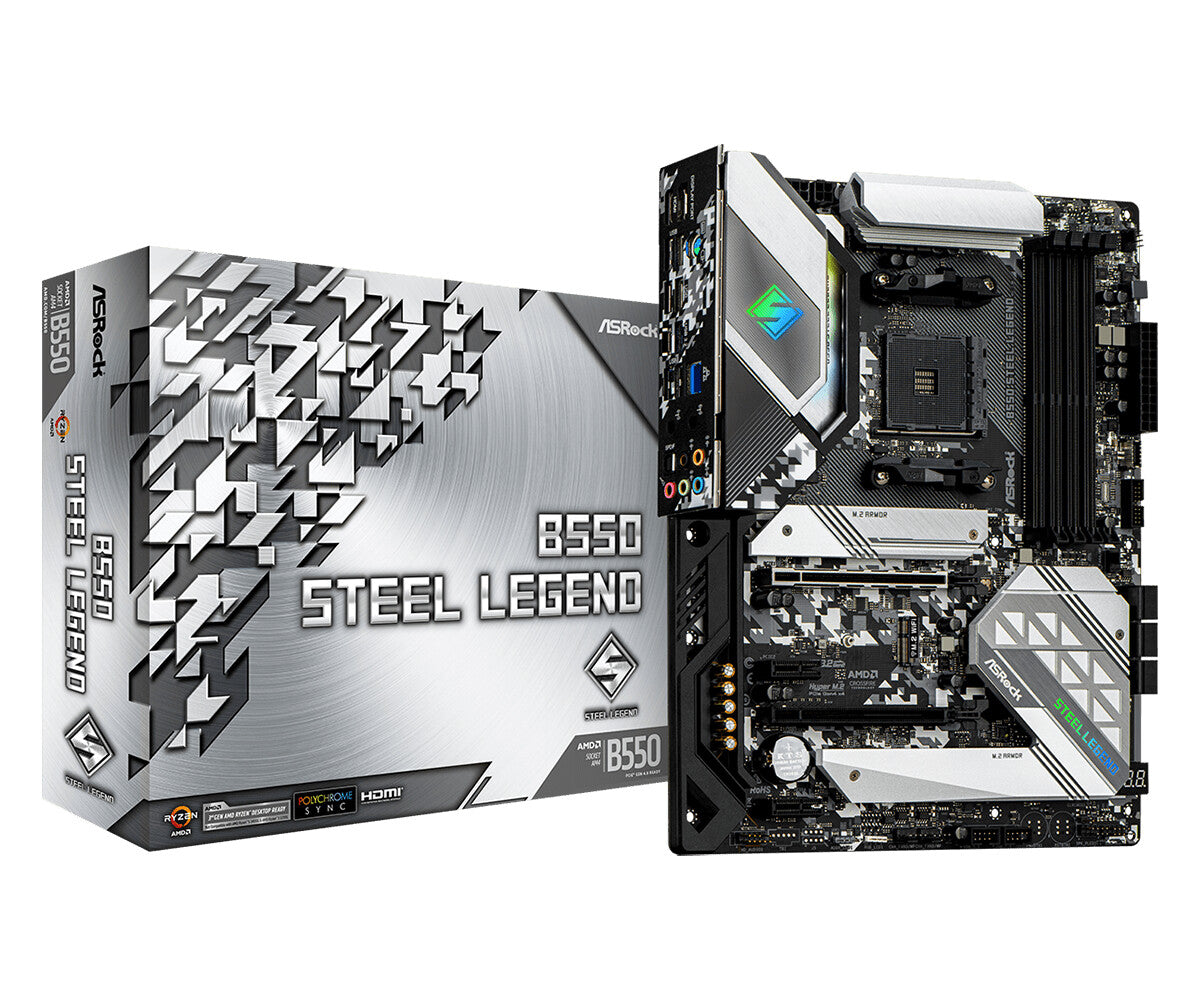

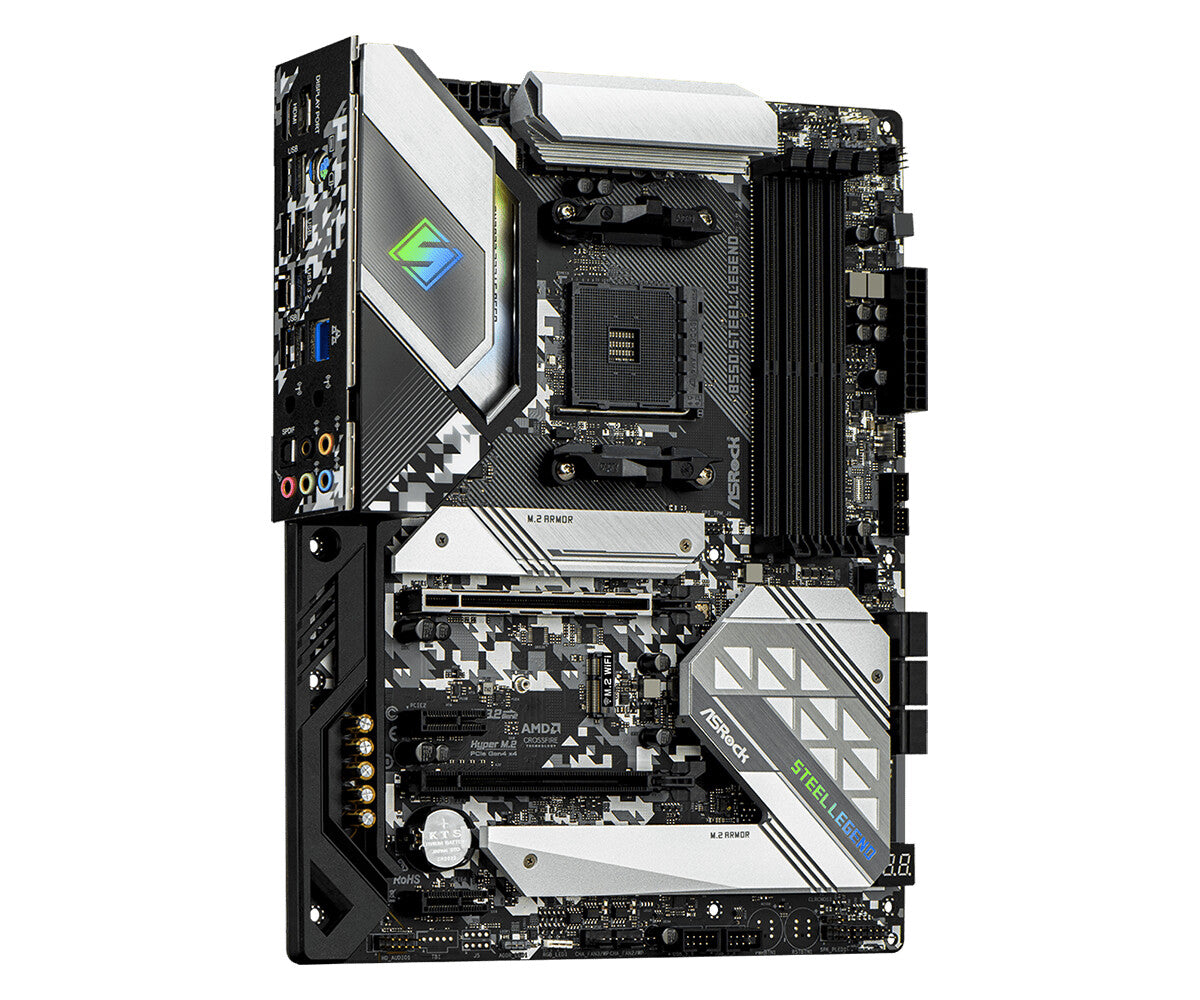

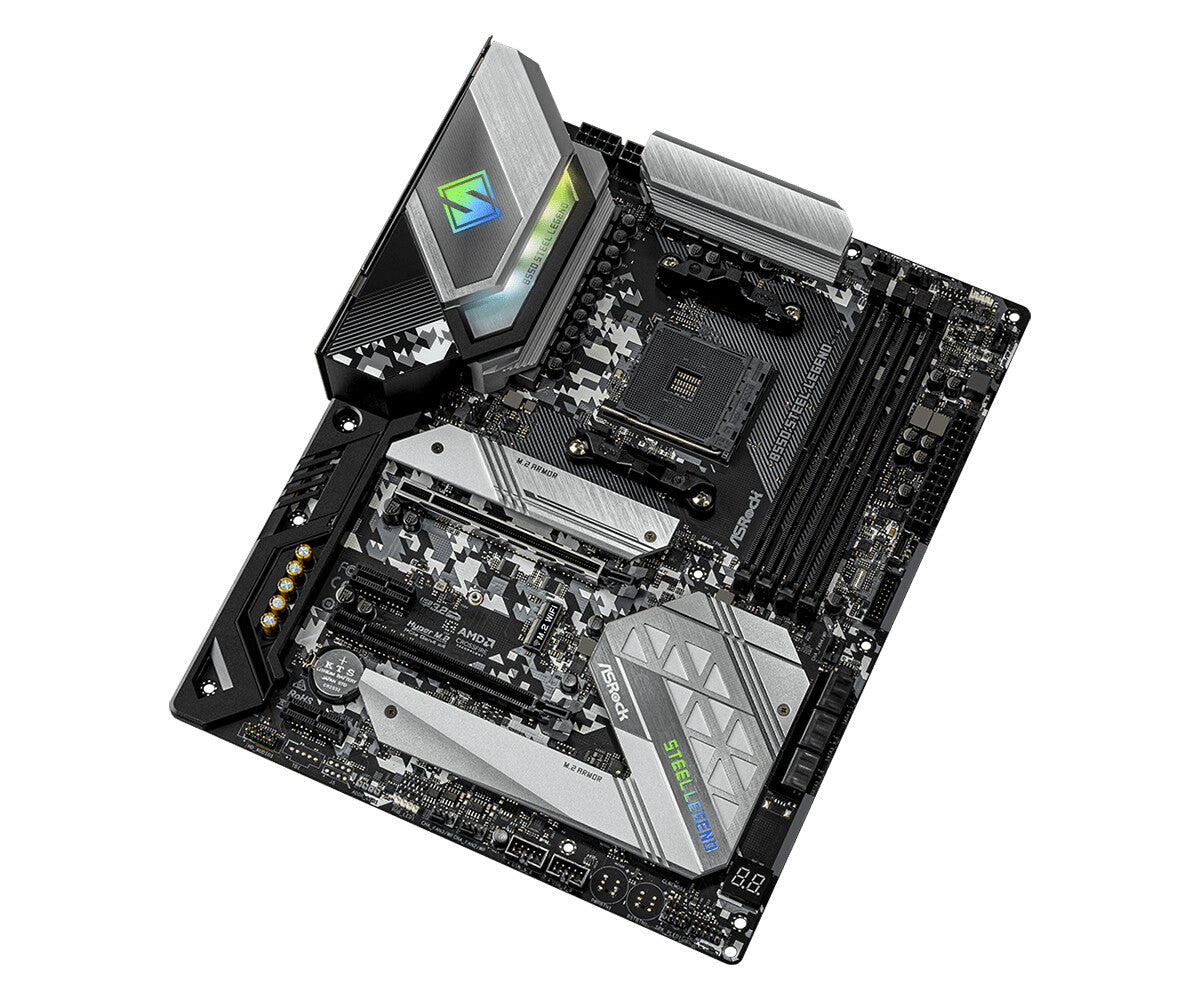

    Asrock B550 Steel Legend ATX motherboard - AMD B550 Socket AM4

    Asrock B550 Steel Legend ATX motherboard - AMD B550 Socket AM4

    (UK Consumers)
    ex. VAT (Rest of World)
    PayPal Credit 0% for 4 months
    GLOBAL SHIPPING – UPS & DHL
    BUSINESS CUSTOMERS – please email: Sales@clove.co.uk
    FAST SHIPPING – All orders

    Key Features

    • Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors
    • 14 Power Phase Design, Digi Power, Dr. MOS
    • Supports DDR4 4733+ (OC)
    • 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
    • Graphics Output Options: HDMI, DisplayPort
    • AMD CrossFireX™
    • 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nahimic Audio
    • 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
    • 2 USB 3.2 Gen2 (Rear Type A+C), 5 USB 3.2 Gen1 (2 Front, 2 Rear, 1 Front Type-C)
    • Dragon 2.5G LAN

    AMD B550, 4 x DDR4 DIMM, 7.1 CH HD Audio, 2.5 Gigabit LAN, 256Mb AMI UEFI

    Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance.

    STEEL FOREVER
    Get Endless Performance Possibilities with Steel Style

    Unbeatable Heatsink Armor
    Forged with aluminum alloy heatsinnk top cover that effectively improves heat dissipation. Underneath its solid strong cover lie two gaming required M.2 Key M sockets for high speed SSDs.

    Dual M.2 Sockets for SSD
    Hyper M.2 socket that supports PCIe Gen4 x4 while M.2 socket is capable of running PCIe Gen3 x2 and SATA3 mode.

    Nahimic Audio
    Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

    The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

    Hi-Density Power Connector
    Reduces 23% power loss and decreases the connector’s temperature by 22 degrees Celsius.
    8+4 12V Power Connectors
    24-pin ATX Power Connector

    2oz Copper PCB
    2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance!

    RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB
    ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.

    Dragon 2.5 Gb/s LAN
    The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

    Automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge.

    Reinforced Steel Slot [PCIe 4.0 Version]
    The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include:
    ✔ Extra anchor points
    ✔ Stronger latch
    ✔ Ensure signal stability
    ✔ Make sure heavy graphics cards to be well-installed.

    Front USB 3.2 Gen1 Type-C
    Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

    Dual USB 3.2 Gen2 (Type-A + Type-C)
    This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

    M.2 (KEY E) For WiFi
    Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

    Flexible Integrated I/O Shield
    Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.

    Dual Graphics Outputs
    Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.

    Gold Audio Jacks
    Everything will wear off in time, but gold looks better! Gold audio jack provides stable sound transmission!

    Full Spike Protection
    Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

    Live Update & APP Shop
    ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

    Processor
    Supported processor sockets Socket AM4
    Maximum number of SMP processors 1
    Compatible processor series 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9
    Processor socket Socket AM4
    Processor manufacturer AMD
    Memory
    Unbuffered memory Yes
    Maximum internal memory 128 GB
    Supported memory module capacities 4GB, 8GB, 16GB, 32GB
    Supported memory clock speed (max) 4733 MHz
    Supported memory clock speeds 2133,2400,2667,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4533,4600,4666,4733 MHz
    Non-ECC Yes
    ECC Yes
    Memory channels Dual-channel
    Memory slots type DIMM
    Number of memory slots 4
    Supported memory types DDR4-SDRAM
    Storage controllers
    RAID levels 0, 1, 10
    RAID support Yes
    Supported storage drive interfaces M.2, SATA III
    Supported storage drive types HDD & SSD
    Graphics
    Number of displays supported 2
    DirectX version 12.0
    HDCP Yes
    Maximum resolution 5120 x 2880 pixels
    Parallel processing technology support CrossFireX, Quad-GPU CrossFireX
    Internal I/O
    RGB LED pin header Yes
    TPM connector Yes
    12V power connector Yes
    EPS power connector (8-pin) Yes
    Peripheral (Molex) power connectors (4-pin) 1
    Number of chassis fan connectors 5
    CPU fan connector Yes
    ATX Power connector (24-pin) Yes
    Front panel connector Yes
    Front panel audio connector Yes
    Number of SATA III connectors 6
    USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
    USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
    USB 2.0 connectors 2

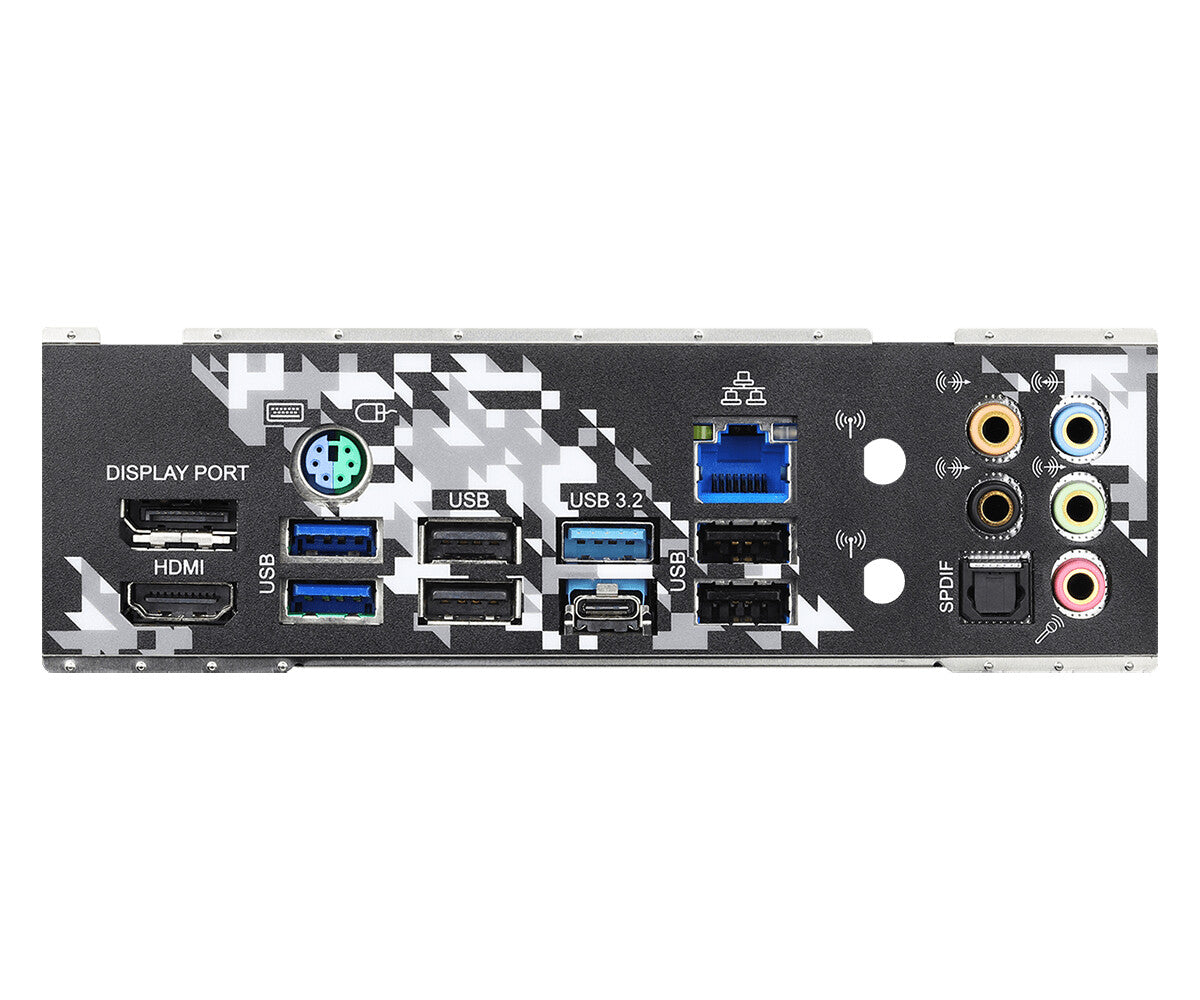

    Rear panel I/O ports
    WiFi-AP antenna jack 2
    S/PDIF out port Yes
    Microphone in Yes
    DisplayPort version 1.4
    DisplayPorts quantity 1
    HDMI version 2.1
    HDMI ports quantity 1
    PS/2 ports quantity 1
    Ethernet LAN (RJ-45) ports 1
    USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
    USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
    USB 2.0 ports quantity 4
    Network
    Wi-Fi No
    Wake-on-LAN ready Yes
    LAN controller Dragon RTL8125BG
    Ethernet interface type 2.5 Gigabit Ethernet
    Ethernet LAN Yes
    Features
    Windows operating systems supported Windows 10 x64, Windows 11 x64
    Power source type ATX
    PC health monitoring CPU, Fan, Temperature, Voltage, Water cooling
    Audio output channels 7.1 channels
    Audio chip Realtek ALC1220
    Motherboard chipset AMD B550
    Motherboard chipset family AMD
    Motherboard form factor ATX
    Component for PC
    Expansion slots
    Number of M.2 (M) slots 2
    PCI Express x16 (Gen 4.x) slots 1
    PCI Express x16 (Gen 3.x) slots 1
    PCI Express x1 (Gen 3.x) slots 2
    BIOS
    System Management BIOS (SMBIOS) version 2.3
    ACPI version 5.1
    BIOS memory size 256 Mbit
    BIOS type UEFI AMI
    Logistics data
    Harmonized System (HS) code 84733020
    Weight & dimensions
    Height 70 mm
    Depth 244 mm
    Width 305 mm
    Packaging content
    Drivers included Yes
    Cables included SATA
    Other features
    Number of M.2 (E) slots 1
    Quick installation guide Yes
    Weight 465 g
