    Asrock B550 Taichi ATX motherboard - AMD B550 Socket AM4

    Asrock B550 Taichi ATX motherboard - AMD B550 Socket AM4

    (UK Consumers)
    ex. VAT (Rest of World)
    PayPal Credit 0% for 4 months
    GLOBAL SHIPPING – UPS & DHL
    BUSINESS CUSTOMERS – please email: Sales@clove.co.uk
    FAST SHIPPING – All orders

    Key Features

    • Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors
    • 16 Power Phase Design, Digi Power, Dr. MOS
    • Supports DDR4 5200+ (OC)
    • 3 PCIe 4.0/3.0x16, 2 PCIe 3.0 x1
    • Graphics Output Options: HDMI, DisplayPort
    • AMD 3-Way CrossFireX™
    • 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nahimic Audio
    • 8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
    • 3 USB 3.2 Gen2 (Rear Type A+C, Front Type-C), 8 USB 3.2 Gen1 (4 Front, 4 Rear)
    • Intel® 2.5G LAN, Wi-Fi 6 802.11ax (2.4Gbps) + BT 5.1

    AMD AM4 Ryzen, 4 x DDR4 DIMM, 7.1 CH HD Audio, 2.5 Gigabit LAN, WiFi6 802.11ax, Bluetooth 5.1, ATX

    Taichi represents the philosophical state of undifferentiated absolute and infinite potential. A motherboard that fulfills every task – with style! Become like water. Shapeless, formless, versatile for any situation.

    All-STAR TEAM OF CUTTING EDGE FEATURES :
    Massive Upgrade with AMD B550 & The Revolutionary Networking Connectivity

    Unbeatable Heatsink Armor
    Forged with aluminum alloy heatsinnk top cover that effectively improves heat dissipation. Underneath its solid strong cover lie two gaming required M.2 Key M sockets for high speed SSDs.

    Dual M.2 Sockets for SSD
    Hyper M.2 socket that supports PCIe Gen4 x4 while Ultra M.2 socket is capable of running PCIe Gen3 x4 and SATA3 mode.

    METAL BACKPLATE
    Strengthens the motherboard to prevent bending caused by heavy coolers or graphics cards with better airflow and enhanced stability.

    Nahimic Audio
    Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

    The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

    Hi-Density Power Connector
    Reduces 23% power loss and decreases the connector’s temperature by 22 degrees Celsius.
    8+8 12V Power Connectors
    24-pin ATX Power Connector

    2oz Copper PCB
    2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance!

    Supports PCIe 4.0 x8/x8 mode
    This motherboard supports the world’s fastest PCIe Express 4.0 x16 graphics card and an ultimate multiple GPU technology that supports PCIe 4.0 x8/x8 mode. Boost the extreme performance for the games that is Microsoft® DirectX® 12 or Vulkan® ready.

    RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB
    ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.

    Wi-Fi 6 802.11ax
    Welcome to the new Wi-Fi standard! ASRock’s motherboard equipped with next generation Intel® Wi-Fi 6 802.11ax adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4Ghz and 5Ghz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well.

    Intel® 2.5G LAN
    The 2.5G Ethernet configuration were introduced to support higher bandwidth on widely deployed CAT5e and CAT6 cabling in enterprise and metro area networks. The industry's leading Intel® LAN always provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

    Reinforced Steel Slot [PCIe 4.0 Version]
    The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include:
    ✔ Extra anchor points
    ✔ Stronger latch
    ✔ Ensure signal stability
    ✔ Make sure heavy graphics cards to be well-installed.

    Front USB 3.2 Gen2 Type-C
    Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

    Dual USB 3.2 Gen2 (Type-A + Type-C)
    This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

    Flexible Integrated I/O Shield
    Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.

    HDMI 4k @60Hz
    Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

    Processor
    Supported processor sockets Socket AM4
    Maximum number of SMP processors 1
    Compatible processor series 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9
    Processor socket Socket AM4
    Processor manufacturer AMD
    Memory
    Unbuffered memory Yes
    Maximum internal memory 128 GB
    Supported memory clock speeds 2133,2400,2667,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4533,4600,4666,4733 MHz
    Non-ECC Yes
    ECC Yes
    Memory channels Dual-channel
    Memory slots type DIMM
    Number of memory slots 4
    Supported memory types DDR4-SDRAM
    Storage controllers
    RAID levels 0, 1, 10
    RAID support Yes
    Supported storage drive interfaces M.2, SATA III
    Graphics
    DirectX version 12.0
    HDCP Yes
    Graphics card Radeon Vega
    Graphics card family AMD
    On-board graphics card Yes
    Parallel processing technology support 3-Way CrossFireX, CrossFireX, Quad-GPU CrossFireX
    Internal I/O
    RGB LED pin header Yes
    TPM connector Yes
    EPS power connector (8-pin) Yes
    Number of chassis fan connectors 5
    CPU fan connector Yes
    ATX Power connector (24-pin) Yes
    Front panel connector Yes
    Front panel audio connector Yes
    Number of SATA III connectors 8
    USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
    USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
    USB 2.0 connectors 2

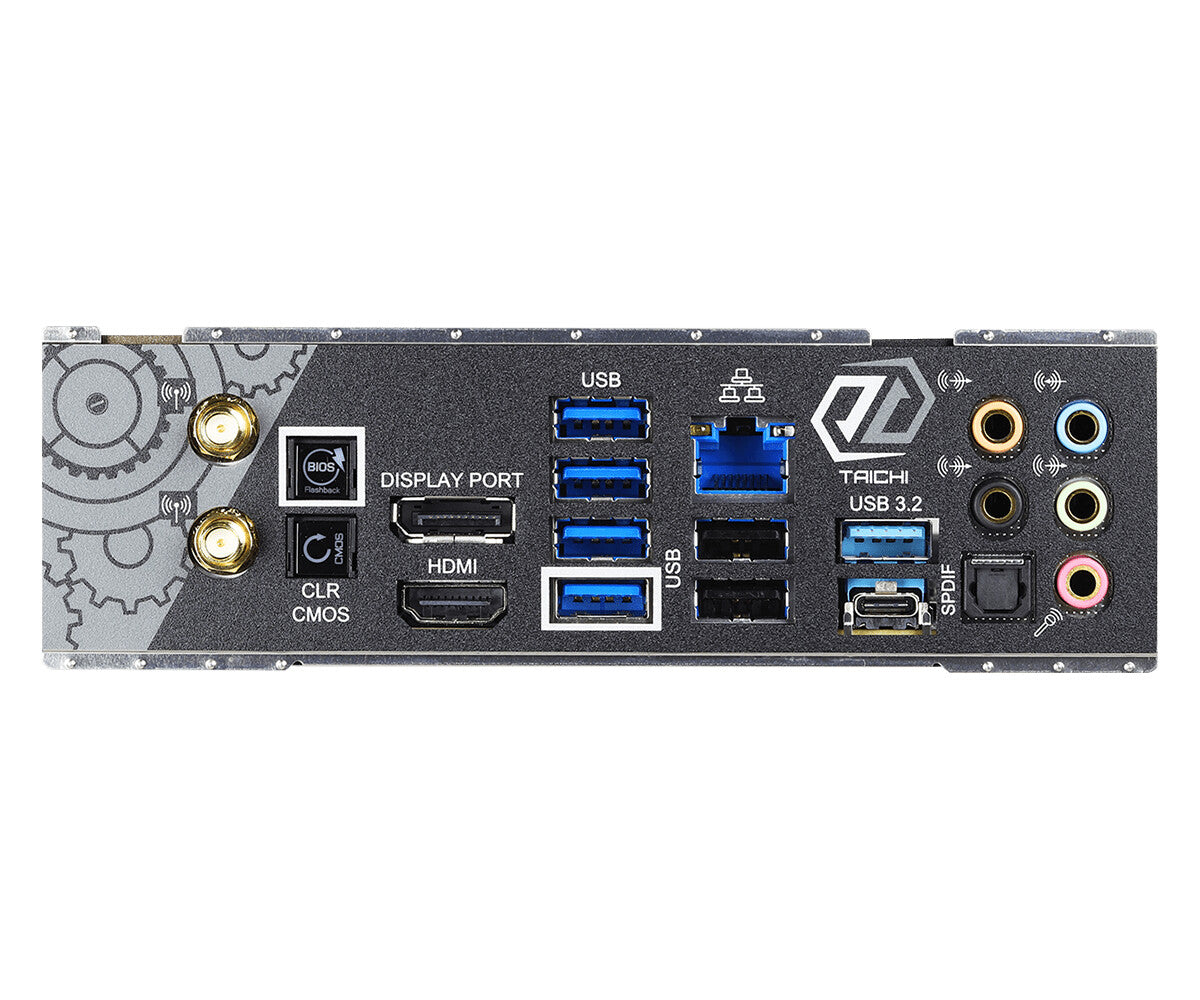

    Rear panel I/O ports
    WiFi-AP antenna jack 2
    S/PDIF out port Yes
    Microphone in Yes
    DisplayPort version 1.4
    DisplayPorts quantity 1
    HDMI version 2.1
    HDMI ports quantity 1
    Ethernet LAN (RJ-45) ports 1
    USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
    USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
    USB 2.0 ports quantity 2
    Network
    Bluetooth version 5.2
    Bluetooth Yes
    Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)
    Top Wi-Fi standard Wi-Fi 6 (802.11ax)
    Wi-Fi Yes
    Wake-on-LAN ready Yes
    LAN controller Intel WGI225V
    Ethernet interface type 2.5 Gigabit Ethernet
    Ethernet LAN Yes
    Features
    Certification FCC, CEErP/EuP ready (ErP/EuP ready power supply is required)
    Windows operating systems supported Windows 10 x64, Windows 11 x64
    Power source type ATX
    Audio output channels 7.1 channels
    Audio chip Realtek ALC1220
    Motherboard chipset AMD B550
    Motherboard chipset family AMD
    Motherboard form factor ATX
    Component for PC
    Expansion slots
    Number of M.2 (M) slots 2
    PCI Express x16 (Gen 4.x) slots 3
    PCI Express x1 (Gen 3.x) slots 2
    BIOS
    System Management BIOS (SMBIOS) version 2.3
    Clear CMOS button Yes
    ACPI version 5.1
    BIOS memory size 256 Mbit
    BIOS type UEFI AMI
    Logistics data
    Harmonized System (HS) code 84733020
    Weight & dimensions
    Height 125 mm
    Depth 244 mm
    Width 305 mm
    Packaging content
    Drivers included Yes
    Cables included SATA
    Other features
    Weight 465 g
