6 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Hyper M.2 (PCIe Gen4 x4)
Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.
*Supported only with processors with integrated graphics. Please check CPU support list from each motherboard webpage.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
Processor | |
---|---|
Maximum number of SMP processors | 1 |
Compatible processor series | 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9 |
Processor socket | Socket AM4 |
Processor manufacturer | AMD |
Memory | |
---|---|
Unbuffered memory | Yes |
Maximum internal memory | 64 GB |
Supported memory clock speeds | 2133,2400,2667,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4533,4600,4666 MHz |
Non-ECC | Yes |
ECC | Yes |
Memory channels | Dual-channel |
Memory slots type | DIMM |
Number of memory slots | 2 |
Supported memory types | DDR4-SDRAM |
Storage controllers | |
---|---|
Supported storage drive interfaces | M.2, SATA III |
Graphics | |
---|---|
DirectX version | 12.0 |
HDCP | Yes |
Graphics card | Radeon Vega |
Graphics card family | AMD |
On-board graphics card | Yes |
Internal I/O | |
---|---|
TPM connector | Yes |
Peripheral (Molex) power connectors (4-pin) | 1 |
Number of chassis fan connectors | 2 |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
Front panel audio connector | Yes |
Number of SATA III connectors | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
USB 2.0 connectors | 4 |

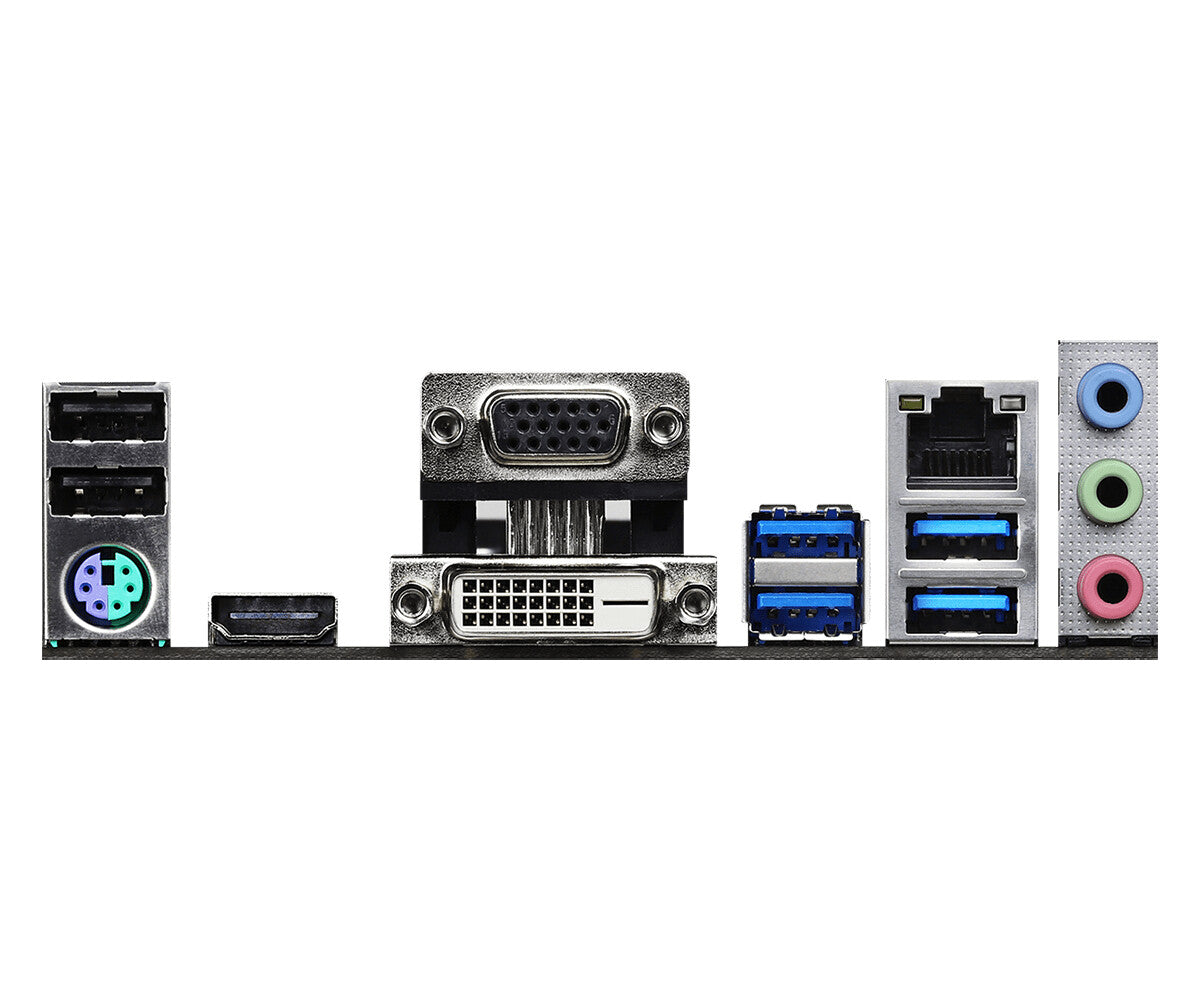

Rear panel I/O ports | |
---|---|
DVI-D ports quantity | 1 |
HDMI ports quantity | 1 |
VGA (D-Sub) ports quantity | 1 |
PS/2 ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
USB 2.0 ports quantity | 2 |
Network | |
---|---|
Wi-Fi | No |
Wake-on-LAN ready | Yes |
LAN controller | Realtek RTL8111H |
Ethernet interface type | Gigabit Ethernet |
Ethernet LAN | Yes |
Features | |
---|---|
Audio output channels | 7.1 channels |
Audio chip | Realtek ALC887 |
Motherboard chipset | AMD B550 |
Motherboard chipset family | AMD |
Motherboard form factor | micro ATX |
Component for | PC |
BIOS | |
---|---|
BIOS type | UEFI AMI |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733020 |
Weight & dimensions | |
---|---|
Height | 70 mm |
Depth | 201 mm |
Width | 230 mm |
Packaging content | |
---|---|
Drivers included | Yes |
Other features | |
---|---|
Weight | 465 g |
