8 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
Premium 60A Power Choke
Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
Dual Band 802.11ac WiFi
No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth v4.2.
Hyper M.2 (PCIe Gen4 x4)
Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
M.2 Armors
Good M.2 SSD protection is important for longevity and stability. ASRock provides a completed M.2 armor solution that makes SSDs to run in a certain low temperature.
Dual USB 3.2 Gen1 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen1 ports built on the rear i/o for supporting next generation USB 3.2 Gen1 devices and to deliver up to 5 Gbps data transfer rates.
Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
Processor | |
---|---|
Maximum number of SMP processors | 1 |
Compatible processor series | 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9 |
Processor socket | Socket AM4 |
Processor manufacturer | AMD |
Memory | |
---|---|
Unbuffered memory | Yes |
Maximum internal memory | 64 GB |
Supported memory clock speeds | 2133,2400,2667,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4533,4600 MHz |
Non-ECC | Yes |
ECC | Yes |
Memory channels | Dual-channel |
Memory slots type | DIMM |
Number of memory slots | 2 |
Supported memory types | DDR4-SDRAM |
Storage controllers | |
---|---|
Supported storage drive interfaces | M.2, SATA III |
Graphics | |
---|---|
DirectX version | 12.0 |
HDCP | Yes |
Graphics card | Radeon Vega |
Graphics card family | AMD |
On-board graphics card | Yes |
Internal I/O | |
---|---|
RGB LED pin header | Yes |
EPS power connector (8-pin) | Yes |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
Front panel audio connector | Yes |
Number of SATA III connectors | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
USB 2.0 connectors | 2 |

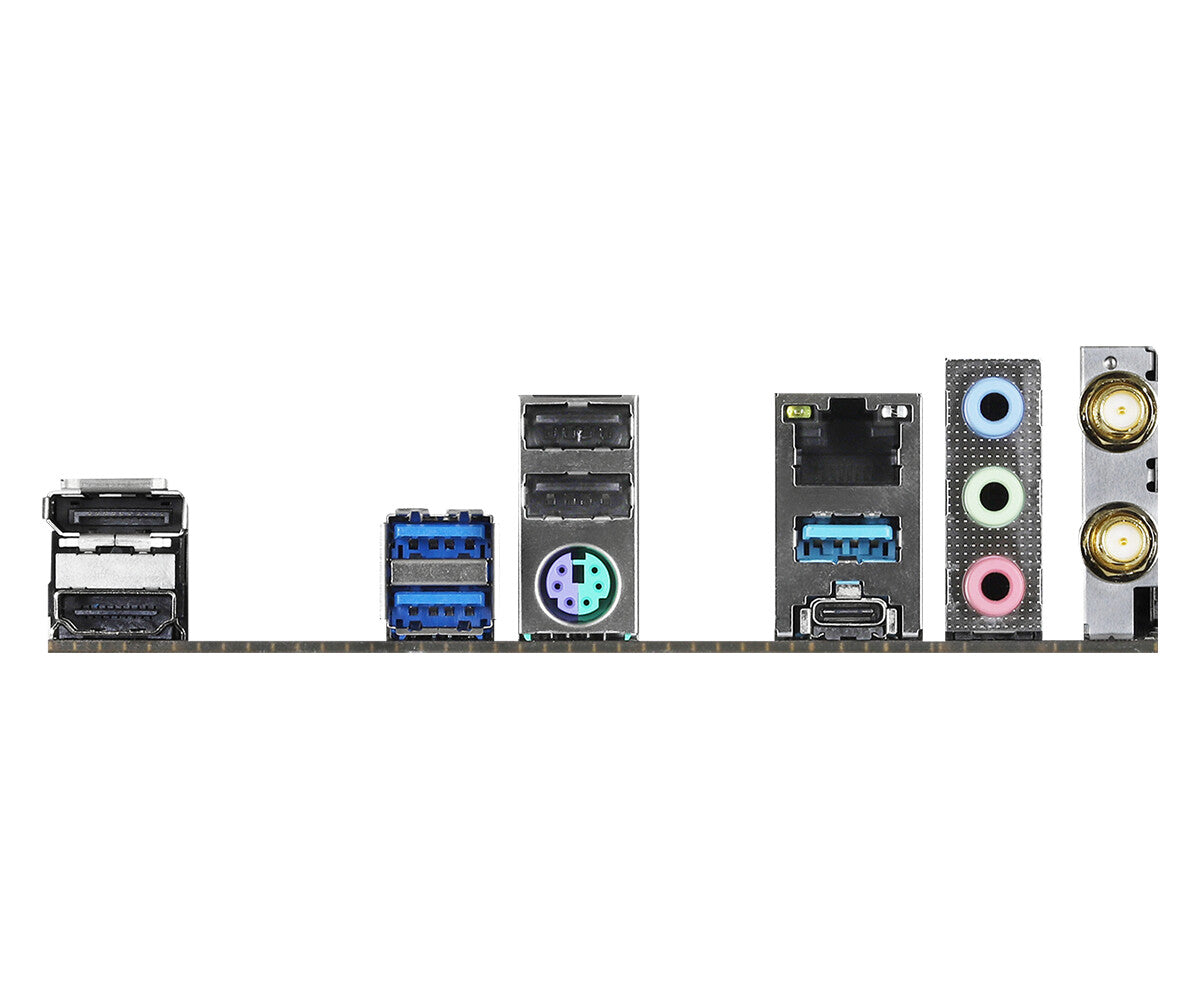

Rear panel I/O ports | |
---|---|
DisplayPort version | 1.4 |
DisplayPorts quantity | 1 |
HDMI ports quantity | 1 |
PS/2 ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
USB 2.0 ports quantity | 2 |
Network | |
---|---|
Bluetooth version | 4.2 |
Bluetooth | Yes |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
Wi-Fi | Yes |
Wake-on-LAN ready | Yes |
LAN controller | Realtek RTL8111H |
Ethernet interface type | Gigabit Ethernet |
Ethernet LAN | Yes |
Features | |
---|---|
Audio output channels | 7.1 channels |
Audio chip | Realtek ALC887 |
Motherboard chipset | AMD B550 |
Motherboard chipset family | AMD |
Motherboard form factor | mini ITX |
Component for | PC |
BIOS | |
---|---|
BIOS type | UEFI AMI |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733020 |
Weight & dimensions | |
---|---|
Height | 70 mm |
Depth | 170 mm |
Width | 170 mm |
Packaging content | |
---|---|
Drivers included | Yes |
Other features | |
---|---|
Weight | 465 g |
