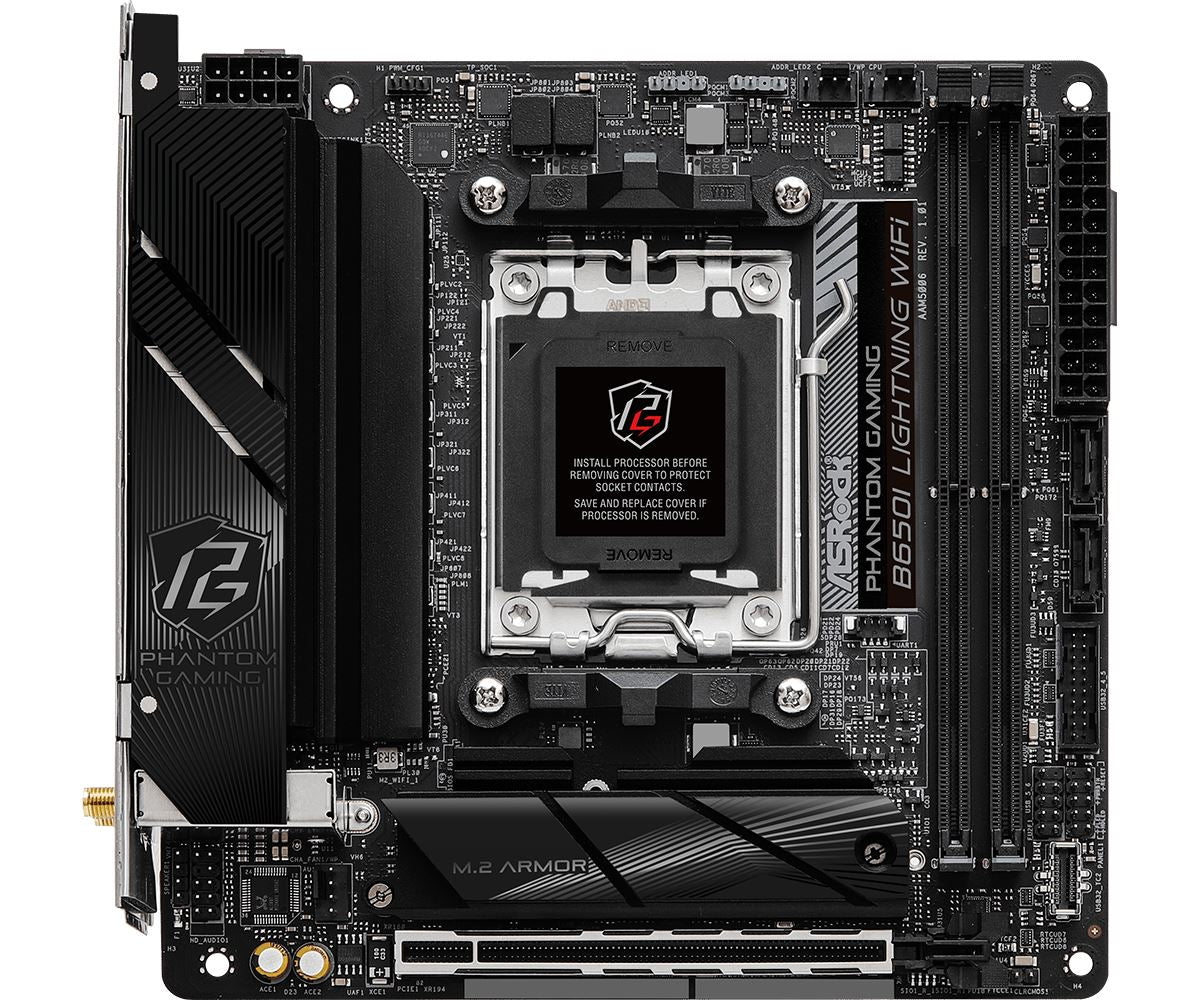

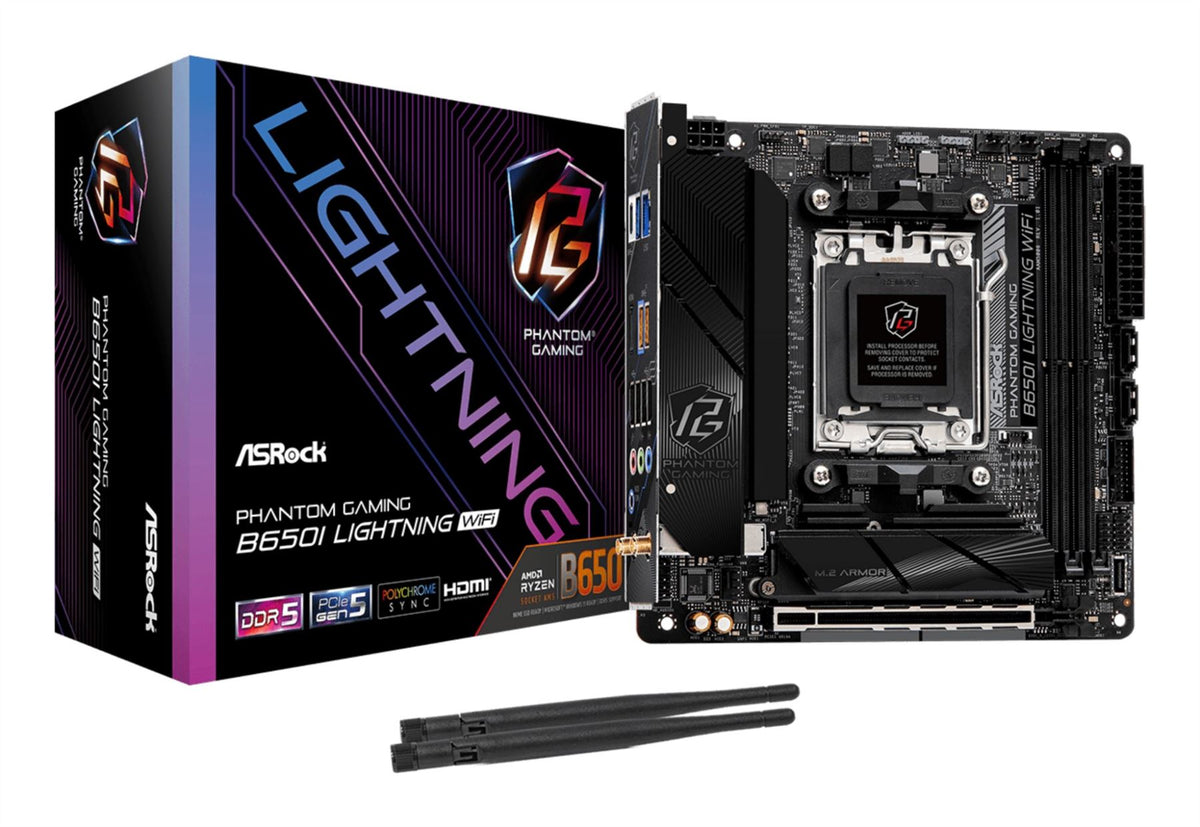

    Asrock B650I Lightning WiFi mini ITX motherboard - AMD B650 Socket AM5

    Asrock B650I Lightning WiFi mini ITX motherboard - AMD B650 Socket AM5

    (UK Consumers)
    ex. VAT (Rest of World)
    PayPal Credit 0% for 4 months
    GLOBAL SHIPPING – UPS & DHL
    BUSINESS CUSTOMERS – please email: Sales@clove.co.uk
    FAST SHIPPING – All orders

    Key Features

    • AMD Socket AM5 AMD Ryzen 5 7th gen, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
    • PC mini ITX AMD B650 Realtek ALC897 7.1 channels
    • DDR5-SDRAM 2 DIMM ECC Non-ECC Maximum internal memory: 96 GB
    • HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 4
    • AMD AMD RDNA 2
    • BIOS type: UEFI AMI 256 Mbit
    • 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.2

    B650I Lightning WiFi

    Optimized VRM Design

    Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

    Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

    The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!

    Reinforced Steel Slot
    [PCIe 4.0 Version]
    The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:
    Extra anchor points
    Stronger latch
    Ensure signal stability
    Make sure heavy graphics cards to be well-installed.

    Extreme Overclocking Performance

    Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. All B650 motherboards are built with 8-Layer PCB design, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 7200MHz and beyond by enabling the pre-tested profiles. Make sure the memory modules are AMD EXPO™/ Intel® XMP capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

    * There are certain risks involved with memory overclocking and may affect your system’s stability. Please realize that overclocking should be done at your own risk and expense. EXPO/XMP profile support may vary by different system configuration, memory modules and motherboard models. Please refer to Memory QVL for the completed support list.

    The Blazing OC Tuner allows AM5 CPU to switch between OC mode and PBO(Precision Boost Overdrive) mode when the CPU current hits threshold. Anything above current threshold will engage manual OC mode; if below current threshold then will engage Precision Boost Overdrive mode. This idea is to combine overclocking on all cores and automatic boost on a single core to get the best performance out of your CPU. There is no need to enter BIOS to setup up, you can modify all the settings on time under OS.

    PBO(Precision Boost Overdrive) is an automatic performance-maximizing technology that is able to improve your PC’s performance by raising clock speeds based on the conditions inside your PC, AMD’s processors is equipped with intelligent thermal sensors designed to analyze conditions inside your PC and make the “go faster” decision as often as possible, please ensure system cooling is sufficient before enabling PBO.

    Nahimic Audio

    Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

    The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
    Static Noise Suppression
    Echo Cancellation
    Lateral Sound Cancellation
    Voice Stabilizer

    Sound Tracker
    The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

    Works on any devices!
    Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

    Lightning Gaming Ports
    Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency!

    POLYCHROME RGB
    This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects
    *The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
    *The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

    High Speed M.2 Solution
    The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

    Phantom Gaming 2.5 Gb/s LAN
    The intelligent Phantom Gaming 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
    Automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge.

    Wi-Fi 6E 802.11ax
    WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.

    EZ Setting
    Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!
    Step1: Install Auto Driver Installer
    Step2: ADI will automatically download and install all necessary drivers.
    Step3: Done!

    Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.

    Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.

    Processor
    Compatible processor series AMD Ryzen 5 7th gen, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
    Processor socket Socket AM5
    Processor manufacturer AMD
    Memory
    Unbuffered memory Yes
    Maximum internal memory 96 GB
    Supported memory clock speed (max) 7200 MHz
    Non-ECC Yes
    ECC Yes
    Memory channels Dual-channel
    Memory slots type DIMM
    Number of memory slots 2
    Supported memory types DDR5-SDRAM
    Storage controllers
    RAID levels 0, 1, 10
    RAID support Yes
    Number of HDDs supported 2
    Number of storage drives supported 4
    Supported storage drive interfaces M.2, SATA III
    Supported storage drive types HDD & SSD
    Graphics
    HDCP Yes
    Maximum resolution 3840 x 2160 pixels
    Graphics card AMD RDNA 2
    Graphics card family AMD
    On-board graphics card Yes
    Parallel processing technology support Not supported
    Internal I/O
    RGB LED pin header Yes
    12V power connector Yes
    EPS power connector (8-pin) Yes
    Number of chassis fan connectors 1
    CPU fan connector Yes
    ATX Power connector (24-pin) Yes
    Front panel audio connector Yes
    Number of SATA III connectors 2
    USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
    USB 2.0 connectors 1
    Rear panel I/O ports
    WiFi-AP antenna jack 2
    Microphone in Yes
    Line-in Yes
    Headphone outputs 1
    HDMI version 2.1
    HDMI ports quantity 1
    Ethernet LAN (RJ-45) ports 1
    USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
    USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 3
    USB 2.0 ports quantity 4
    Network
    Bluetooth version 5.2
    Bluetooth Yes
    Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
    Top Wi-Fi standard Wi-Fi 6E (802.11ax)
    Wi-Fi Yes
    LAN controller Dragon RTL8125BG
    Ethernet interface type 2.5 Gigabit Ethernet
    Ethernet LAN Yes
    Features
    Certification FCC, CEErP/EuP ready (ErP/EuP ready power supply is required)
    Windows operating systems supported Windows 10, Windows 11
    Power source type ATX
    Cooling type Passive
    Product colour Black
    Audio output channels 7.1 channels
    Audio chip Realtek ALC897
    Motherboard chipset AMD B650
    Motherboard chipset family AMD
    Motherboard form factor mini ITX
    Component for PC
    Expansion slots
    Number of M.2 (M) slots 2
    PCI Express x16 (Gen 4.x) slots 1
    BIOS
    BIOS memory size 256 Mbit
    BIOS type UEFI AMI
    Weight & dimensions
    Depth 170 mm
    Width 170 mm
    Packaging content
    Cables included SATA
    Manual Yes
    Other features
    Number of M.2 (E) slots 1
    Back-to-BIOS button Yes
