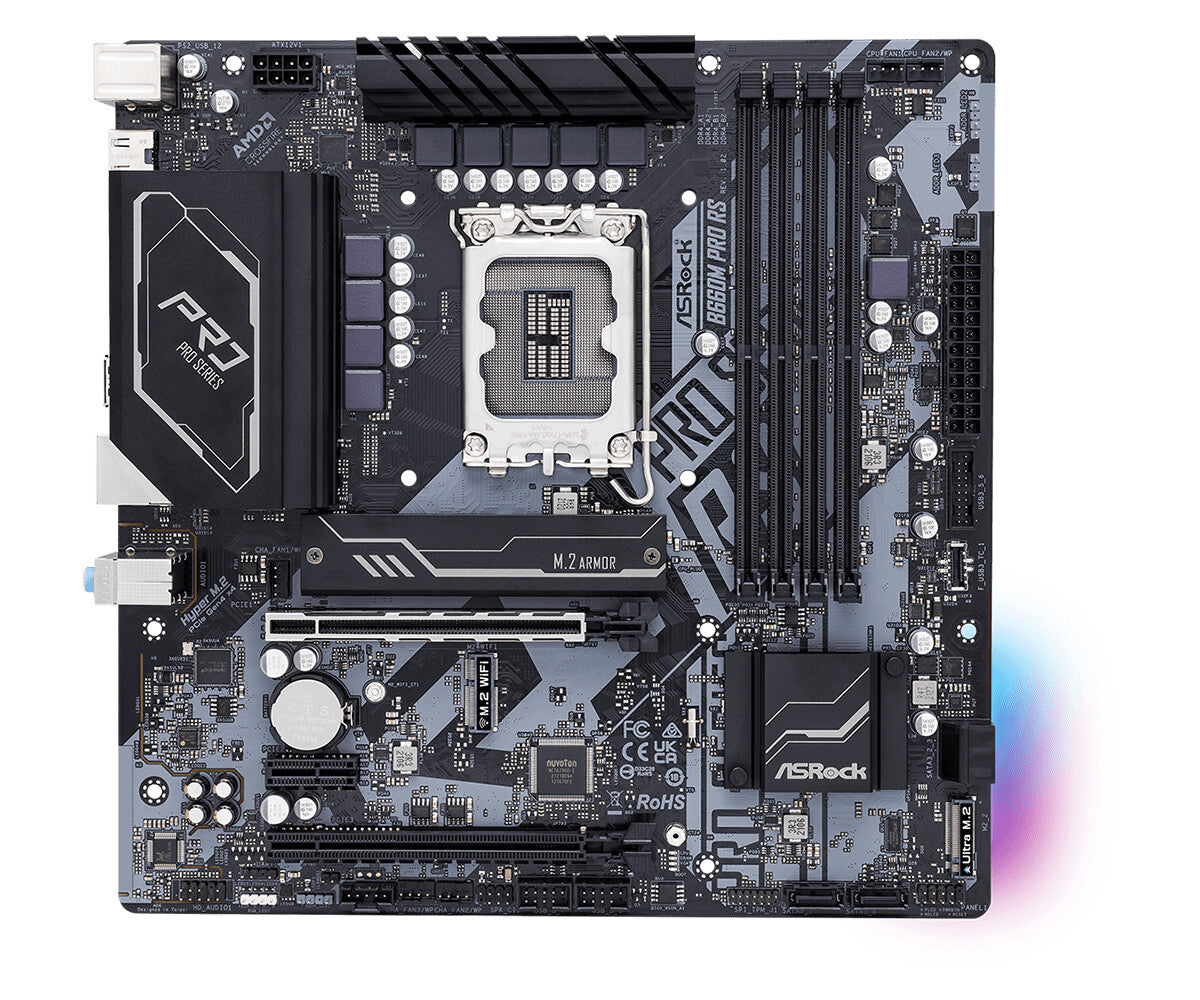

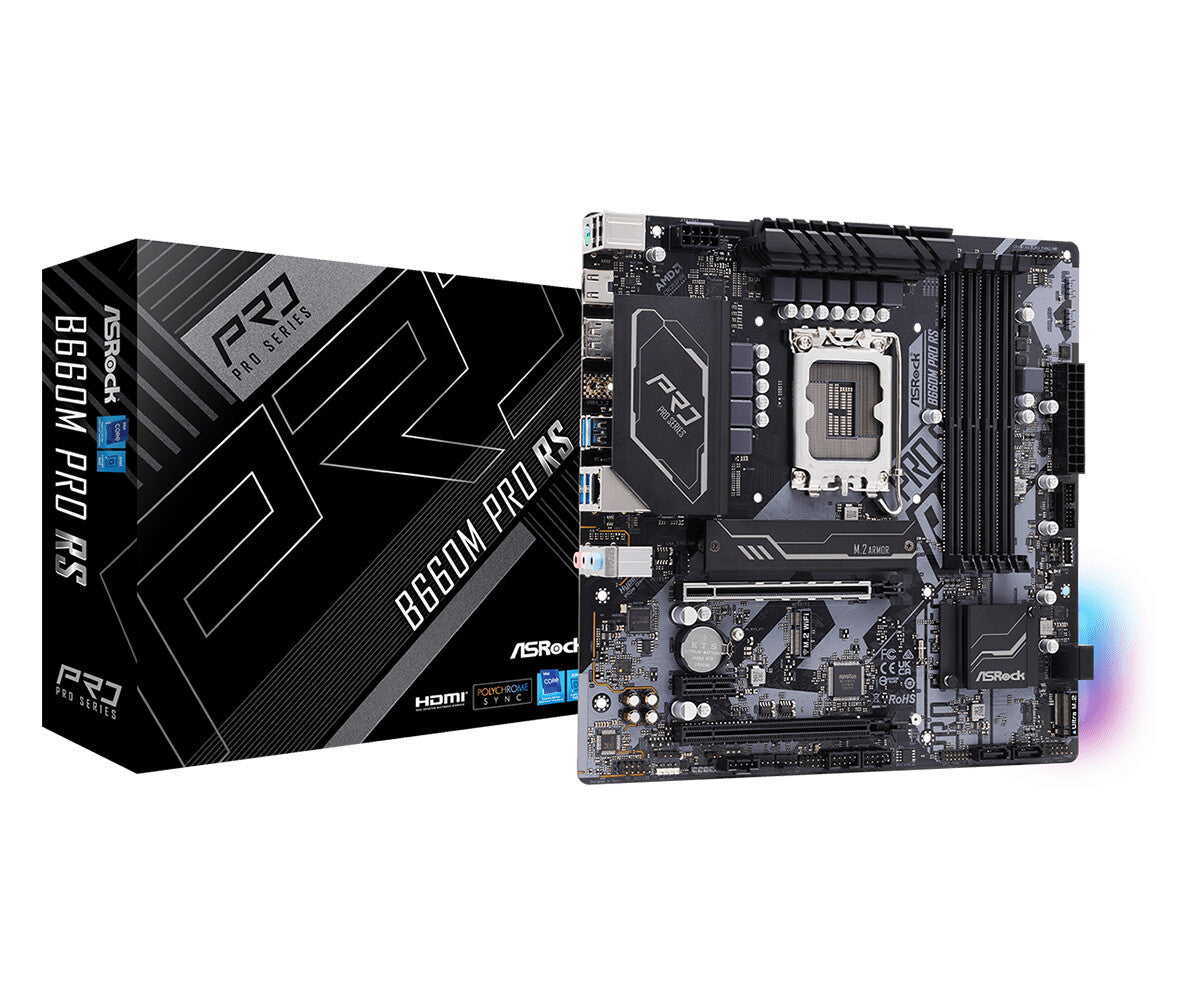

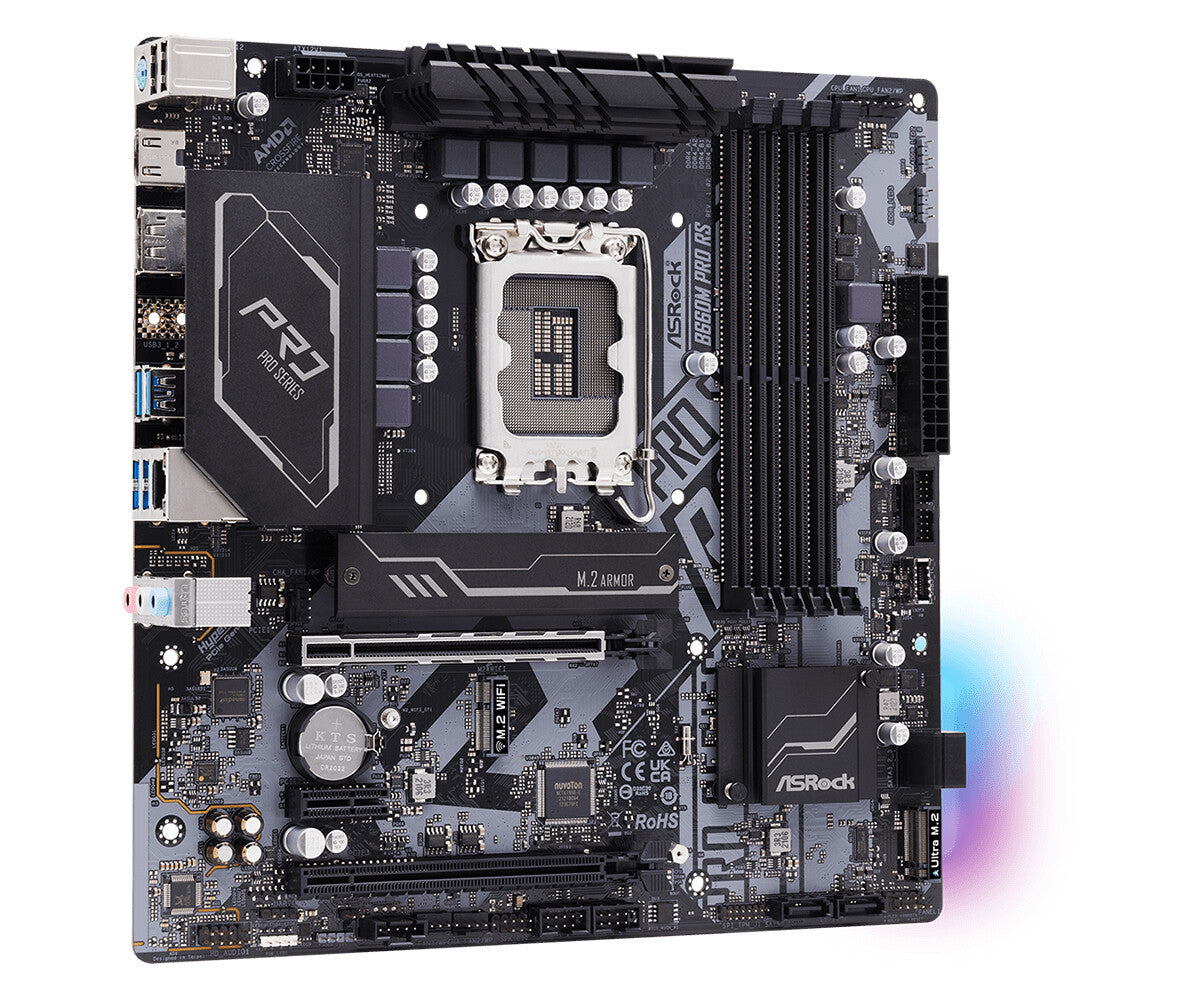

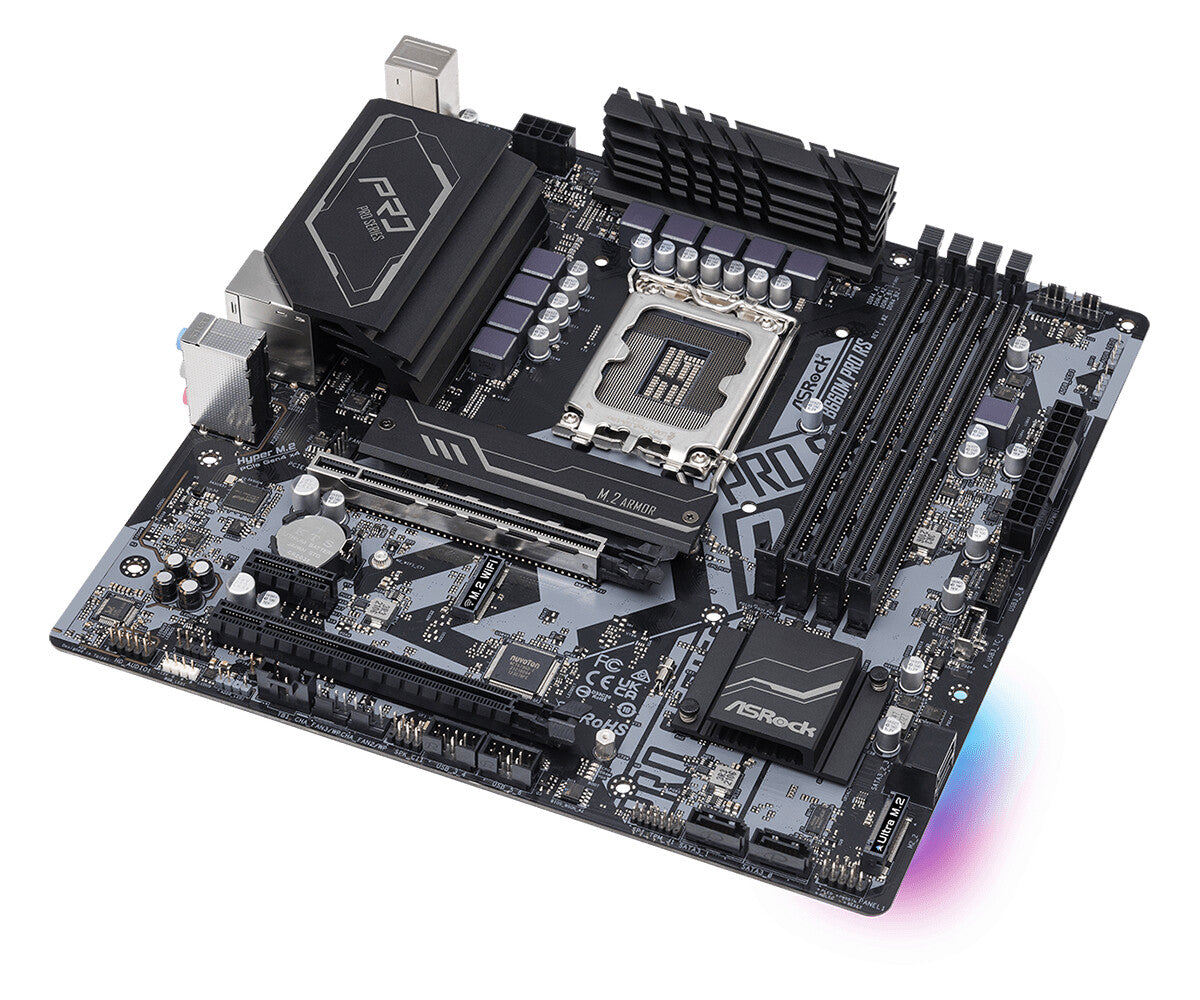

Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.
Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade.
RaceSport edition, your all-rounder motherboard that fulfills every task and light-loading gaming – with style and speed!
8 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
Reinforced Steel Slot [PCIe 4.0 Version]
The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:
- Extra anchor points
- Stronger latch
- Ensure signal stability
- Make sure heavy graphics cards to be well-installed.
Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
POLYCHROME RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
High Speed M.2 Solution
This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Intel Gigabit LAN
Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
Processor | |
---|---|
Maximum number of SMP processors | 1 |
Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
Processor socket | LGA 1700 |
Processor manufacturer | Intel |
Memory | |
---|---|
Unbuffered memory | Yes |
Maximum internal memory | 128 GB |
Supported memory clock speeds | 4800 MHz |
Non-ECC | Yes |
ECC | Yes |
Memory channels | Dual-channel |
Memory slots type | DIMM |
Number of memory slots | 4 |
Supported memory types | DDR4-SDRAM |
Storage controllers | |
---|---|
RAID levels | 0, 1, 5, 10 |
RAID support | Yes |
Supported storage drive interfaces | M.2, SATA III |
Supported storage drive types | HDD & SSD |
Graphics | |
---|---|
HDCP | Yes |
Maximum resolution | 7680 x 4320 pixels |
Parallel processing technology support | Crossfire |
Internal I/O | |
---|---|
RGB LED pin header | Yes |
Thunderbolt headers | 1 |
TPM connector | Yes |
Chassis intrusion connector | Yes |
Number of chassis fan connectors | 3 |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
Front panel audio connector | Yes |
Number of SATA III connectors | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
USB 2.0 connectors | 2 |

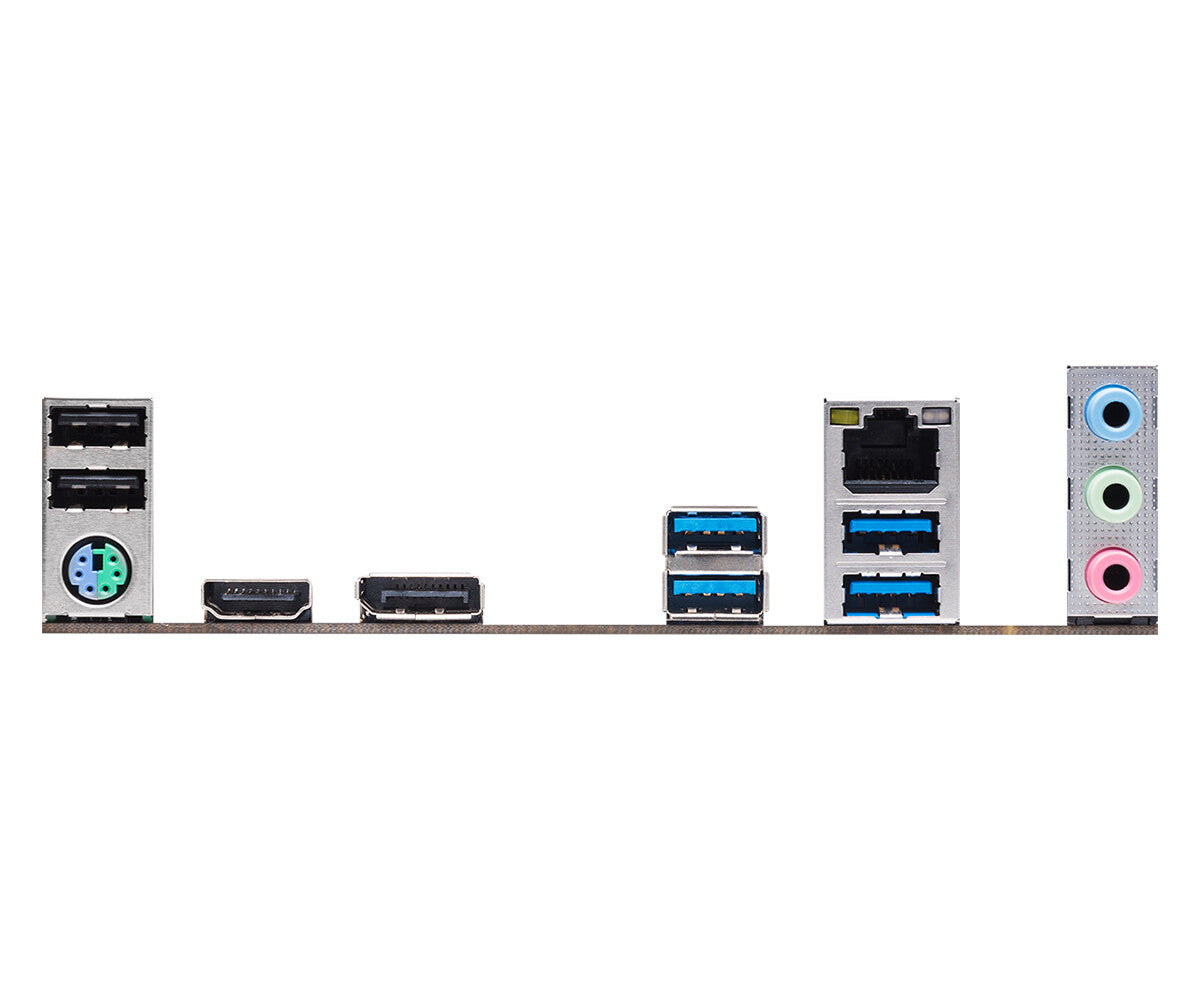

Rear panel I/O ports | |
---|---|
DisplayPort version | 1.4 |
DisplayPorts quantity | 1 |
HDMI version | 2.1 |
HDMI ports quantity | 1 |
PS/2 ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
USB 2.0 ports quantity | 2 |
Network | |
---|---|
Wi-Fi | No |
Wake-on-LAN ready | Yes |
LAN controller | Intel® I219-V |
Ethernet interface type | Gigabit Ethernet |
Ethernet LAN | Yes |
Features | |
---|---|
Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
PC health monitoring | CPU, Fan, Temperature, Voltage |
Audio output channels | 7.1 channels |
Audio chip | Realtek ALC897 |
Motherboard chipset | Intel B660 |
Motherboard chipset family | Intel |
Motherboard form factor | micro ATX |
Component for | PC |
Expansion slots | |
---|---|
Number of M.2 (M) slots | 2 |
PCI Express x16 slots | 2 |
PCI Express x1 (Gen 3.x) slots | 1 |
BIOS | |
---|---|
System Management BIOS (SMBIOS) version | 2.7 |
ACPI version | 6.0 |
BIOS memory size | 128 Mbit |
BIOS type | UEFI AMI |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733020 |
Weight & dimensions | |
---|---|
Depth | 244 mm |
Width | 244 mm |
Packaging content | |
---|---|
Drivers included | Yes |
Cables included | SATA |
