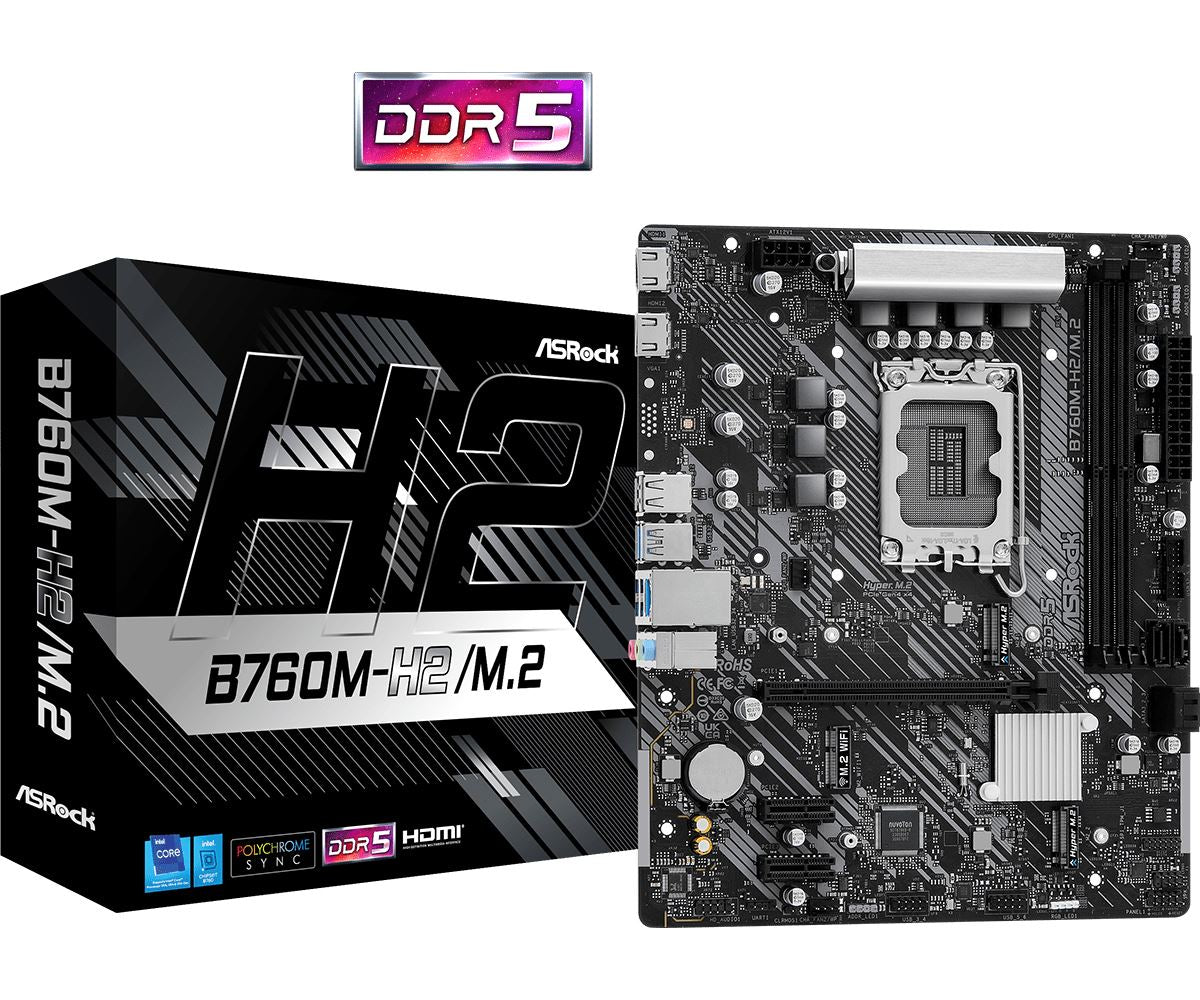

    Asrock B760M-H2/M.2 micro ATX motherboard - Intel B760 LGA 1700

    Asrock B760M-H2/M.2 micro ATX motherboard - Intel B760 LGA 1700

    (UK Consumers)
    ex. VAT (Rest of World)
    PayPal Credit 0% for 4 months
    GLOBAL SHIPPING – UPS & DHL
    BUSINESS CUSTOMERS – please email: Sales@clove.co.uk
    FAST SHIPPING – All orders

    Key Features

    • Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
    • 5+1+1 Power Phase
    • 2 x DDR5 DIMMs
    • Supports Dual Channel, up to 7200+ (OC)
    • 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
    • Graphics Output Options: 2 HDMI
    • Realtek ALC897 7.1 CH HD Audio Codec
    • 4 SATA3, 2 Hyper M.2 (PCIe Gen4 x4)
    • 6 USB 3.2 Gen1 Type-A (4 Rear, 2 Front)
    • 6 USB 2.0 (2 Rear, 4 Front)
    • Dragon 2.5G LAN
    • Supports ASRock Auto Driver Installer

    POLYCHROME RGB
    This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects

    High Speed M.2 Solution(PCIe Gen4 x4)
    Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

    Dual HDMI Outputs
    Equipped with two of the most widely used HDMI connectors, enjoy better multi-monitor compatibility and an easy setup experience.

    Dragon 2.5 Gb/s LAN
    The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

    M.2 (KEY E) For WiFi
    Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.

    HDMI 4k @60Hz
    Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

    Internal I/O
    Number of M.2 (M) slots 2
    USB 3.2 Gen 2 (3.1 Gen 2) connectors 0
    Total number of SATA connectors 4
    Front panel connector Yes
    Supported storage drive interfaces M.2, SATA III
    USB 2.0 connectors 4
    USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
    TPM connector Yes
    Number of SATA III connectors 4
    EPS power connector (8-pin) Yes
    CPU fan connector Yes
    Chassis intrusion connector Yes
    ATX Power connector (24-pin) Yes
    Technical details
    Motherboard chipset family Intel
    Motherboard chipset Intel B760
    Supported processor sockets LGA 1700
    Parallel processing technology support Not supported
    HDMI version 2.1
    Motherboard form factor micro ATX
    Component for PC
    Total number of SATA connectors 4
    Maximum internal memory supported by processor 128 GB
    Audio
    Audio output channels 7.1 channels
    Performance
    Number of HDDs supported 6
    Windows operating systems supported Windows 10 x64, Windows 11 x64
    Motherboard chipset family Intel
    Motherboard chipset Intel B760
    RAID levels 0, 1, 5, 10
    Supported processor sockets LGA 1700
    Certification - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
    Audio output channels 7.1 channels
    Motherboard form factor micro ATX
    Component for PC
    Processor
    Processor manufacturer Intel
    Maximum internal memory supported by processor 128 GB
    Compatible processor series Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
    Supported processor sockets LGA 1700
    Maximum number of SMP processors 1
    Processor socket LGA 1700
    Memory
    Number of memory slots 2
    Memory slots type DIMM
    Supported memory types DDR5-SDRAM
    Memory channels Dual-channel
    Supported memory clock speeds 5600,6800,7200 MHz
    Maximum internal memory 128 GB
    Unbuffered memory Yes
    Supported memory clock speed (max) 7200 MHz
    ECC сompatibility Non-ECC
    Storage controllers
    Number of HDDs supported 6
    Supported storage drive interfaces M.2, SATA III
    RAID levels 0, 1, 5, 10
    Number of storage drives supported 4
    RAID support Yes
    Graphics
    Parallel processing technology support Not supported
    HDCP Yes
    Rear panel I/O ports
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
    USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
    USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 0
    USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 0
    USB 2.0 ports quantity 2
    VGA (D-Sub) ports quantity 0
    PS/2 ports quantity 1
    Microphone in Yes
    HDMI version 2.1
    HDMI ports quantity 2
    Ethernet LAN (RJ-45) ports 1
    DVI-D ports quantity 0
    Line-in Yes
    Network
    Ethernet LAN Yes
    Wi-Fi No
    Ethernet interface type 2.5 Gigabit Ethernet
    Features
    Windows operating systems supported Windows 10 x64, Windows 11 x64
    Motherboard chipset family Intel
    Motherboard chipset Intel B760
    Supported processor sockets LGA 1700
    Certification - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
    Audio output channels 7.1 channels
    Motherboard form factor micro ATX
    Component for PC
    Audio chip Realtek ALC897
    Expansion slots
    Number of M.2 (M) slots 2
    PCI Express x1 (Gen 3.x) slots 2
    PCI Express x16 (Gen 4.x) slots 1
    BIOS
    BIOS type UEFI AMI
    BIOS memory size 128 Mbit
    Video
    HDCP Yes
    Certificates
    Certification - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
    Software
    Windows operating systems supported Windows 10 x64, Windows 11 x64
    Weight & dimensions
    Width 244 mm
    Depth 201 mm
    Packaging content
    Cables included SATA
