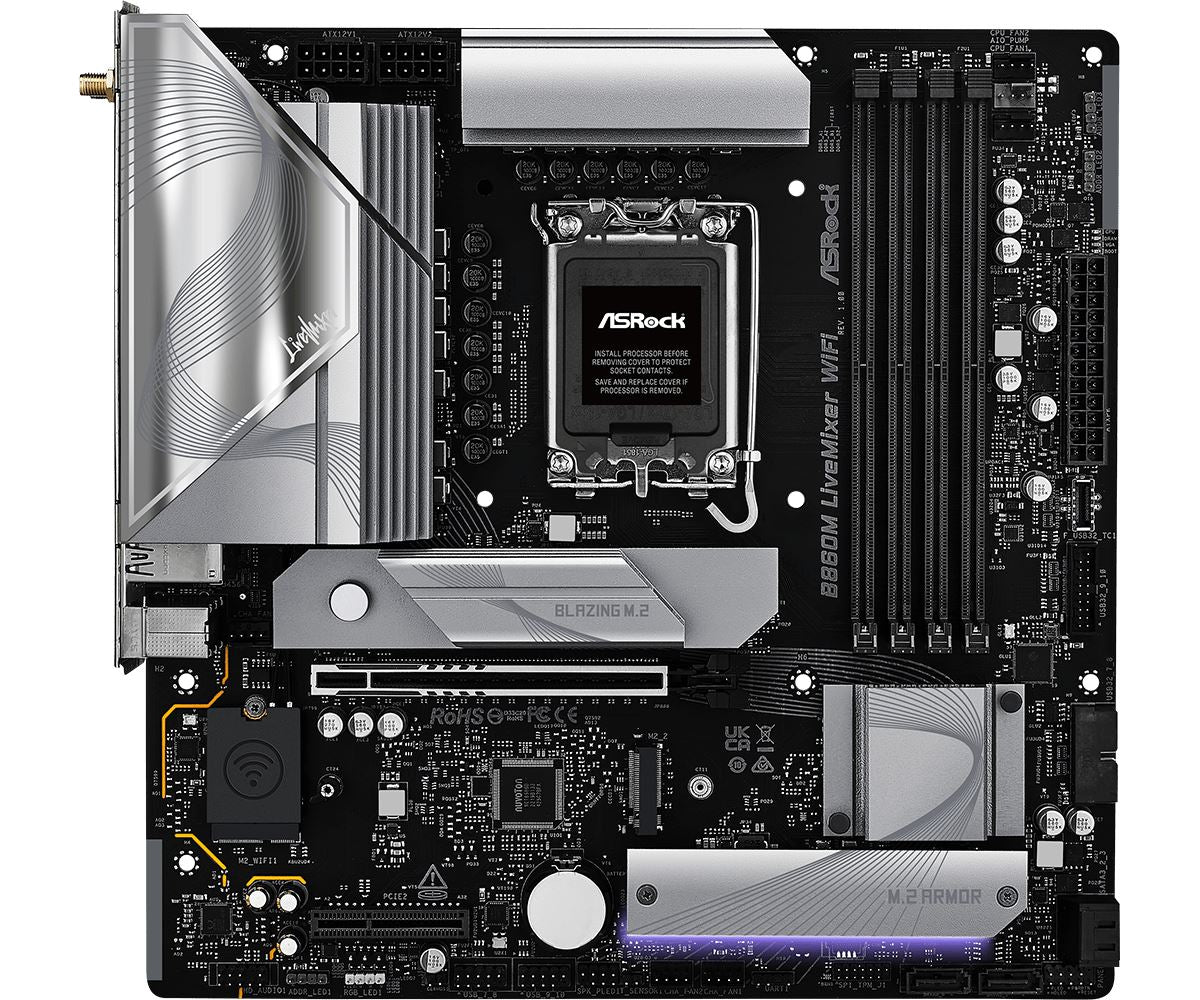

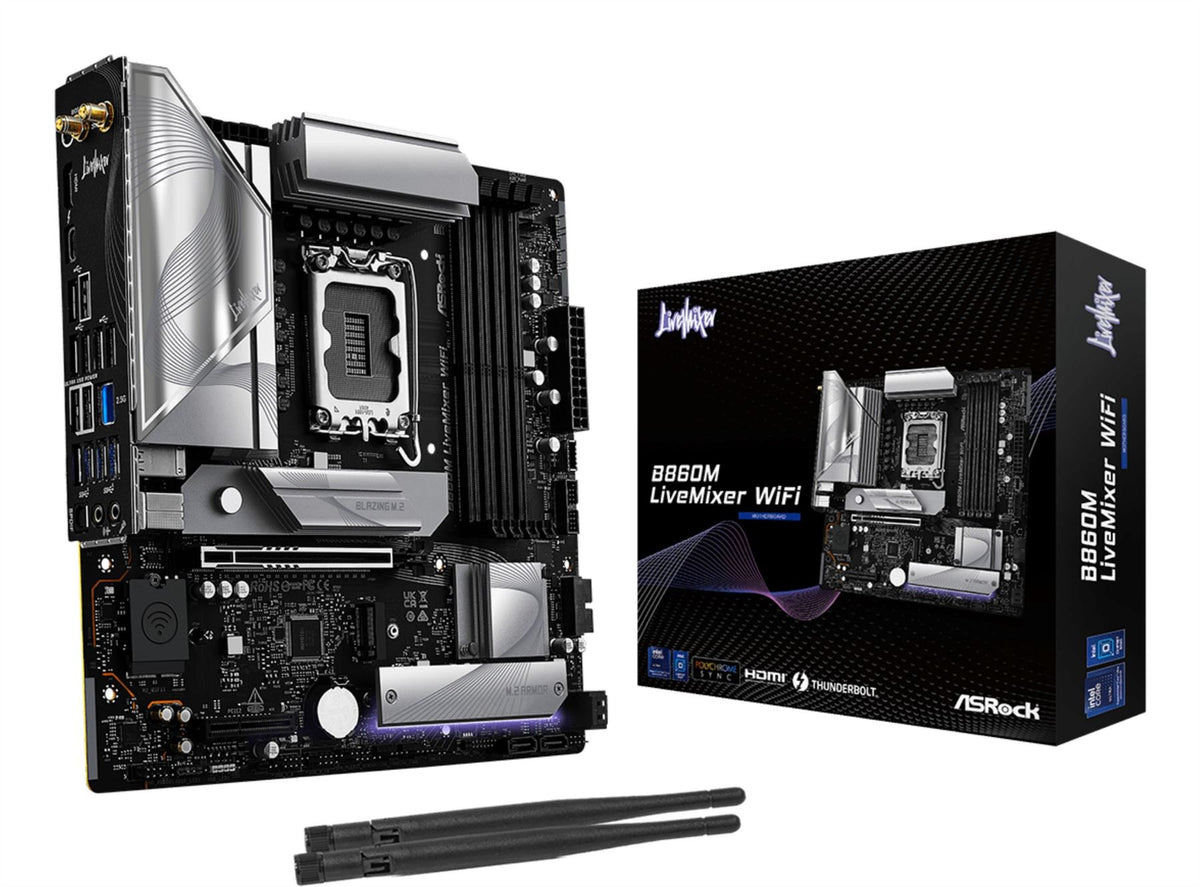

    Asrock B860M LiveMixer WiFi micro ATX motherboard - Intel B860 LGA 1851

    Asrock B860M LiveMixer WiFi micro ATX motherboard - Intel B860 LGA 1851

    SELLING FAST! Less than 10 remaining
    (UK Consumers)
    ex. VAT (Rest of World)
    PayPal Credit 0% for 4 months
    IN STOCK
    EAN: 4711581490314 SKU: 96907079 MPN: B860M LIVEMIXER WIFI
    GLOBAL SHIPPING – UPS & DHL
    BUSINESS CUSTOMERS – please email: Sales@clove.co.uk
    FAST SHIPPING – All orders

    Key Features

    • Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
    • 10+1+1+1+1 Power Phase, Dr.MOS for VCore+GT+SA
    • 4 x DDR5 DIMMs
    • Supports Dual Channel, up to 8666+ (OC)
    • 1 PCIe 5.0 x16, 1 PCIe 4.0 x4
    • Graphics Output Options: 1 HDMI, 1 Thunderbolt™ 4 Type-C
    • Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
    • 4 SATA3
    • 1 Blazing M.2 (PCIe Gen5x4)
    • 2 Hyper M.2 (PCIe Gen4x4)
    • 1 Thunderbolt™ 4 Type-C (Rear)
    • 1 USB 3.2 Gen1 Type-C (Front)
    • 10 USB 3.2 Gen1 (6 Rear, 4 Front)
    • 10 USB 2.0 (6 Rear, 4 Front)
    • Realtek 2.5G LAN
    • 802.11axe Wi-Fi 6E + Bluetooth
    • Supports BIOS Flashback, 20K Caps with 1000uF Capacitance



    LiveMixer series is crafted with the needs of modern content creators in mind, offering excellent connectivity for streaming and multiple auxiliary devices. Its reliable performance ensures seamless content creation and efficient time management.

    LIVE MIX. LIFE MAX
    LiveMixer is designed through current-gen content creators, who need motherboards with great connectivity for streaming and other auxiliary devices. Also, its reliable performance allows us to provide wonderful contents and budget our time.

    10+1+1 Power Phase Design
    Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

    Dr. MOS
    Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

    Exclusive 20K Cap with 1000uF Capacitance
    The upgraded 20K Black capacitor not only extends the lifespan to 20,000 hours but also increases the capacitance value from 560uF to 1000uF, bringing several benefits:

    ●Higher Capacitance: Greater charge storage for better support under high loads.
    ●Lower Ripple: Reduced power output fluctuations, improving quality.
    ●More Stable Output Current: Stable power supply, minimizing voltage impacts.
    ●Better Performance & System Stability: Increased reliability and consistent performance.

    Hi-Density Power Connector
    CPU overclocking requires higher current. ASRock Hi-Density Power Connectors are designed to withstand higher currents compared to traditional CPU and ATX power connectors, providing a more stable system and reducing the risk of fire during heavy overclocking.

    DDR5 XMP & EXPO Support
    Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

    PCIe Gen5 Blazing M.2
    The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

    DIY Friendly Design
    M.2 Heatsink Toolless Design
    M.2 Bottom Heatsink

    Besides the M.2 SSD toolless design on the motherboard, ASRock up a notch by introducing this industry first M.2 heatsink quick release mechanism on the motherboard. The user friendly toolless design helps installing M.2 SSD super easy & simple.

    Aluminum Heatsink
    The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.

    Up to 22 USB Ports (Front + Rear)
    Featuring 22 USB ports, this design maximizes connectivity and provides more reliable and stable support for multiple auxiliary devices compared to external USB hubs.

    Wi-Fi 6E 802.11axe
    WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.

    Thunderbolt™ 4 Type-C
    Thunderbolt™ 4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects external monitors, Thunderbolt™, and USB devices with a single Thunderbolt 4 cable.

    Dragon 2.5 Gb/s LAN
    The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

    More than USB Transfer Speed
    Ultra USB Power

    Provides stable power and better sound experience! Ultra USB Power provides 5V power transformed from +12V power rail, whose voltage drop will be much lower than the +5V from the PSU under heavy loading, and prevents noise from other devices or RGB LED.

    POLYCHROME RGB
    This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

    SignalRGB
    SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.

    Customized Thermal Management
    The thermistor cable and thermistor header provide an additional source for temperature monitoring, offering customized thermal management solutions.

    Reinforced Steel Slot
    [PCIe 5.0 Version]

    The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include:
    ✔ Extra anchor points
    ✔ Stronger latch
    ✔ Ensure signal stability
    ✔ Make sure heavy graphics cards to be well-installed.

    Internal I/O
    Number of M.2 (M) slots 1
    USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
    Supported storage drive interfaces M.2, SATA III
    USB 2.0 connectors 2
    USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
    TPM connector Yes
    Number of SATA III connectors 4
    Number of chassis fan connectors 3
    Front panel audio connector Yes
    EPS power connector (8-pin) Yes
    CPU fan connector Yes
    ATX Power connector (24-pin) Yes
    RGB LED pin header Yes
    Number of CPU fan connectors 2
    Number of EPS power connectors (8-pin) 2
    Number of RGB LED pin headers 5
    Technical details
    Motherboard chipset family Intel
    Motherboard chipset Intel B860
    On-board graphics card Yes
    Motherboard form factor micro ATX
    Component for PC
    Audio
    Audio output channels 7.1 channels
    Performance
    Windows operating systems supported Windows 11 x64
    Motherboard chipset family Intel
    Motherboard chipset Intel B860
    RAID levels 0, 1, 5, 10
    Audio output channels 7.1 channels
    Motherboard form factor micro ATX
    Component for PC
    Processor
    Processor manufacturer Intel
    Processor socket LGA 1851 (Socket V1)
    Memory
    Number of memory slots 4
    Memory slots type DIMM
    Supported memory types DDR5-SDRAM
    Memory channels Dual-channel
    Maximum internal memory 256 GB
    Unbuffered memory Yes
    ECC сompatibility Non-ECC
    Storage controllers
    Supported storage drive interfaces M.2, SATA III
    RAID levels 0, 1, 5, 10
    RAID support Yes
    Graphics
    On-board graphics card Yes
    Graphics card family Intel
    Rear panel I/O ports
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 6
    USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 0
    USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 0
    USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 0
    USB 2.0 ports quantity 6
    VGA (D-Sub) ports quantity 0
    Thunderbolt ports quantity 1
    S/PDIF out port Yes
    Microphone in Yes
    HDMI ports quantity 1
    Ethernet LAN (RJ-45) ports 1
    DVI-D ports quantity 0
    Network
    Ethernet LAN Yes
    Wi-Fi Yes
    Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
    LAN controller Dragon RTL8125BG
    Ethernet interface type 2.5 Gigabit Ethernet
    Bluetooth Yes
    Bluetooth version 5.3
    Top Wi-Fi standard Wi-Fi 6E (802.11ax)
    Features
    Windows operating systems supported Windows 11 x64
    Motherboard chipset family Intel
    Motherboard chipset Intel B860
    Audio output channels 7.1 channels
    Motherboard form factor micro ATX
    Component for PC
    Audio chip Realtek ALC1220
    Expansion slots
    Number of M.2 (M) slots 1
    PCI Express x16 (Gen 5.x) slots 1
    PCI Express x4 (Gen 4.x) slots 1
    BIOS
    BIOS type UEFI AMI
    BIOS memory size 256 Mbit
    Video
    Graphics card family Intel
    Software
    Windows operating systems supported Windows 11 x64
    Weight & dimensions
    Width 244 mm
    Depth 244 mm
    Packaging content
    Cables included SATA
