RGB LED
Build your own colorful lighting system! RGB LED and header allows users to connect LED strip and create their unique PC style easily. The ASRock RGB LED utility can be downloaded directly or from an all-in-one utility ASRock Live Update & APP Shop!
Dual Band 802.11ac WiFi
No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth v4.2.
Creative Sound Blaster Cinema 3
Sound Blaster Cinema 3 is the latest software that is designed with SBX Pro Studio to deliver a holistic audio experience. Whether you're gaming or watching a movie, Reality 3D technology lets you enable 5.1/7.1 surround sound for an additional layer of transience to your listening experience even with just a pair of headphones or stereo speakers.
Intel LAN
Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
PCI-E STEEL SLOTS
The advanced PCI-E Steel Slots packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slots safely.
Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.
Premium Power Choke
Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Dual-N MOSFET
Combining two silicon dies into one MOSFET, Dual-N MOSFET provides larger die area and lower Rds(on), so the power supply for the CPU Vcore is more efficient.
Nichicon 12K Black Caps
Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.
Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.
Gaming Armor
Built to Kill
Allows ASRock to be your most trustworthy ally, providing both hardware and software support.
F-Stream
Modify Your Weapon
Key Master
Consists of two major features, Sniper Key and Macro Key. It enhances your mouse and keyboard with customizable macros, sniper modes, key repeat rates and repeat delay.
F-Stream
F-Stream is Fatal1ty's multi purpose software suite with a new interface, more new features and improved utilities.
Fatal1ty Mouse Port
After plugging a USB mouse into the Fatal1ty Mouse Port and running F-Stream, gamers can choose their own preferred mouse polling rate from 125 Hz to 1000 Hz.
2oz Copper
It comes with 2 ounces copper inner layers, using only carefully selected copper materials for PCB layers, delivering lower temperature and higher energy efficiency for overclocking.
Gold Audio Jacks
Everything will wear off in time, but gold looks better! Gold audio jack provides stable sound transmission!
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.more
Processor | |
---|---|
Maximum number of SMP processors | 1 |
Compatible processor series | AMD A, AMD Athlon, AMD Athlon™ X4, AMD Ryzen, AMD Ryzen™ 3, 2nd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 3, AMD Ryzen™ 5, 2nd Generation AMD Ryzen™ 5, 3rd Generation AMD Ryzen 5, AMD Ryzen™ 7, 2nd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9 |
Processor socket | Socket AM4 |
Processor manufacturer | AMD |
Memory | |
---|---|
Unbuffered memory | Yes |
Maximum internal memory | 32 GB |
Supported memory clock speeds | 2133,2400,2667,2933,3200,3466 MHz |
Non-ECC | Yes |
ECC | Yes |
Memory channels | Dual-channel |
Memory slots type | DIMM |
Number of memory slots | 2 |
Supported memory types | DDR4-SDRAM |
Graphics | |
---|---|
DirectX version | 12.0 |
HDCP | Yes |
Maximum resolution | 4096 x 2160 pixels |
Graphics card family | AMD |
Maximum graphics card memory | 2048 MB |
Internal I/O | |
---|---|
12V power connector | Yes |
Number of chassis fan connectors | 1 |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
Front panel audio connector | Yes |
Number of SATA III connectors | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
USB 2.0 connectors | 1 |

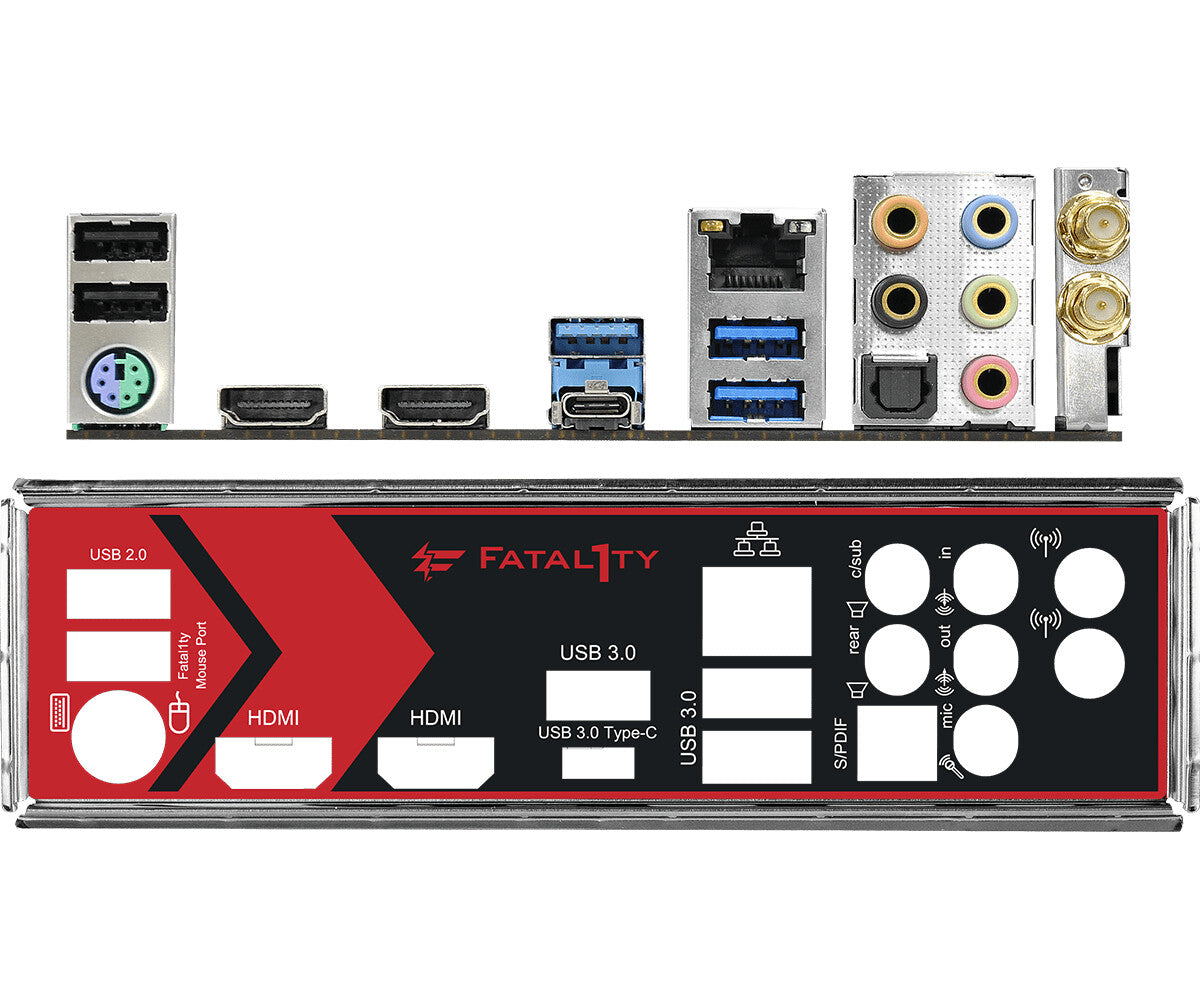

Rear panel I/O ports | |
---|---|
S/PDIF out port | Yes |
HDMI ports quantity | 2 |
PS/2 ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
Network | |
---|---|
Bluetooth version | 4.2 |
Bluetooth | Yes |
Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Wi-Fi | Yes |
Wake-on-LAN ready | Yes |
LAN controller | Intel® I211-AT |
Ethernet interface type | Gigabit Ethernet |
Ethernet LAN | Yes |
Features | |
---|---|
Certification | FCC, CE, ErP/EuP |
Windows operating systems supported | Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64 |
Power source type | ATX |
PC health monitoring | CPU, Fan, Temperature, Voltage |
Audio output channels | 7.1 channels |
Audio chip | Realtek ALC1220 |
Motherboard chipset | AMD B350 |
Motherboard chipset family | AMD |
Motherboard form factor | mini ITX |
Component for | PC |
Expansion slots | |
---|---|
PCI Express x16 (Gen 3.x) slots | 1 |
BIOS | |
---|---|
System Management BIOS (SMBIOS) version | 2.3 |
ACPI version | 5.1 |
BIOS memory size | 128 Mbit |
BIOS type | UEFI AMI |
Weight & dimensions | |
---|---|
Depth | 170 mm |
Width | 170 mm |
Packaging content | |
---|---|
Drivers included | Yes |
Cables included | SATA |
Other features | |
---|---|
Quick installation guide | Yes |
