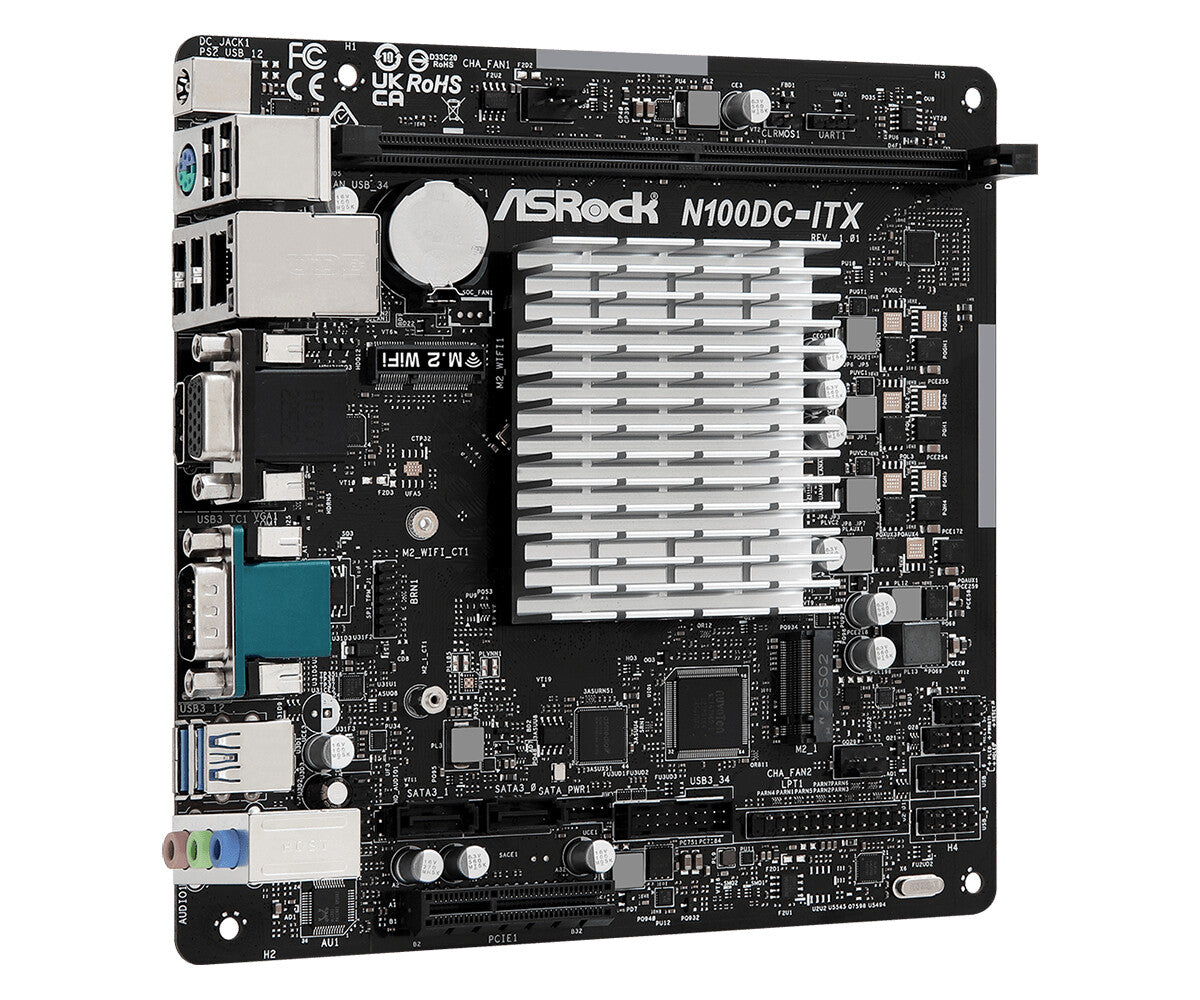

Intel® Alder Lake-N N100 Processor
The newest Intel® N100 processor, built on the Gracemont CPU microarchitecture using the Intel® 7 process, features 4 E-cores with a turbo frequency of 3.4GHz and Intel® UHD Graphics with 24 EUs. It is suitable for affordable, entry-level computing.
DC-In Design
The DC-In jack is compatible with 19V power adapters (5.5*2.5mm DC-in jack). Without a bulky power supply unit, this unique design allows this motherboard to fit in compact chassis.

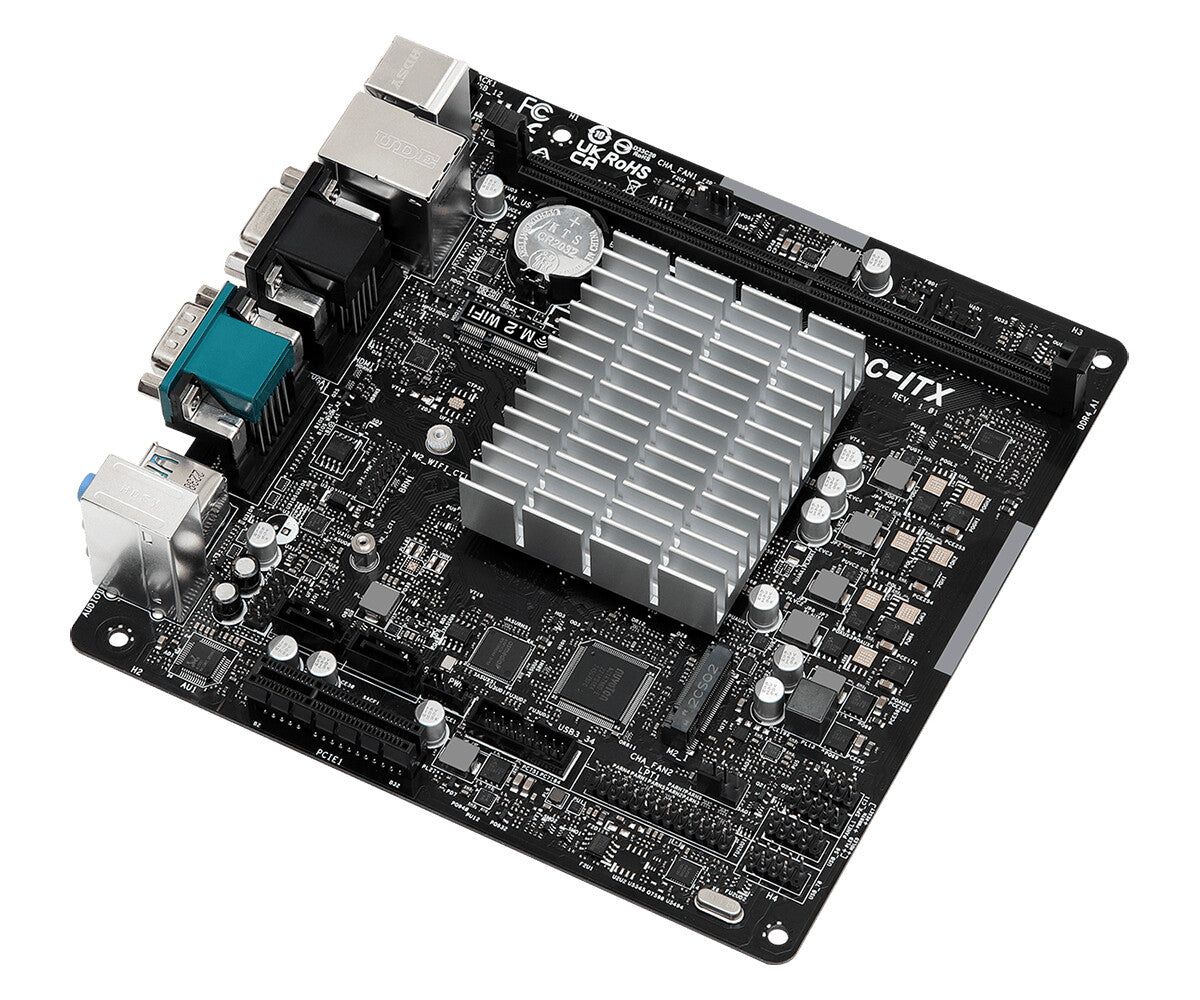

Fanless Design
The CPU is covered by a specially designed heatsink which allows advanced heat dissipation. Utilizing an ultra quiet fanless design, this ASRock motherboard provides the most silent computing environment.
AV1 Decoding + 4K
Supports 10-bit HEVC & VP9 encoding/decoding, hardware-accelerated AV1 decoding, and a max. resolution of up to 4K x 2K 60Hz.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!
Processor | |
---|---|
Processor cores | 4 |
Processor model | N100 |
Compatible processor series | Not supported |
Processor socket | NA (integrated CPU) |
Processor manufacturer | Intel |
Memory | |
---|---|
Unbuffered memory | Yes |
Maximum internal memory | 32 GB |
Supported memory clock speeds | 3200 MHz |
Non-ECC | Yes |
Memory slots type | DIMM |
Number of memory slots | 1 |
Supported memory types | DDR4-SDRAM |
Storage controllers | |
---|---|
Supported storage drive interfaces | M.2 |
Supported storage drive types | HDD & SSD |
Graphics | |
---|---|
Parallel processing technology support | Not supported |
Internal I/O | |
---|---|
TPM connector | Yes |
Number of chassis fan connectors | 2 |
Front panel audio connector | Yes |
Number of SATA III connectors | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
USB 2.0 connectors | 2 |

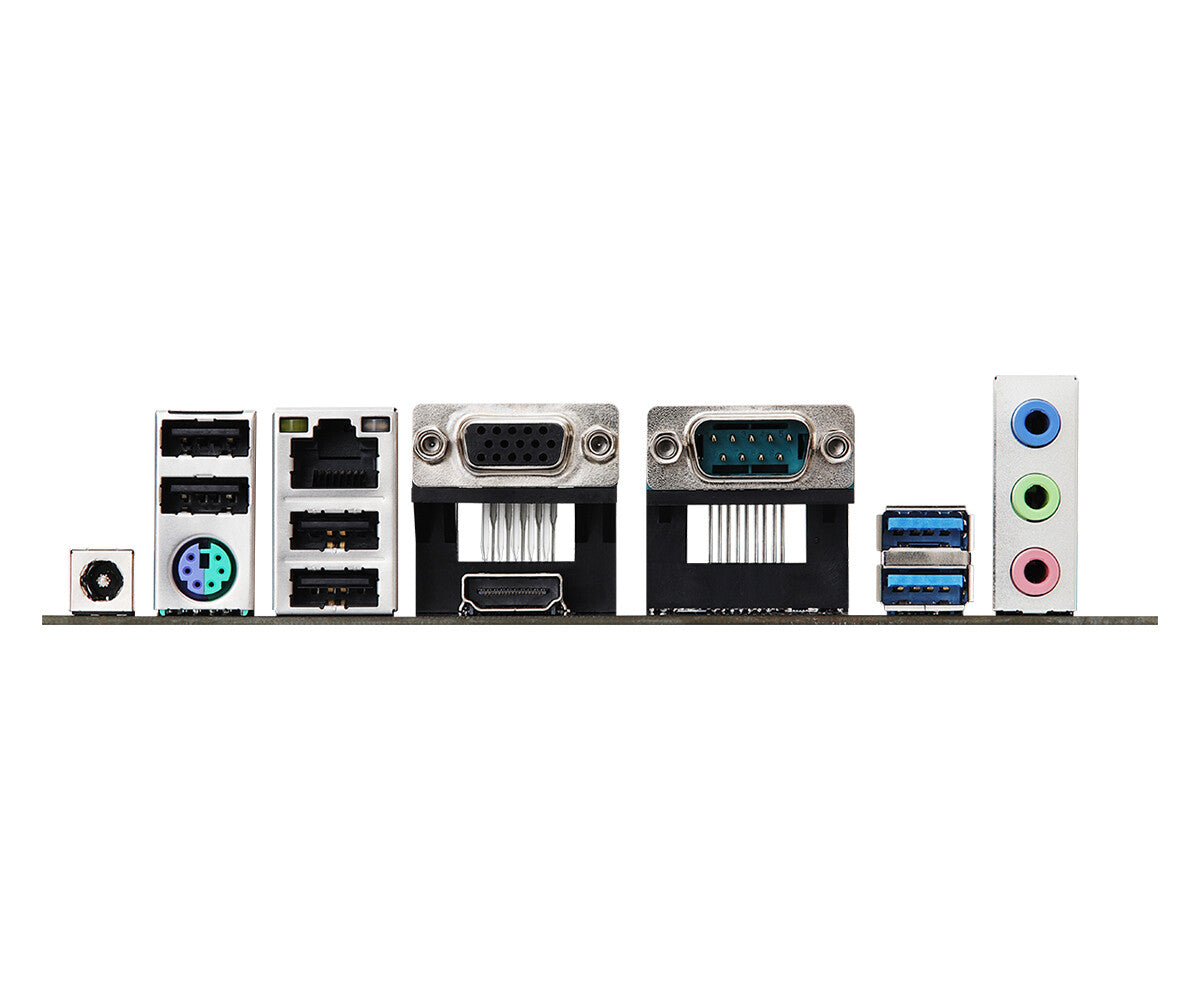

Rear panel I/O ports | |
---|---|
Serial ports quantity | 1 |
Microphone in | Yes |
Headphone outputs | 1 |
HDMI ports quantity | 1 |
VGA (D-Sub) ports quantity | 1 |
PS/2 ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
USB 2.0 ports quantity | 4 |
Network | |
---|---|
Wi-Fi | No |
LAN controller | Realtek RTL8111H |
Ethernet interface type | Gigabit Ethernet |
Ethernet LAN | Yes |
Features | |
---|---|
Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Audio output channels | 7.1 channels |
Audio chip | Realtek ALC897 |
Motherboard chipset family | Intel |
Motherboard form factor | mini ITX |
Component for | PC |
Expansion slots | |
---|---|
Number of M.2 (M) slots | 1 |
BIOS | |
---|---|
BIOS type | UEFI AMI |
Weight & dimensions | |
---|---|
Depth | 170 mm |
Width | 170 mm |
