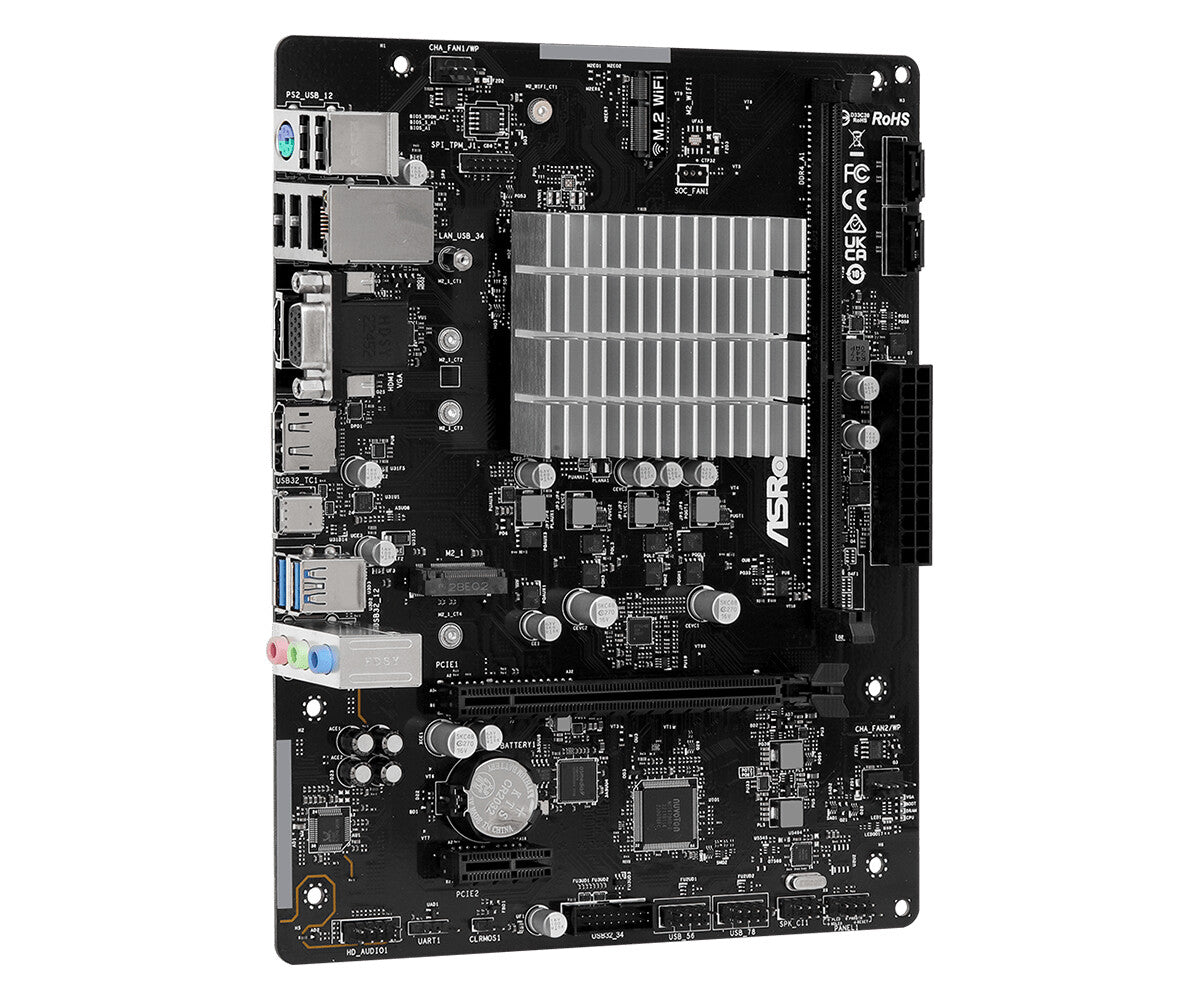

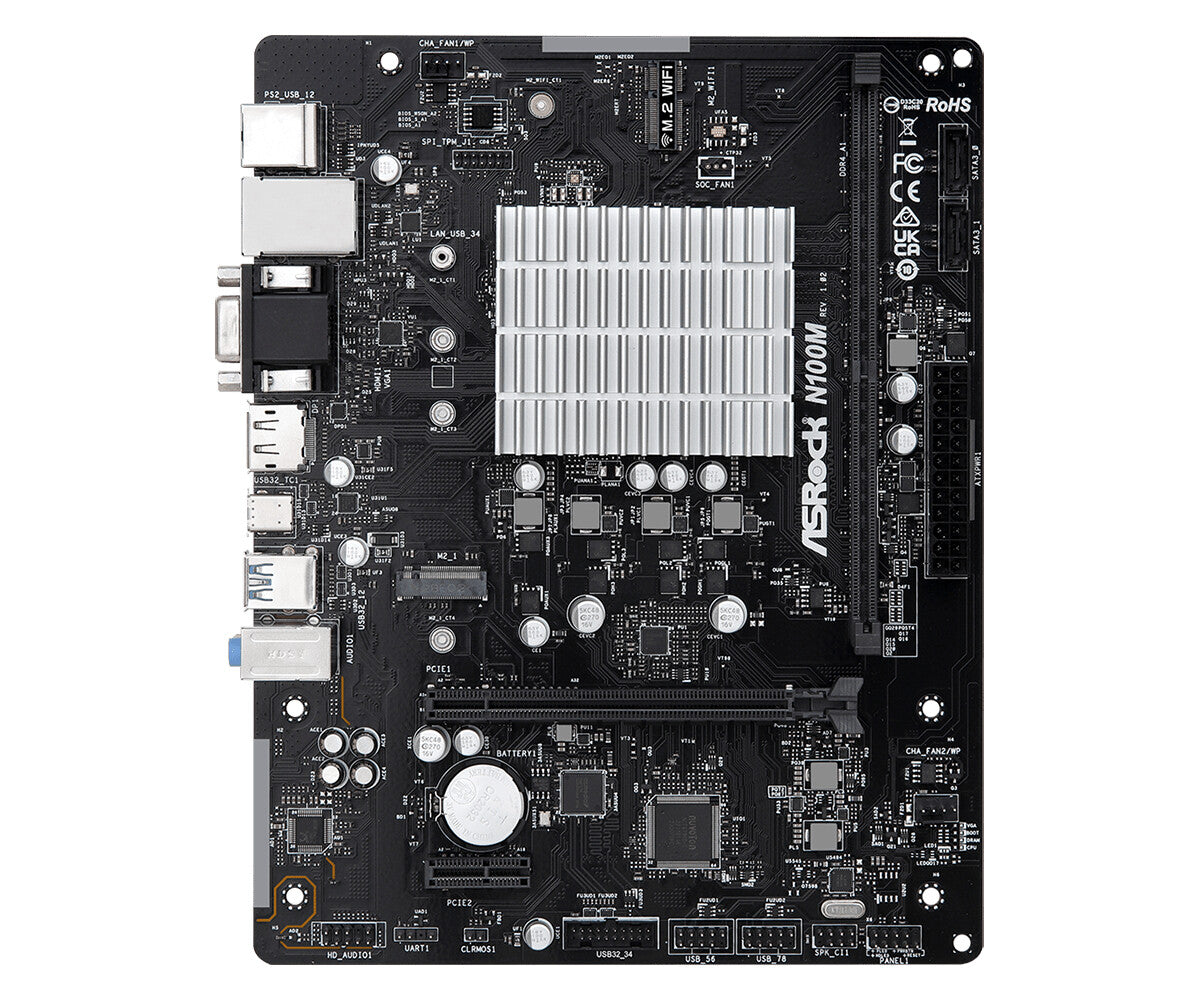

Intel® Alder Lake-N N100 Processor
The newest Intel® N100 processor, built on the Gracemont CPU microarchitecture using the Intel® 7 process, features 4 E-cores with a turbo frequency of 3.4GHz and Intel® UHD Graphics with 24 EUs. It is suitable for affordable, entry-level computing.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
*Supported only with processors with integrated graphics. Please check CPU support list from each motherboard webpage.

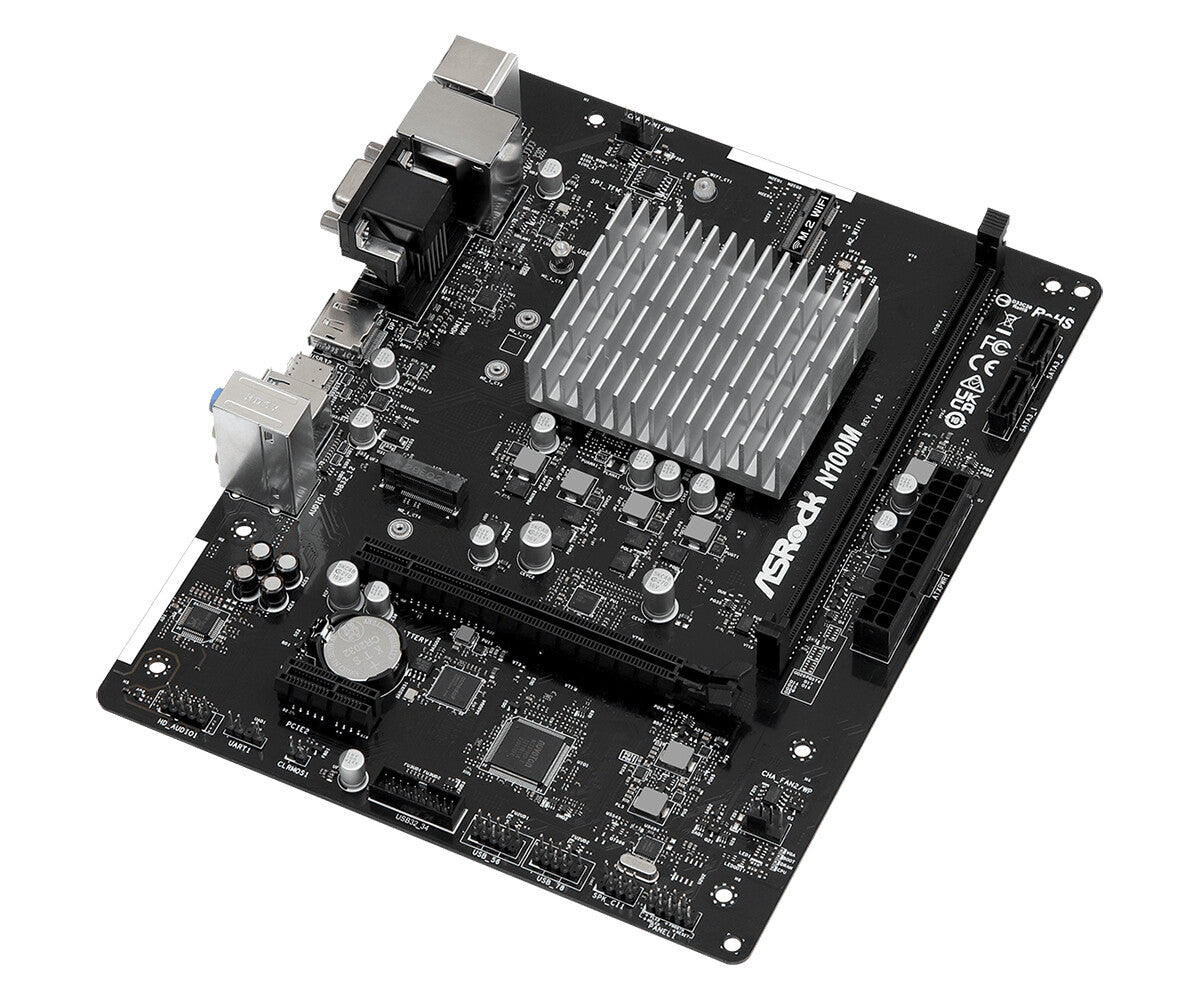

Fanless Design
The CPU is covered by a specially designed heatsink which allows advanced heat dissipation. Utilizing an ultra quiet fanless design, this ASRock motherboard provides the most silent computing environment.
AV1 Decoding + 4K
Supports 10-bit HEVC & VP9 encoding/decoding, hardware-accelerated AV1 decoding, and a max. resolution of up to 4K x 2K 60Hz.
USB 3.2 Gen1 Type-C
USB 3.2 Gen1 Type-C delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the rear panel of computer case.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.
*Wi-Fi module is not included.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!
Processor | |
---|---|
Processor cores | 4 |
Processor model | N100 |
Supported processor sockets | BGA 1264 |
Compatible processor series | Intel Processor N |
Processor socket | NA (integrated CPU) |
Processor manufacturer | Intel |
Memory | |
---|---|
Unbuffered memory | Yes |
Maximum internal memory | 32 GB |
Supported memory clock speed (max) | 3200 MHz |
Non-ECC | Yes |
Memory slots type | DIMM |
Number of memory slots | 1 |
Supported memory types | DDR4-SDRAM |
Storage controllers | |
---|---|
Number of HDDs supported | 2 |
Number of storage drives supported | 3 |
Supported storage drive interfaces | M.2, SATA III |
Supported storage drive types | HDD & SSD |
Graphics | |
---|---|
Number of displays supported | 3 |
HDCP | Yes |
Maximum resolution | 4096 x 2160 pixels |
Graphics card | Intel® UHD Graphics |
Graphics card family | Intel |
Internal I/O | |
---|---|
TPM connector | Yes |
Chassis intrusion connector | Yes |
Number of chassis fan connectors | 2 |
ATX Power connector (24-pin) | Yes |
Front panel audio connector | Yes |
Number of SATA III connectors | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
USB 2.0 connectors | 2 |

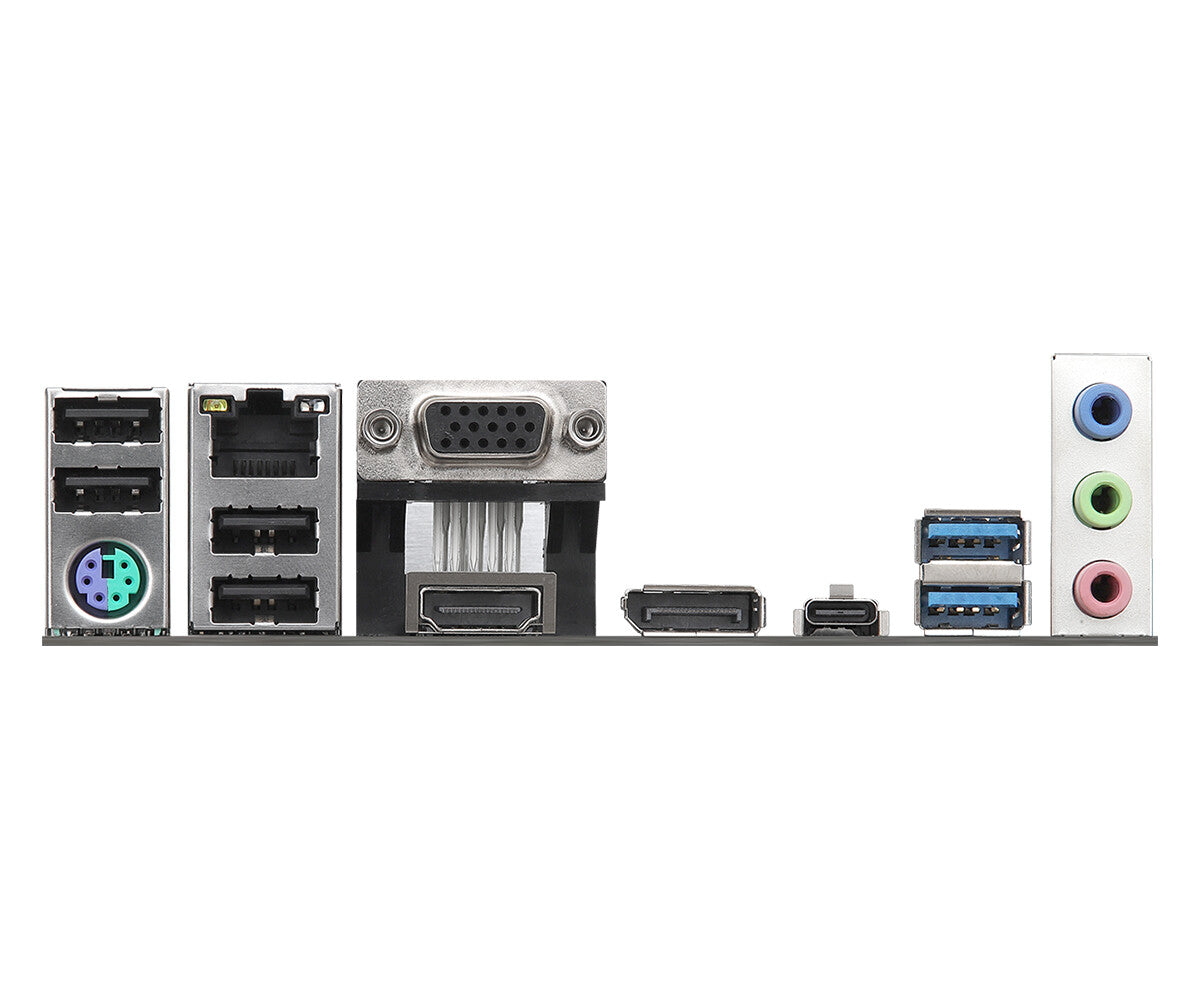

Rear panel I/O ports | |
---|---|
Microphone in | Yes |
Line-in | Yes |
Headphone outputs | 1 |
DisplayPort version | 1.4 |
DisplayPorts quantity | 1 |
HDMI version | 2.1 |
HDMI ports quantity | 1 |
VGA (D-Sub) ports quantity | 1 |
PS/2 ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
USB 2.0 ports quantity | 4 |
Network | |
---|---|
LAN controller | Realtek 8111H |
Ethernet interface type | Gigabit Ethernet |
Ethernet LAN | Yes |
Features | |
---|---|
Certification | - FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required) |
Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Audio output channels | 7.1 channels |
Audio chip | Realtek ALC897 |
Motherboard chipset family | Intel |
Motherboard form factor | micro ATX |
Component for | PC |
Expansion slots | |
---|---|
Number of M.2 (M) slots | 1 |
PCI Express x16 (Gen 3.x) slots | 1 |
PCI Express x1 (Gen 3.x) slots | 1 |
BIOS | |
---|---|
BIOS memory size | 128 Mbit |
BIOS type | UEFI AMI |
Weight & dimensions | |
---|---|
Depth | 178 mm |
Width | 226 mm |
Packaging content | |
---|---|
Bundled software | - ASRock Motherboard Utility (A-Tuning)- ASRock XFast LAN |
Drivers included | Yes |
Cables included | SATA |
Technical details | |
---|---|
Sustainability certificates | Federal Communications Commission (FCC) |
