Socket AM4, AMD X570 Chipset, 4 x DDR4-SDRAM up to 128GB, LAN, 1 x RJ-45, 8 x SATA III, 2 x M.2(M), 1 x M.2(E), UEFI AMI, ATX
REVOLUTIONARY X570 MOTHERBOARDS :
Your PC Transformed
Style . More reliable. Design that delivers.
STEEL SLOT WITH NEW-GEN PCI EXPRESS 4.0
The next generation PCI Express 4.0 is capable of performing twice the speed compared to previous 3rd generation. ASRock’s exclusive Steel Slot with extra anchor points are revolutionary added to ensure signal stability and also making sure heavy graphics cards to be well-installed in the PCI-E slot safely.
Dual Hyper M.2 For SSD
Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
10 POWER PHASE DESIGN
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
Post Status Checker
An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem.
2 x USB3.2 Gen2
Delivering data transfer rates up to 10X faster than USB 2.0 with optimized power efficiency. USB 3.2 Gen2 technology advances the data transfer rate up to 10Gb/s. ASRock provides 2 x USB 3.2 Gen2 ports onboard allows you to have a stunning data transfer experience.
Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
| Processor |
|---|
| Supported processor sockets |
Socket AM4 |
| Maximum number of SMP processors |
1 |
| Compatible processor series |
2nd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 3, 2nd Generation AMD Ryzen™ 5, 3rd Generation AMD Ryzen 5, 2nd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9 |
| Processor socket |
Socket AM4 |
| Processor manufacturer |
AMD |
| Memory |
|---|
| Unbuffered memory |
Yes |
| Maximum internal memory |
128 GB |
| Supported memory module capacities |
4GB, 8GB, 16GB, 32GB |
| Supported memory clock speed (max) |
4466 MHz |
| Supported memory clock speeds |
2133,2400,2667,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4300,4400,4466 MHz |
| Non-ECC |
Yes |
| ECC |
Yes |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Supported memory types |
DDR4-SDRAM |
| Storage controllers |
|---|
| Supported storage drive interfaces |
M.2, PCI Express 3.0, SATA III |
| Graphics |
|---|
| DirectX version |
12.0 |
| HDCP |
Yes |
| Maximum resolution |
4096 x 2160 pixels |
| Parallel processing technology support |
CrossFireX, Quad-GPU CrossFireX |
| Internal I/O |
|---|
| RGB LED pin header |
Yes |
| Thunderbolt headers |
1 |
| Number of COM connectors |
1 |
| TPM connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| Number of chassis fan connectors |
3 |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Front panel connector |
Yes |
| Front panel audio connector |
Yes |
| Number of SATA III connectors |
8 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| USB 2.0 connectors |
1 |

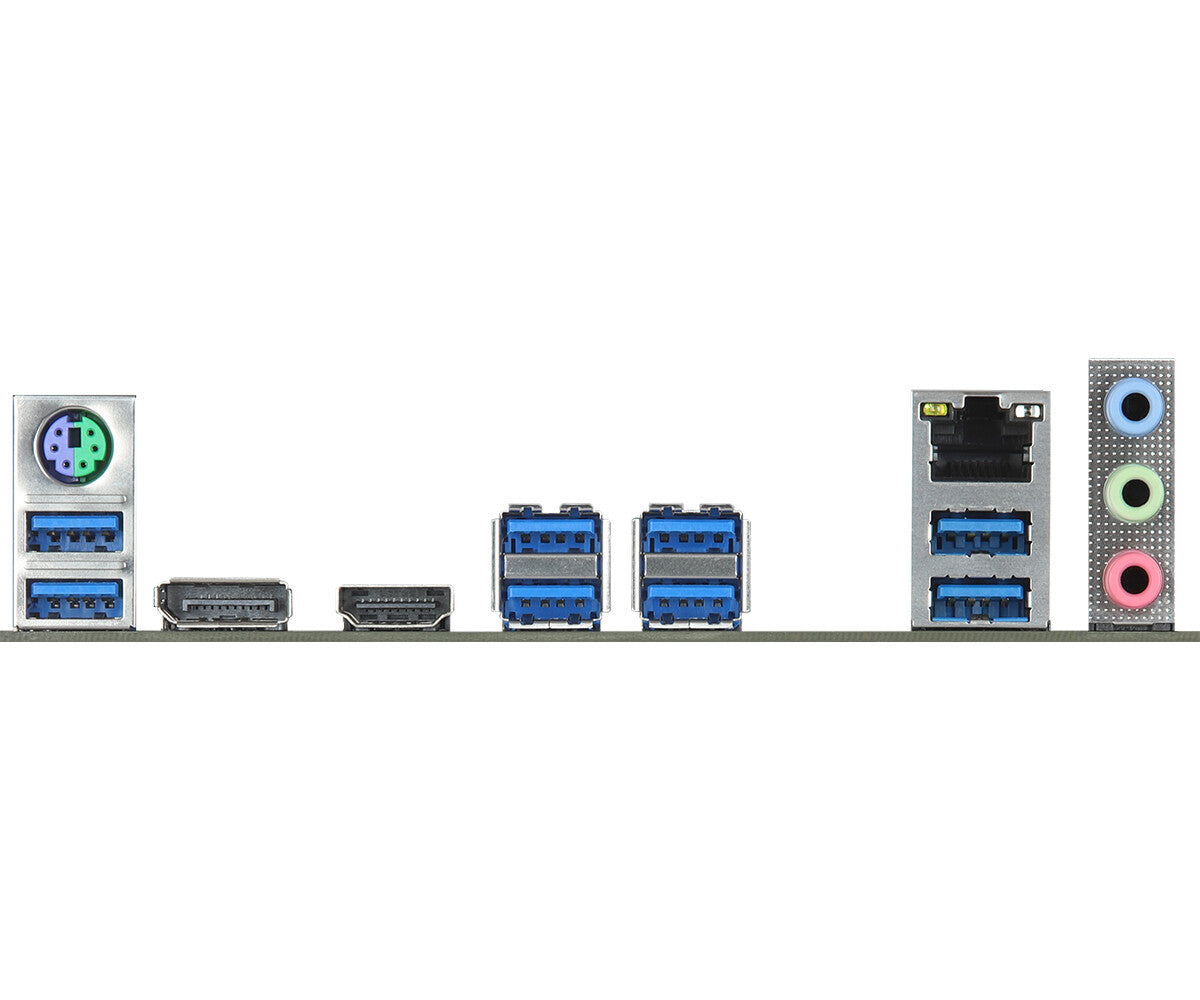

| Rear panel I/O ports |
|---|
| WiFi-AP antenna jack |
3 |
| Microphone in |
Yes |
| DisplayPort version |
1.2 |
| DisplayPorts quantity |
1 |
| HDMI version |
2.0 |
| HDMI ports quantity |
1 |
| PS/2 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
6 |
| Network |
|---|
| Wi-Fi |
No |
| Wake-on-LAN ready |
Yes |
| LAN controller |
Intel® I211-AT |
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
|---|
| Certification |
FCC, CE, ErP/EuP |
| Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
| Power source type |
ATX |
| PC health monitoring |
CPU, Fan, Temperature, Voltage, Water cooling |
| Audio output channels |
7.1 channels |
| Audio chip |
Realtek ALC1200 |
| Motherboard chipset |
AMD X570 |
| Motherboard chipset family |
AMD |
| Motherboard form factor |
ATX |
| Component for |
PC |
| Expansion slots |
|---|
| Number of M.2 (M) slots |
2 |
| PCI Express x16 (Gen 4.x) slots |
2 |
| PCI Express x1 slots |
2 |
| BIOS |
|---|
| System Management BIOS (SMBIOS) version |
2.3 |
| Plug and Play |
Yes |
| ACPI version |
5.1 |
| BIOS memory size |
256 Mbit |
| BIOS type |
UEFI AMI |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
| Weight & dimensions |
|---|
| Depth |
229 mm |
| Width |
305 mm |
| Packaging content |
|---|
| Drivers included |
Yes |
| Cables included |
SATA |
| Other features |
|---|
| Number of M.2 (E) slots |
1 |
