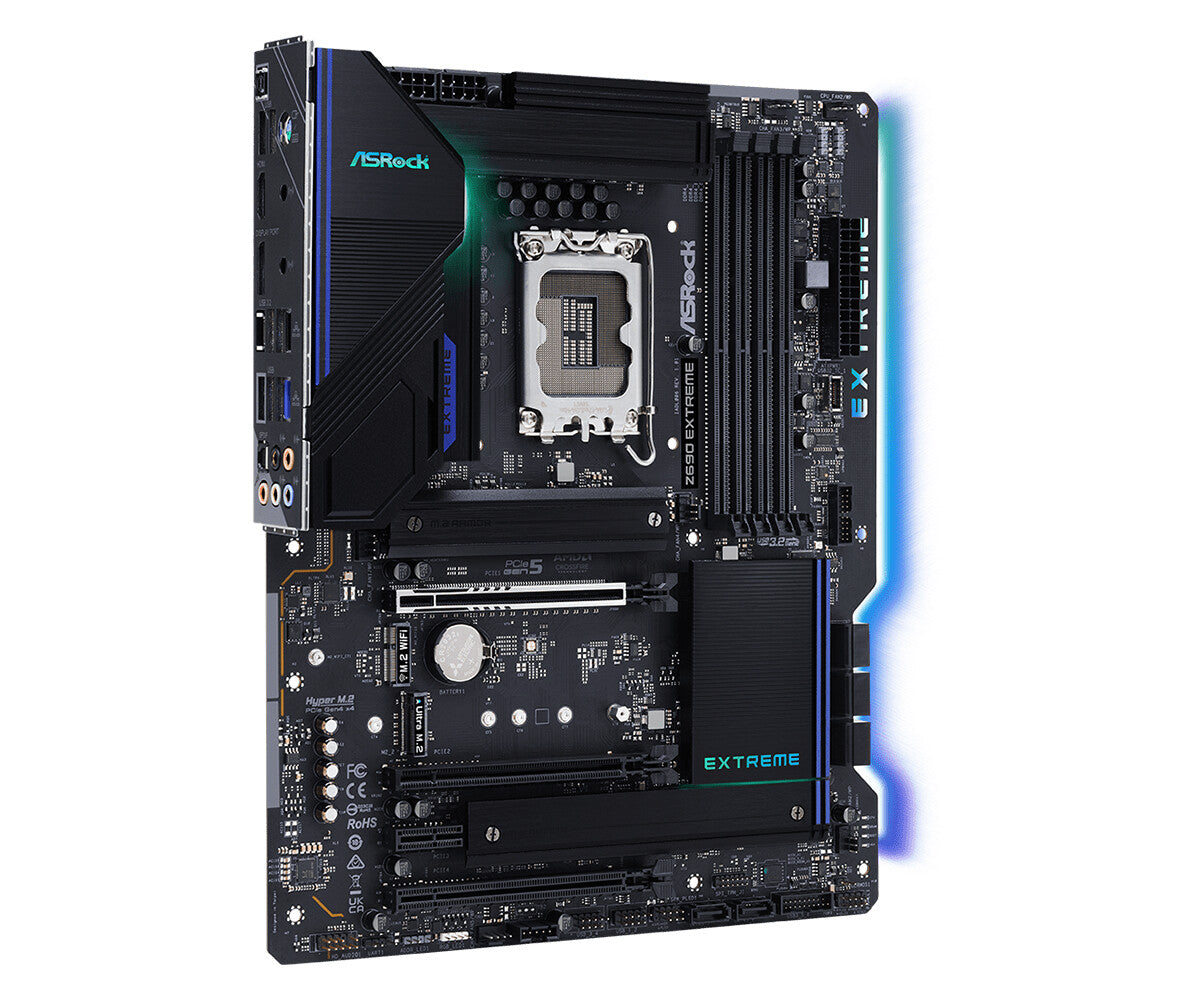

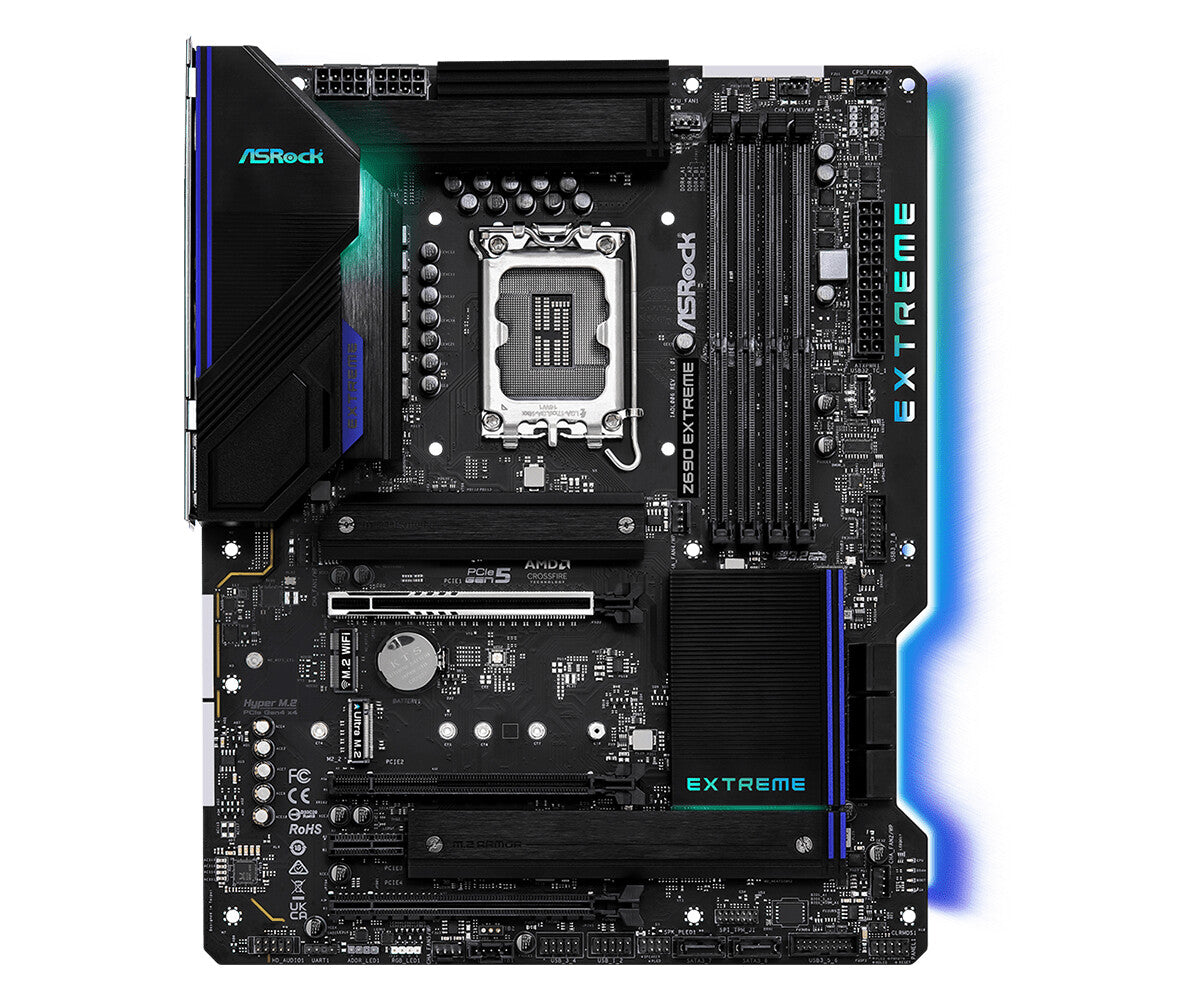

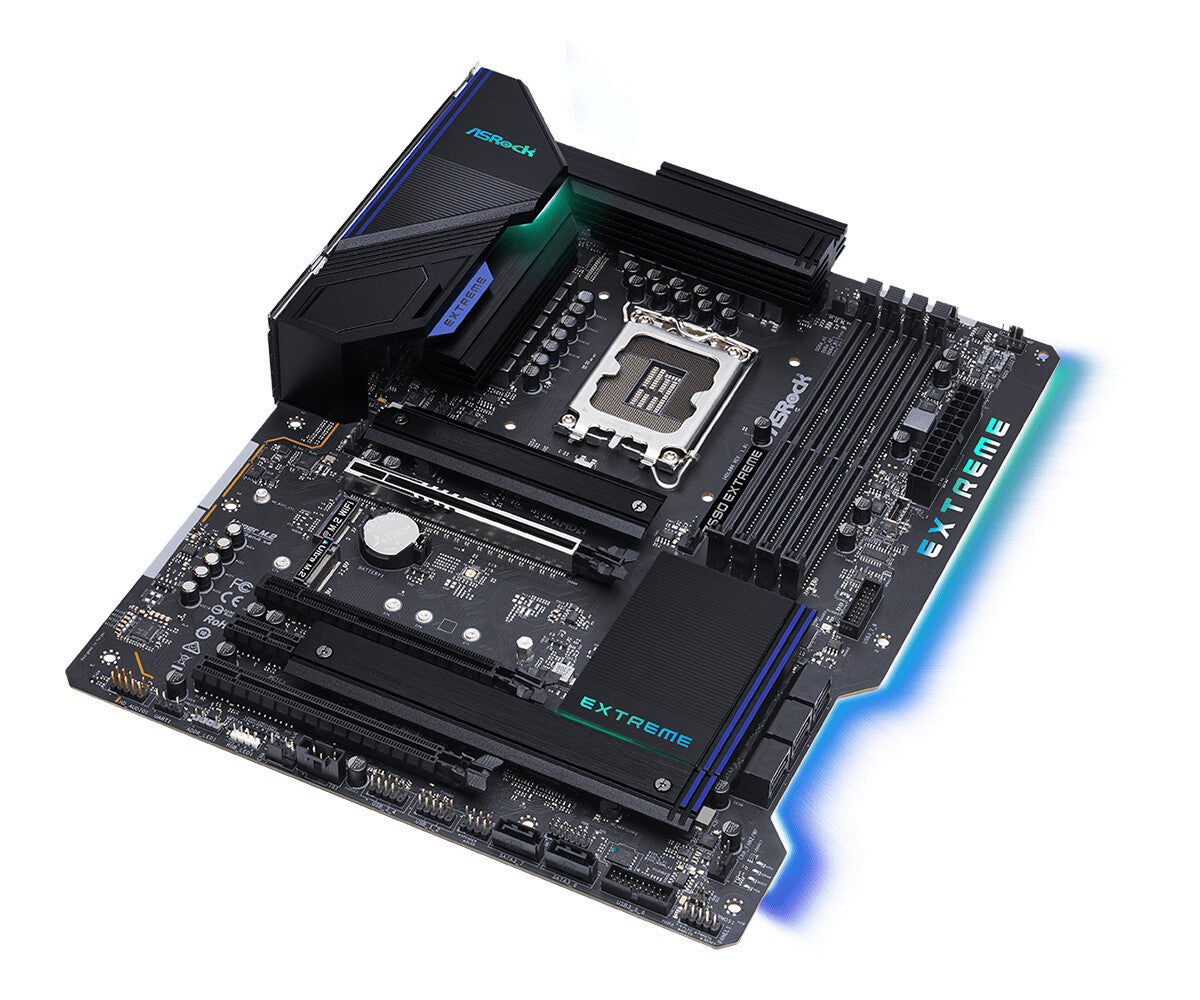

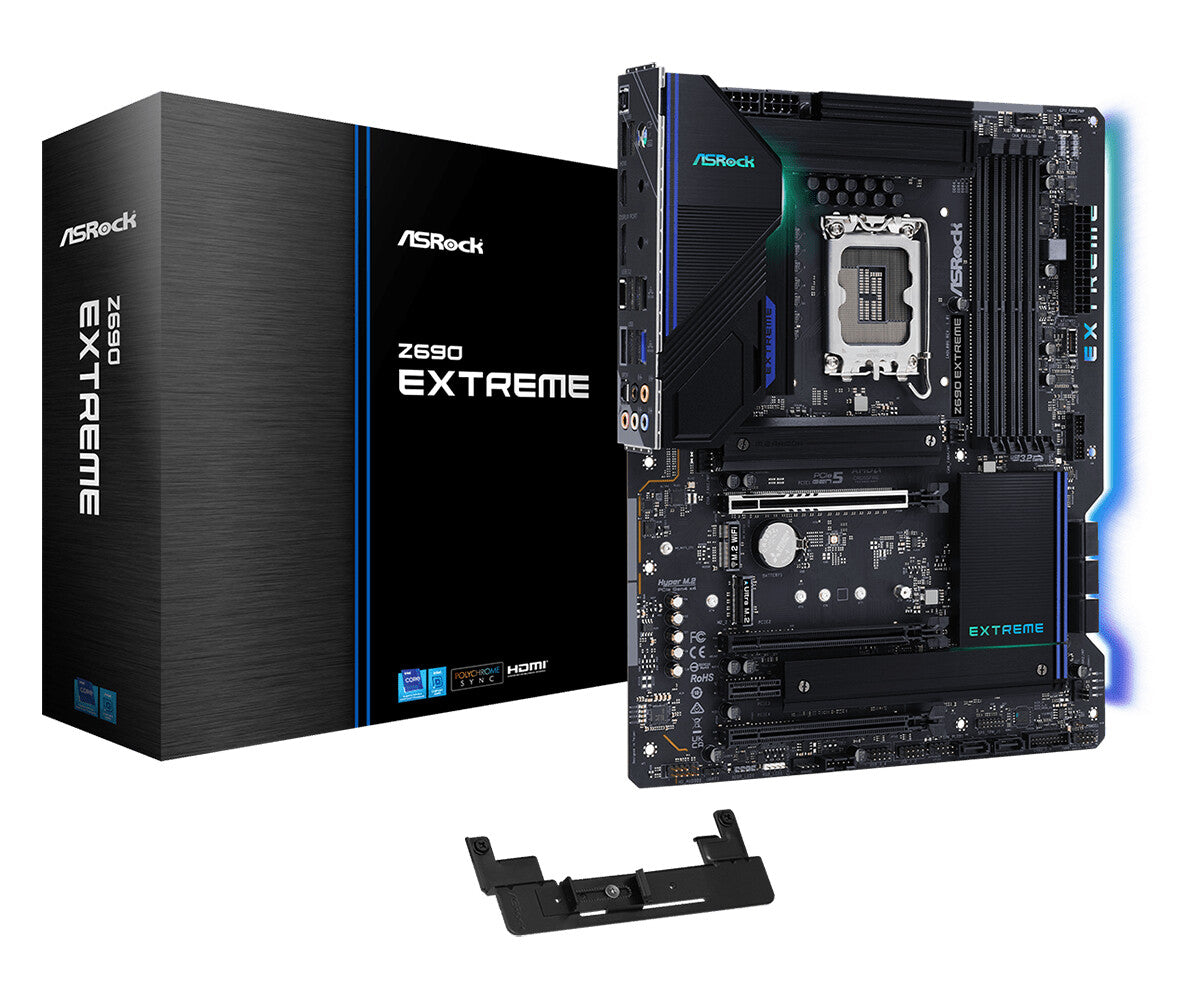

    Asrock Z690 Extreme ATX motherboard - Intel Z690 LGA 1700

    Asrock Z690 Extreme ATX motherboard - Intel Z690 LGA 1700

    (UK Consumers)
    ex. VAT (Rest of World)
    PayPal Credit 0% for 4 months
    GLOBAL SHIPPING – UPS & DHL
    BUSINESS CUSTOMERS – please email: Sales@clove.co.uk
    FAST SHIPPING – All orders

    Key Features

    • Supports 12th Gen Intel® Core™ Processors (LGA1700)
    • 13 Phase SPS Dr.MOS Power Design
    • Supports DDR4 5000MHz (OC)
    • 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
    • Graphics Output Options: HDMI, DisplayPort
    • Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
    • 8 SATA3
    • 2 Hyper M.2 (PCIe Gen4 x4)
    • 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
    • 1 USB 3.2 Gen2x2 Front Type-C
    • 2 USB 3.2 Gen2 (Rear Type A+C)
    • 8 USB 3.2 Gen1 (4 Rear, 4 Front)
    • Dragon 2.5G LAN, Intel® Gigabit LAN
    • ASRock Graphics Card Holder

    Intel Z690, 4 x DDR4, 256Mb AMI UEFI BIOS, 7.1 CH HD Audio, 2.5 Gigabit LAN, ATX

    Optimized VRM Design

    SPS (Smart Power Stage)
    Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.

    13 Power Phase Design
    Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

    6 Layer PCB
    The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!

    2oz Copper PCB
    2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

    PCIe 5.0 + Surface-Mount Tech
    Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
    The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.

    Nahimic Audio
    Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

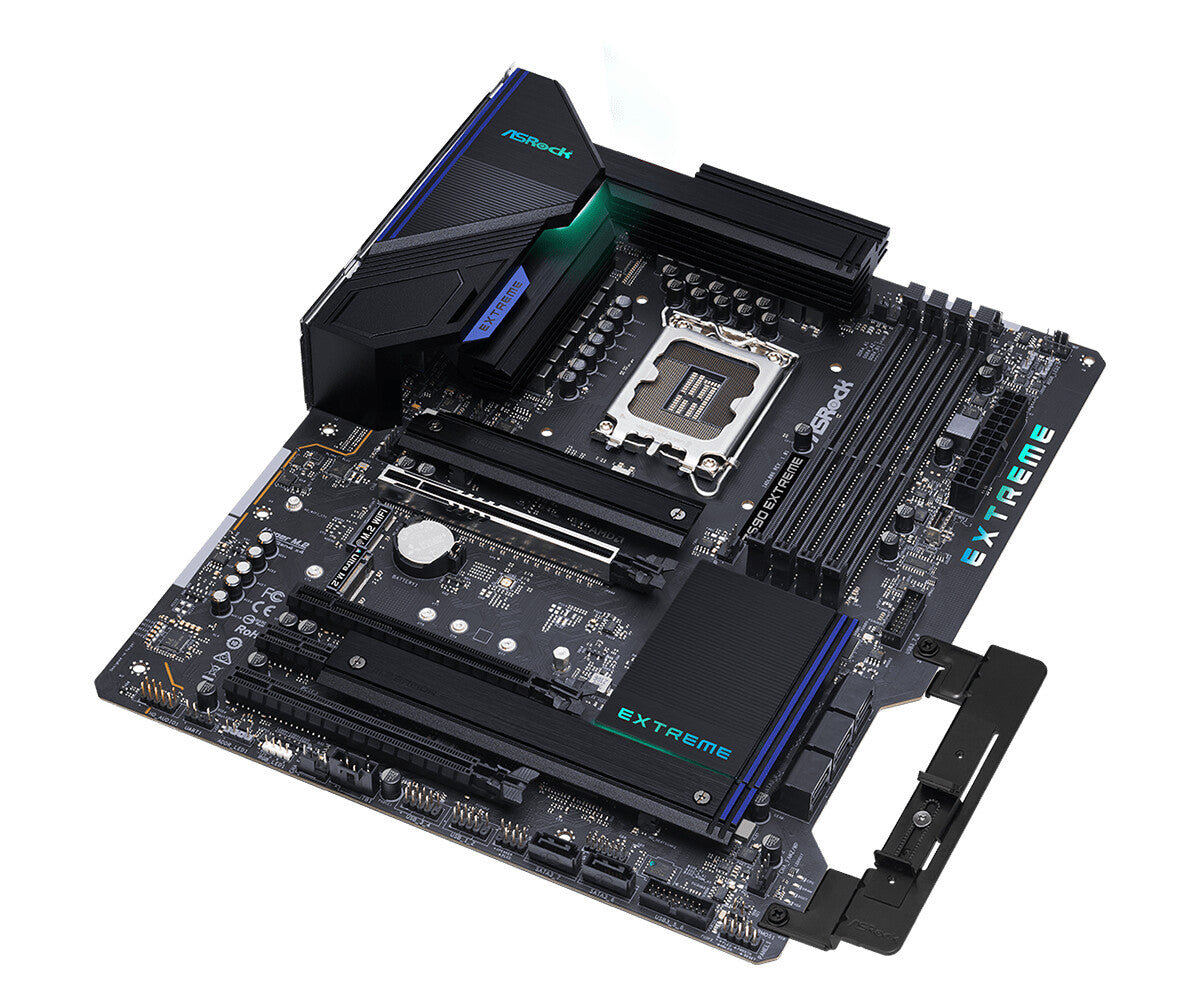

    ASRock Graphics Card Holder
    Install your heavy graphics card on the holder; connect it to your motherboard and chassis with screws. Flexibly slide up and down to perfectly adjust the height required for your graphics card in place.

    POLYCHROME RGB
    In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
    *The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
    *The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

    High Speed M.2 Solution

    PCIe Gen4 x4 for SSD
    This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

    Anti-Drop Screw
    Tired of dropping screws or screws missing inside chassis?

    The enhanced M.2 heatsink with anti-drop screw design that make sure installation process more easily.

    Dragon 2.5 Gb/s LAN
    The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

    Intel® Gigabit LAN
    Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

    Front USB 3.2 Gen2x2 Type-C
    The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

    Dual USB 3.2 Gen2 (Type-A + Type-C)
    This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

    EZ Setting

    Auto Driver Installer
    No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
    step1: Install Auto Driver Installer
    step2: Update drivers needed
    step3: Done!

    BIOS Flashback
    Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.

    Flexible Integrated IO Shield
    Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.

    Processor
    Compatible processor series Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
    Processor socket LGA 1700
    Processor manufacturer Intel
    Memory
    Unbuffered memory Yes
    Maximum internal memory 128 GB
    Non-ECC Yes
    Memory channels Dual-channel
    Memory slots type DIMM
    Number of memory slots 4
    Supported memory types DDR4-SDRAM
    Storage controllers
    RAID levels 0, 1, 5, 10
    RAID support Yes
    Supported storage drive interfaces M.2, SATA III
    Internal I/O
    TPM connector Yes
    EPS power connector (8-pin) Yes
    Number of chassis fan connectors 5
    CPU fan connector Yes
    ATX Power connector (24-pin) Yes
    Front panel audio connector Yes
    Number of SATA III connectors 8
    USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
    USB 2.0 connectors 2

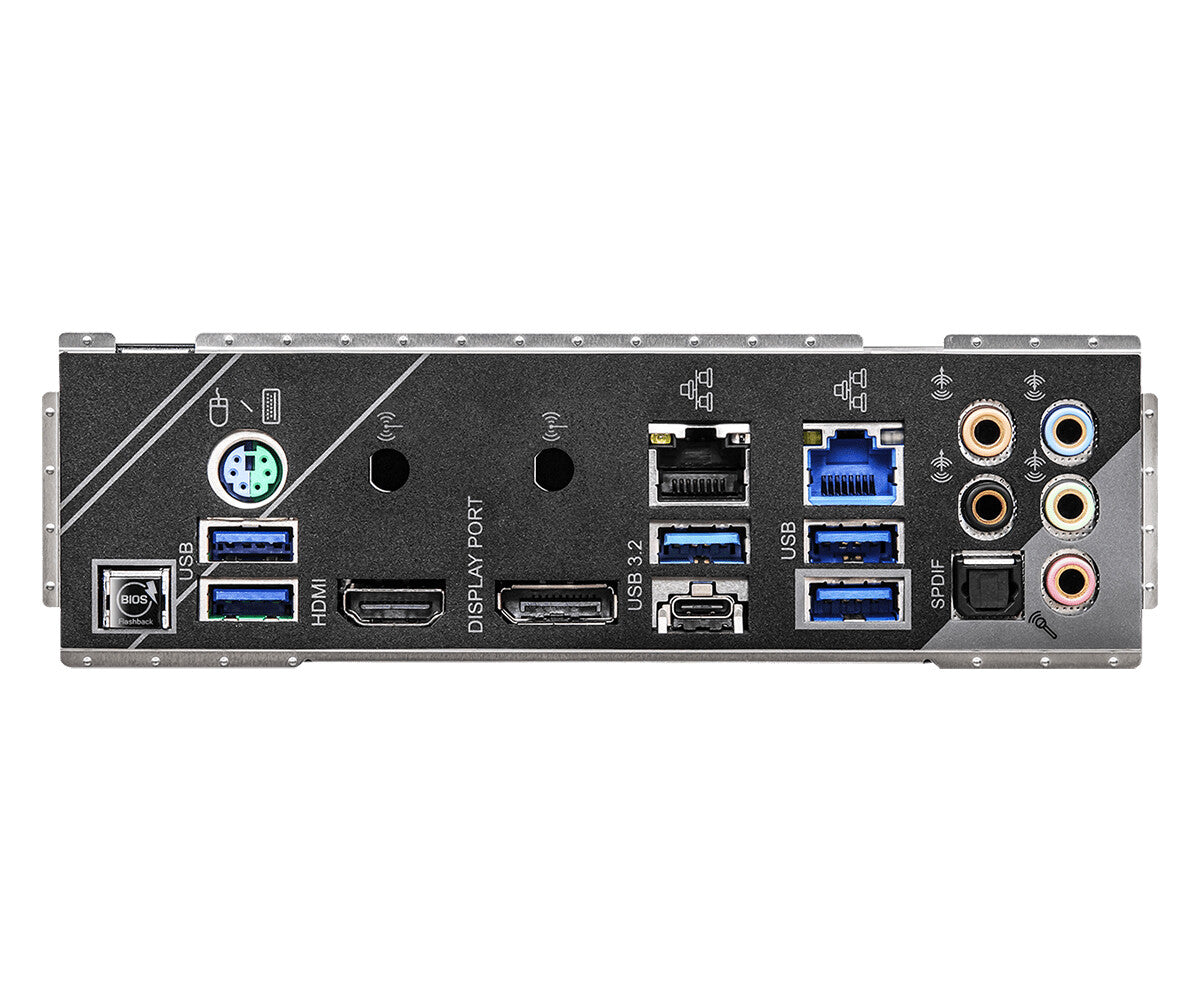

    Rear panel I/O ports
    S/PDIF out port Yes
    DisplayPort version 1.4
    DisplayPorts quantity 1
    HDMI ports quantity 1
    PS/2 ports quantity 1
    Ethernet LAN (RJ-45) ports 2
    USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
    USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
    Network
    Wi-Fi No
    Wake-on-LAN ready Yes
    LAN controller Dragon RTL8125BG, Intel WGI219V
    Ethernet interface type 2.5 Gigabit Ethernet, Gigabit Ethernet
    Ethernet LAN Yes
    Features
    Certification - FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)- CEC Tier II ready
    Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64
    Audio output channels 7.1 channels
    Audio chip Realtek ALC1220
    Motherboard chipset Intel Z690
    Motherboard chipset family Intel
    Motherboard form factor ATX
    Component for PC
    Expansion slots
    Number of M.2 (M) slots 3
    PCI Express x16 (Gen 5.x) slots 1
    PCI Express x16 (Gen 4.x) slots 1
    PCI Express x16 (Gen 3.x) slots 1
    PCI Express x1 (Gen 3.x) slots 1
    BIOS
    ACPI version 6.0
    BIOS memory size 256 Mbit
    BIOS type UEFI AMI
    Logistics data
    Harmonized System (HS) code 84733020
    Weight & dimensions
    Height 70 mm
    Depth 244 mm
    Width 305 mm
    Other features
    Weight 1 kg
