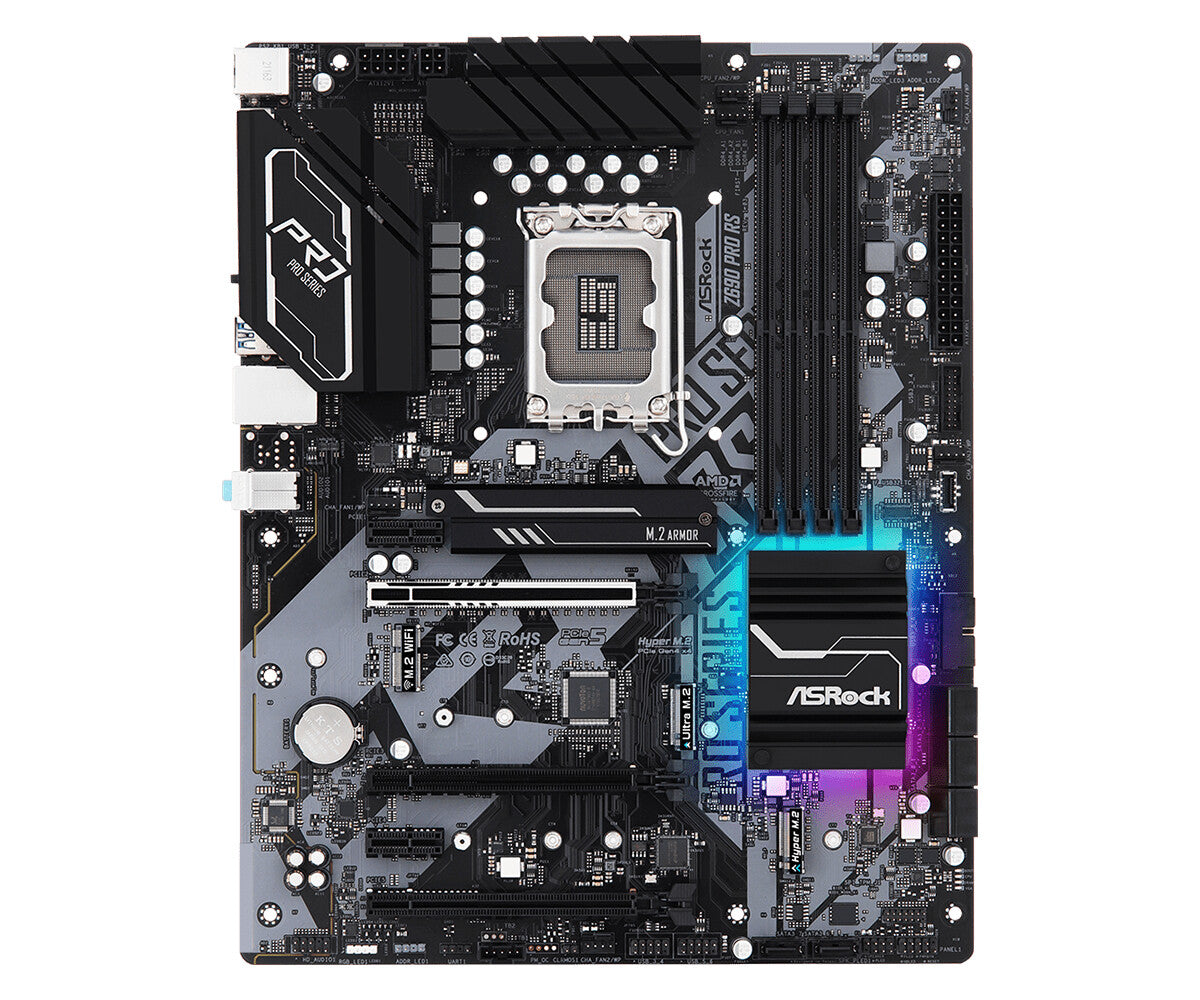

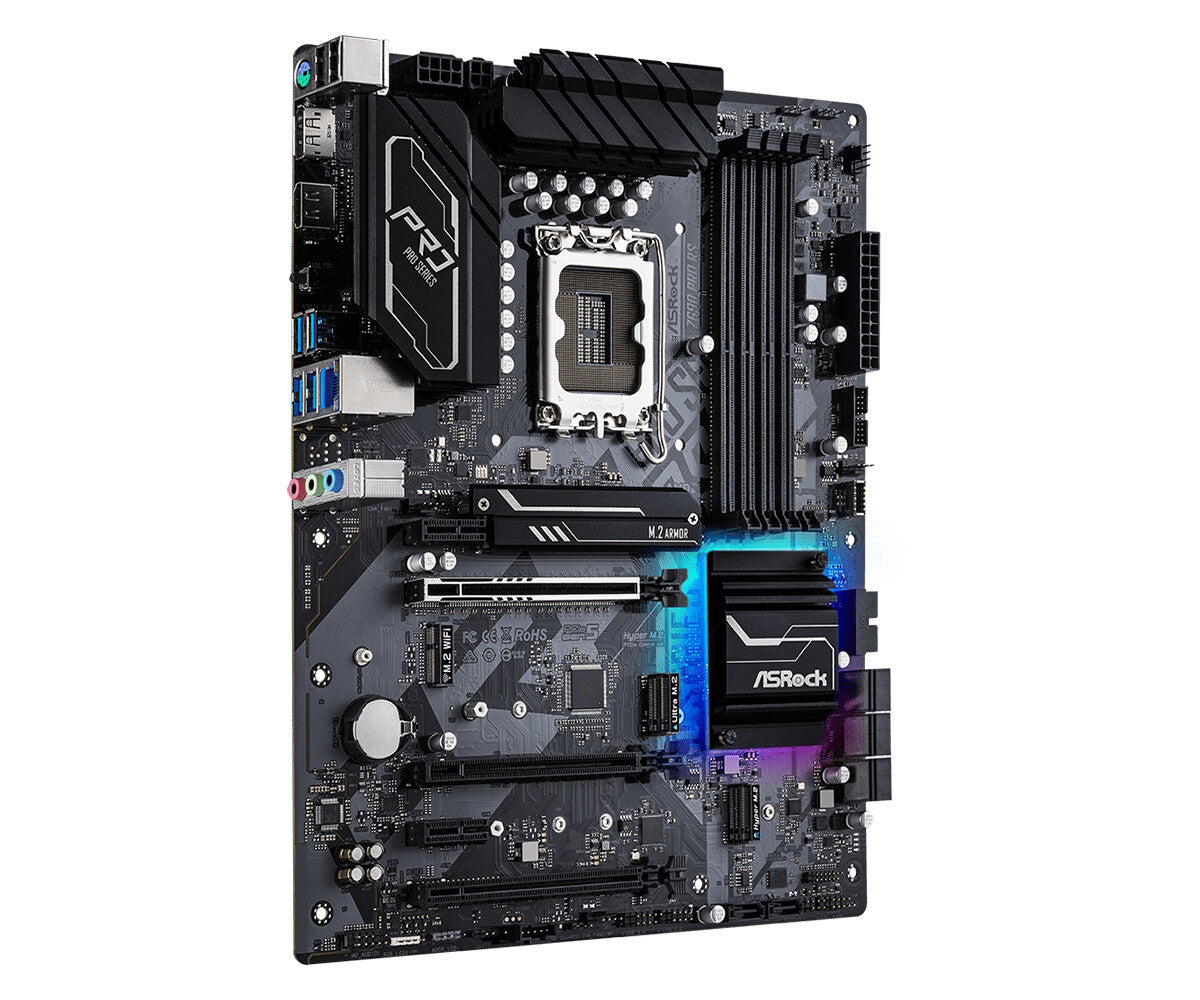

    Asrock Z690 PRO RS ATX motherboard - Intel Z690 LGA 1700

    Asrock Z690 PRO RS ATX motherboard - Intel Z690 LGA 1700

    (UK Consumers)
    ex. VAT (Rest of World)
    PayPal Credit 0% for 4 months
    GLOBAL SHIPPING – UPS & DHL
    BUSINESS CUSTOMERS – please email: Sales@clove.co.uk
    FAST SHIPPING – All orders

    Key Features

    • Supports 12th Gen Intel® Core™ Processors (LGA1700)
    • 13 Phase Dr.MOS Power Design
    • Supports DDR4 5000MHz (OC)
    • 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1
    • 1 M.2 Key-E for WiFi
    • Graphics Output Options: HDMI, DisplayPort
    • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
    • 8 SATA3
    • 2 Hyper M.2 (PCIe Gen4 x4)
    • 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
    • 1 USB 3.2 Gen2x2 Front Type-C
    • 2 USB 3.2 Gen2 (Rear)
    • 6 USB 3.2 Gen1 (2 Rear, 4 Front)
    • Dragon 2.5G LAN
    • ASRock Graphics Card Holder

    LGA 1700, Intel Z690 Chipset, 4 x DDR4-SDRAM up to 128GB, LAN, 1 x RJ-45, 8 x SATA III, UEFI AMI, ATX

    Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

    PCIe 5.0 + Surface-Mount Tech
    Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
    The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.

    Nahimic Audio
    Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

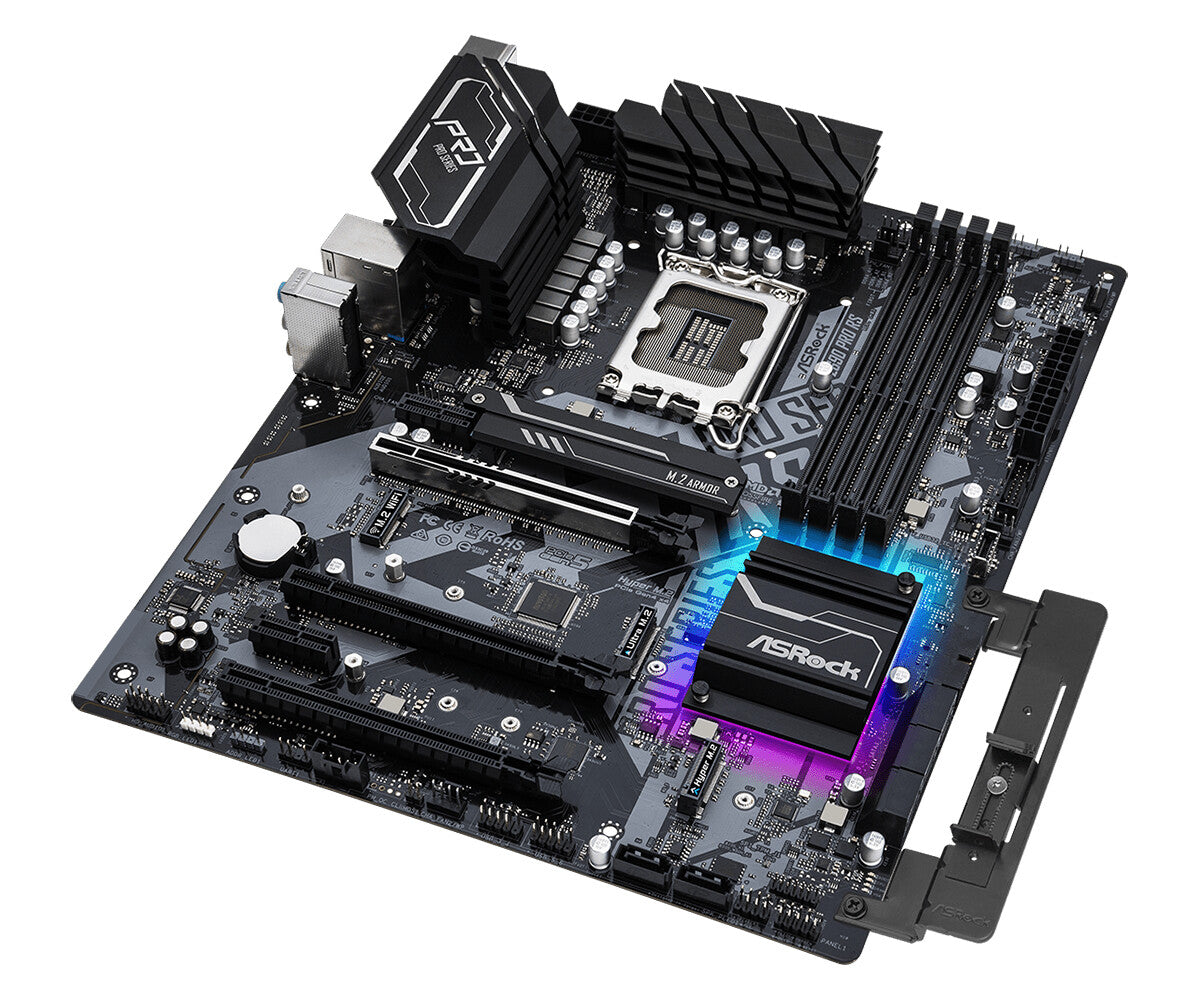

    ASRock Graphics Card Holder
    Install your heavy graphics card on the holder; connect it to your motherboard and chassis with screws. Flexibly slide up and down to perfectly adjust the height required for your graphics card in place.

    POLYCHROME RGB
    In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

    High Speed M.2 Solution
    This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

    Dragon 2.5 Gb/s LAN
    The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

    Front USB 3.2 Gen2x2 Type-C
    The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

    BIOS Flashback
    Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.

    M.2 (KEY E) For WiFi
    Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

    Processor
    Maximum number of SMP processors 1
    Compatible processor series Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7
    Processor socket LGA 1700
    Processor manufacturer Intel
    Memory
    Maximum internal memory 128 GB
    ECC Yes
    Memory channels Dual-channel
    Memory slots type DIMM
    Number of memory slots 4
    Supported memory types DDR4-SDRAM
    Storage controllers
    RAID levels 0, 1, 5, 10
    RAID support Yes
    Number of storage drives supported 11
    Supported storage drive interfaces M.2, SATA III
    Graphics
    HDCP Yes
    Internal I/O
    RGB LED pin header Yes
    Thunderbolt headers 1
    EPS power connector (8-pin) Yes
    Peripheral (Molex) power connectors (4-pin) 1
    CPU fan connector Yes
    ATX Power connector (24-pin) Yes
    Front panel audio connector Yes
    Number of SATA III connectors 8
    USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
    USB 2.0 connectors 2

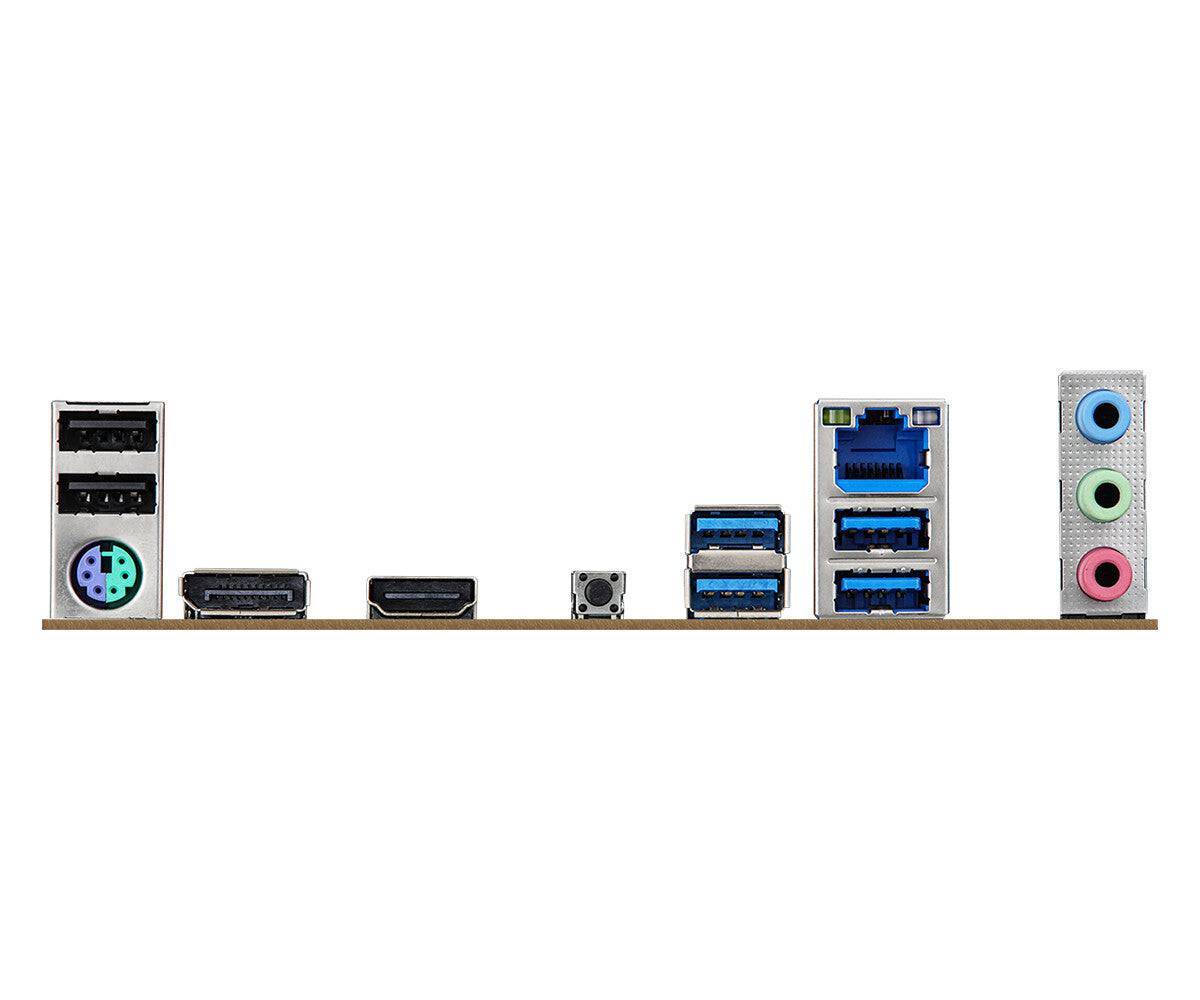

    Rear panel I/O ports
    Microphone in Yes
    Headphone outputs 1
    DisplayPort version 1.4
    DisplayPorts quantity 1
    HDMI ports quantity 1
    PS/2 ports quantity 1
    Ethernet LAN (RJ-45) ports 1
    USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
    USB 2.0 ports quantity 2
    Network
    Wi-Fi No
    Wake-on-LAN ready Yes
    LAN controller Dragon RTL8125BG
    Ethernet interface type 2.5 Gigabit Ethernet
    Ethernet LAN Yes
    Features
    Windows operating systems supported Windows 10 x64, Windows 11 x64
    Audio output channels 7.1 channels
    Audio chip Realtek ALC897
    Motherboard chipset Intel Z690
    Motherboard chipset family Intel
    Motherboard form factor ATX
    Component for PC
    Expansion slots
    PCI Express x16 (Gen 5.x) slots 1
    PCI Express x16 (Gen 4.x) slots 1
    PCI Express x16 (Gen 3.x) slots 1
    PCI Express x1 (Gen 3.x) slots 2
    BIOS
    System Management BIOS (SMBIOS) version 2.7
    ACPI version 6.0
    BIOS type UEFI AMI
    Logistics data
    Harmonized System (HS) code 84733020
    Weight & dimensions
    Height 70 mm
    Depth 244 mm
    Width 305 mm
    Other features
    Weight 1 kg
