GO BIG. STAY COMPACT.
33-LITERS OF COOL
The ASUS Prime AP201 Tempered Glass Version is a breakthrough in microATX chassis design, delivering a high-performance platform that invites 360 mm AIO coolers and graphics cards up to 338 mm long, all within a compact 33-liter space. Tool-free side panels also provide easy access, and they complete a tasteful, minimalist aesthetic that can be the centerpiece of any DIY PC build.
INDUSTRY-LEADING SPATIAL EFFICIENCY
LOAD UP
Despite its compact size, the AP201 supports standard ATX power supplies up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling setups, and a spread of storage devices.
ASUS Prime AP201 TG Version with side panel removed, line art of motherboard, 360 mm radiator, graphics card, and power supply
OPTIMIZED FOR AIRFLOW
RUN COOL
With support for 280 and 360mm radiators and up to 6 fans, the AP201 is primed to deal with the thermal onslaught of convention-defying SFF rigs loaded with multi-core CPUs and high-end graphics cards.
REMOVABLE DUST FILTER
SPECS, NOT SPECKS
The two 120 mm fan mounts at the bottom of the AP201 include a dust filter that can be removed for easy cleaning, or to enhance airflow even further.
TOOL-FREE SIDE PANELS
UNRESTRICTED ACCESS
Instead of making you wrestle with screws or potentially awkward hinges, the side panels of the AP201 both use a simple but secure clip mechanism to attach to the case. This makes them easy to remove when you want to access the interior of the chassis, and resistant to being accidentally dislodged.
FRONT PANEL USB TYPE-C® SUPPORT
NIMBLE CONNECTIONS
In addition to two Type-A USB 3.2 Gen 1 ports, the front panel of the AP201 also features a Type-C port that is rated for USB 3.2 Gen 2. Compatible microATX ASUS motherboards such as the TUF Gaming B660M Plus or ROG STRIX B660-G can use this port to enjoy transfer speeds of up to 10 Gbps.
AVAILABLE IN TWO COLORS
CHOOSE YOUR ALLEGIANCE
The AP201 is available in either black or white, giving you options to create a rig that blends in or stands out.

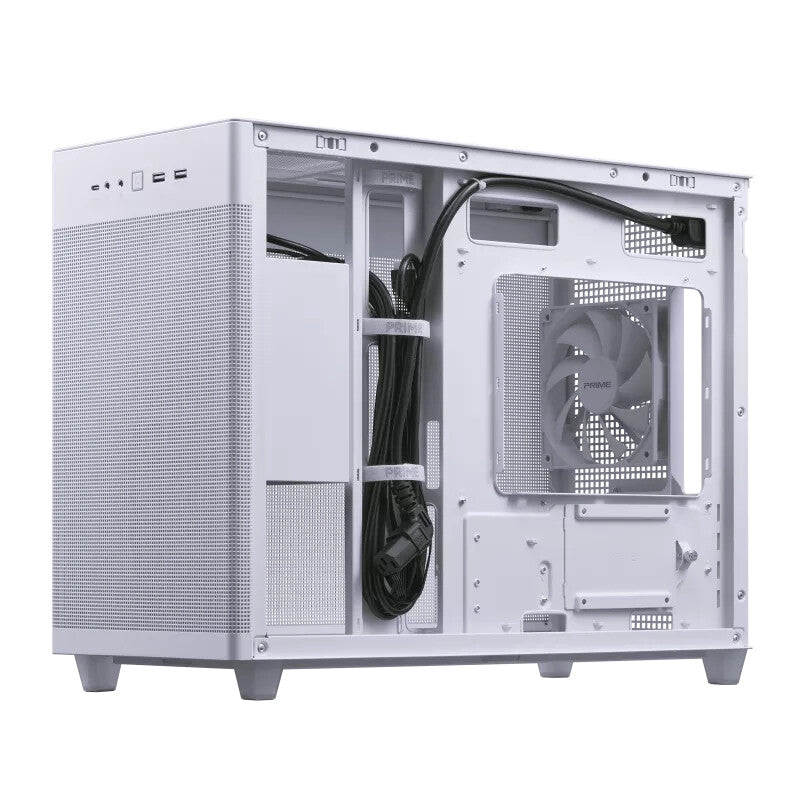

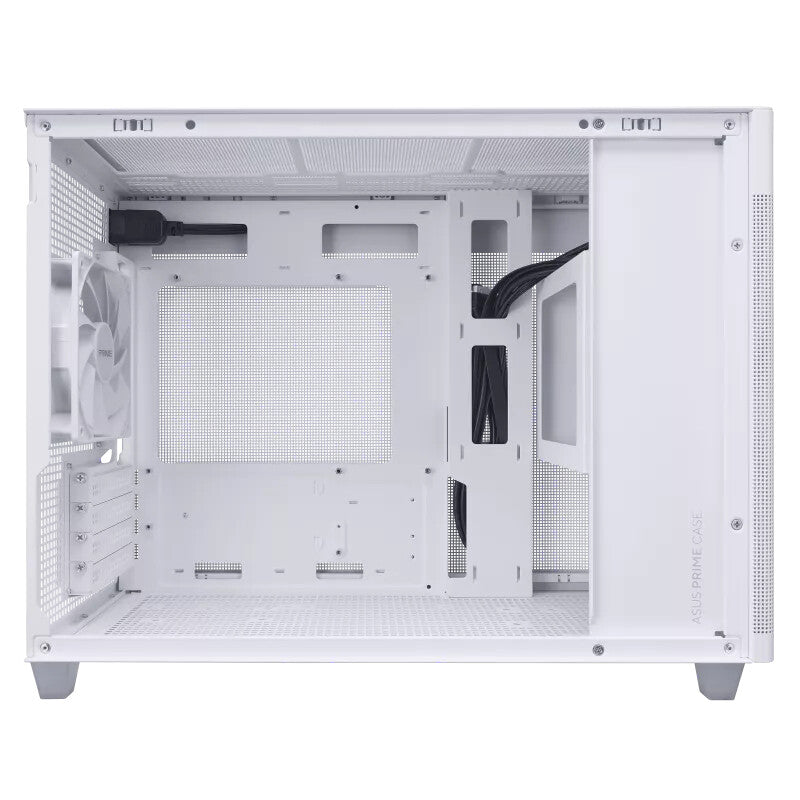

SIZEABLE CABLE-MANAGEMENT
TIDY AS YOU LIKE
The AP201 features an extended motherboard tray with strategically placed cutouts and a 32 mm gap, giving builders ample room to tuck cables out of sight and create a clean aesthetic for their DIY PC.
Design | |
---|---|
Maximum PSU length | 18 cm |
Maximum graphics card length | 33.8 cm |
Maximum CPU cooler height | 17 cm |
Cable management | Yes |
Anti-dust filter | Yes |
Tempered glass panel(s) | Yes |
Side window | Yes |
Number of expansion slots | 4 |
Number of 2.5" bays | 1 |
Number of 3.5" bays | 3 |
Supported motherboard form factors | micro ATX, Mini-ITX |
Product colour | White |
Type | PC |
Form factor | Mini Tower |
Ports & interfaces | |
---|---|
Audio output | Yes |
Audio input | Yes |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Cooling | |
---|---|
Top radiator sizes supported | 120,140,240,280,360 mm |
Rear radiator sizes supported | 120 mm |
Top fans diameters supported | 120,140 mm |
Number of top fans supported (max) | 3 |
Rear fans diameters supported | 120 mm |
Number of rear fans supported (max) | 1 |
Rear fans installed | 1x 120 mm |
Storage | |
---|---|
Supported HDD sizes | 2.5,3.5" |
Weight & dimensions | |
---|---|
Weight | 5.8 kg |
Height | 460 mm |
Depth | 350 mm |
Width | 205 mm |
