Compact, cooler, faster
Powerful Graphics and Storage, All in One

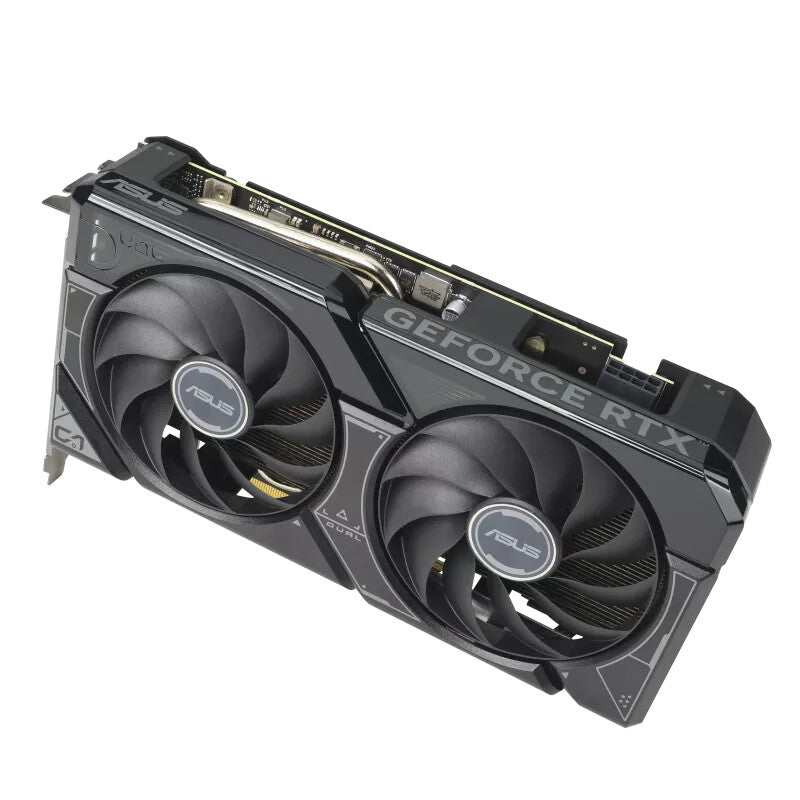

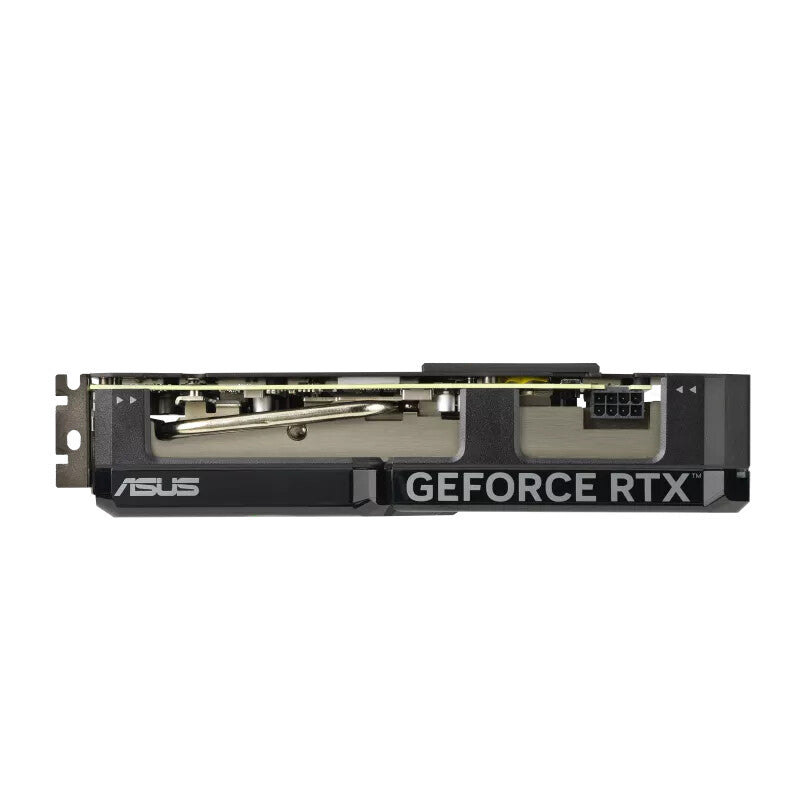

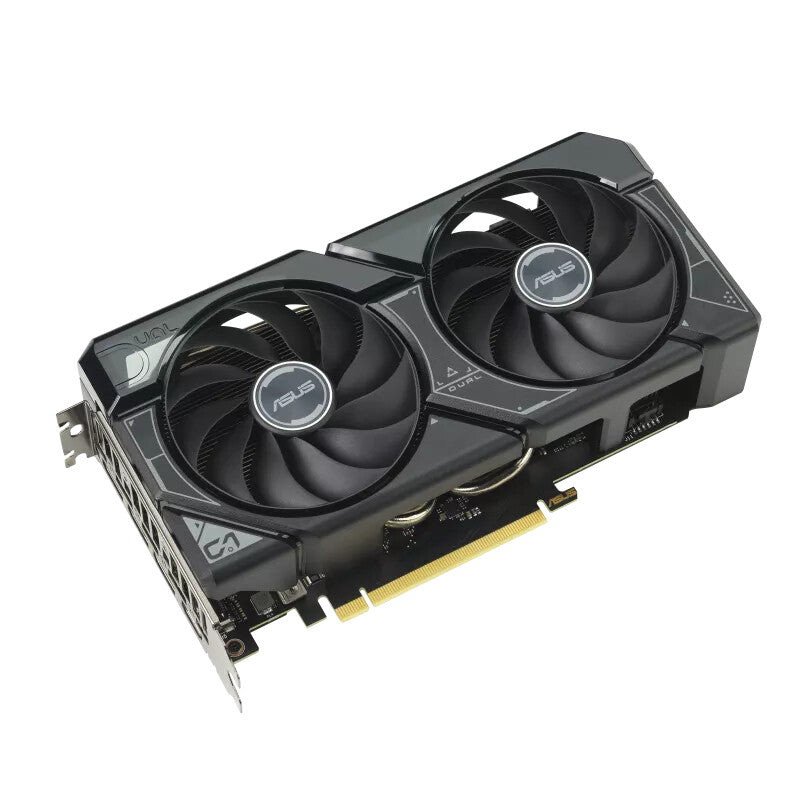

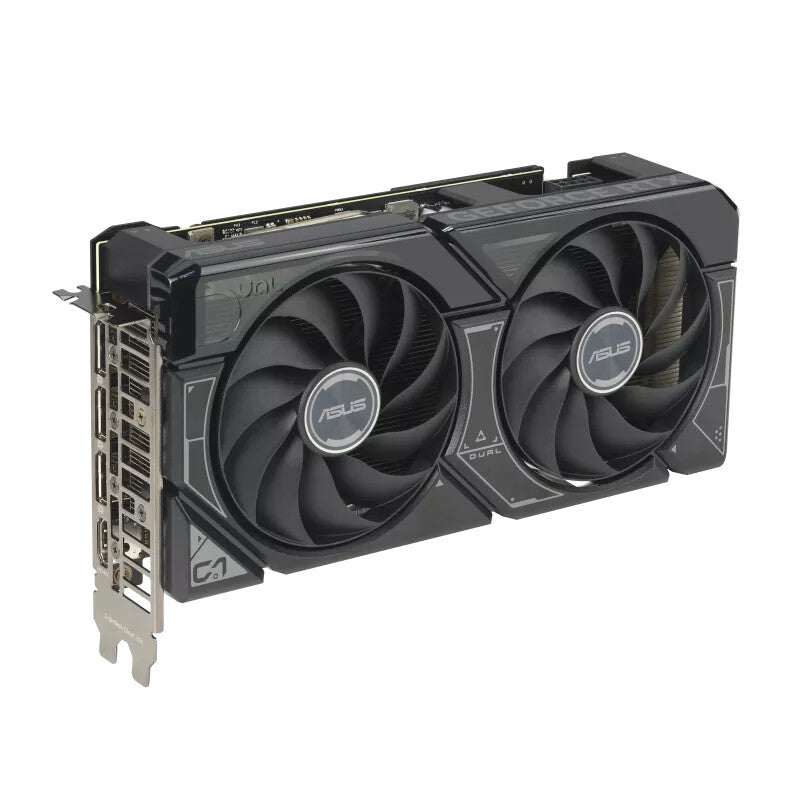

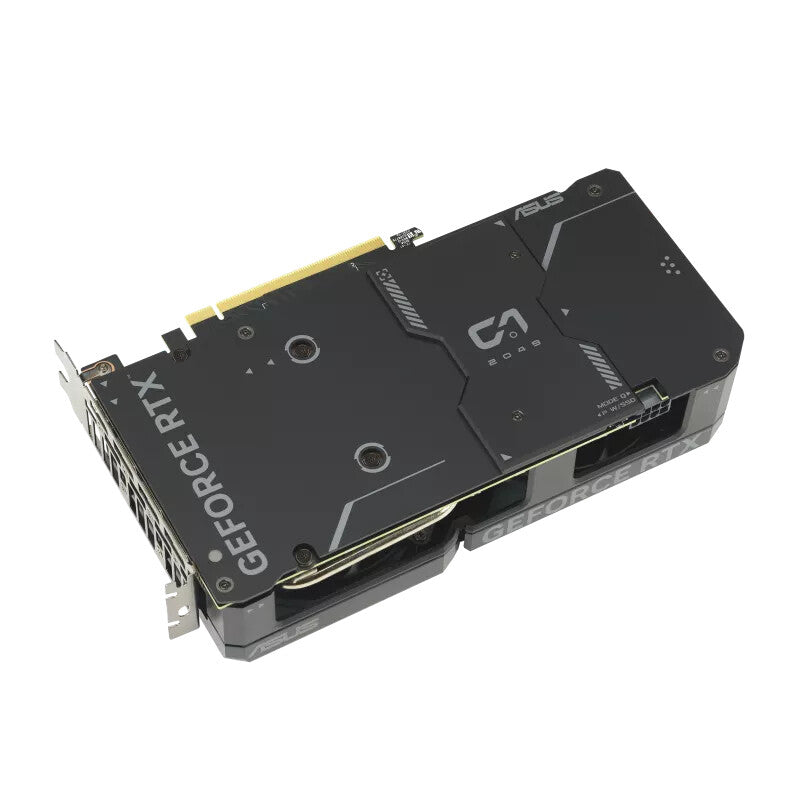

The ASUS Dual GeForce RTX™ 4060 Ti SSD graphics card takes compact gaming power and combines it with an all-new feature: a PCIe 4.0 M.2 slot integrated into the backside of the card, offering massive bandwidth for high-performance NVMe storage.
Built-in M.2 Slot

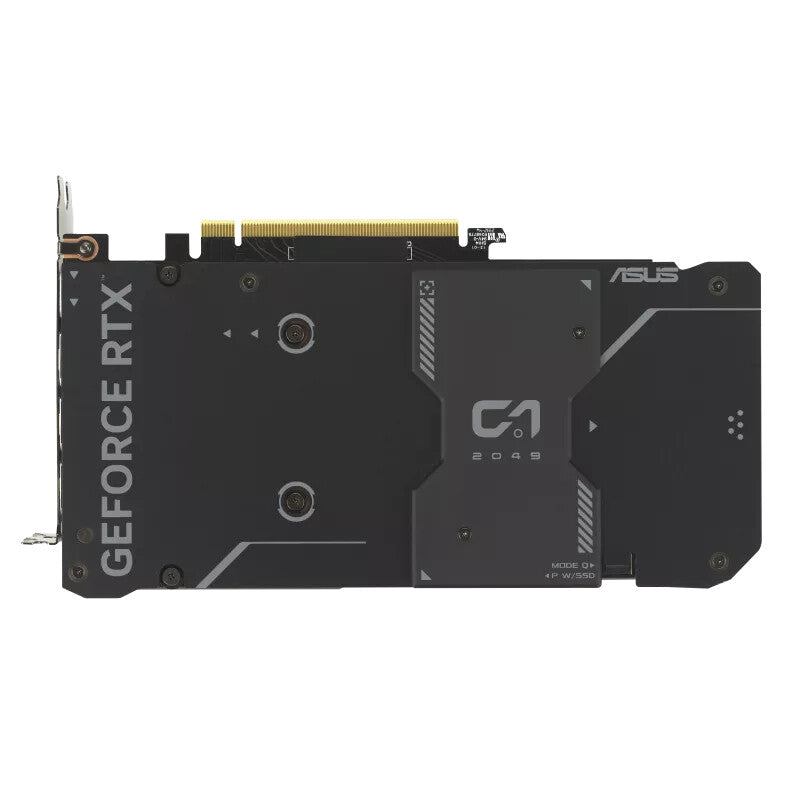

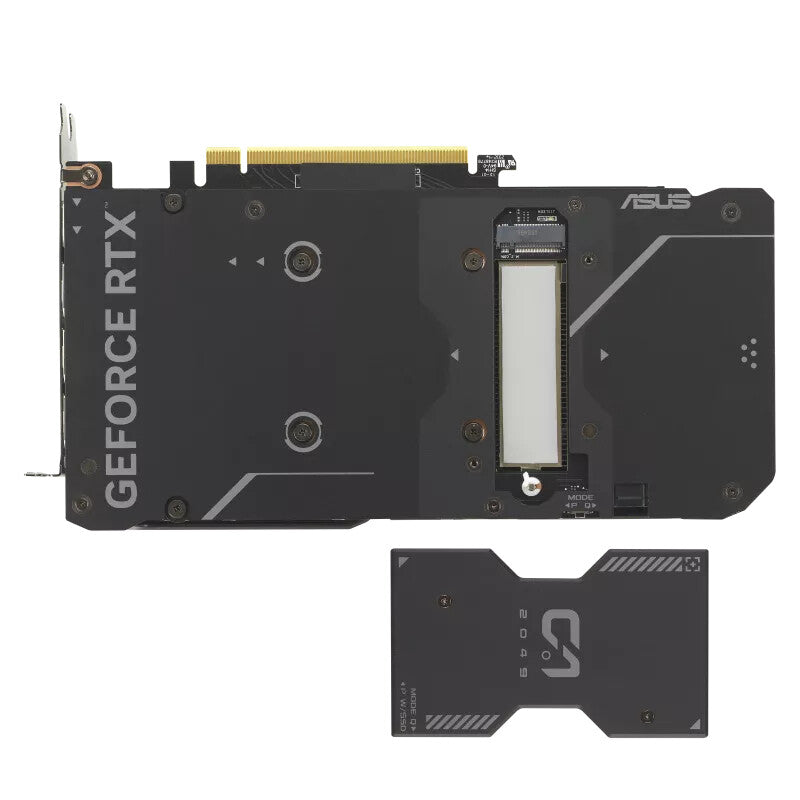

The backside of this graphics card integrates an M.2 slot capable of PCIe 5.0 speeds, for high-performance NVMe storage devices up to 80 mm long—and the SSD transfers heat directly to the card’s own heatsink using a thermal pad, resulting in a highly compact and tidy solution.
Axial-tech Fan Design
Better, faster, stronger

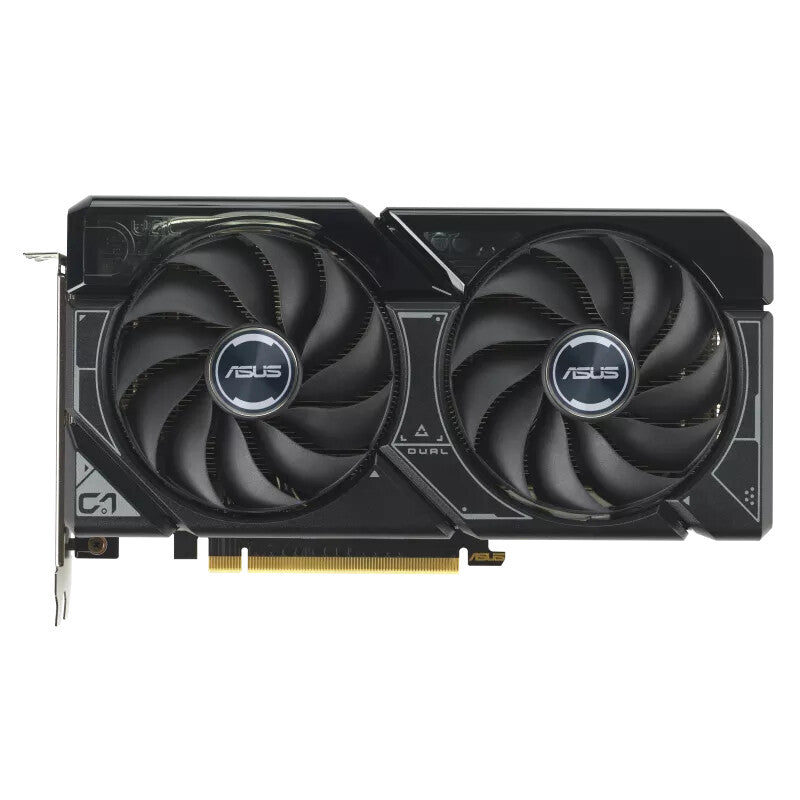

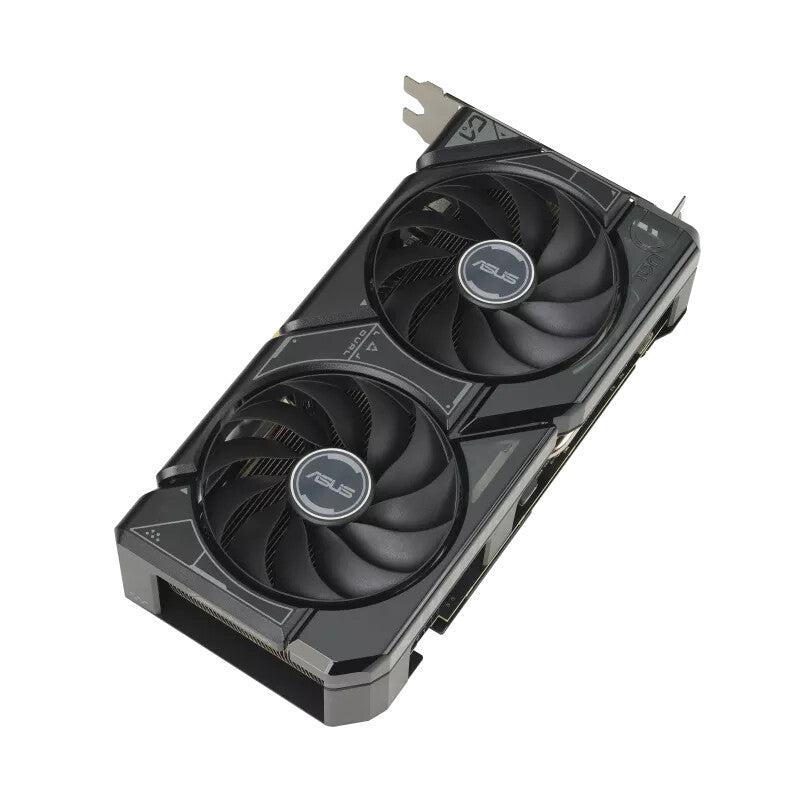

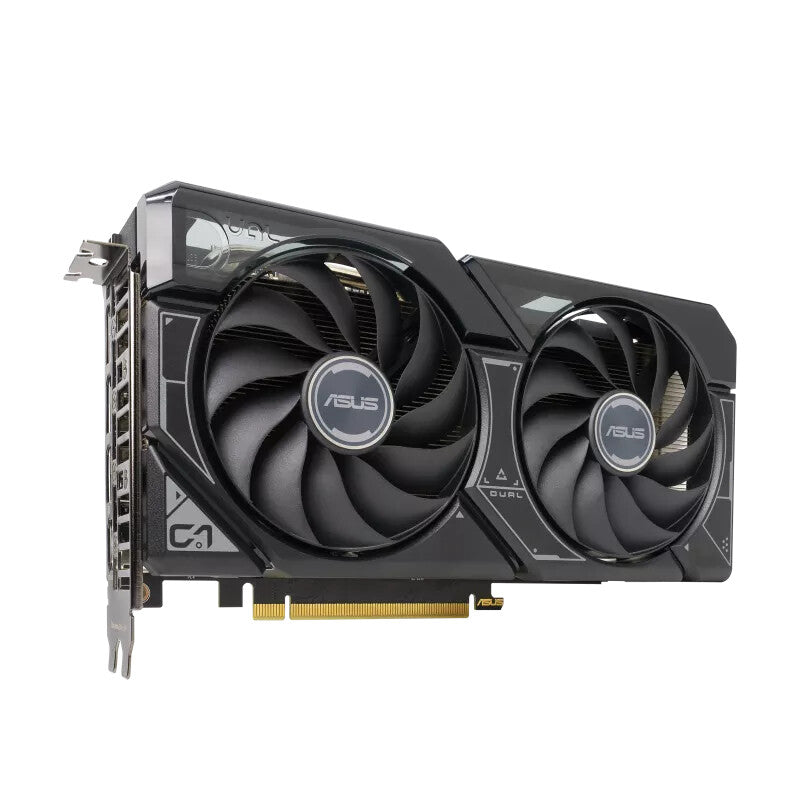

Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure, while the right fan operates at higher speeds to guarantee SSD heat dissipation.
Auto-Extreme Technology
Precision automated manufacturing
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
GPU TWEAK III
Monitor, tweak, and tune
The ASUS GPU Tweak III utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.
144-hour Validation Program
"Extensive" may be an understatement
A 144-hour validation program puts cards through a series of stringent tests to ensure compatibility with the latest games.
NVIDIA DLSS 3
Max FPS. Max Quality. Powered by AI.
DLSS is a revolutionary breakthrough in AI graphics that multiplies performance. Powered by the new fourth-gen Tensor Cores and Optical Flow Accelerator on GeForce RTX 40 Series GPUs, DLSS 3 uses AI to create additional frames and improve image quality.
Processor | |
---|---|
Parallel processing technology support | Not supported |
Maximum displays per videocard | 4 |
Processor frequency (OC mode) | 2595 MHz |
Processor boost clock speed | 2565 MHz |
CUDA cores | 4352 |
CUDA | Yes |
Maximum resolution | 7680 x 4320 pixels |
Graphics processor | GeForce RTX 4060 Ti |
Graphics processor family | NVIDIA |
Memory | |
---|---|
Data transfer rate | 18 Gbit/s |
Memory bus | 128 bit |
Graphics card memory type | GDDR6 |
Discrete graphics card memory | 8 GB |
Ports & interfaces | |
---|---|
DisplayPort version | 1.4a |
HDMI version | 2.1a |

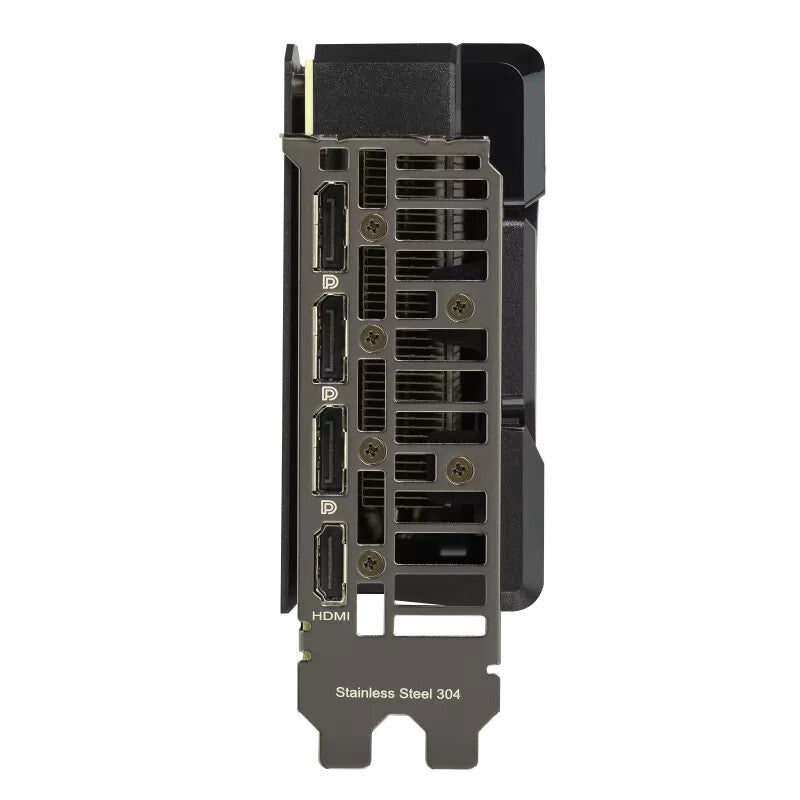

DisplayPorts quantity | 3 |
HDMI ports quantity | 1 |
Interface type | PCI Express 4.0 |
Performance | |
---|---|
Dual Link DVI | No |
HDCP | Yes |
HDCP version | 2.3 |
OpenGL version | 4.6 |
TV tuner integrated | No |
Design | |
---|---|
Product colour | Black |
Number of slots | 2.5 |
Number of fans | 2 fan(s) |
Cooling technology | ASUS Axial-tech |
Cooling type | Active |
Power | |
---|---|
Supplementary power connectors | 1x 8-pin |
Minimum system power supply | 650 W |
General | |
---|---|
Product Family | Dual |
Weight & dimensions | |
---|---|
Depth | 123.2 mm |
Height | 49.6 mm |
Width | 227.2 mm |
Weight | 716 g |
Packaging data | |
---|---|

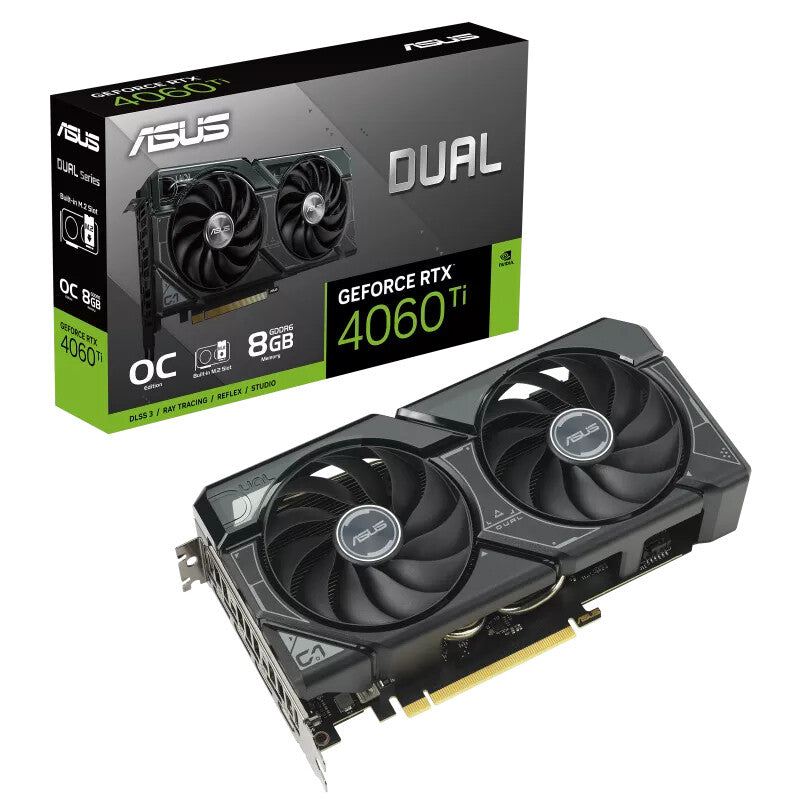

Package type | Box |
Package weight | 1.19 kg |
Package height | 68 mm |
Package depth | 220.5 mm |
Package width | 368 mm |
Manual | Yes |
