2x Fans. 2x Fun.

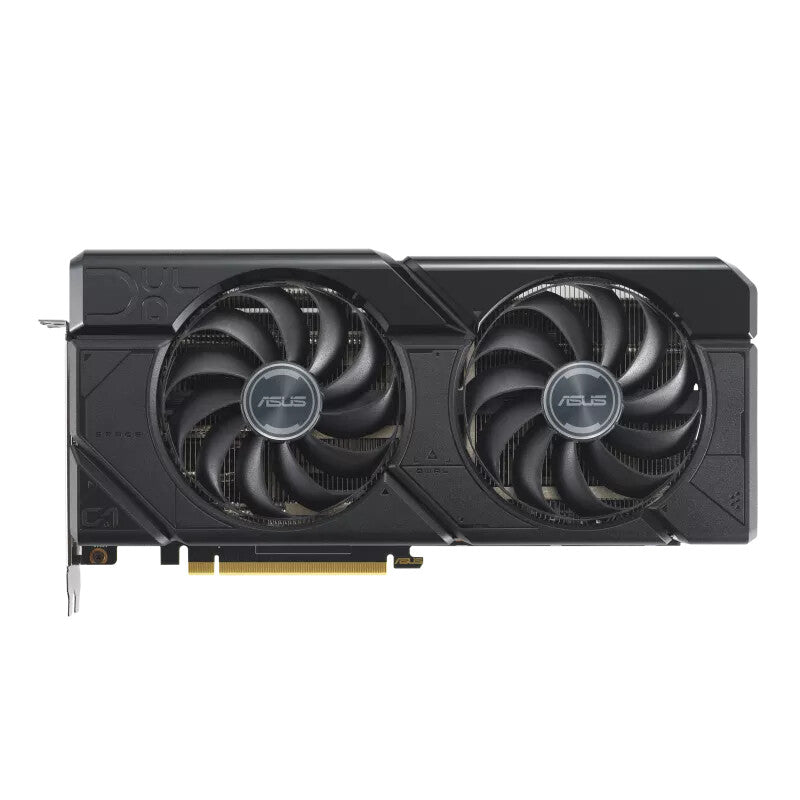

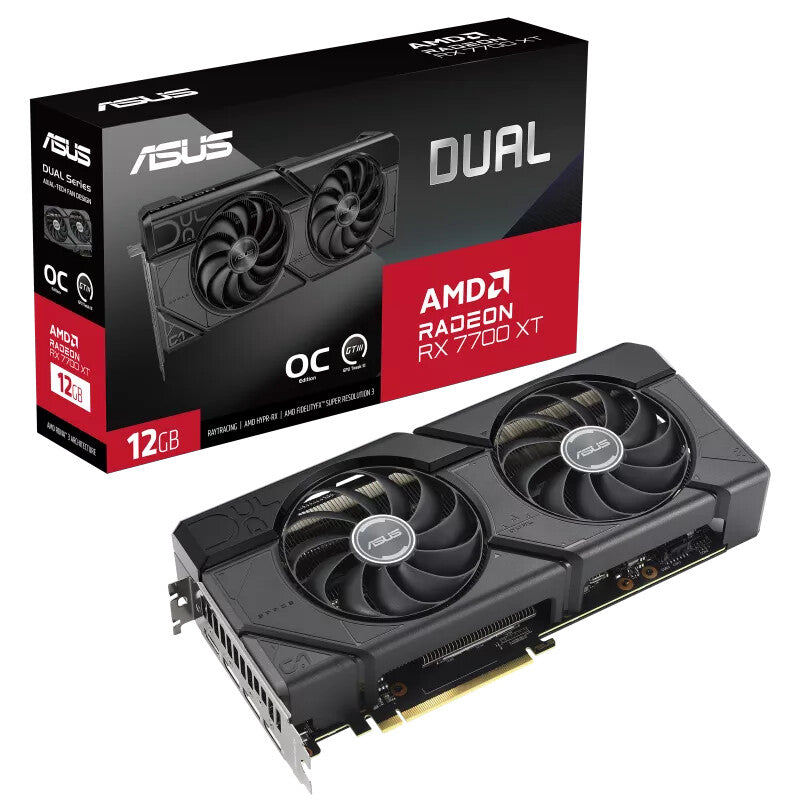

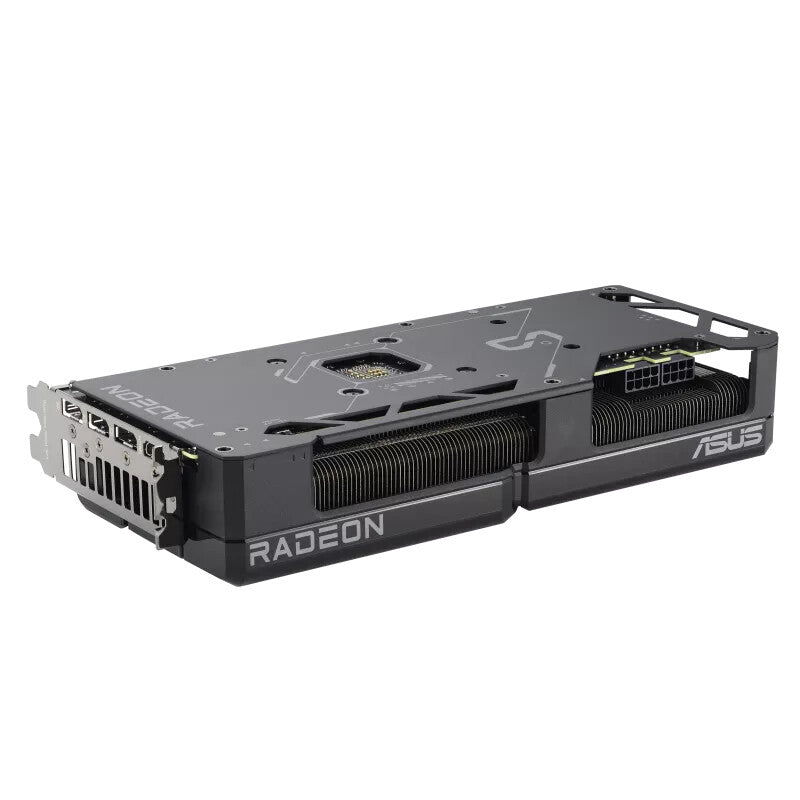

Delivering the latest AMD RDNA™ 3 architecture experience in its purest form, the ASUS Dual Radeon™ RX 7700 XT OC Edition melds performance and simplicity like no other. Leveraging advanced cooling technologies derived from flagship graphics cards, the Dual opts for substance over style, the perfect choice for a well-balanced build. Buckle up and engage cutting-edge gaming prowess.

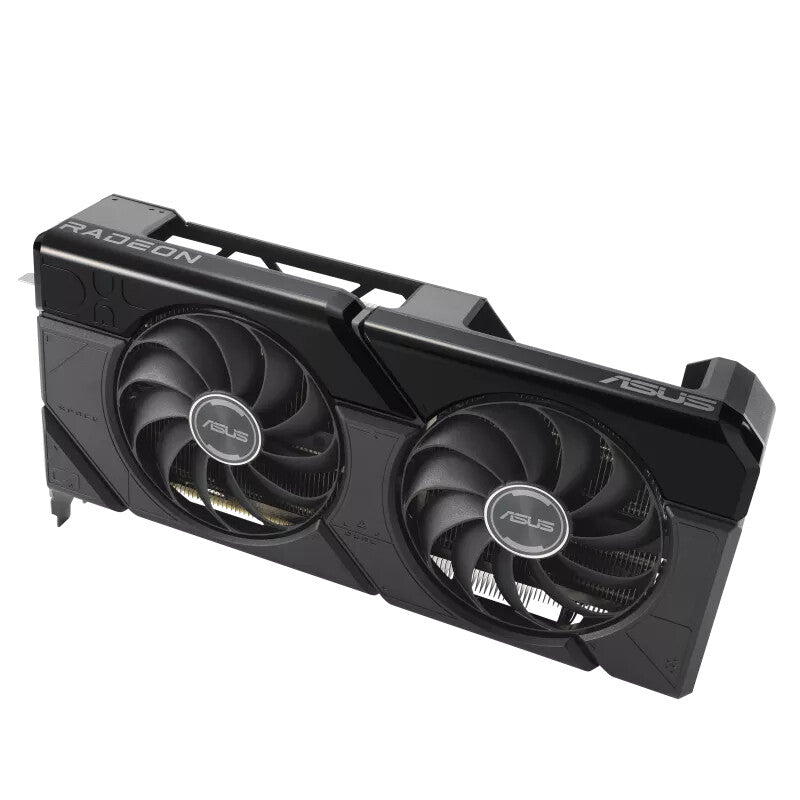

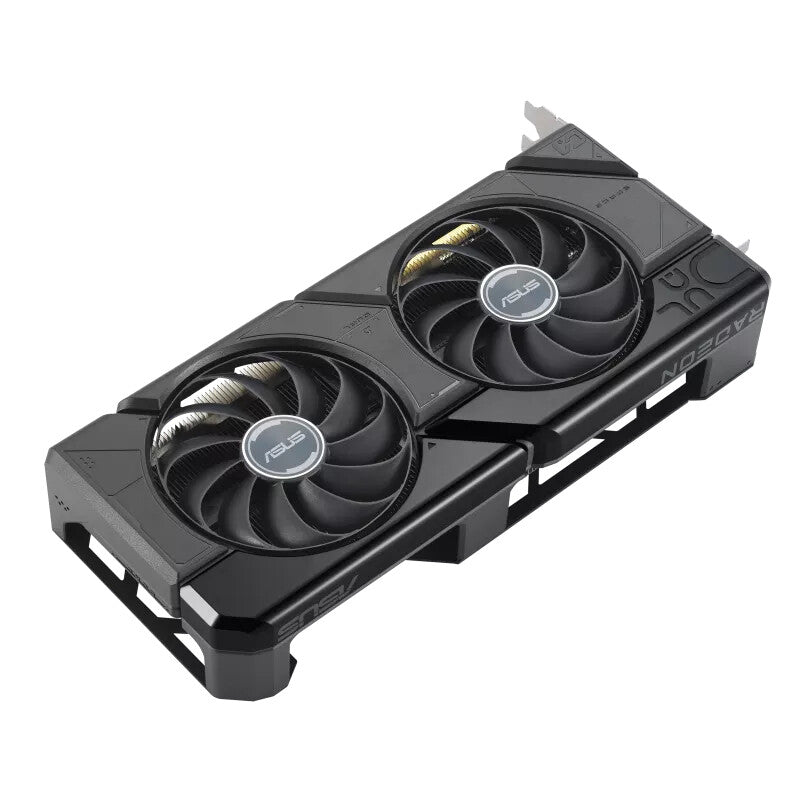

Axial-tech Fan Design
Better, faster, stronger
Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.
Auto-Extreme Technology
Precision automated manufacturing
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
GPU TWEAK III
Monitor, tweak, and tune
The ASUS GPU Tweak III utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.
Pair with a PSU
Use our wattage calculator to estimate how much power you’ll need to fuel your rig, and then pick a compatible ROG Thor, ROG Loki or ROG Strix AURA power supply for ultimate performance.
Processor | |
---|---|
Stream processors | 3456 |
Parallel processing technology support | Not supported |
Maximum displays per videocard | 4 |
Processor boost clock speed (Gaming mode) | 2226 MHz |
Processor boost clock speed (OC mode) | 2599 MHz |
Processor boost clock speed | 2584 MHz |
Maximum resolution | 7680 x 4320 pixels |
Graphics processor | Radeon RX 7700 XT |
Graphics processor family | AMD |
Memory | |
---|---|
Data transfer rate | 18 Gbit/s |
Memory bus | 192 bit |
Graphics card memory type | GDDR6 |
Discrete graphics card memory | 12 GB |

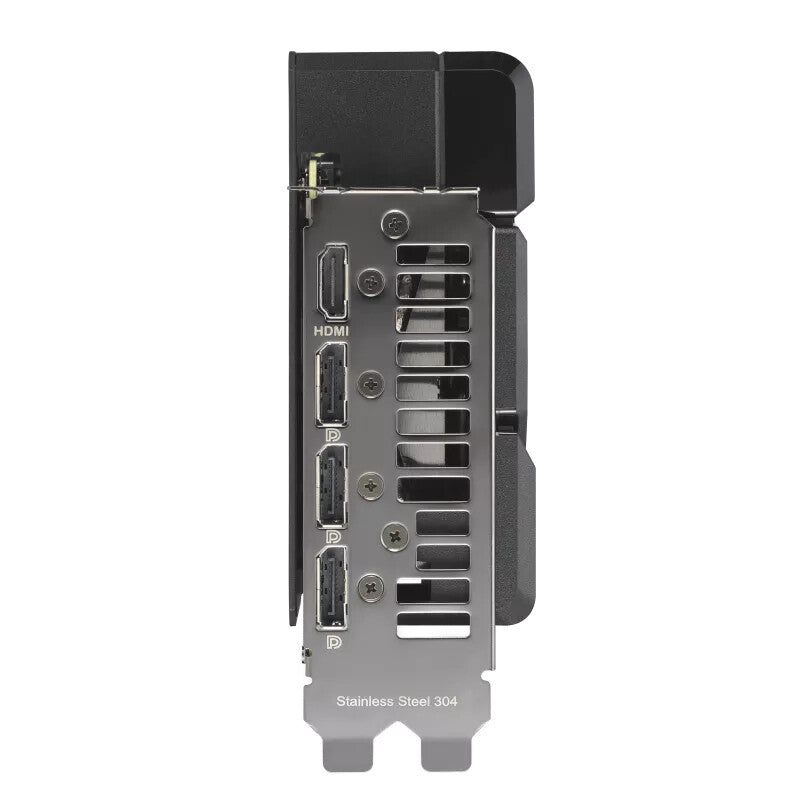

Ports & interfaces | |
---|---|
DisplayPort version | 2.1 |
HDMI version | 2.1 |
DisplayPorts quantity | 3 |
HDMI ports quantity | 1 |
Interface type | PCI Express 4.0 |
Performance | |
---|---|
Dual Link DVI | No |
HDCP | Yes |
HDCP version | 2.3 |
OpenGL version | 4.6 |
TV tuner integrated | No |
Design | |
---|---|
Product colour | Black |
Number of slots | 2.47 |
Number of fans | 2 fan(s) |
Cooling technology | ASUS Axial-tech |
Cooling type | Active |
Power | |
---|---|

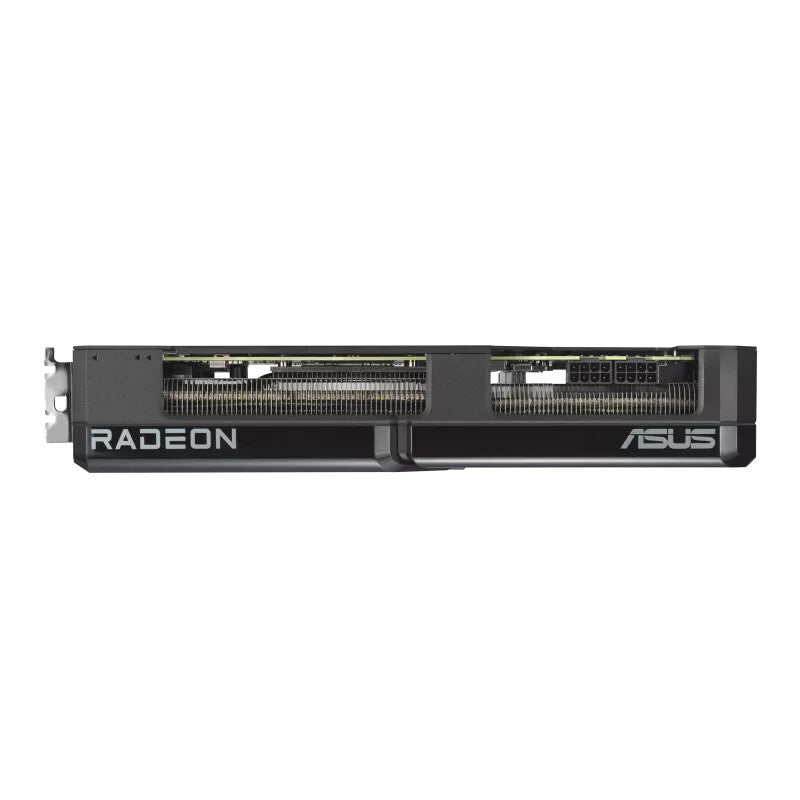

Supplementary power connectors | 2x 8-pin |
Minimum system power supply | 750 W |
General | |
---|---|
Product Family | Dual |
Weight & dimensions | |
---|---|
Depth | 133.9 mm |
Height | 49.3 mm |
Width | 279.9 mm |
Weight | 933 g |
Packaging data | |
---|---|
Package type | Box |
Package weight | 1.7 kg |
Package height | 88.5 mm |
Package depth | 233 mm |
Package width | 405 mm |
Manual | Yes |
