Packs a Punch

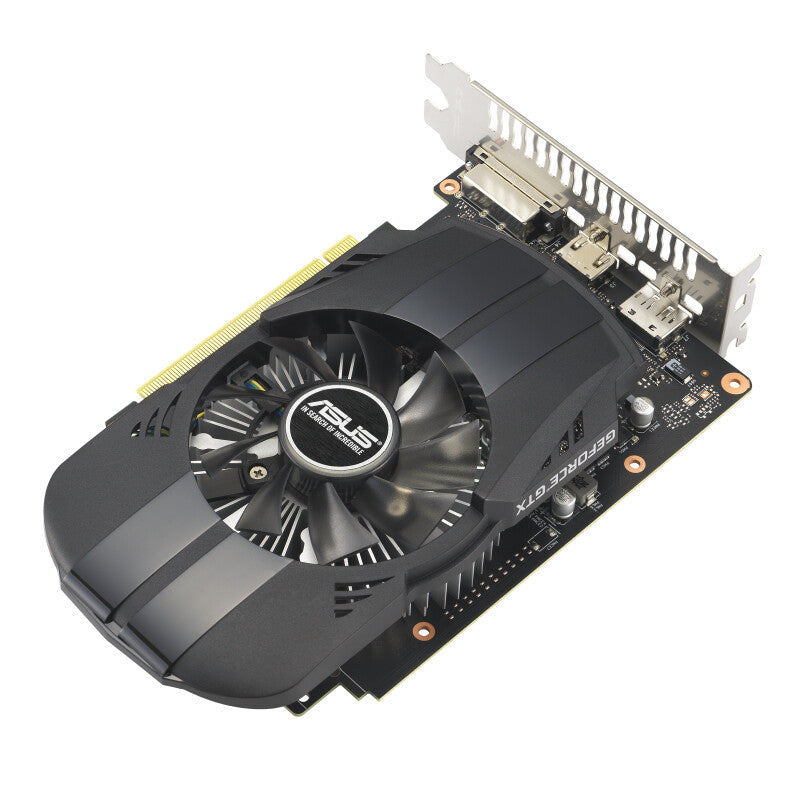

Phoenix graphics cards pack as much performance as possible into a compact design that offers a wide range of compatibility with small chassis. Limited space begs an efficient cooling system, and the Phoenix GeForce® GTX 1630 delivers with a powerful Axial-tech fan. Whether you're upgrading an outdated card or building your first gaming rig, the Phoenix is a potent package that delivers latest-gen performance.
COOLING
Axial-tech Fan Design
Better, faster, stronger
A large Axial-tech fan features a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.
Dual Ball Fan Bearings
2x longer lifespan
Different bearing types have unique pros and cons. Ball bearings excel at durability and can last up to twice as long as sleeve bearing designs.
ENGINEERING
Auto-Extreme Technology
Precision automated manufacturing
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
Stainless Steel Bracket
Steel yourself
The mounting bracket of the Phoenix has been beefed up with 304 Stainless Steel that is harder and more resistant to corrosion.
Compact Design
The pieces fit
Perfect proportions maximize compatibility with the latest chassis.
SOFTWARE
GPU TWEAK III
Monitor, tweak, and tune
ASUS GPU Tweak III is more intuitive and feature-rich than ever before. A revamped interface offers greater accessibility by integrating core functions into a centralized dashboard, and our Voltage-Frequency tuner has been overhauled to make overclocking even easier. Additional goodies like 0dB fan technology, automatic profile swapping, a fully customizable on-screen display, and logging capabilities ensure that you get the most out of your graphics card.
EXPERIENCE
144-hour Validation Program
“Extensive” may be an understatement
Each card must meet rigorous performance and reliability standards before it ships. Performance and stress tests are run with the latest chart-topping titles like Fortnite, League of Legends, Overwatch, and PlayerUnknown's Battlegrounds. We also carry out reliability trials that include a 144-hour stability test and a series of 3DMark benchmarking runs to ensure the card performs well when pushed to the limits.
NVIDIA® G-SYNC® Technology
Smooth operator
This graphics card supports NVIDIA® G-SYNC® display technology for a super-smooth variable refresh rate experience. Enjoy AAA games without the nuisance of screen tearing or stuttering.
Processor | |
---|---|
Parallel processing technology support | Not supported |
Maximum displays per videocard | 3 |
Processor boost clock speed (OC mode) | 1815 MHz |
Processor boost clock speed | 1785 MHz |
CUDA cores | 512 |
CUDA | Yes |
Maximum resolution | 7680 x 4320 pixels |
Graphics processor | GeForce GTX 1630 |
Graphics processor family | NVIDIA |
Memory | |
---|---|
Data transfer rate | 12 Gbit/s |
Memory bus | 64 bit |
Graphics card memory type | GDDR6 |
Discrete graphics card memory | 4 GB |
Ports & interfaces | |
---|---|
DisplayPort version | 1.4a |
HDMI version | 2.0b |
DVI-D ports quantity | 1 |
DisplayPorts quantity | 1 |
HDMI ports quantity | 1 |
Interface type | PCI Express 3.0 |
Performance | |
---|---|
NVIDIA G-SYNC | Yes |
Dual Link DVI | No |
HDCP | Yes |
OpenGL version | 4.6 |
DirectX version | 12.0 |
TV tuner integrated | No |
Design | |
---|---|
Product colour | Black |
Number of slots | 2 |
Number of fans | 1 fan(s) |
Cooling type | Active |
Power | |
---|---|
Minimum system power supply | 300 W |
General | |
---|---|
Product Family | Phoenix |
Weight & dimensions | |
---|---|
Depth | 121 mm |
Height | 38 mm |
Width | 200 mm |
Weight | 306 g |
Packaging data | |
---|---|
Package type | Box |
Package weight | 636 g |
Package height | 55 mm |
Package depth | 220 mm |
Package width | 303 mm |
