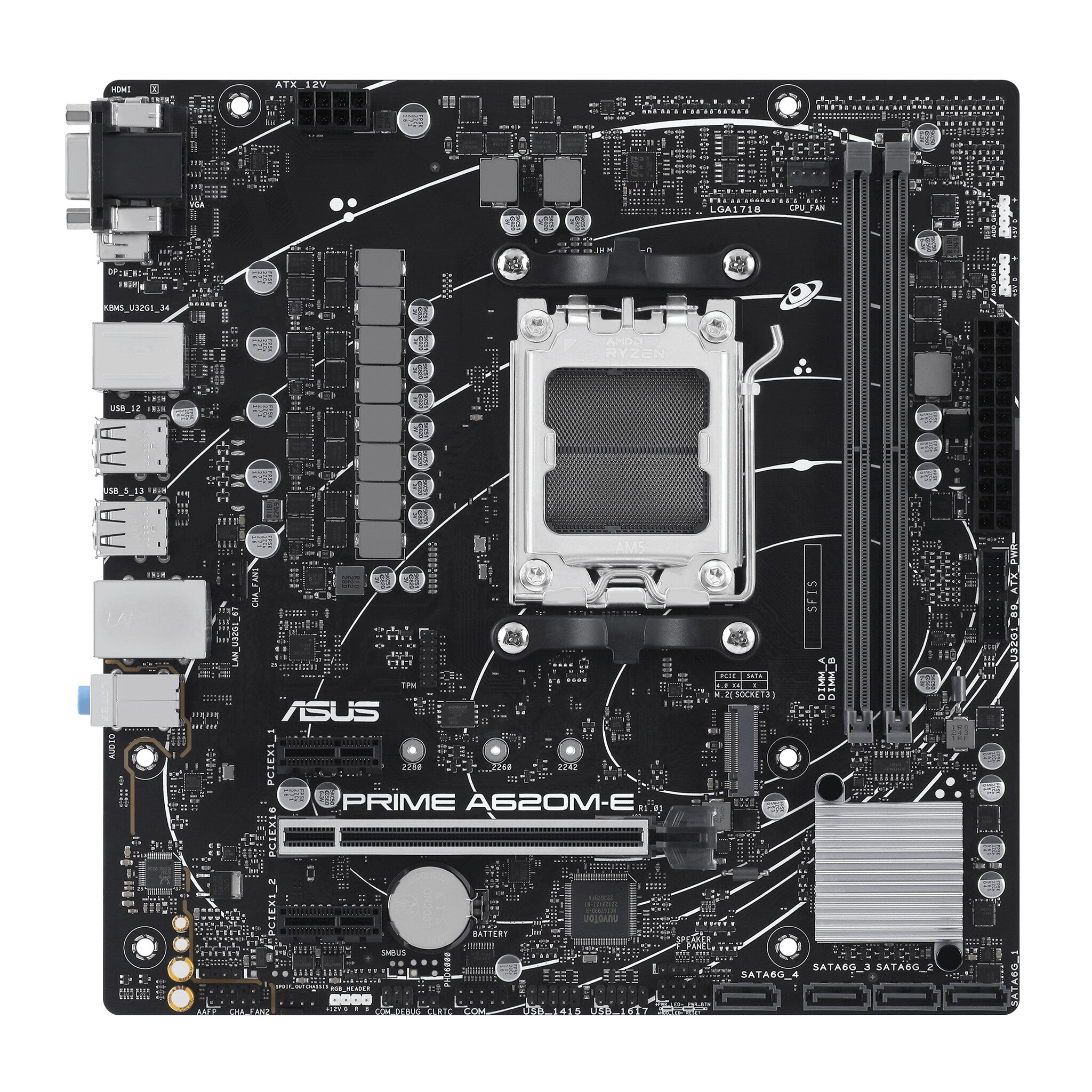

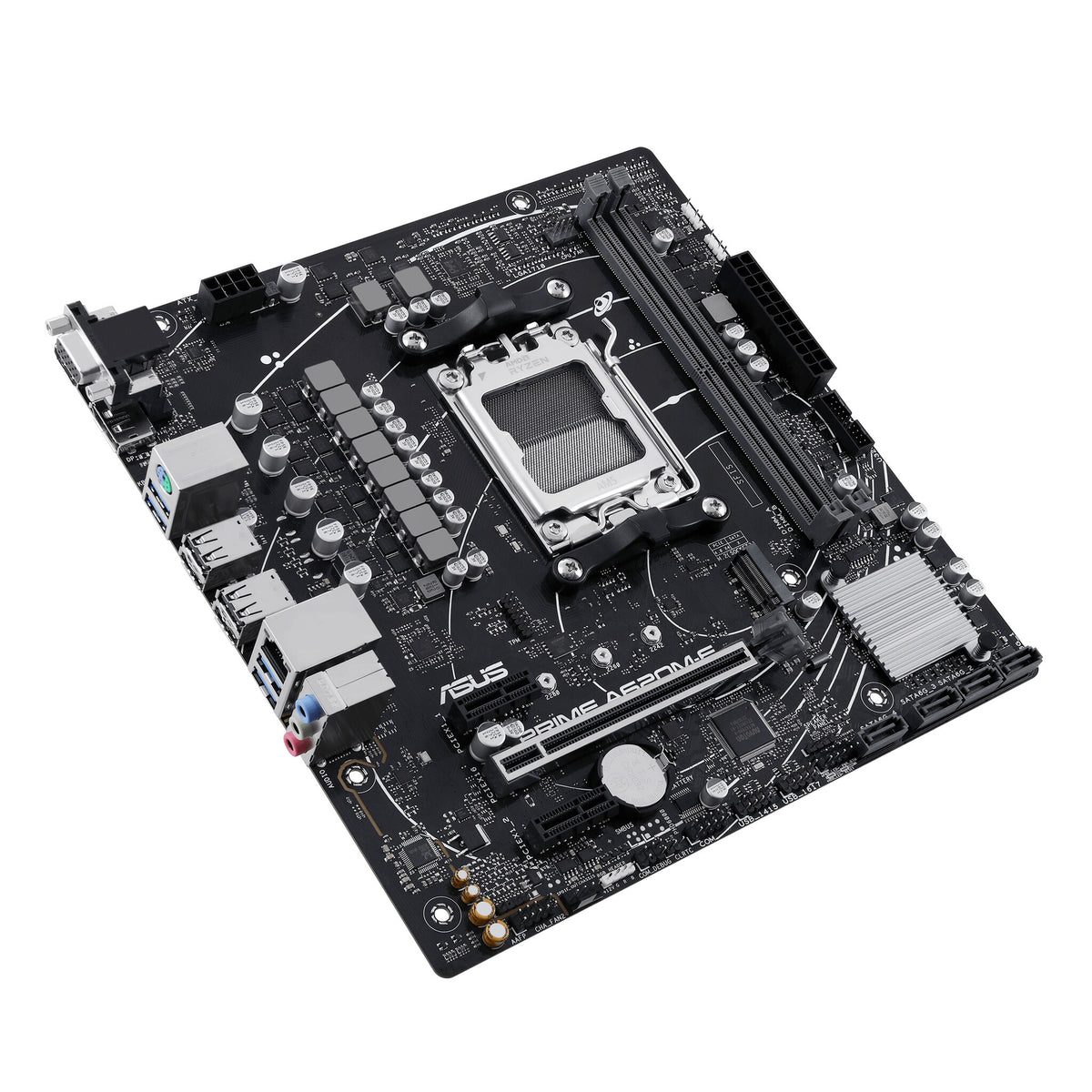

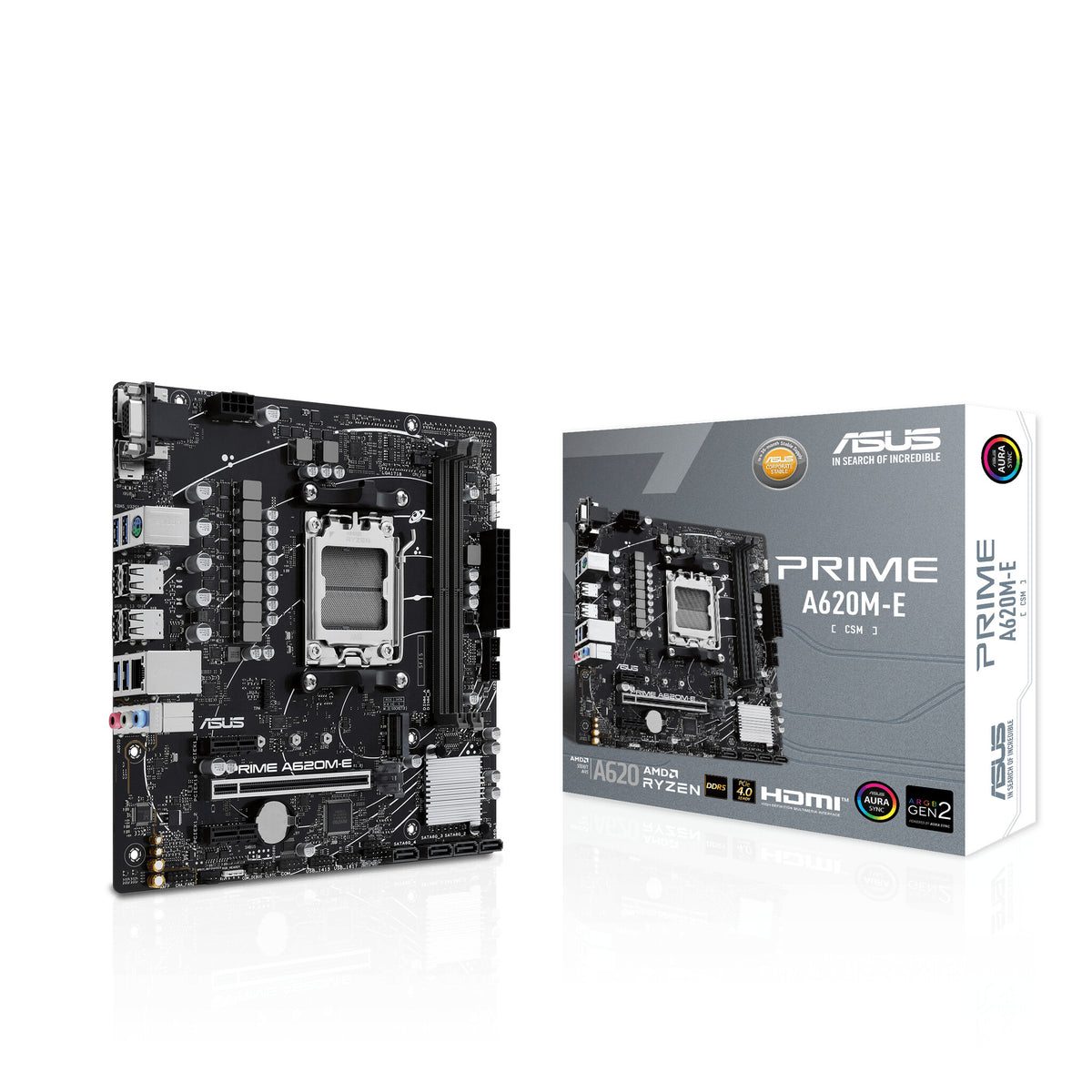

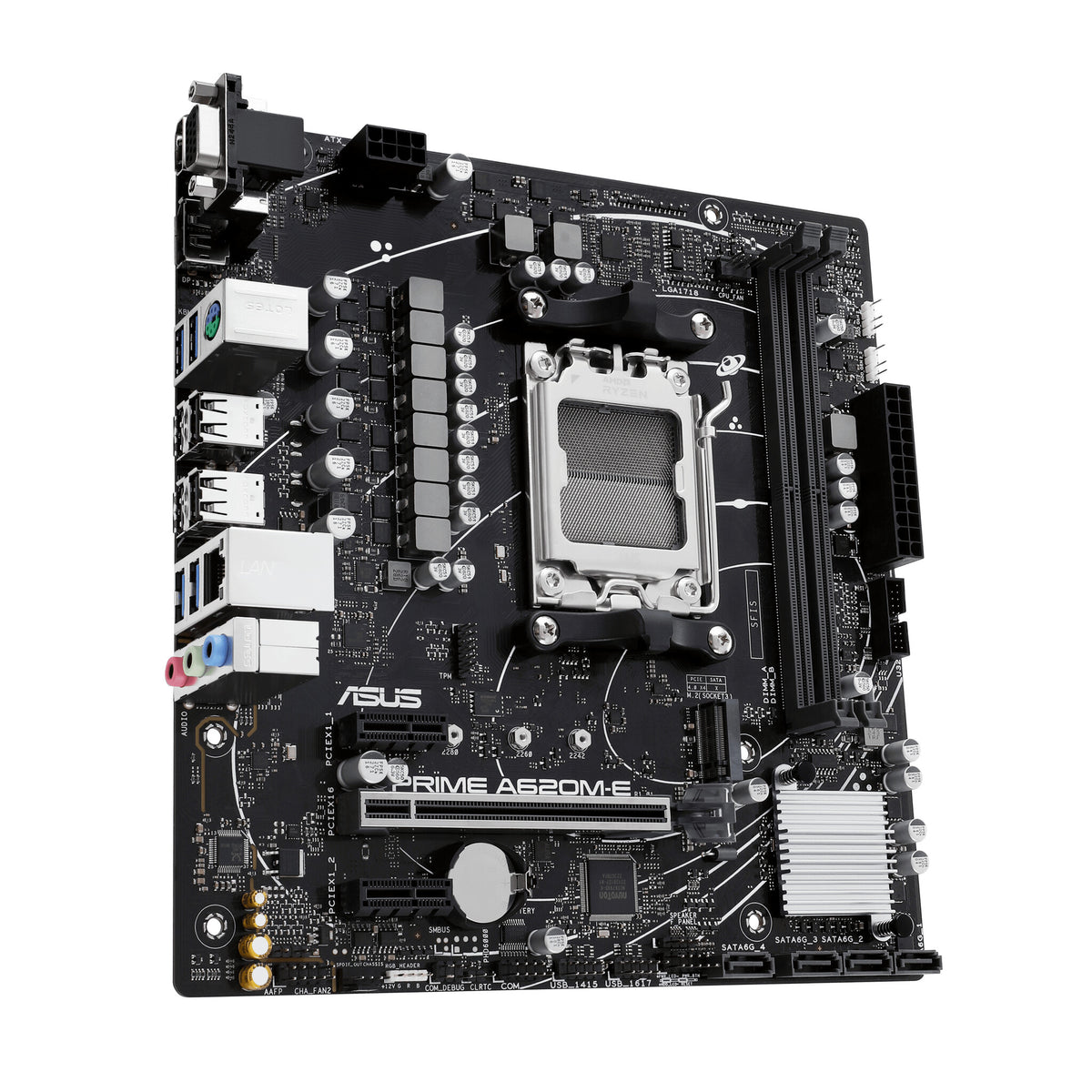

    ASUS PRIME A620M-E-CSM micro ATX motherboard - AMD A620 Socket AM5

    ASUS PRIME A620M-E-CSM micro ATX motherboard - AMD A620 Socket AM5

    (UK Consumers)
    ex. VAT (Rest of World)
    PayPal Credit 0% for 4 months
    GLOBAL SHIPPING – UPS & DHL
    BUSINESS CUSTOMERS – please email: Sales@clove.co.uk
    FAST SHIPPING – All orders

    Key Features

    • AMD AM5 Socket: Ready for AMD Ryzen™ 7000 Series Desktop Processors
    • Ultrafast Connectivity: PCIe 4.0, 64Gbps M.2 slot, Realtek 1Gb Ethernet, USB 3.2 Gen 1 Type-A
    • Comprehensive Cooling: PCH heatsink, hybrid fan headers and Fan Xpert 2+
    • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
    • Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
    • ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection

    Prime A620M-E-CSM Mainboard Socket AMD A620 (Ryzen 7000, micro-ATX, DDR5 memory, PCIe 4.0, BIOS Flashback, USB 3.2 Gen 2, Aura Sync)

    ASUS PRIME series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME A620M-E-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

    ASUS Corporate Stable Model
    ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
    * Lifecycle support, program offering and supply status may vary by region. Please consult your local sales representative for more information.

    ASUS Control
    Center Express
    ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.

    Optimize IT endpoint management
    Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely

    Automate IT maintenance
    Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility

    Securely manage all of endpoints
    Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices

    FLEXIBILITY
    Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME A620 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

    Intelligent Control

    All-Around Energy Efficiency
    The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

    Flexible Cooling Controls
    ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.

    Precise Digital Power Control
    The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

    UEFI BIOS
    The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

    Advanced Tuning for Serious Tweakers
    An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

    Search Function
    Quickly and easily find the option or setting you need.

    ASUS User Profile
    Port configuration settings between different BIOS versions or share them with friends.

    Quick and Simple Setup
    EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.

    Intuitive Graphical Fan Control
    Fine-tune individual fan settings simply by dragging a curve with the mouse.

    Aura On/Off Mode (Stealth)
    Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.

    COOLING
    PRIME A620M-E-CSM is engineered with an array of hybrid fan headers and two ounce copper PCB design to ensure your rig stays cool and stable under intense workloads.

    Cooler by Design
    PRIME A620 series feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.

    Multiple Temperature Sources
    Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

    Smart Protection
    A dedicated integrated circuit protects each fan header from overheating and overcurrent.

    4-Pin PWM/DC Fan
    Each onboard header supports auto-detection of PWM or DC fans.

    Stack Cool 3+
    2oz copper PCB design can draw heat away from critical components to keep the optimal operating temperatures.

    PERFORMANCE
    The PRIME A620 series is built to handle the high core counts and bandwidth demands of AMD processors. ASUS A620 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.

    Memory

    DDR5 Performance Enhancement
    Comprehensive memory tuning options are the cornerstone of PRIME motherboards. With the PRIME A620M-E-CSM, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.

    For entry-level modules without EXPO™ memory support, we’ve got you covered. Click here to learn more about AEMP. arrow.

    For those who want to fly past stock DDR5 speeds, the PRIME A620M-E-CSM is primed and ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO™) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.

    Storage

    PCIe 4.0 M.2 Support
    PRIME A620M-E-CSM offers one M.2 slot that supports data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives.
    *Actual transmission speeds will be lower than the theoretical maximum speed.

    Connectivity

    PCIe 4.0 Slot
    PRIME A620M-E-CSM offers PCIe 4.0 slot connectivity for the GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.

    USB 3.2 Gen 1 Type-A
    Numerous USB ports support high-end rigs loaded with peripherals, including rear-panel USB Type-A connectors with fast USB 3.2 Gen 1 connectivity for compatible cases.

    Realtek 1Gb Ethernet
    Realtek 1Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers.

    LANGuard
    ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput and ensure a more reliable connection.

    Combined onboard features deliver elevated audio
    Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.

    Audio Shielding
    Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference.

    Dedicated Audio PCB Layers
    Separate layers for left and right tracks ensures both channels deliver consistent, equal quality.

    Premium Audio Capacitors
    Provides warm, natural, and immersive sound with exceptional clarity and fidelity.

    Aura Sync
    Outshine the Competition
    A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.

    Addressable Gen 2 Headers
    Two Addressable Gen 2 headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.

    TWO-WAY AI NOISE CANCELATION
    This utility leverages a massive deep-learning database to reduce background noise from the microphone and incoming audio, while preserving vocals at the same time. This removes distracting keyboard clatter, mouse clicks and other ambient noises so you can hear and be heard with crystal clarity while gaming or in calls.

    Armoury Crate
    Within a single intuitive interface, Armoury Crate offers easily customized Aura Sync RGB settings for every compatible device in your arsenal , plus controls for an ever-growing family of ASUS products, including keyboard and mouse preferences. Armoury Crate also integrates product registration and a news feed so that you never miss updates of interest to the ASUS community.

    Q-LED Core
    The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.

    SafeSlot Core+
    SafeSlot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.

    Strengthened solder points around the PCIe and DIMM pins.

    Metal inserts keep graphics cards properly aligned during installation.

    The metal side-panels feature hooks that firmly clasp the slot body.

    Overvoltage Protection
    World-class circuit-protecting power design
    An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.

    Stainless-Steel Back I/O
    3X corrosion-resistance for greater durability
    Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.

    Processor
    Supported processor sockets Socket AM5
    Compatible processor series AMD Ryzen 5 7th gen, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
    Processor socket Socket AM5
    Processor manufacturer AMD
    Memory
    Unbuffered memory Yes
    Maximum internal memory 96 GB
    Supported memory clock speed (max) 6400 MHz
    Supported memory clock speeds 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
    Non-ECC Yes
    Memory channels Dual-channel
    Memory slots type DIMM
    Number of memory slots 2
    Supported memory types DDR5-SDRAM
    Storage controllers
    RAID levels 0, 1, 10
    RAID support Yes
    Number of HDDs supported 4
    Number of storage drives supported 5
    Supported storage drive interfaces M.2, SATA III
    Supported storage drive types HDD & SSD
    Graphics
    Parallel processing technology support Not supported
    Internal I/O
    RGB LED pin header Yes
    Number of COM connectors 1
    TPM connector Yes
    12V power connector Yes
    EPS power connector (8-pin) Yes
    Number of chassis fan connectors 2
    CPU fan connector Yes
    ATX Power connector (24-pin) Yes
    Front panel audio connector Yes
    S/PDIF out connector Yes
    Number of SATA III connectors 4
    USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
    USB 2.0 connectors 2

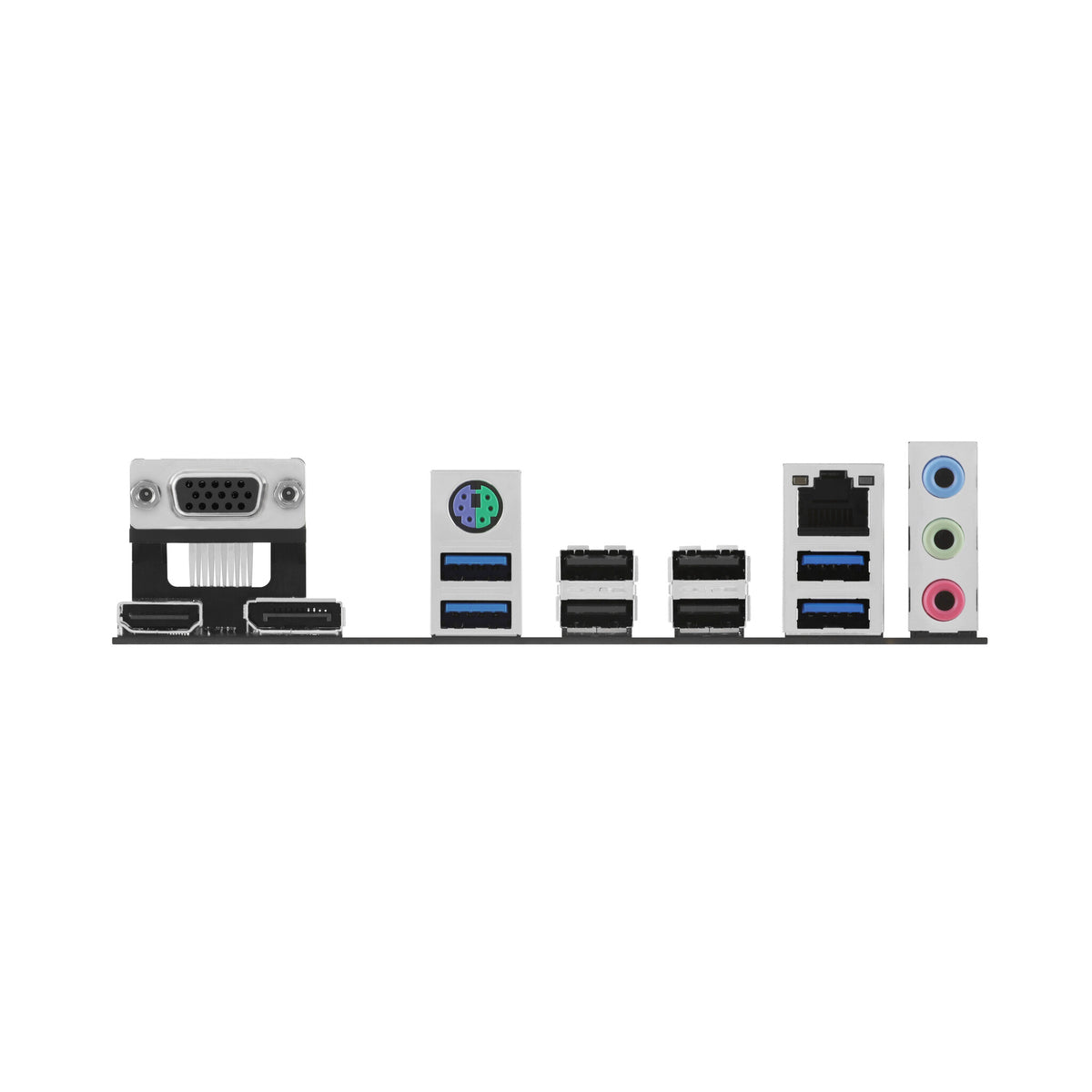

    Rear panel I/O ports
    Microphone in Yes
    Line-in Yes
    Headphone outputs 1
    DisplayPort version 1.4
    DisplayPorts quantity 1
    HDMI version 2.1
    HDMI ports quantity 1
    VGA (D-Sub) ports quantity 1
    PS/2 ports quantity 1
    Ethernet LAN (RJ-45) ports 1
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
    USB 2.0 ports quantity 4
    Network
    Wi-Fi No
    Ethernet interface type Gigabit Ethernet
    Ethernet LAN Yes
    Features
    Windows operating systems supported Windows 10, Windows 11
    Power source type ATX
    Cooling type Passive
    Audio output channels 7.1 channels
    Motherboard chipset AMD A620
    Motherboard chipset family AMD
    Motherboard form factor micro ATX
    Component for PC
    Expansion slots
    Number of M.2 (M) slots 1
    PCI Express x16 (Gen 4.x) slots 1
    PCI Express x1 (Gen 3.x) slots 2
    BIOS
    BIOS memory size 256 Mbit
    BIOS type UEFI AMI
    Packaging data
    Package weight 940 g
    Package height 51.5 mm
    Package depth 270 mm
    Package width 260 mm
    Weight & dimensions
    Depth 221 mm
    Width 226 mm

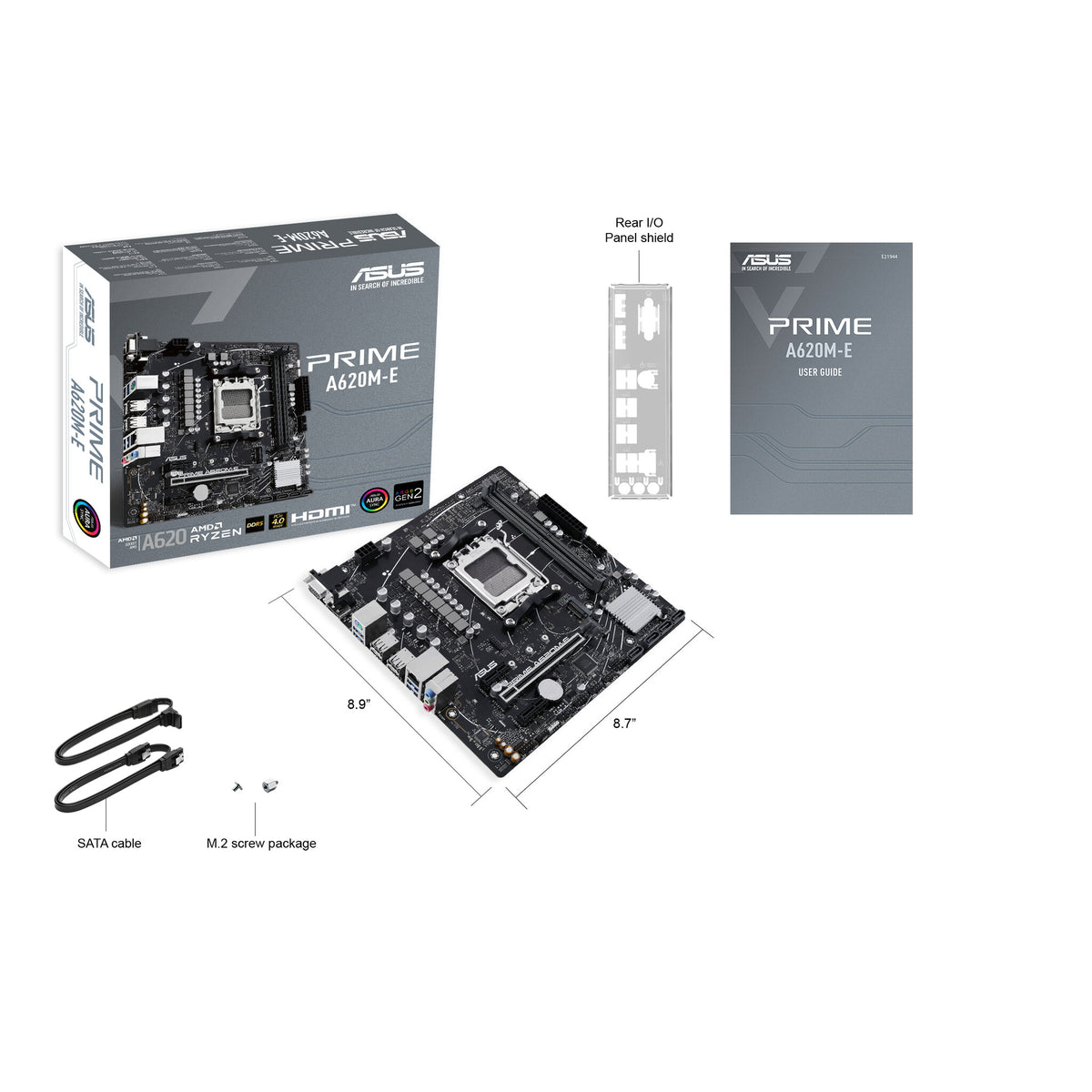

    Packaging content
    Cables included SATA
    User guide Yes
