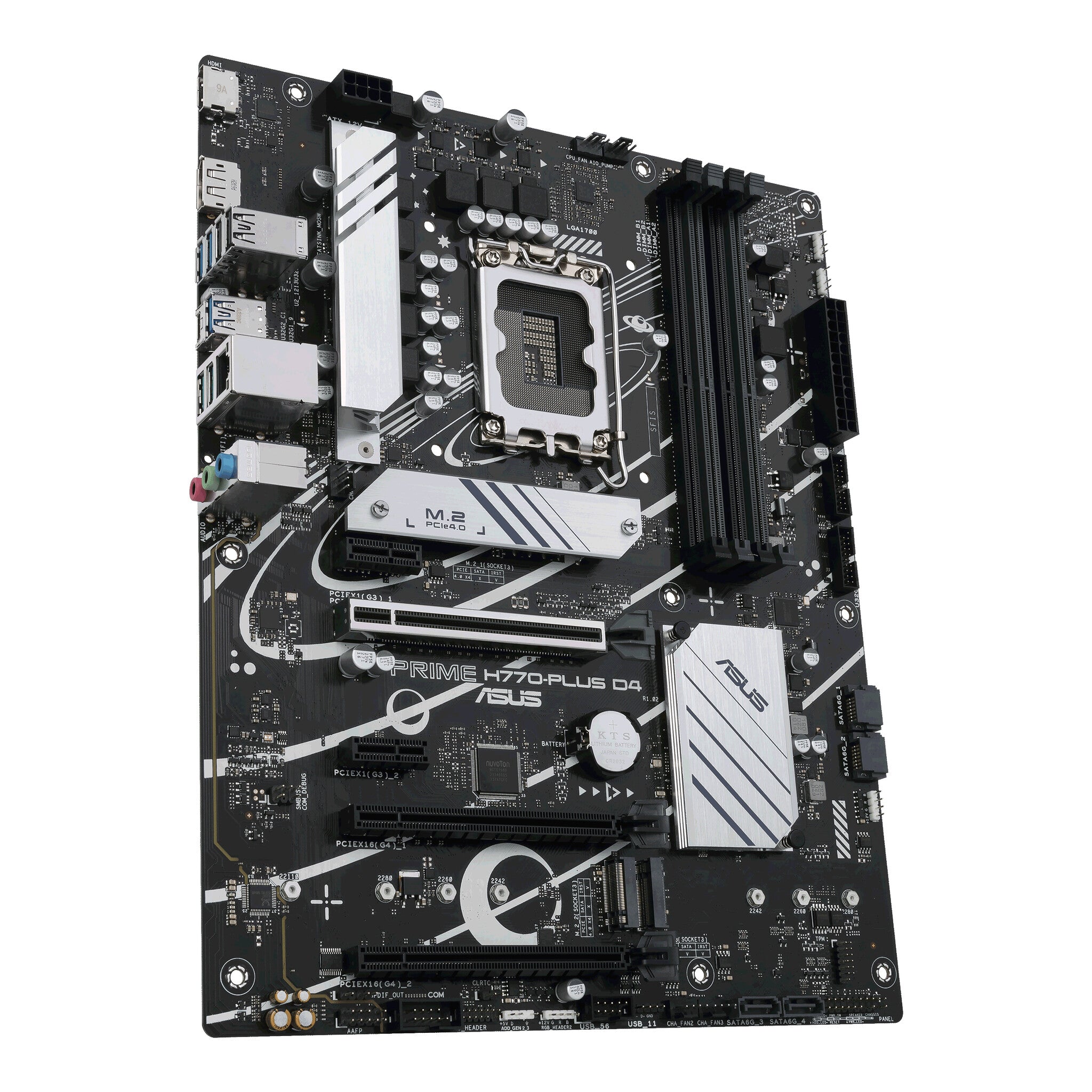

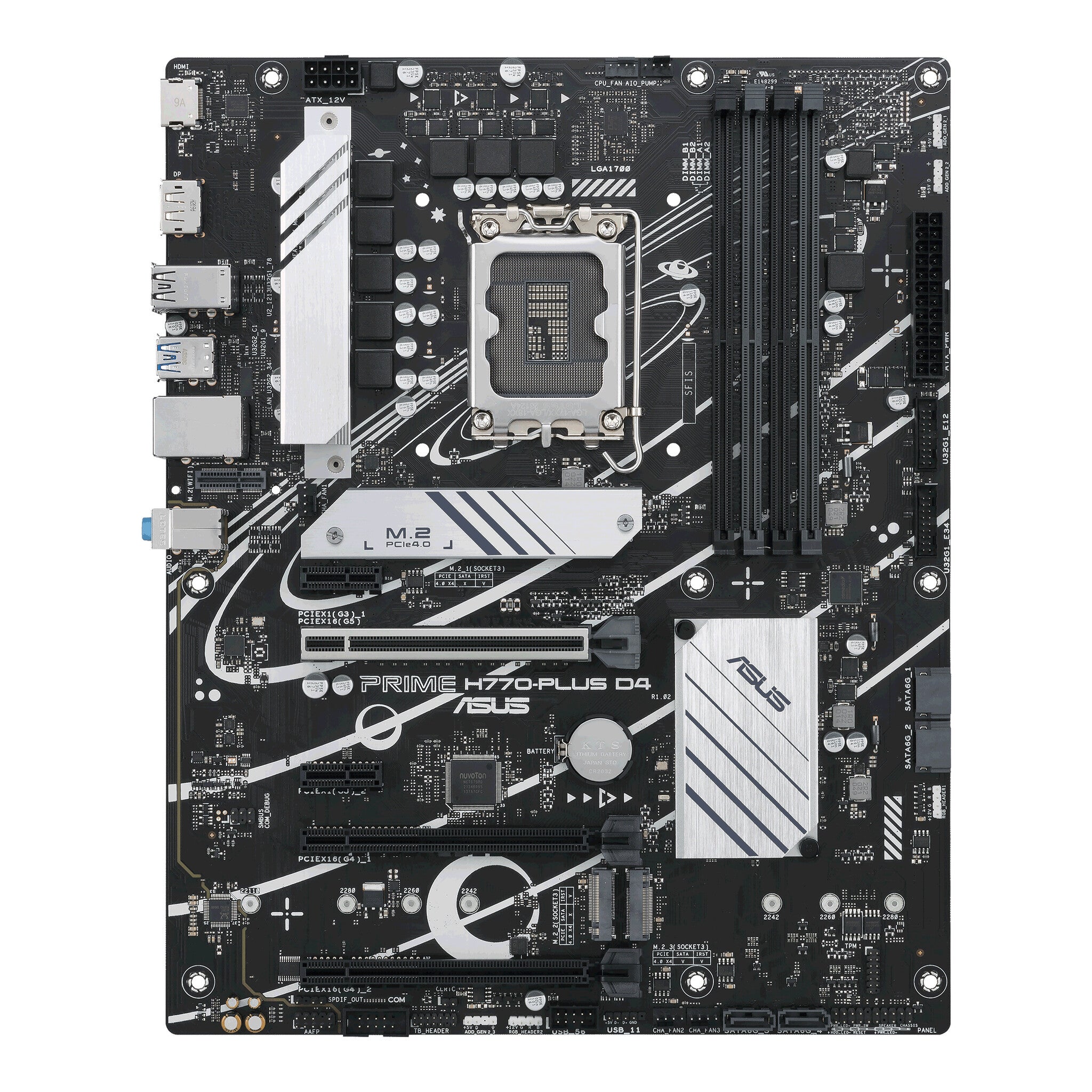

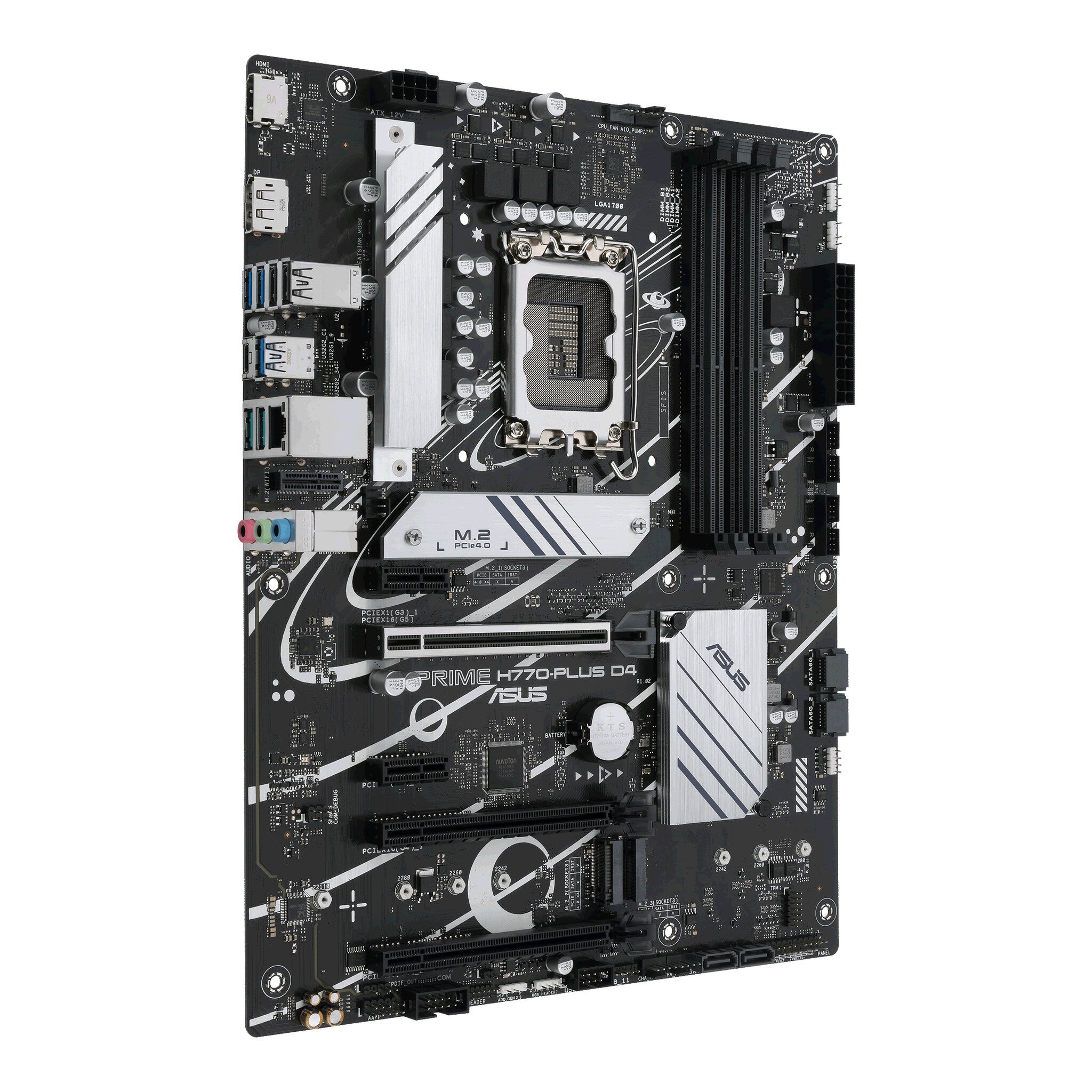

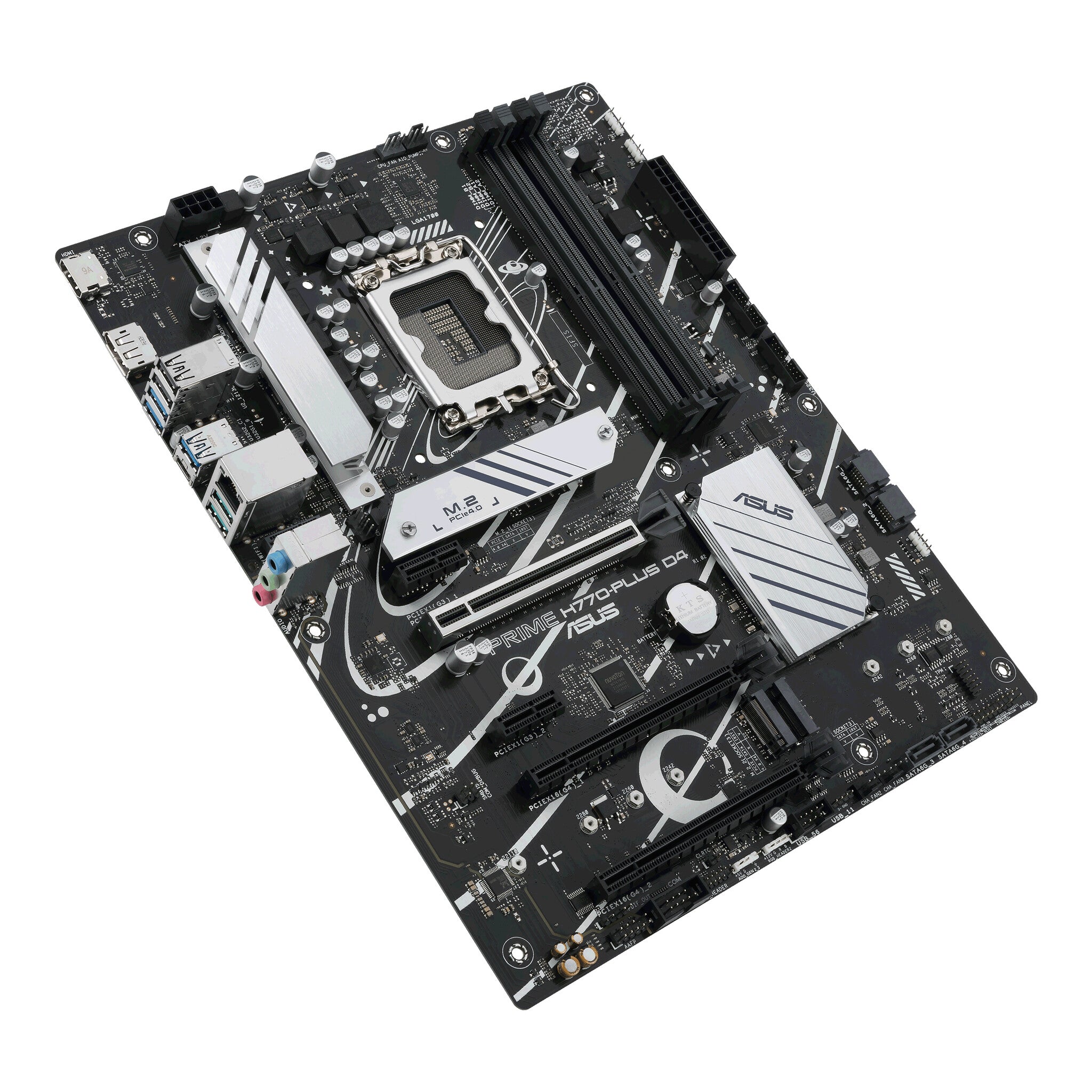

    ASUS PRIME H770-PLUS D4 ATX motherboard - Intel H770 LGA 1700

    ASUS PRIME H770-PLUS D4 ATX motherboard - Intel H770 LGA 1700

    (UK Consumers)
    ex. VAT (Rest of World)
    PayPal Credit 0% for 4 months
    GLOBAL SHIPPING – UPS & DHL
    BUSINESS CUSTOMERS – please email: Sales@clove.co.uk
    FAST SHIPPING – All orders

    Key Features

    • Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
    • Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 Type-C® and Thunderbolt™ (USB4®) header support
    • Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
    • ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
    • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB headers for RGB LED strips, easily synced with Aura Sync-capable hardware

    Prime H770-PLUS D4, an Intel® H770 LGA 1700 ATX motherboard with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR4, Realtek 2.5Gb Ethernet, DisplayPort, HDMI®, SATA 6 Gbps, USB 3.2 Gen 2 Type-C®, Thunderbolt™ (USB4®) support, Aura Sync

    ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME H770-PLUS D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

    FLEXIBILITY
    Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME H770-PLUS D4 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

    Intelligent Control
    ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

    All-Around Energy Efficiency
    The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

    Flexible Air- and Liquid-Cooling Controls
    ASUS Fan Xpert 2+ software provides comprehensive control over fans and all-in-one (AIO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans and AIO coolers can also be controlled via the UEFI BIOS.

    Precise Digital Power Control
    The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

    UEFI BIOS
    The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

    Advanced Tuning for Serious Tweakers
    An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

    Quick and Simple Setup
    EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.

    Intuitive Graphical Fan Control
    Fine-tune individual fan settings simply by dragging a curve with the mouse.

    Aura On/Off Mode (Stealth)
    Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.

    COOLING
    PRIME H770-PLUS D4 motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

    Heatsinks

    M.2 Heatsink
    M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws, and these removable captive screws help reduce risk of drops or loss during heatsink removal.

    VRM Heatsink and Thermal Pad
    VRM heatsink and thermal pad improve heat transfer from the MOSFETs for better cooling performance.

    Cooler by Design
    PRIME H770-PLUS D4 features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.

    Multiple Temperature Sources
    Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

    AIO Pump Header
    A dedicated PWM/DC header for self-contained water-cooling setups.

    Smart Protection
    A dedicated integrated circuit protects each fan header from overheating and overcurrent.

    4-Pin PWM/DC Fan
    Each onboard header supports auto-detection of PWM or DC fans.

    PERFORMANCE
    The PRIME H770-PLUS D4 motherboard is built to handle the high core counts and bandwidth demands of 13th Gen Intel® Core™ Processors. ASUS H770 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.

    Robust Power Design
    Stable power is essential to extract every last bit of performance out of Intel® processors. The PRIME H770-PLUS D4 is geared to cater to the demands of these high-core-count CPUs.

    Memory

    DDR4 Support
    Improvements to trace routing design provide the latest Intel® processors with enhanced access to memory bandwidth. ASUS OptiMem technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.

    ASUS OptiMem
    Revisions to the motherboard's trace routing provide the latest Intel® processors with unrestricted access to memory bandwidth. ASUS OptiMem technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.

    ASUS OptiMem benefits:
    Improved memory stability and compatibility
    Allows lower memory latencies at equivalent voltages
    Improved memory frequency margin

    Storage

    Three M.2 Slots (up to 64 Gbps)
    PRIME H770-PLUS D4 offers a total of three M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives.
    *Actual transmission speeds will be lower than the theoretical maximum speed.

    Connectivity

    PCIe 5.0 Slot
    PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, and compatibility with previous versions of PCI Express.

    USB 3.2 Gen 2 Type-C®
    A batch of USB ports support high-end rigs loaded with peripherals, including a rear USB Type-C® connector with ultrafast USB 3.2 Gen 2 for transmission speeds of up to 10Gbps.

    Thunderbolt™ 4 (USB4® compliant)
    PRIME H770-PLUS D4 motherboard features USB4® support via a Thunderbolt™ (USB4®) header. With an ASUS add-on card*, PRIME motherboards can enable bi-directional speeds of up to 40 Gbps on a single cable, while providing power to fast-charge device. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to dual displays with 4K resolution.
    *ASUS add-on card is sold separately.

    Realtek 2.5 Gb Ethernet
    Realtek 2.5 Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers.

    LANGuard
    ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput and ensure a more reliable connection.

    Combined onboard features deliver elevated audio
    Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.

    Audio Shielding
    Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference.

    Dedicated Audio PCB Layers
    Separate layers for left and right tracks ensures both channels deliver consistent, equal quality.

    Premium Audio Capacitors
    Provides warm, natural, and immersive sound with exceptional clarity and fidelity.

    Aura Sync
    Outshine the Competition
    A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.

    Addressable Gen 2 Headers
    Three Addressable Gen 2 headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.

    Armoury Crate
    Within a single intuitive interface, Armoury Crate offers easily customized Aura Sync RGB settings for every compatible device in your arsenal , plus controls for an ever-growing family of ASUS products, including keyboard and mouse preferences. Armoury Crate also integrates product registration and a news feed so that you never miss updates of interest to the ASUS community.

    Q-LED Core
    The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.

    SafeSlot Core+
    PCIe 5.0 is 2x faster than PCIe 4.0, so we adapted our SMT manufacturing process for the faster SafeSlot Core+, to ensure the highest data speeds. SafeSlot Core+ is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed.

    Overvoltage Protection
    World-class circuit-protecting power design
    An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.

    Stainless-Steel Back I/O
    3X corrosion-resistance for greater durability
    Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.

    Processor
    Supported processor sockets LGA 1700
    Maximum number of SMP processors 1
    Compatible processor series Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
    Processor socket LGA 1700
    Processor manufacturer Intel
    Memory
    Unbuffered memory Yes
    Maximum internal memory 128 GB
    Supported memory clock speed (max) 5066 MHz
    Supported memory clock speeds 5066,5000,4800,4600,4400,4266,4000,3733,3600,3466,3400,3333,3200,3000,2933,2800,2666,2400,2133 MHz
    Non-ECC Yes
    Memory channels Dual-channel
    Memory slots type DIMM
    Number of memory slots 4
    Supported memory types DDR4-SDRAM
    Storage controllers
    RAID levels 0, 1, 5, 10
    RAID support Yes
    Number of HDDs supported 4
    Number of storage drives supported 7
    Supported storage drive interfaces M.2, SATA III
    Supported storage drive types HDD & SSD
    Graphics
    Parallel processing technology support Not supported
    Internal I/O
    RGB LED pin header Yes
    Thunderbolt headers 1
    Number of COM connectors 1
    TPM connector Yes
    12V power connector Yes
    EPS power connector (8-pin) Yes
    Chassis intrusion connector Yes
    Number of chassis fan connectors 3
    CPU fan connector Yes
    ATX Power connector (24-pin) Yes
    Front panel connector Yes
    Front panel audio connector Yes
    S/PDIF out connector Yes
    Number of SATA III connectors 4
    USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
    USB 2.0 connectors 2

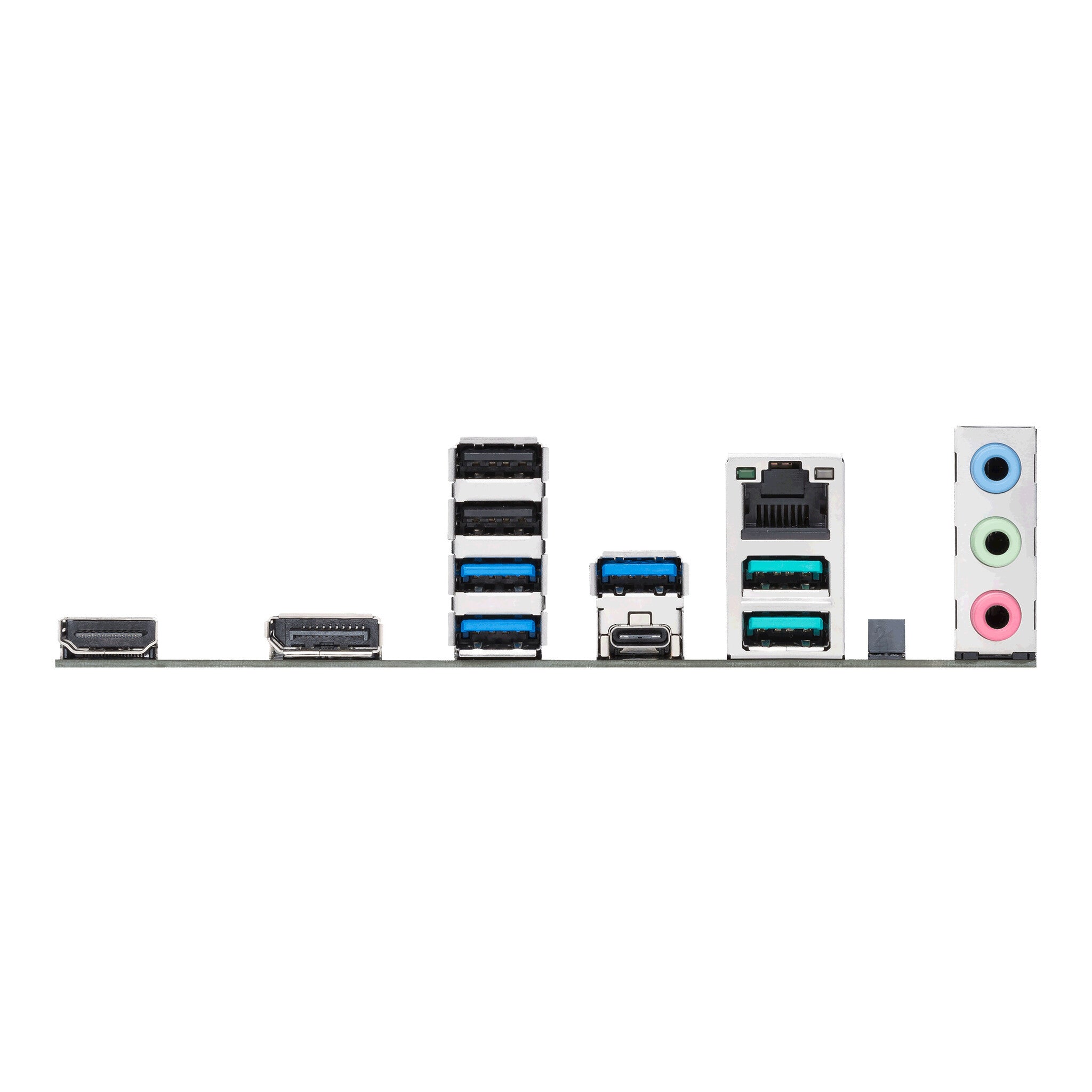

    Rear panel I/O ports
    Microphone in Yes
    Line-in Yes
    Headphone outputs 1
    DisplayPort version 1.4
    DisplayPorts quantity 1
    HDMI version 2.1
    HDMI ports quantity 1
    Ethernet LAN (RJ-45) ports 1
    USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
    USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
    USB 2.0 ports quantity 2
    Network
    Wi-Fi No
    Ethernet interface type 2.5 Gigabit Ethernet
    Ethernet LAN Yes
    Features
    Windows operating systems supported Windows 10, Windows 11
    Power source type ATX
    Cooling type Passive
    Audio output channels 7.1 channels
    Motherboard chipset Intel H770
    Motherboard chipset family Intel
    Motherboard form factor ATX
    Component for PC
    Expansion slots
    Number of M.2 (M) slots 3
    PCI Express x16 (Gen 5.x) slots 1
    PCI Express x16 (Gen 4.x) slots 2
    PCI Express x1 (Gen 3.x) slots 2
    BIOS
    BIOS memory size 192 Mbit
    BIOS type UEFI AMI
    Packaging data
    Package weight 1.13 kg
    Package height 266 mm
    Package depth 53 mm
    Package width 328 mm
    Weight & dimensions
    Depth 244 mm
    Width 305 mm
    Packaging content
    Cables included SATA
    User guide Yes
    Other features
    Number of M.2 (E) slots 1
