Key Features

• Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
• PC micro ATX Intel H810 7.1 channels
• DDR5-SDRAM 2 DIMM Maximum internal memory: 128 GB
• HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
• BIOS type: UEFI AMI 256 Mbit
• Gigabit Ethernet Wi-Fi Wi-Fi 6 (802.11ax) Bluetooth 5.3

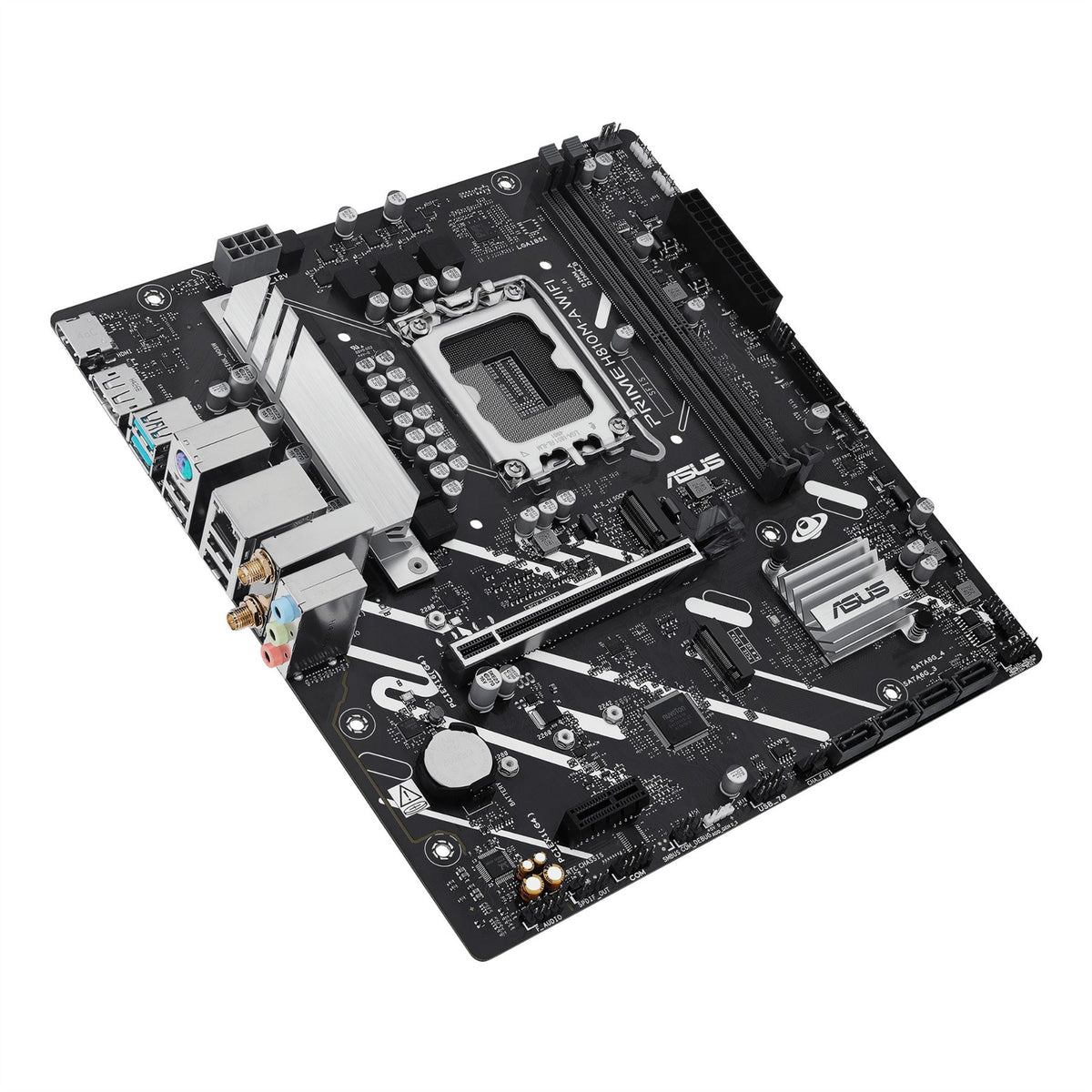

ASUS PRIME H810M-A WIFI
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME H810M-A WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Digital Power Design
Stable power is crucial for maximizing the performance of Intel® Core™ Ultra Processors (Series 2).The PRIME H810M-A WIFI features an 6+1+1+1 phase design with discrete MOSFETs, ensuring efficient and stable power delivery for Intel® processors plus steady performance for day-to-day use.

Power Saving
The Power Saving function contains several settings to easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting and set the fan profile to a Power Saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

Digi + VRM Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings.

DIMM Fit
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyses individual memory modules to optimize performance and pinpoint potential issues. This offers peak efficiency, compatibility, and system stability. Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay, or a content creator prioritizing rock-solid stability, DIMM Fit provides optimizations tailored to your needs and your hardware configuration.

Two M.2 slots (up to 64Gbps)
PRIME H810M-A WIFI offers a total of two M.2 slots, including one that supports data-transfer speeds of up to 64Gbps via PCIe 4.0, one that supports 32Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.

Cooler by Design
The PRIME H810M-A WIFI motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.

VRM Heatsink and Thermal Pad
The VRM heatsink and thermal pad improve heat transfer from the MOSFETs for better cooling performance.

Multiple Temperature Sources
Each header can dynamically reference three thermal sensors. Fan Xpert 2+ lets you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

4-Pin PWM/DC Fan
Each onboard header supports auto-detection of PWM or DC fans.

Passive Chipset Heatsink
An aluminium passive chipset heatsink ensures optimal cooling and stable performance. It is more durable and longer-lasting than heatsinks with fans, which can be vulnerable to the build-up of dust and debris.

Smart Protection
A dedicated integrated circuit protects each fan header from overheating and excess current.

ASUS Fan Xpert 2+
ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.

Empowering Connections
This motherboard offers a versatile range of connectivity, including support for PCIe 4.0 M.2, PCIe 4.0 slot and an arsenal of USB ports which includes Type-C® connection.

WiFi 6
The WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 600Mbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS Wi-Fi 6 routers to experience the networking potential of Wi-Fi 6.

High Speed Transferring
Numerous USB ports support high-end rigs loaded with peripherals, including two rear USB Type-A ports with transmission speeds of up to 10Gbps and a front USB Type-C® connector with ultrafast USB 5Gbps for transmission speeds of up to 5Gbps.

Intel® 1 Gb Ethernet
Intel® Ethernet Connection I219-V reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfer.

Personalization
The PRIME H810M-A WIFI enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.

UEFI BIOS
The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.

ASUS GlideX
Enable seamless screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, supporting multiple platforms.

ASUS DriverHub
Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.

Armoury Crate
Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.

Aura Sync
Complete RGB lighting control for enthusiast systems, ensuring seamless synchronization with compatible hardware.

Addressable Gen2 RGB Headers
Three Addressable Gen2 headers detect LED counts on compatible RGB devices, automatically adjusting lighting effects accordingly.

DIY Friendly
The PRIME H810M-A WIFI motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.

SafeSlot Core+
SafeSlot Core+ is a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.

Q-LED Core
The Q-LED Core display produces color-coded lights during the Power-On Self-Test (POST) that can help you troubleshoot potential issues.
