Processor | |
---|---|
Intel Xeon series | W-3400, W-2400 |
Compatible processor series | Intel Xeon W |
Processor socket | LGA 4677 (Socket E) |
Processor manufacturer | Intel |
Memory | |
---|---|
Maximum internal memory | 2.05 TB |
Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800 MHz |
ECC | Yes |
Memory channels | Quad-channel |
Memory slots type | DIMM |
Number of memory slots | 8 |
Supported memory types | DDR5-SDRAM |
Storage controllers | |
---|---|
RAID levels | 0, 1, 5, 10 |
RAID support | Yes |
Number of HDDs supported | 4 |
Number of storage drives supported | 6 |
Supported storage drive interfaces | M.2, SATA III |
Supported storage drive types | HDD & SSD |
Internal I/O | |
---|---|
Number of COM connectors | 1 |
TPM connector | Yes |
12V power connector | Yes |
EPS power connector (8-pin) | Yes |
Number of chassis fan connectors | 5 |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
Front panel audio connector | Yes |
Number of SATA III connectors | 4 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
USB 2.0 connectors | 2 |

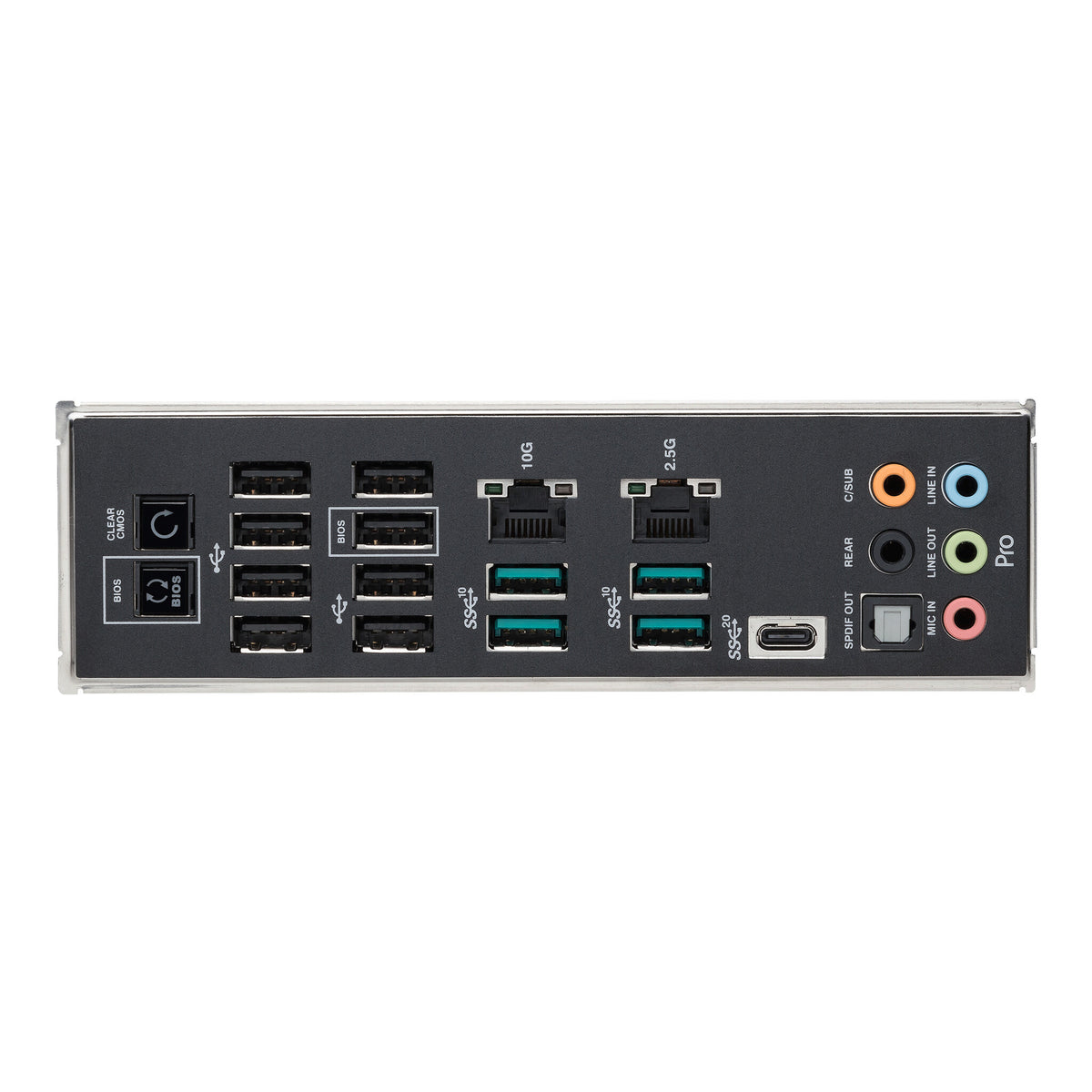

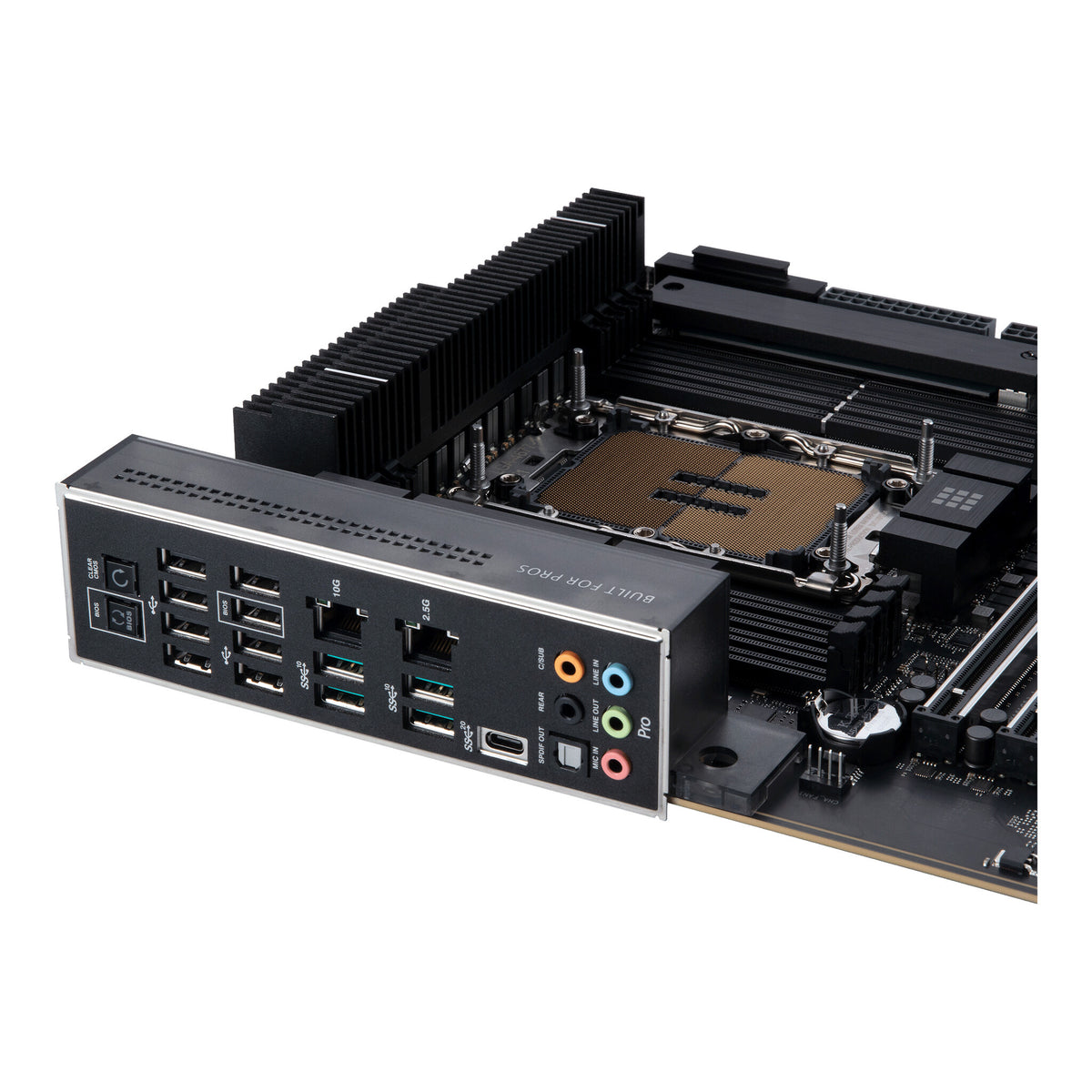

Rear panel I/O ports | |
---|---|
S/PDIF out port | Yes |
Microphone in | Yes |
Headphone outputs | 1 |
Ethernet LAN (RJ-45) ports | 2 |
USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
USB 2.0 ports quantity | 8 |
Network | |
---|---|
Wi-Fi | No |
Ethernet interface type | 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
Ethernet LAN | Yes |
Features | |
---|---|
Windows operating systems supported | Windows 10 x64, Windows 11 |
Audio output channels | 7.1 channels |
Audio chip | Realtek S1220A |
Motherboard chipset | Intel W790 |
Motherboard chipset family | Intel |
Component for | Workstation |
Expansion slots | |
---|---|
PCI Express x16 (Gen 5.x) slots | 5 |
BIOS | |
---|---|
Clear CMOS button | Yes |
BIOS memory size | 512 Mbit |
BIOS type | UEFI AMI |
Packaging data | |
---|---|
Package weight | 3.52 kg |
Package height | 108 mm |
Package depth | 312 mm |
Package width | 370 mm |
Weight & dimensions | |
---|---|
Height | 50 mm |
Depth | 277 mm |
Width | 305 mm |
Other features | |
---|---|
Weight | 1.81 kg |
