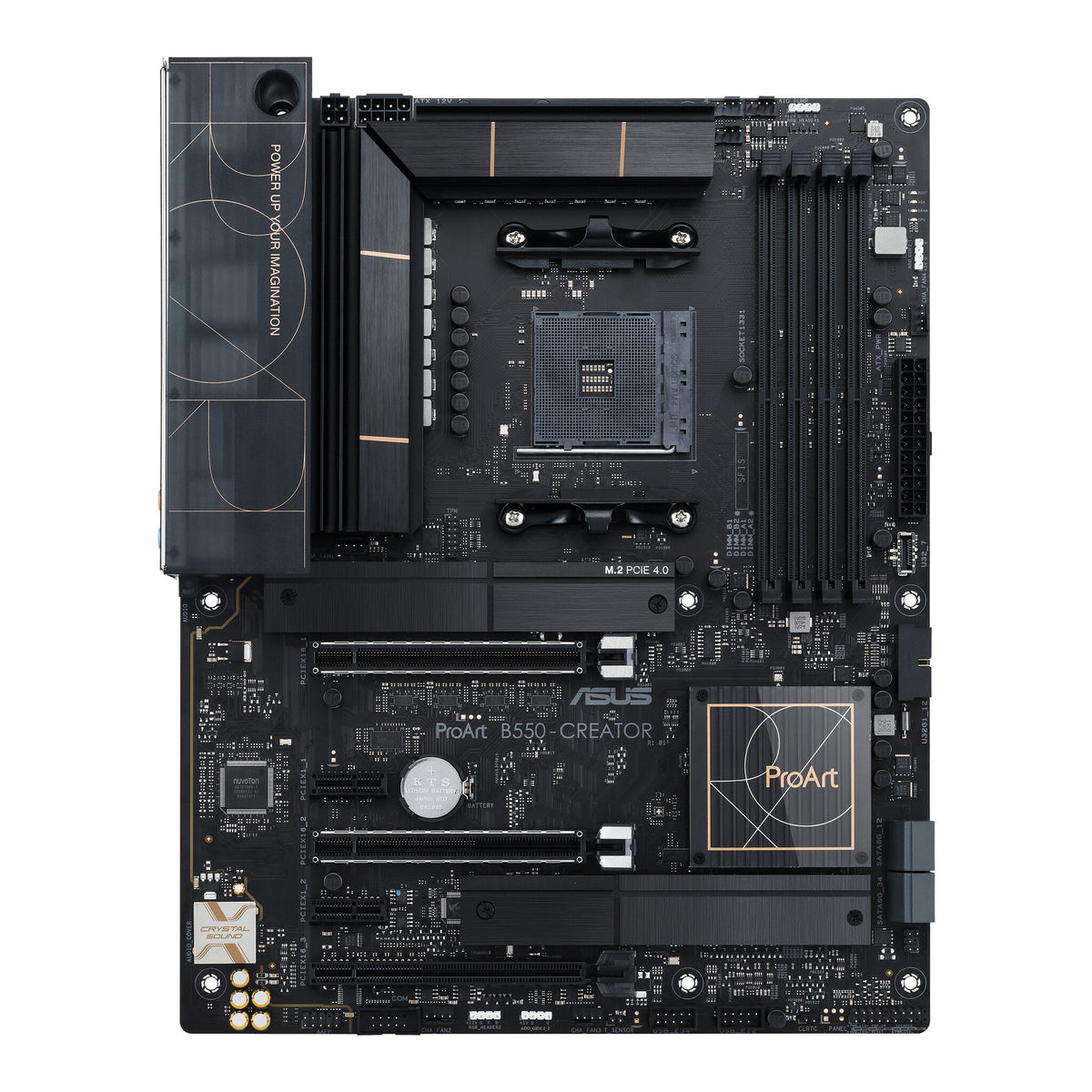

The ProArt B550-Creator motherboard equips creative professionals with powerful hardware and software tools to accelerate their workflows. Featuring comprehensive, efficient cooling and lightning-fast connectivity, this board maximizes the computing power of the latest AMD Ryzen processors to let you create faster and get more done. Combined with a stylish design, advanced security features and the trusted stability and reliability ASUS motherboards are known for, ProArt B550-Creator perfects the art of performance to empower your creative flow.
Lightning-Speed Connectivity
A comprehensive array of powerful I/O ports — including two Thunderbolt™ 4 ports, two 2.5G Ethernet and four USB 3.2 Gen 2 ports — enables quick data transfers and extensive storage options with flexible, hassle-free connectivity.
Dual Thunderbolt™ 4 Type-C®
Each Thunderbolt™ 4 port delivers up to 40 Gbps of bidirectional bandwidth for the latest high-speed devices and drives. Thunderbolt 4 also supports up to two external 4K displays and extends PCIe bandwidth to up to 32 Gbps.
Dual 2.5G Ethernet
Experience faster data transfers and high-res video streaming with two Intel 2.5G Ethernet (I225-V) ports. ProArt B550-Creator also features CreationFirst, exclusive network optimization software that allocates more bandwidth to speed up essential apps for your work.
Unthrottled Performance
ProArt B550-Creator provides robust power delivery and comprehensive cooling to handle the latest AMD Ryzen™ processors. It also supports PCIe 4.0, providing everything you need for the most demanding multithreaded tasks like 3D or video rendering and software compiling.
Robust Power Design
ProArt B550-Creator provides robust power delivery to handle the full power of latest Ryzen processors and improve overall system stability.
Teamed Power Stages
12+2 power stages combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest AMD Ryzen processors demand.
Digi+ Power Control
The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.
ProCool II Power Connector
The ProCool socket is built to exacting specifications to ensure flush contact with the PSU power lines, enabling lower impedance and better heat dissipation.
Choke & Capacitor
Superior alloy chokes and durable capacitors are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.
6-Layer PCB
The 6-layer PCB quickly dissipates heat around the VRM to improve overall system stability and give the CPU more overclocking headroom.
Cool to the Core
The VRM and M.2 heatsink designs ensure effective cooling of the CPU and SSD to ensure system stability and fast storage performance for seamless content creation workflows.
VRM Heatsink & Thermal Pad
Large, high-mass heatsinks with an extensive surface area along with high-quality thermal pads help transfer heat from VRM and choke areas to improve heat dissipation.
M.2 Heatsink
Both M.2 drives sit under a passive heatsink to ward off the throttling that can occur with sustained transfers.
Stack Cool 3+
Layers of 2-ounce copper draw heat away from critical components to keep them at their optimal operating temperatures.
Industry-Leading Security
Advanced security from ASUS Control Center Express to protect your data and system.
USB Port Management
Enable or disable the USB port or set it to Read Only to prevent data leaks.
Software Blacklist
A software blacklist is also available to prevent running of high-risk applications for IT security.
Registry Editor On/Off
Remotely disable the Registry Editor on client devices to prevent unauthorized changes to system configurations for enhanced security.
ProArt Gives You More
ProArt-exclusive software utilities deliver intuitive system monitoring, audio and networking enhancements that smooth your workflow.
Two-Way AI Noise Cancelation
With working-from-home becoming the new normal, clear online communication is critical, even for content creators. Our latest audio utility leverages a massive deep-learning database to reduce background noise from the microphone and incoming audio. Distracting keyboard clatter, mouse clicks and other ambient noises are smartly pared back so you can hear and be heard with crystal clarity while in calls.
ProArt Creator Hub
A user-friendly interface designed to enhance your workflow through central system monitoring and control of all connected ProArt Series products, including motherboards and displays.
1. Fan Mode
Fan mode quickly configures your system's cooling by selecting the preferred fan setting.
2. Task Group
Applications that are frequently used together can be arranged into groups and launched with a single click.
CreationFirst
Network-optimization software allows you to prioritize applications in order to allocate more bandwidth to speed up essential apps and tasks.
1. Adaptive Intelligence Mode
Intelligently prioritizes bandwidth of heavy-use applications by identifying in-use applications and using foreground acceleration.
2. Creation First Mode
Allocates more bandwidth to active content-creation applications to optimize network traffic, making your workflow more efficient.
Trusted Stability
ASUS ProArt B550-Creator is engineered and rigorously tested to offer superior quality, stability and compatibility to ensure that it empowers your creativity for years to come.
Processor | |
---|---|
Supported processor sockets | Socket AM4 |
Compatible processor series | AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, AMD Ryzen 9 5th Gen |
Processor socket | Socket AM4 |
Processor manufacturer | AMD |
Memory | |
---|---|
Unbuffered memory | Yes |
Maximum internal memory | 128 GB |
Supported memory clock speeds | 2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4466,4600,4800,4866,5100 MHz |
Non-ECC | Yes |
ECC | Yes |
Memory channels | Dual-channel |
Memory slots type | DIMM |
Number of memory slots | 4 |
Supported memory types | DDR4-SDRAM |
Storage controllers | |
---|---|
RAID levels | 0, 1, 10 |
RAID support | Yes |
Number of storage drives supported | 6 |
Supported storage drive interfaces | M.2, PCI Express 3.0, PCI Express 4.0, SATA III |
Supported storage drive types | HDD & SSD |
Graphics | |
---|---|
Parallel processing technology support | Not supported |
Internal I/O | |
---|---|
RGB LED pin header | Yes |
Thunderbolt headers | 2 |
Number of COM connectors | 1 |
TPM connector | Yes |
12V power connector | Yes |
EPS power connector (8-pin) | Yes |
Number of chassis fan connectors | 4 |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
Front panel connector | Yes |
Front panel audio connector | Yes |
Audio connector | Yes |
Number of SATA III connectors | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
USB 2.0 connectors | 2 |
Rear panel I/O ports | |
---|---|
USB connector type | USB Type-A, USB Type-C |
Thunderbolt ports quantity | 2 |
S/PDIF out port | Yes |
Microphone in | Yes |
Headphone outputs | 5 |
DisplayPorts quantity | 1 |
HDMI version | 2.1 |
HDMI ports quantity | 1 |
PS/2 ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
USB 2.0 ports quantity | 2 |
Network | |
---|---|
Wi-Fi | No |
Wake-on-LAN ready | Yes |
LAN controller | Intel I225-V |
Ethernet interface type | 2.5 Gigabit Ethernet |
Ethernet LAN | Yes |
Features | |
---|---|
Windows operating systems supported | Windows 10 x64 |
Audio output channels | 7.1 channels |
Audio chip | SupremeFX S1220A |
Motherboard chipset | AMD B550 |
Motherboard chipset family | AMD |
Motherboard form factor | ATX |
Component for | PC |
Expansion slots | |
---|---|
PCI Express x16 (Gen 4.x) slots | 2 |
PCI Express x16 (Gen 3.x) slots | 1 |
PCI Express x1 (Gen 3.x) slots | 1 |
BIOS | |
---|---|
Clear CMOS jumper | Yes |
BIOS memory size | 256 Mbit |
BIOS type | UEFI AMI |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733020 |
Weight & dimensions | |
---|---|
Height | 68 mm |
Depth | 244 mm |
Width | 305 mm |
Packaging content | |
---|---|
Drivers included | Yes |
Cables included | SATA |
Other features | |
---|---|
Weight | 1 kg |
