OUTSHINE
THE COMPETITION
ROG Strix RX 570 gaming graphics cards are packed with exclusive ASUS technologies, including DirectCU II Technology with Patented Wing-Blade Fans for up to 30% cooler and 3X quieter performance, and Industry-only Auto-Extreme Technology for premium quality and the best reliability. Aura RGB Lighting enables a gaming system personalization. ROG Strix RX 570 also has GPU Tweak II with XSplit Gamecaster that provides intuitive performance tweaking and instant gameplay streaming.
LEVEL UP PERFORMANCE
GAME COOL AND PLAY SILENT
DirectCU II Technology with Direct-GPU Contact Heatpipes
30% Cooler and 3X Quieter Performance
Exclusive DirectCU II cooling technology features direct-GPU contact heatpipes that transports more heat away from the GPU and outperform reference designs, achieving up to 30% cooler gaming performance.
Patented Wing-Blade Design
Max Air Flow with 105% More Air Pressure
Patented wing-blade fans delivers maximum air flow and 105% greater static pressure over the heat sink, while operating at an up to 3X quieter volume than reference cards.
0dB Technology
Game in Complete Silence
Innovative 0dB technology stops the fan completely when the GPU temperature remains below a set level*, letting you enjoy light gaming in complete silence.
IP5X-Certified Dust Resistance
Longer Fan Lifespan
The fans in ROG Strix graphics cards are certified under the International Protection Marking (IP code) as IP5X dust resistant for improved reliability and a longer lifespan. This stringent certification process ensures ROG Strix graphics cards provide optimal fan performance, even under severe conditions.
ASUS FanConnect II
Optimal System Cooling
ASUS FanConnect II features a 4-pin, hybrid-controlled header that can be connected to both PWM and DC system fans for optimal system cooling. The connected fans reference both the GPU and CPU, operating automatically based on the one with the higher temperature. A comprehensive set of tuning options allow you to tune fan speeds for efficient cooling.
GPU Tweak II lets you easily set these ASUS FanConnect II modes:
- Auto mode:
Chassis fan speeds reference GPU temperatures and operate based on the default factory setting.
- Manual mode:
Allows you to set a fixed speed for connected fans.
- User-defined mode:
Allows you to set chassis fans to reference either the CPU or GPU temperature to determine rotational speed. Additionally, a smart, automatic calibration routine senses the controllable range of connected fans and allows you to fine-tune speeds for efficient cooling and low noise.
PREMIUM QUALITY AND
BEST RELIABILITY
Auto-Extreme Technology
Industry-only 100% Automated Production Process
All ASUS graphics cards are now produced using Auto-Extreme Technology, an industry-exclusive, 100% automated production process that incorporates premium materials to set a new standard of quality. Auto-Extreme Technology ensures consistent graphics card quality as well as improved performance and longevity. This new manufacturing process is also environmentally friendly, eliminating harsh chemicals and reducing power consumption by 50%.
6+2 Phase Super Alloy Power II
Enhanced Durability and Efficiency
ASUS engineers have integrated premium alloy components into their graphics card designs to reinforce overall reliability. Super Alloy Power II components greatly enhance efficiency, reduce power loss and achieve thermal levels that are approximately 50% cooler than previous designs.
- 2X Quieter Choke
Decrease buzzing noise with concrete alloy chokes
- 20% Cooler MOS
Decreases temperature and increases power efficiency
- 2.5X Lifespan Capacitor
Over 90,000 hours longer than traditional capacitors
PERSONALIZED GAMING STYLE

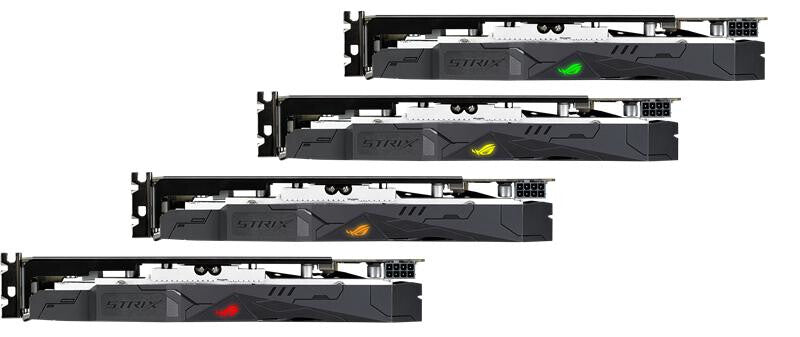

Aura RGB Lighting
Where Style Meets Performance
Featuring Aura RGB Lighting on both the shroud, ROG Strix graphics cards are capable of displaying millions of colors and six different effects for a personalized gaming system.
GEAR UP FOR ULTIMATE GAMING EXPERIENCE
Your Need for Speed, Fulfilled
The Best Combo Ultra-smooth Gameplay
AMD FreeSync™ technology resolves the communication issues between processor and monitor, eliminating image tears and choppiness for effortlessly smooth gameplay. With ROG Strix gaming graphics cards and ASUS MG gaming monitors, scenes appear instantly, objects look sharper, and gameplay is super smooth, giving you a stunning visual experience and a serious competitive edge.
GAME YOUR WAY
GPU Tweak II with XSplit Gamecaster
Tweak Till Your Heart's Content
Redesigned with an intuitive, all-new UI, GPU Tweak II makes overclocking easier and more visual than ever, while still retaining advanced options for seasoned overclockers. With one click, the new Gaming Booster function maximizes system performance by removing redundant processes and allocating all available resources automatically.
Gaming Booster
One-click Performance Up
- Visual effects:
Boost your performance by turning off windows visual effects.
- System Services:
Automatically or manually turn off windows services or process.
- Memory Defragmentation:
Re-arrange & free your system memory without closing any processes.
XSplit Gamecaster
Instant Gameplay Streaming
An included 14-day XSplit Gamecaster premium license lets you easily stream or record gameplay via a convenient, in-game overlay. The overlay also displays GPU clock speed, temperature, and VRM usage, and has GPU Tweak II controls, so gamers can choose a gaming profile and boost performance with just one click.
ROG Strix is the newest recruit into the Republic of Gamers. A series of specialized gaming gear designed for the rebel in all of us, Strix exemplifies ROG's premier performance, innovative technology, and leading quality, but with its own confident and dynamic attitude. Featuring bold designs and bright colors, this exciting new series possesses a spirit of fierce individualism that charges every gaming experience with thrilling energy. ROG Strix equips players with the necessary speed and agility to dominate their game. A new generation of force has arrived. Join the Republic and experience the power of ROG Strix.
Processor | |
---|---|
Stream processors | 2048 |
Processor boost clock speed | 1254 MHz |
Processor frequency | 1244 MHz |
CUDA | No |
Maximum resolution | 5120 x 2880 pixels |
Graphics processor | Radeon RX 570 |
Graphics processor family | AMD |
Memory | |
---|---|
Memory clock speed | 7000 MHz |
Memory bus | 256 bit |
Graphics card memory type | GDDR5 |
Discrete graphics card memory | 4 GB |
Ports & interfaces | |
---|---|
HDMI version | 2.0 |
DVI-D ports quantity | 2 |
DisplayPorts quantity | 1 |
HDMI ports quantity | 1 |
Interface type | PCI Express 3.0 |
Performance | |
---|---|
HDCP | Yes |
OpenGL version | 4.5 |
DirectX version | 12.0 |
TV tuner integrated | No |
PhysX | No |
Design | |
---|---|
Product colour | Black, Grey |
Number of slots | 2 |
Number of fans | 2 fan(s) |
Cooling type | Active |
Power | |
---|---|
Supplementary power connectors | 1x 8-pin |
Weight & dimensions | |
---|---|
Depth | 39 mm |
Height | 129 mm |
Length | 240 mm |
