Processor | |
---|---|
Supported processor sockets | LGA 1700 |
Maximum number of SMP processors | 1 |
Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
Processor socket | LGA 1700 |
Processor manufacturer | Intel |
Memory | |
---|---|
Unbuffered memory | Yes |
Maximum internal memory | 64 GB |
Supported memory clock speed (max) | 7600 MHz |
Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7600 MHz |
Non-ECC | Yes |
Memory channels | Dual-channel |
Memory slots type | DIMM |
Number of memory slots | 2 |
Supported memory types | DDR5-SDRAM |
Storage controllers | |
---|---|
RAID levels | 0, 1, 5, 10 |
RAID support | Yes |
Number of HDDs supported | 4 |
Number of storage drives supported | 6 |
Supported storage drive interfaces | M.2, SATA III |
Supported storage drive types | HDD & SSD |
Graphics | |
---|---|
Parallel processing technology support | Not supported |
Internal I/O | |
---|---|
RGB LED pin header | Yes |
12V power connector | Yes |
EPS power connector (8-pin) | Yes |
Number of chassis fan connectors | 1 |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
Front panel audio connector | Yes |
Number of SATA III connectors | 4 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
USB 2.0 connectors | 1 |

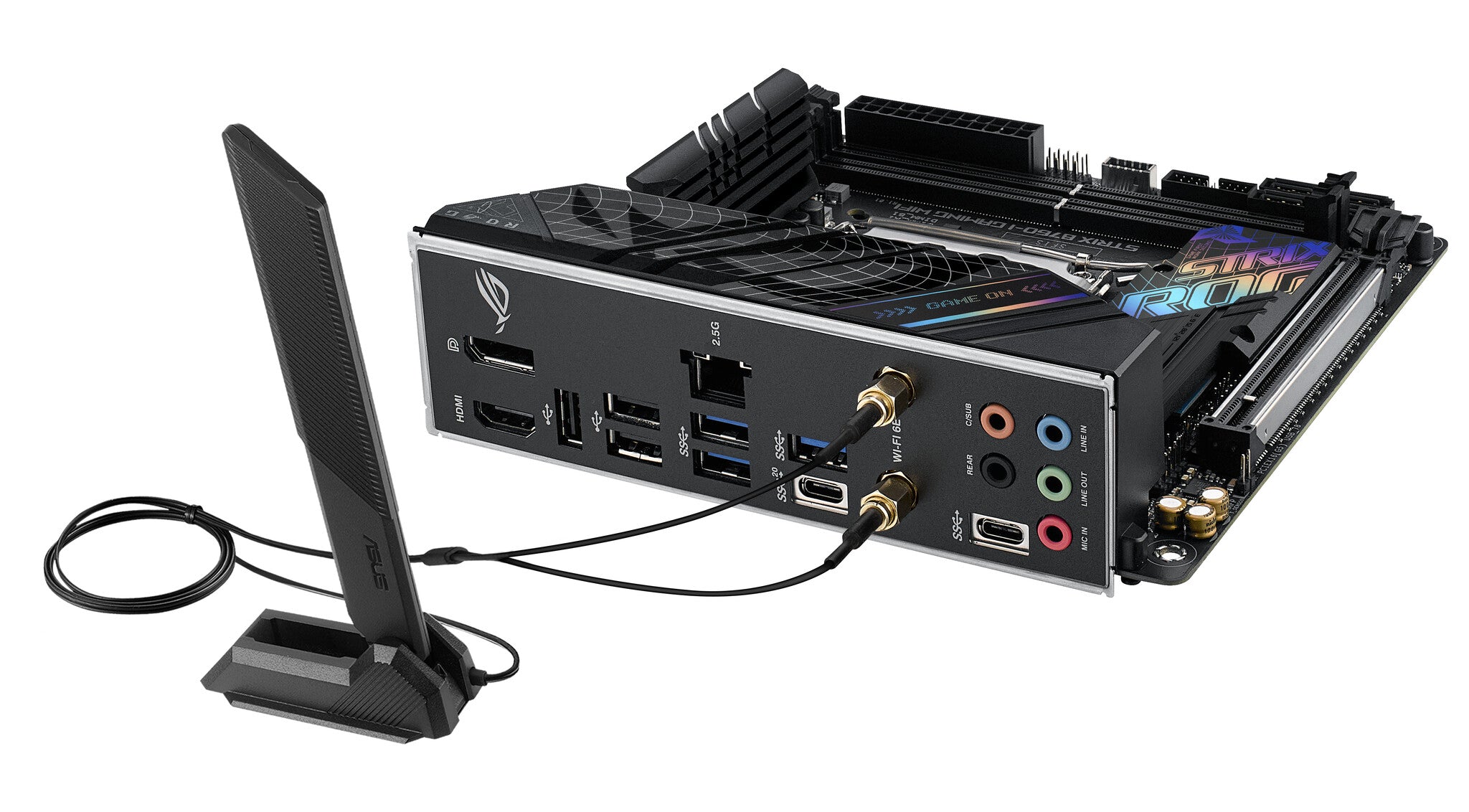

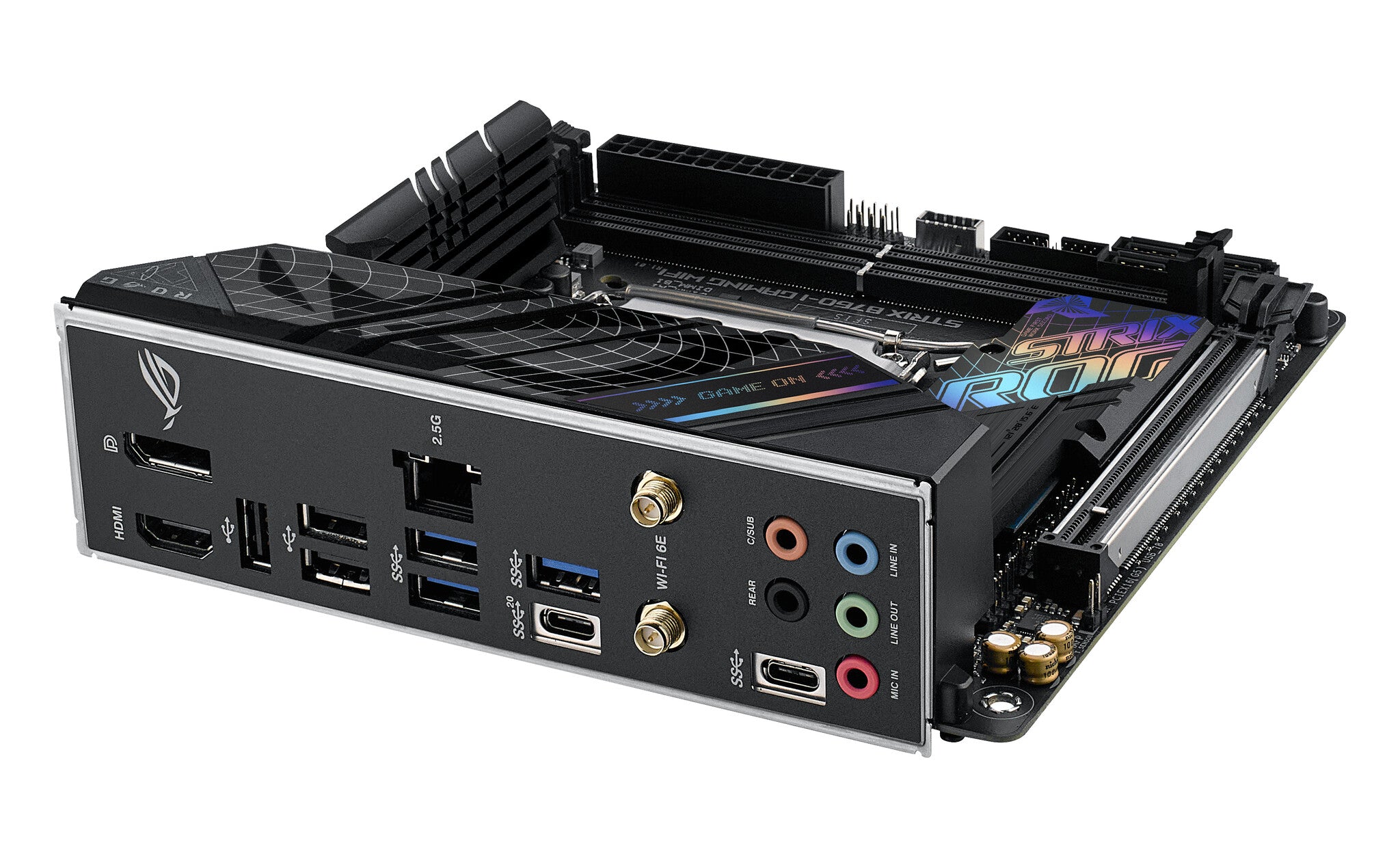

Rear panel I/O ports | |
---|---|
Microphone in | Yes |
Line-in | Yes |
Headphone outputs | 1 |
DisplayPorts quantity | 1 |
HDMI ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
USB 2.0 ports quantity | 3 |
Network | |
---|---|
Bluetooth version | 5.3 |
Bluetooth | Yes |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Wi-Fi | Yes |
Ethernet interface type | 2.5 Gigabit Ethernet |
Ethernet LAN | Yes |
Features | |
---|---|
Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Audio output channels | 7.1 channels |
Audio chip | SupremeFX S1220A |
Motherboard chipset | Intel B760 |
Motherboard chipset family | Intel |
Motherboard form factor | mini ITX |
Component for | PC |
Expansion slots | |
---|---|
Number of M.2 (M) slots | 2 |
PCI Express x16 (Gen 5.x) slots | 1 |
BIOS | |
---|---|
BIOS memory size | 128 Mbit |
BIOS type | UEFI AMI |
Packaging data | |
---|---|
Package weight | 1.28 kg |
Package height | 185 mm |
Package depth | 94 mm |
Package width | 226 mm |
Weight & dimensions | |
---|---|
Height | 50 mm |
Depth | 170 mm |
Width | 170 mm |

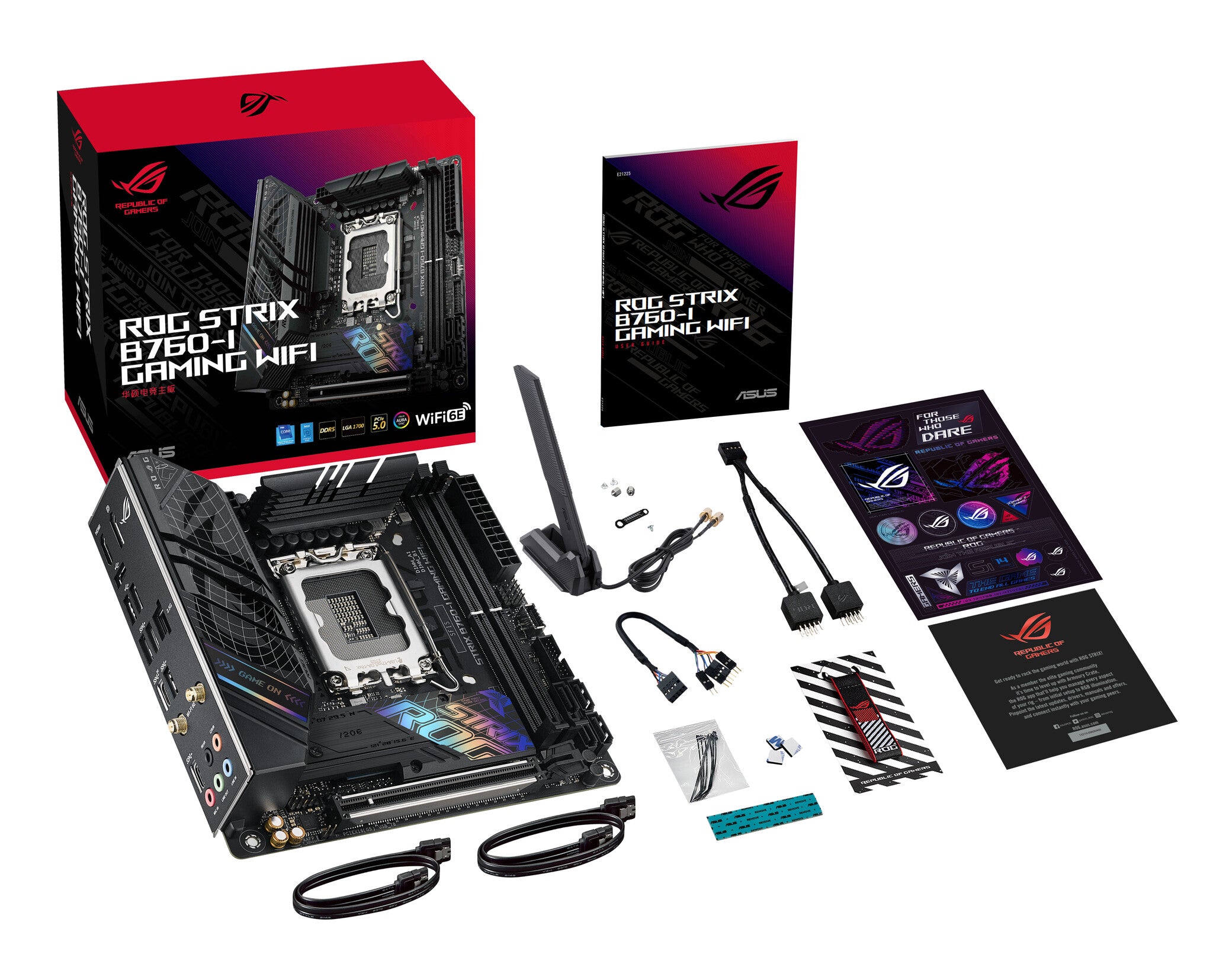

Packaging content | |
---|---|
Cables included | SATA |
User guide | Yes |
Other features | |
---|---|
Weight | 644 g |
