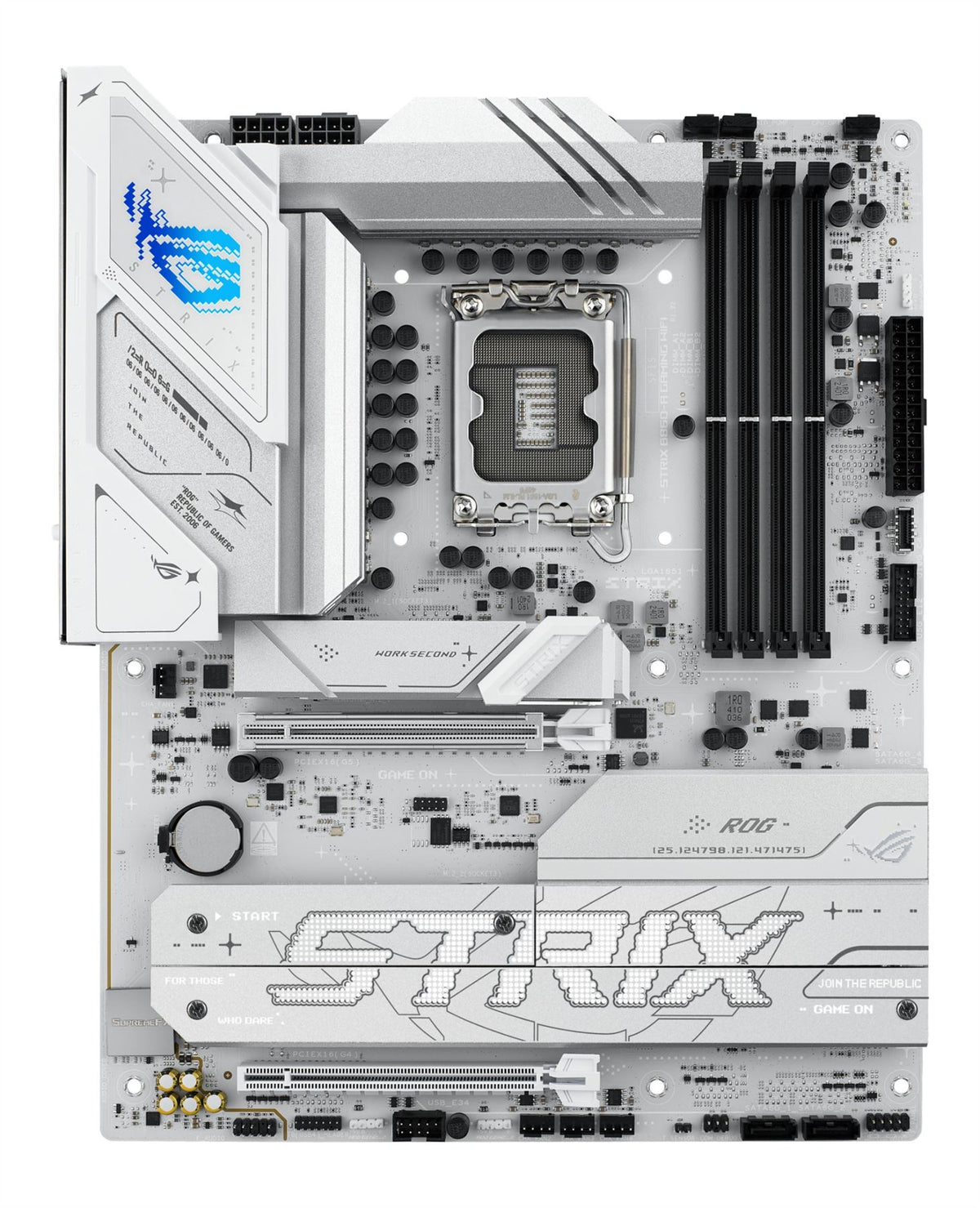

ROG STRIX B860-A Gaming WIFI
With NPU support and AI-enhanced solutions, the ROG STRIX B860-A Gaming Wi-Fi is ready for advanced AI PC applications. Featuring a USB4® (20Gbps) port, PCIe® 5.0, and Aura Sync RGB lighting, it offers fast data transfers, versatile connectivity, and a customizable aesthetic to match your style.
| Technical details | |
|---|---|
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B860 |
| Parallel processing technology support | Not supported |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 11 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B860 |
| RAID levels | 0, 1, 5, 10 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Processor socket | LGA 1851 (Socket V1) |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 8600 MHz |
| ECC сompatibility | Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 8 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| Internal I/O | |
| Thunderbolt headers | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 4 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of CPU fan connectors | 1 |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| VGA (D-Sub) ports quantity | 0 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 1 |
| USB4 Gen 2x2 ports quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Features | |
| Windows operating systems supported | Windows 11 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B860 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio chip | Realtek ALC1220P |
| Product colour | White |
| Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | Yes |
| Packaging data | |
| Package width | 355 mm |
| Package depth | 273 mm |
| Package height | 70 mm |
| Package weight | 1.68 kg |
| Software | |
| Windows operating systems supported | Windows 11 |
| Weight & dimensions | |
| Height | 50 mm |
| Package width | 355 mm |
| Package depth | 273 mm |
| Package height | 70 mm |
| Package weight | 1.68 kg |
| Weight | 1.4 kg |
| Width | 305 mm |
| Depth | 244 mm |
| Other features | |
| Height | 50 mm |
| Package width | 355 mm |
| Package depth | 273 mm |
| Package height | 70 mm |
| Package weight | 1.68 kg |
| Weight | 1.4 kg |
