TAKE FLIGHT

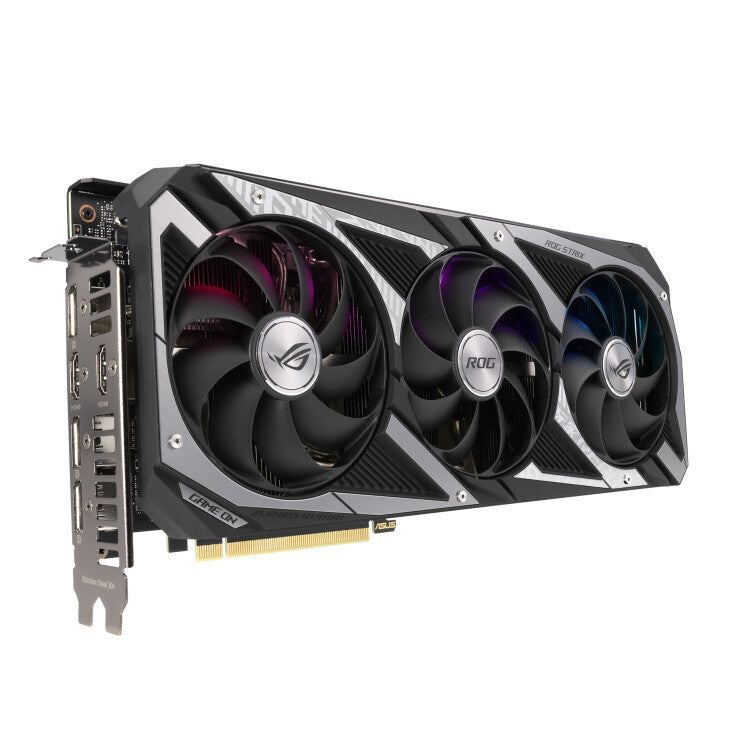

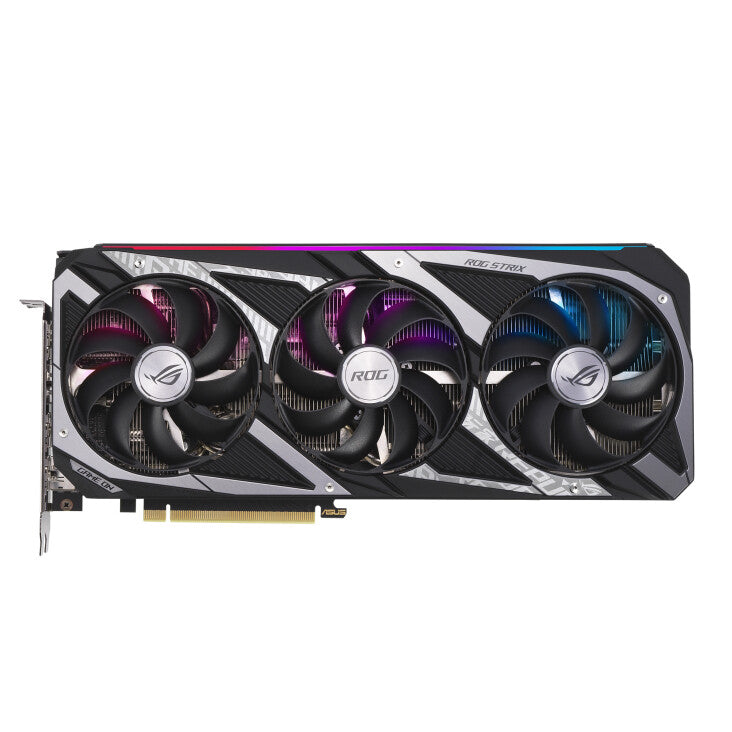

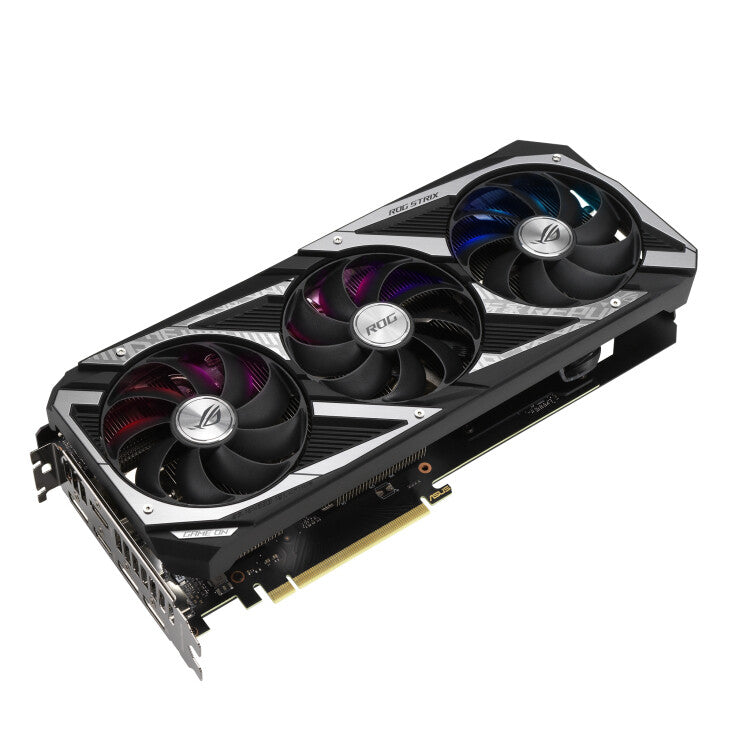

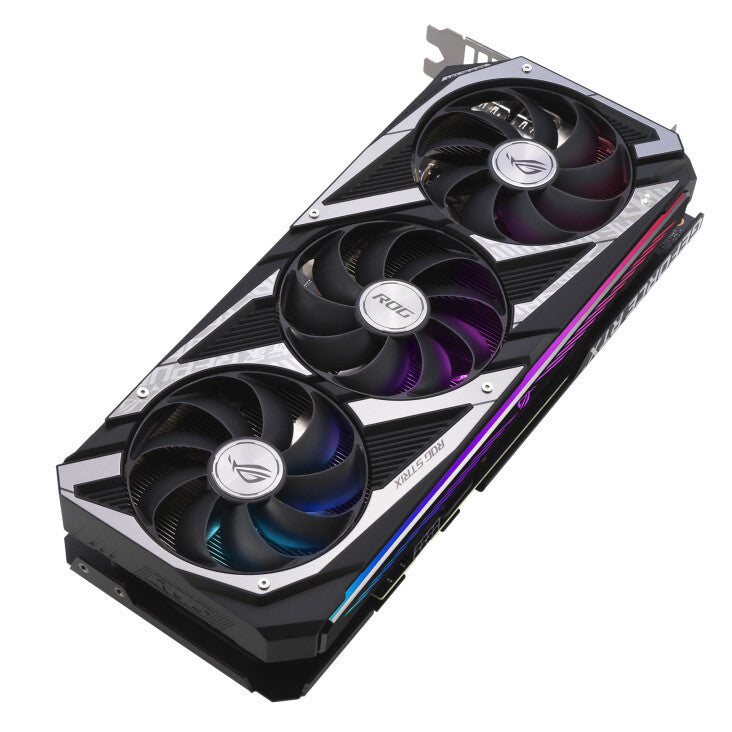

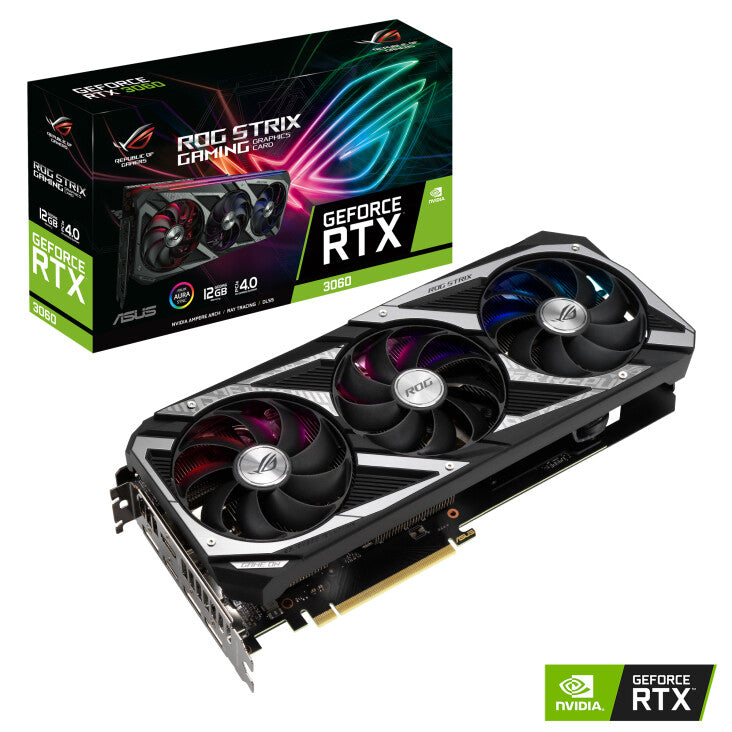

From top to bottom, the ROG Strix GeForce RTX 3060 has been designed to push performance boundaries. A fresh design and more metal surrounds a grouping of Axial-tech fans that leverage a new rotation scheme. Below the blades, a larger, more impressive heatsink is ready for the most demanding thermal loads. The PCB has some new tricks up its sleeves, and even the backplate has received some performance-boosting changes. For gamers who want to get the most out of the NVIDIA Ampere architecture, the latest addition to the ROG Strix stable delivers in every way.
Processor | |
---|---|
Parallel processing technology support | Not supported |
Maximum displays per videocard | 4 |
Processor boost clock speed (Gaming mode) | 1777 MHz |
Processor boost clock speed (OC mode) | 1807 MHz |
CUDA cores | 3584 |
CUDA | Yes |
Maximum resolution | 7680 x 4320 pixels |
Graphics processor | GeForce RTX 3060 |
Graphics processor family | NVIDIA |
Memory | |
---|---|
Memory clock speed | 15000 MHz |
Memory bus | 192 bit |
Graphics card memory type | GDDR6 |
Discrete graphics card memory | 12 GB |
Ports & interfaces | |
---|---|
DisplayPort version | 1.4a |
HDMI version | 2.1 |
DisplayPorts quantity | 3 |
HDMI ports quantity | 2 |
Interface type | PCI Express 4.0 |
Performance | |
---|---|
HDCP | Yes |
HDCP version | 2.3 |
OpenGL version | 4.6 |
Design | |
---|---|
Number of slots | 2.7 |
Number of fans | 3 fan(s) |
Cooling type | Active |
Power | |
---|---|
Supplementary power connectors | 1x 8-pin |
Minimum system power supply | 650 W |
General | |
---|---|
Product Family | ROG |
Product Series | Strix |
Weight & dimensions | |
---|---|
Depth | 53.5 mm |
Height | 133.6 mm |
Length | 300 mm |
Packaging data | |
---|---|
Manual | Yes |
