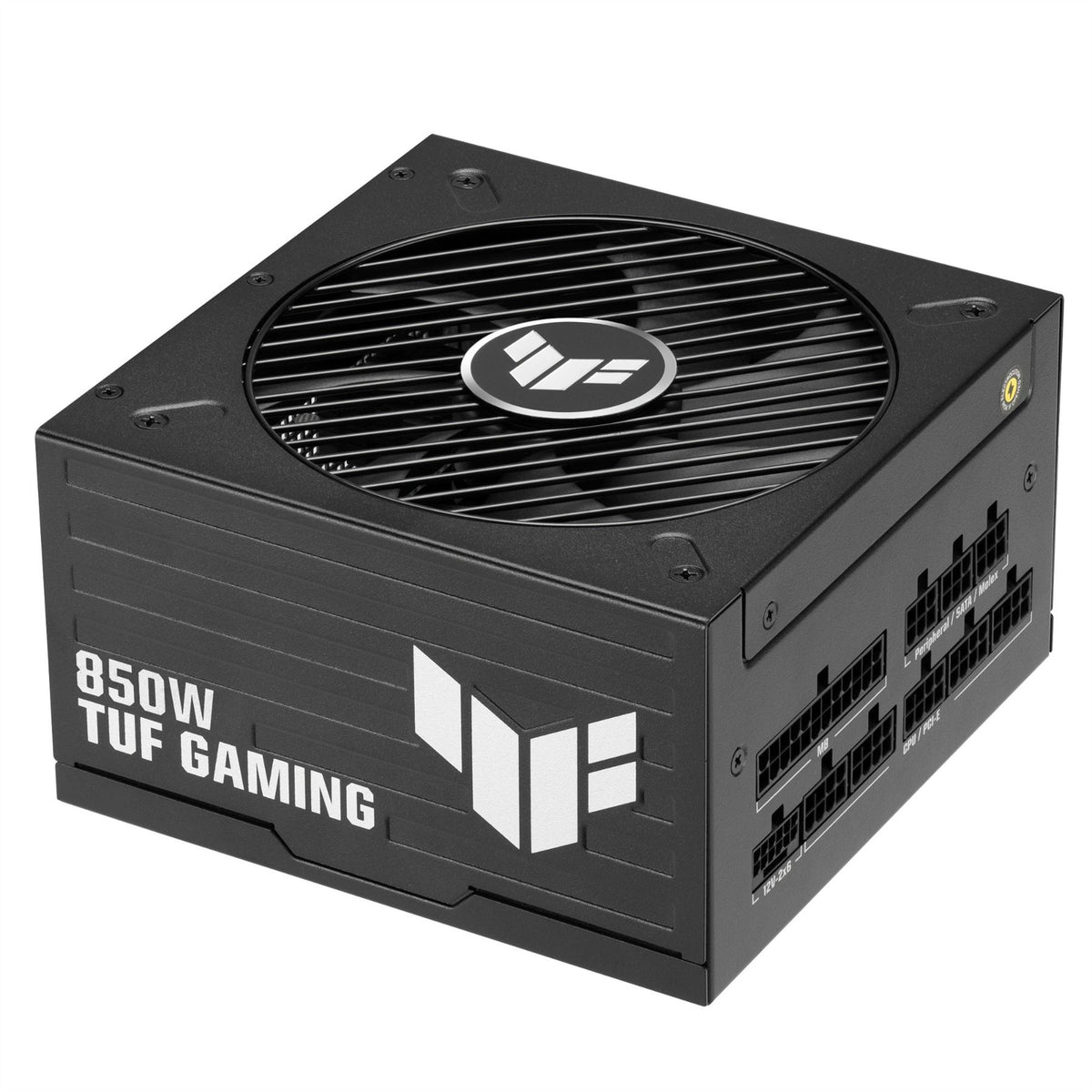

ASUS TUF Gaming 850W Platinum power supply unit 20+4 pin ATX ATX Black
Regular price
£128.03
Why Shop Clove?
Lower Carbon Footprint
Choosing refurbished saves an estimated 50–70kg of CO2 compared to buying new.
Independently Tested
Every device is tested to 80+ quality checkpoints via PhoneCheck certification.
Repaired by Experts
Our in-house repair team refurbishes every device before it reaches you.
Close the Loop
Done with your old device? Send it back via Clove Recycling and keep it out of landfill.
Built For The Long Haul The ASUS TUF Gaming 850W Platinum packs a next gen GaN MOSFET, military-grade strength, flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that can reliably fuel your rig for years to come.
EXCLUSIVE FEATURE
GaN MOSFET The TUF Gaming Platinum PSU boasts an innovative GaN MOSFET that delivers superior energy efficiency, faster switching speeds, lower heat generation, and higher voltage resistance position it as a server-grade material for demanding applications such as AI development, high-end gaming, and video editing. This MOSFET’s compact size also enables a streamlined layout with larger heatsinks and enhanced airflow for superior heat dissipation.
Premium Durability
Military-Grade Capacitors Engineered for exceptional durability, the TUF Gaming Platinum series features TUF 5K black metallic capacitors, offering a 52% wider temperature tolerance and up to a 2.5X longer lifespan than standard capacitors.
Latest Standards
ATX 3.1 & PCIe 5.1 Compatible The TUF Gaming Platinum series meets the stringent requirements of the ATX 3.1 standard and supports PCIe 5.1 graphics cards. It supports total power excursions up to twice the rated power and graphics card power excursions up to three times the rated power, helping to ensure rock-solid stability for your PC.
EFFICIENCY CERTIFICATION
80 PLUS Platinum Efficiency The TUF Gaming Platinum series achieves 80 PLUS Platinum certification by leveraging low-ESR Japanese capacitors that deliver stability and efficiency, leading to improved power consumption, heat generation, acoustics and reliability.
PREMIUM ETCHED CABLES Made from a pliable premium material, these etched cables are easily flexible during installation, and they operate at temperatures 50°C lower than the safety limit when routed for cable management.
PROTECTION To make sure the entire system can operate safely and stably at all times, this power supply comes with a number of protection mechanisms to give you the best peace of mind.
Cooling
Fan diameter
13.5 cm
Number of fans
1 fan(s)
Cooling type
Active
Performance
On/off switch
Yes
Power supply unit (PSU) form factor
ATX
80 PLUS certification
80 PLUS Platinum
Purpose
PC
ATX version
3.1
Mean time between failures (MTBF)
120000 h
Bearing technology
Ball bearing
Design
80 PLUS certification
80 PLUS Platinum
Product colour
Black
Fan diameter
13.5 cm
On/off switch
Yes
Number of fans
1 fan(s)
Cooling type
Active
Power
Total power
850 W
AC input voltage
100 - 240 V
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
125 W
Combined power (+12V)
850 W
Combined power (+5V)
125 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
25 A
Max output current (+12V)
70.83 A
Max output current (+5V)
25 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Power protection features
Over current, Over power, Over voltage, Short circuit, Under voltage, Overheating
Ports & interfaces
Motherboard power cable length
61 cm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
6
Peripheral (Molex) power connectors (4-pin)
3
PCI Express power connectors (6+2 pin)
3
CPU power connector (4+4 pin)
Yes
Cabling type
Fully-Modular
PCI Express power connectors (16-pin)
1
Certificates
Compliance certificates
RoHS
80 PLUS certification
80 PLUS Platinum
Packaging content
Cables included
AC, CPU, PCIe, Peripheral (Molex), SATA
Weight & dimensions
Width
150 mm
Depth
150 mm
Height
86 mm
Weight
1.48 kg
Packaging data
Cables included
AC, CPU, PCIe, Peripheral (Molex), SATA
Package depth
188 mm
Package width
304 mm
Package height
127 mm
Package type
Box
Package weight
3.29 kg
Technical details
Warranty period
8 year(s)
Compliance certificates
RoHS
Logistics data
Warranty period
8 year(s)
