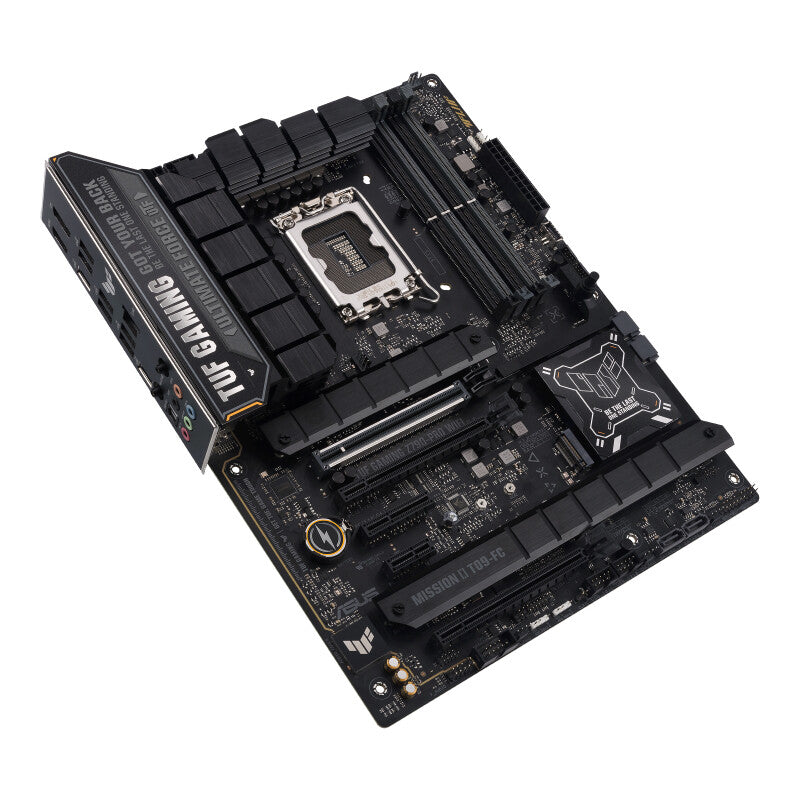

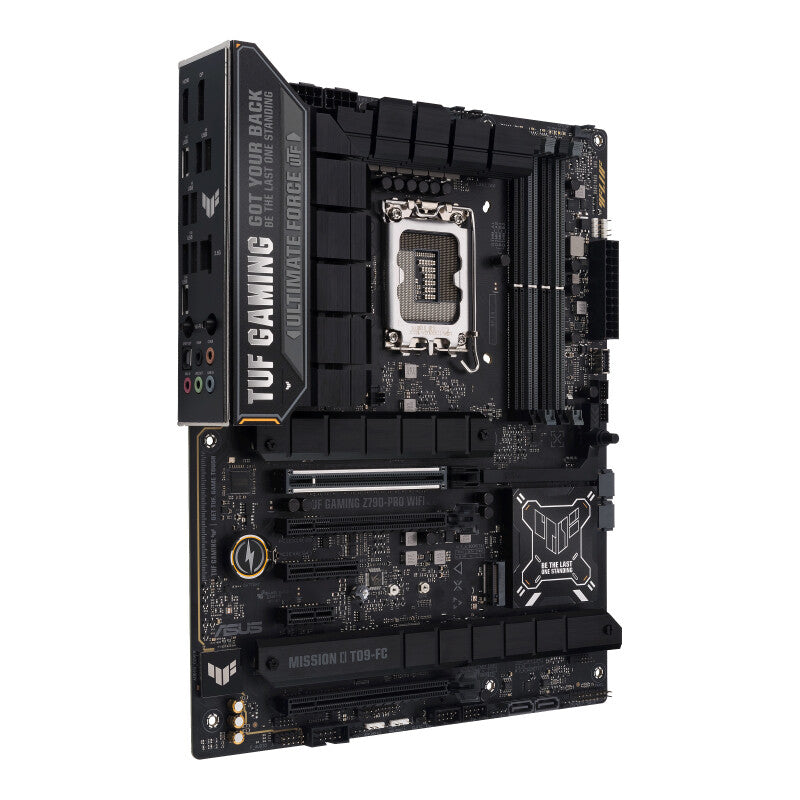

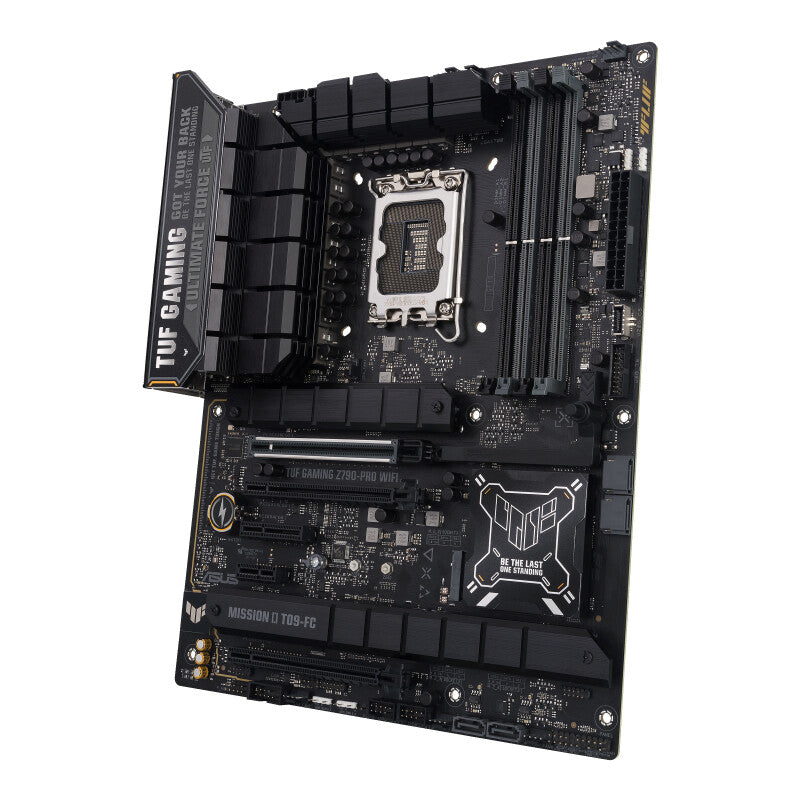

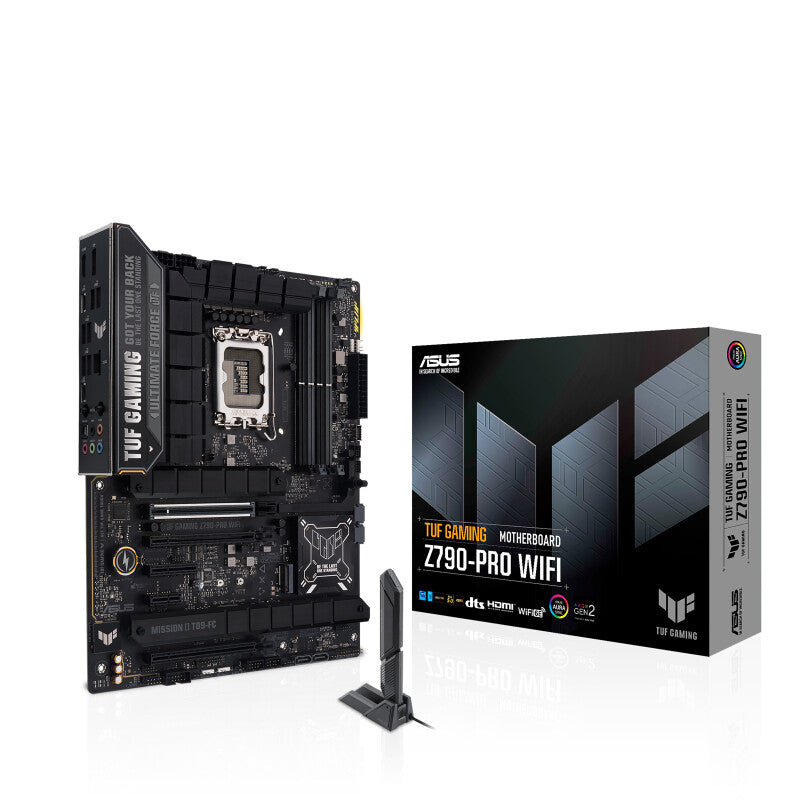

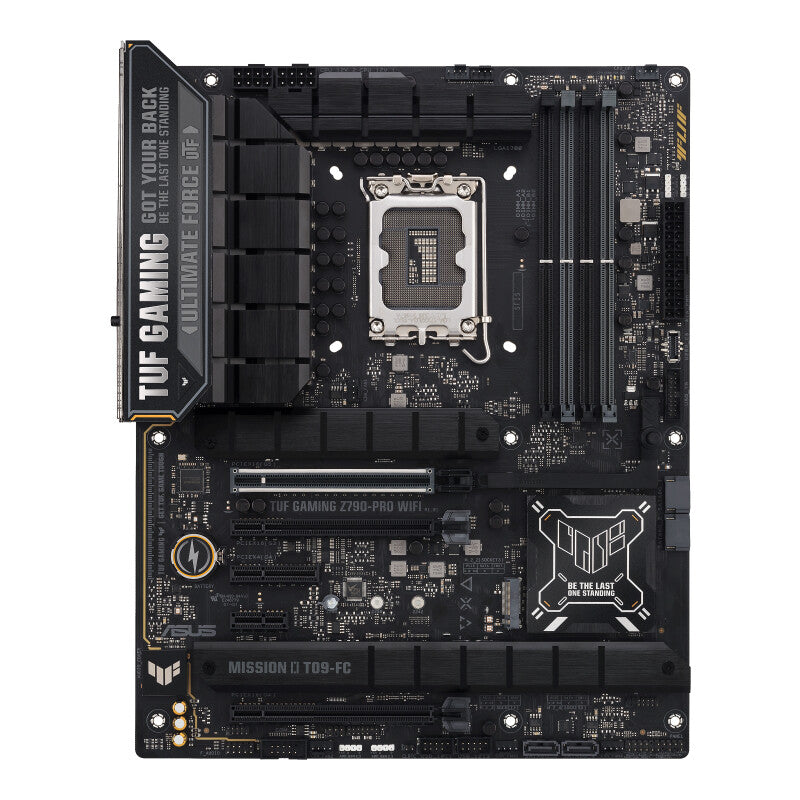

TUF GAMING Z790-PRO WIFI combines the latest Intel® processors with game-ready features and military-grade durability.
With its premium power solution and comprehensive cooling system, this motherboard delivers rock-solid performance for marathon gaming.
It undergoes rigorous endurance testing to ensure reliability in challenging conditions. Meanwhile, a distinctive gray rubberized emblem adorns the VRM heatsink, celebrating the core essence of TUF GAMING vigor.
The TUF GAMING Z790 motherboards pack flexible tools to tune every aspect of your system, enabling performance tweaks to expertly match the way you play.
Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
Processor | |
---|---|
Supported processor sockets | LGA 1700 |
Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
Processor socket | LGA 1700 |
Processor manufacturer | AMD |
Memory | |
---|---|
Unbuffered memory | Yes |
Maximum internal memory | 192 GB |
Supported memory clock speed (max) | 7800 MHz |
Supported memory clock speeds | 5333,5133,5066,5000,4800,4700,4600,4500,4400,4266,4133,4000,3866,3733,3600,3466,3400,3333,3200,3000,2933,2800,2666,2400,2133 MHz |
Non-ECC | Yes |
Memory channels | Dual-channel |
Memory slots type | DIMM |
Number of memory slots | 4 |
Supported memory types | DDR5-SDRAM |
Storage controllers | |
---|---|
RAID levels | 0, 1, 5, 10 |
RAID support | Yes |
Supported storage drive interfaces | M.2, SATA III |
Supported storage drive types | HDD & SSD |
Graphics | |
---|---|
Parallel processing technology support | Not supported |
Internal I/O | |
---|---|
RGB LED pin header | Yes |
Thunderbolt headers | 1 |
12V power connector | Yes |
EPS power connector (8-pin) | Yes |
Number of chassis fan connectors | 4 |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
Front panel audio connector | Yes |
Number of SATA III connectors | 4 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
USB 2.0 connectors | 2 |

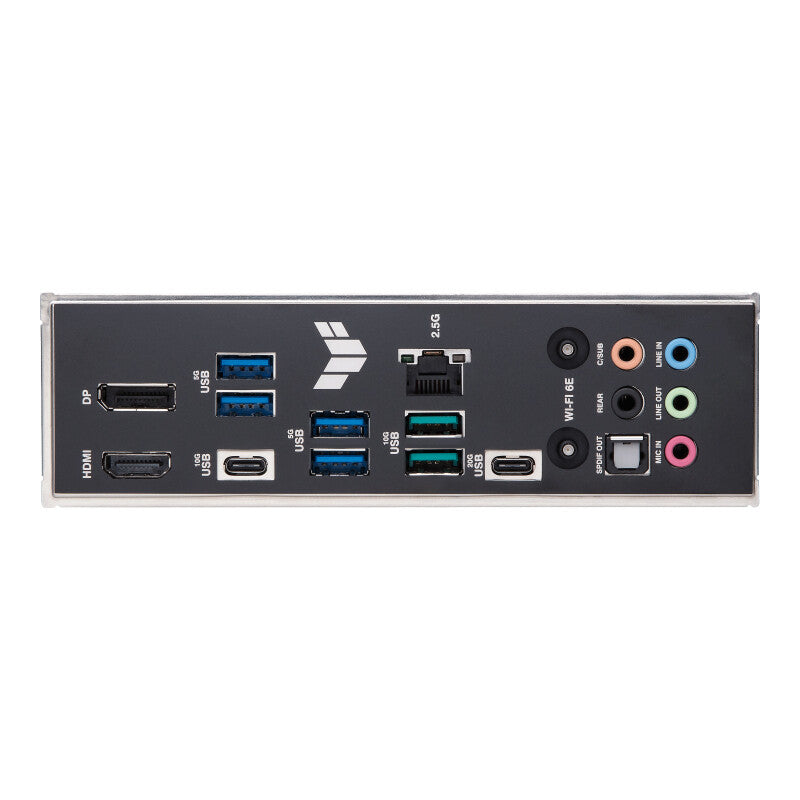

Rear panel I/O ports | |
---|---|
WiFi-AP antenna jack | 2 |
S/PDIF out port | Yes |
Microphone in | Yes |
Line-in | Yes |
Headphone outputs | 1 |
DisplayPort version | 1.4 |
DisplayPorts quantity | 1 |
HDMI version | 2.1 |
HDMI ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
Network | |
---|---|
Bluetooth version | 5.2 |
Bluetooth | Yes |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Wi-Fi | Yes |
Ethernet interface type | 2.5 Gigabit Ethernet |
Ethernet LAN | Yes |
Features | |
---|---|
Windows operating systems supported | Windows 10, Windows 11 |
Power source type | ATX |
Audio output channels | 7.1 channels |
Audio chip | Realtek S1220A |
Motherboard chipset | Intel Z790 |
Motherboard chipset family | Intel |
Motherboard form factor | ATX |
Component for | PC |
Expansion slots | |
---|---|
Number of M.2 (M) slots | 4 |
PCI Express x16 (Gen 5.x) slots | 1 |
PCI Express x16 (Gen 4.x) slots | 1 |
PCI Express x4 (Gen 4.x) slots | 1 |
PCI Express x1 (Gen 3.x) slots | 2 |
BIOS | |
---|---|
Clear CMOS button | Yes |
BIOS memory size | 192 Mbit |
BIOS type | UEFI AMI |
Packaging data | |
---|---|
Package weight | 2.14 kg |
Package height | 70 mm |
Package depth | 275 mm |
Package width | 340 mm |
Weight & dimensions | |
---|---|
Depth | 244 mm |
Width | 305 mm |
Packaging content | |
---|---|
Drivers included | Yes |
Cables included | SATA |
User guide | Yes |
