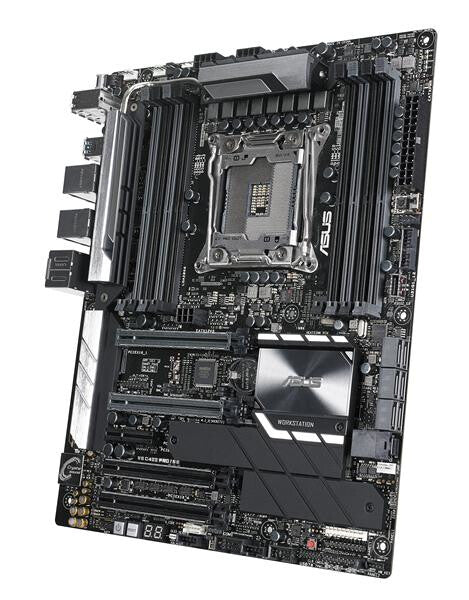

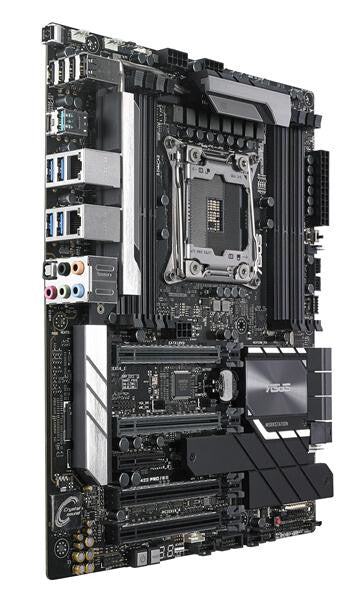

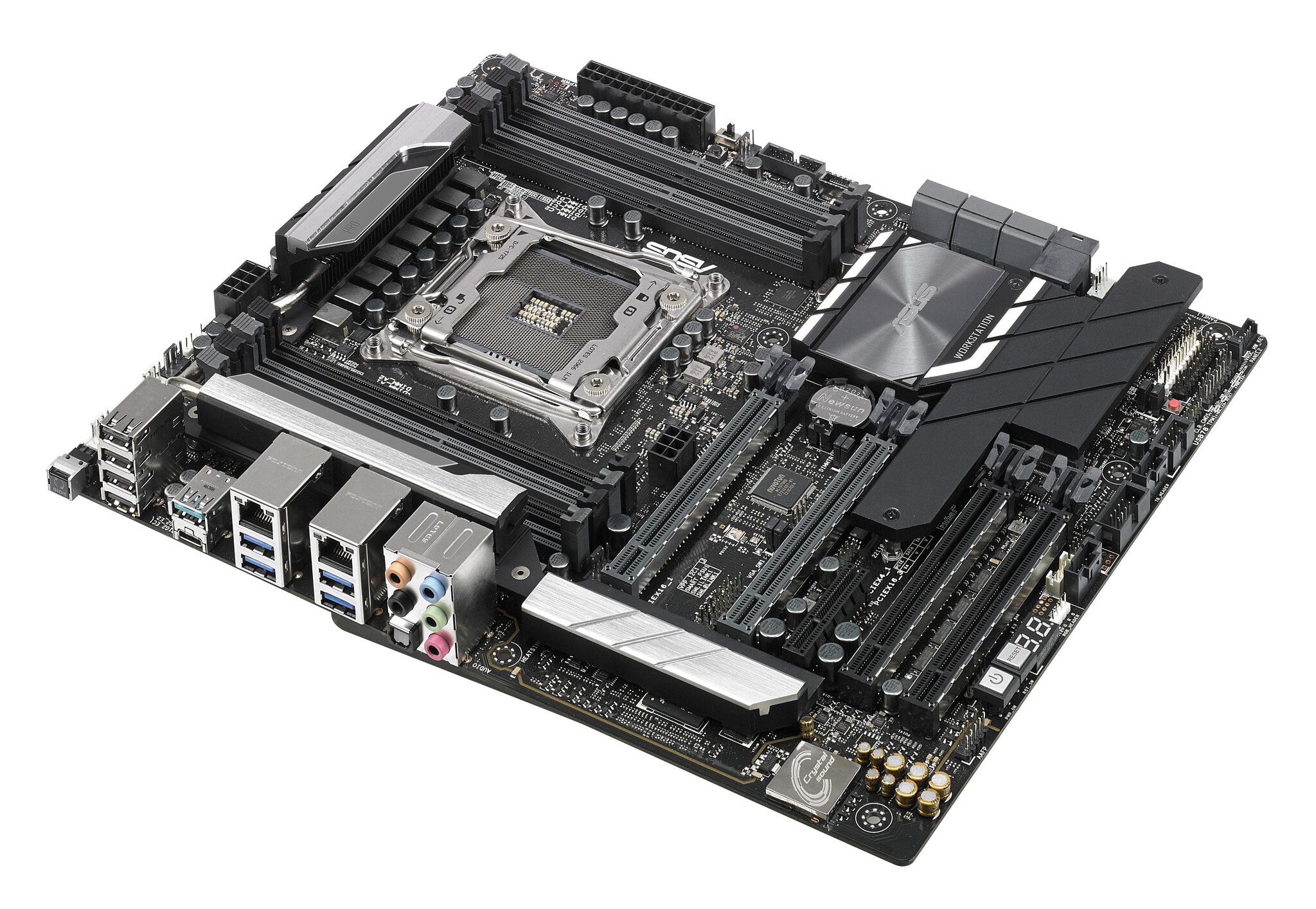

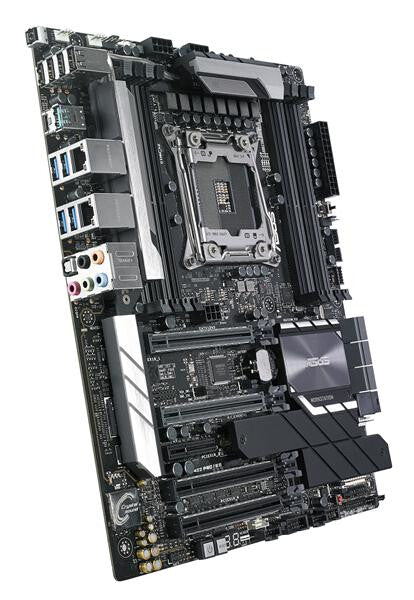

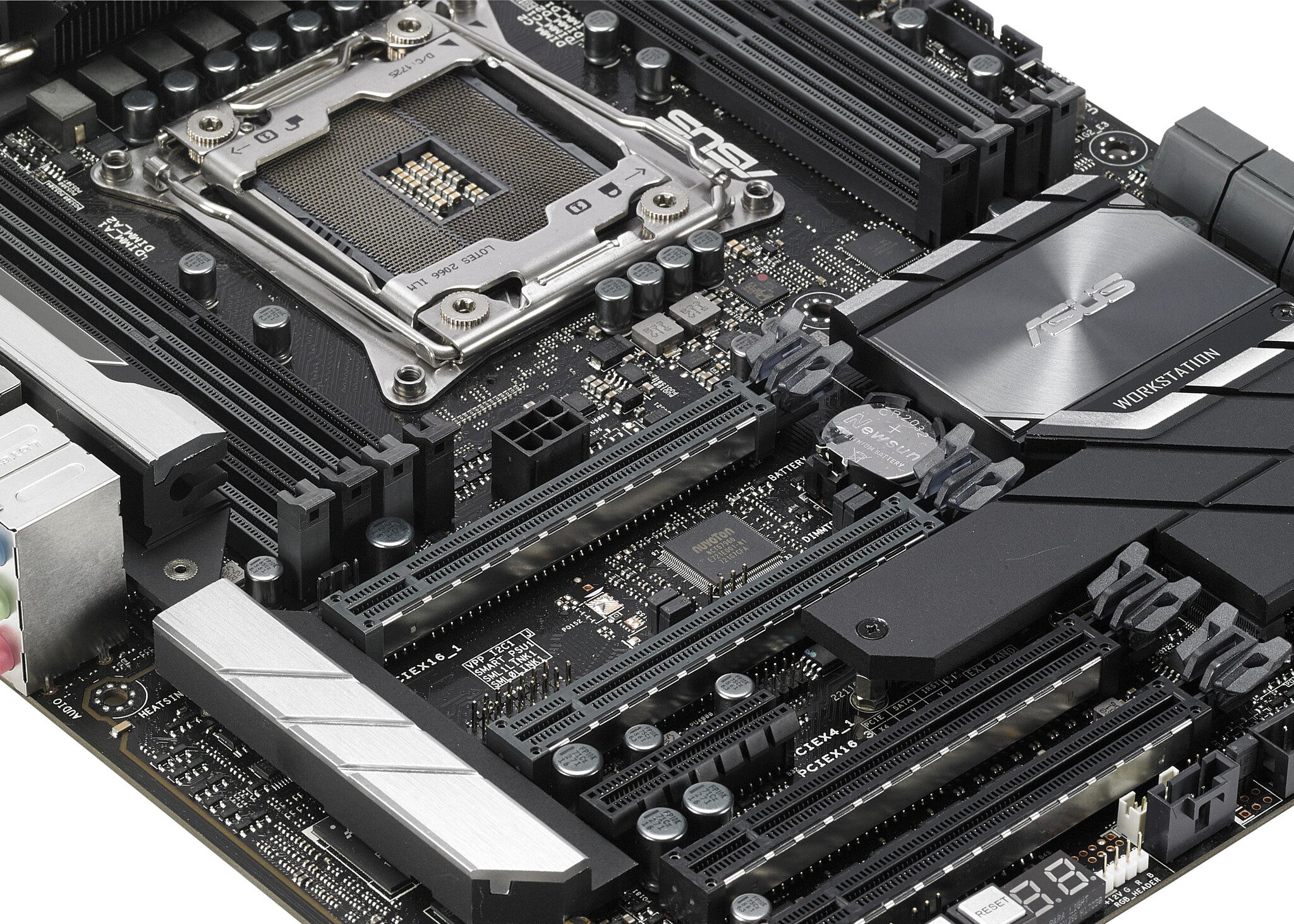

    ASUS WS C422 PRO/SE ATX motherboard - Intel® C422 LGA 2066

    ASUS WS C422 PRO/SE ATX motherboard - Intel® C422 LGA 2066

    (UK Consumers)
    ex. VAT (Rest of World)
    PayPal Credit 0% for 4 months
    GLOBAL SHIPPING – UPS & DHL
    BUSINESS CUSTOMERS – please email: Sales@clove.co.uk
    FAST SHIPPING – All orders

    Key Features

    • Powered by Intel® Xeon® W processor with ECC memory
    • ASUS Control Center - A software utility that provides convenient, secure and cost-saving centralized IT management for small and medium businesses
    • Server-grade design with built-in dual Intel Gigabit LAN
    • Next-gen transfer speeds - Up to 32Gbps dual M.2 and U.2, plus up to 10Gbps USB 3.1 Type-A and Type-C connections
    • Ultimate graphics power with 2/3-Way NVIDIA® SLI™ and AMD® Crossfire X™
    • Ultra-efficient VRM heatsink - Metal fin array connected to large surface area via a heatpipe tames C422 thermals to enable unthrottled performance

    Intel C422, 8 x DIMM, Max. 512GB, DDR4, LAN, Realtek ALC S1220A, BIOS, ATX

    Comprehensive IT Management Software
    WS C422 PRO/SE features an embedded iKVM module and is bundled with ASUS Control Center software to provide comprehensive in-band and out-of-band management features for small and mid-size businesses:
    ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
    The embedded ASMB9-iKVM module supports remote BIOS updates, fans control, standalone KVM, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics — even if the operating system is down or offline — through a user-friendly, web-based graphical interface that works with all major browsers.

    Powerful performance with Intel® Xeon® W processor and ECC memory
    WS C422 PRO/SE supports server-grade Intel® Xeon® W series processors to deliver powerful, optimized performance in always-on usage scenarios. Support for Error-Correcting Code (ECC) memory enables automatic detection and repair of single-bit memory errors, reducing the chance of system crashes and data corruption to ensure reliable and responsive workstation performance.

    Up to 3-way Multi-GPU support with True PCIe Gen3 x 16 link
    WS C422 PRO/SE features three true PCIe Gen 3 links with support for two-way and three-way NVIDIA®SLI™ and AMD CrossFireX™ configurations to enable multiple GPU setups that harness the full power of the latest graphics technologies to unleash maximum graphics processing performance.

    Ultra-fast storage and I/O options
    Dual onboard M.2 & M.2 heatsink

    WS C422 PRO/SE features dual onboard M.2 slots that support up to 22110-length SSDs and operate at PCIe Gen 3 x4 link speeds to provide an abundant 32Gbps of bandwidth for up to 5.3X faster performance than traditional SSDs. Both slots sit below the C422 chipset and are covered by a heatsink that reduces drive temperatures by as much as 20°C, ensuring peak performance under all scenarios. The revolutionary specification that lets your SSDs scream at top speed. Simply attach your choice of drive and experience data-transfer speeds of up to 32Gbps — and free up a PCIe slot for another expansion card.

    Ultra-efficient VRM Heatsink
    Designed for the powerful Intel® Xeon® scalable processor with up to 28 cores, WS C422 PRO/SE features a capable thermal design to ensure maximum performance with no CPU throttling. Consisting of an ultra-efficient VRM heatsink with a metal fin array design that maximizes surface area for heat dissipation, plus two additional heatsinks and a connecting heatpipe to further increase cooling performance, this innovative thermal design ensures WS C422 PRO/SE is always ready to handle any task, no matter how demanding.

    10Gbps USB 3.1 onboard
    With backward-compatible USB 3.1 Type-A and reversible USB 3.1 Type-C ports, you'll experience ultimate connection flexibility and data-transfer speeds of up to 10Gbps — twice as fast as USB 3.0.

    Supporting ThunderboltEX 3 card
    WS C422 PRO/SE provides full support for a ThunderboltEX 3 card. An Intel®-certified Thunderbolt™ 3 add-on card enables breathtaking bi-directional speeds of up to 40Gbps through a single cable — up to 4X faster than other PC data-transfer protocols. Beyond sheer bandwidth, Thunderbolt™ 3 supports daisy-chaining up to six devices, utilizes a Type-C reversible connector for compatibility with the latest USB 3.1 Gen 2 Type-C devices, and meets USB Power Delivery specifications for fast, high-power charging of up to 36W.

    Intel® VROC
    Unleash the WS C422 PRO/SE Virtual RAID on CPU (VROC) with the addition of an ASUS Hyper M.2 X16 card*, which allows you to attach up to four PCIe®3.0 x16 M.2 drives — for a total bandwidth of up to 128Gbps. PCH-based RAID arrays are bottlenecked by the 32Gbps limit of the DMI bus. VROC obliterates that limit by allowing you to utilize CPU PCIe lanes to configure a bootable RAID array that can transfer data at insane speeds.

    Outstanding Audio for Content Creator
    WS C422 PRO/SE has a unique audio codec designed in close collaboration with Realtek®. The Realtek®S1220A features an unprecedented 120dB signal-to-noise ratio for the stereo line-out and an 113dB SNR for the line-in, providing pristine audio quality.

    Dual Intel® server-class Gigabit LAN
    For more reliable networking, WS C422 PRO/SE features the latest server-class dual Intel® Gigabit LAN ensuring lower CPU utilization and temperatures outstanding performance as well as better support for diverse operating systems. The dual Ethernet ports also support teaming which combines the network links to provide higher throughput or redundancy in case of failure.

    ASUS SafeSlot
    SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates the slot with fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

    Processor
    Processor number of cores supported 28
    Processor socket LGA 2066 (Socket R4)
    Processor manufacturer Intel
    Memory
    Maximum internal memory 512 GB
    Supported memory clock speeds 2133,2400,2666 MHz
    Memory channels Quad-channel
    Memory slots type DIMM
    Number of memory slots 8
    Supported memory types DDR4-SDRAM
    Storage controllers
    RAID levels 0, 1, 10
    RAID support Yes
    Supported storage drive interfaces SATA III
    Graphics
    Parallel processing technology support 3-Way CrossFireX, 3-Way SLI
    Internal I/O
    Thunderbolt headers 1
    Number of COM connectors 1
    Number of chassis fan connectors 2
    CPU fan connector Yes
    Number of EATX power connectors 1
    Number of SATA III connectors 6
    USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
    USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
    USB 2.0 connectors 1
    Rear panel I/O ports
    S/PDIF out port Yes
    Microphone in Yes
    Ethernet LAN (RJ-45) ports 2
    USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
    USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
    USB 2.0 ports quantity 4
    Network
    Wi-Fi No
    LAN controller Intel® I210-AT
    Ethernet interface type Gigabit Ethernet
    Ethernet LAN Yes
    Features
    Audio output channels 8.1 channels
    Audio chip Realtek ALC S1220A
    Motherboard chipset Intel® C422
    Motherboard form factor ATX
    Expansion slots
    Number of M.2 (M) slots 2
    PCI Express x16 (Gen 3.x) @ dual x8/x8 mode slots 1
    PCI Express x16 (Gen 3.x) slots 2
    BIOS
    Clear CMOS button Yes
    BIOS type UEFI
    Logistics data
    Harmonized System (HS) code 84733020
    Packaging data
    Package weight 7.49 kg
    Weight & dimensions
    Depth 244 mm
    Width 305 mm
    Other features
    Number of DIMM slots 8
    Number of processors supported 3
    Audio output Y
    Weight 4.86 kg
    PCI Express x16 dual x8/x8 mode Yes
    PCI Express x4 (Gen 3.x) slots 1
