LIGHT IT UP
Lots of illumination possibilities

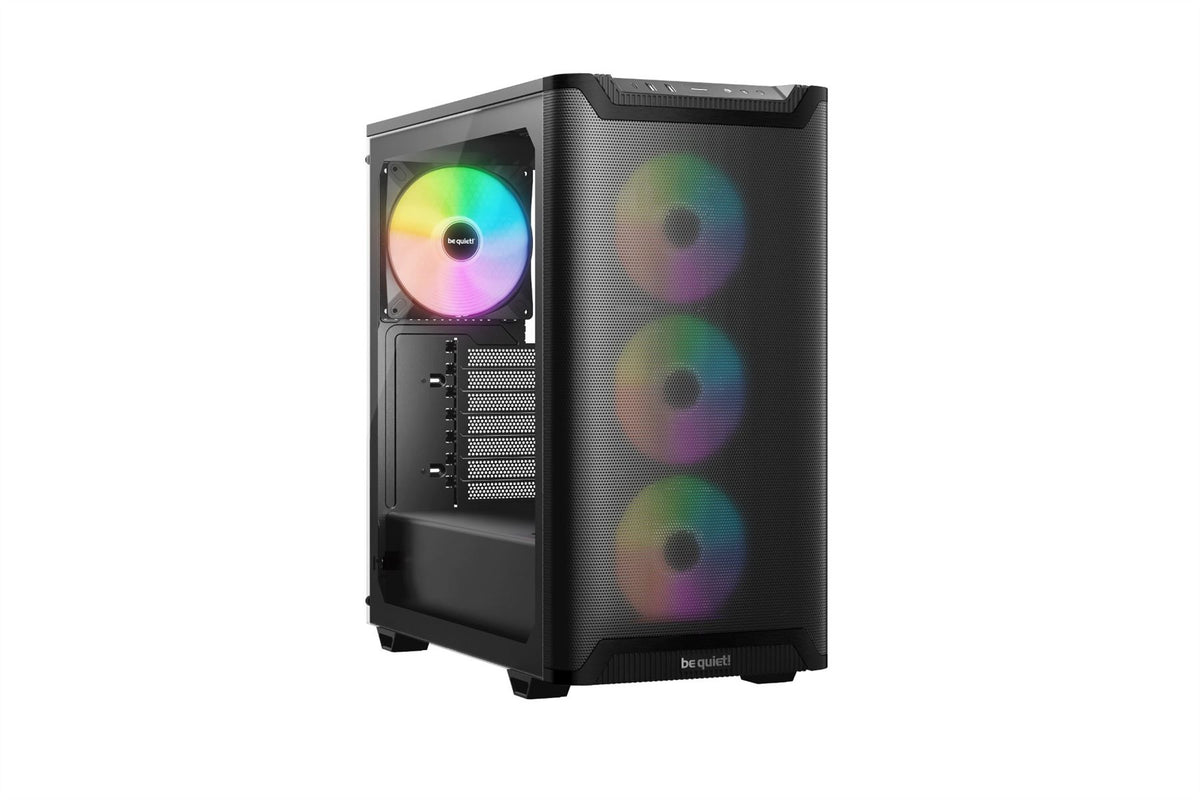

Pure Base 501 LX Black is for the ARGB enthusiasts out there. With 4 preinstalled Light Wings LX PWM fans, this case is predetermined to be your next show case. With its countless modes and colors and the possibility to synchronize your ARGB effects, Pure Base 501 LX Black leaves nothing to be desired. To support a full ARGB ecosystem, a hub for 6 ARGB devices and PWM fans is installed behind the motherboard tray.
PERFECT CASE FAN
Fan blades optimized for high airflow
With optimization for maximum airflow, Light Wings LX 120mm PWM is the right choice for any case configuration that demands high cooling performance. Its 7 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure Light Wings LX PWM provides the performance that is needed, even in demanding configurations. 3 Light Wings LX 120mm PWM pull cool air from the front, while a large 140mm fan exhausts the warm air through the rear.
MORE THAN MEETS THE EYE
Generous space for high-end hardware
Despite its compact dimensions, Pure Base 501 LX Black offers enough space for high-end graphics cards and large coolers. Triple fans or a radiator up to 360mm can be installed easily at the front, while the top area provides space for up to 2 fans or a radiator up to 240mm.
WAY UP!
With rotatable PCIe slots
Why not try something else with your GPU? The PCIe slots of the Pure Base 501 LX Black can be rotated 90° for an upright installation of wide high-end graphics cards. The spacing is perfect for the optional be quiet! Riser Cable, whose foam base provides excellent anti-sag support for graphics cards in vertical orientation.
INVENTORY MANAGEMENT
With smart cable routing options
As a compact PC case, Pure Base 501 LX Black optimally uses the offered space. Thanks to cleverly integrated cable routing options, it makes cable management a breeze.
CONNECT WITH ME
State-of-the-art technology for your system
A USB 3.2 Gen. 2 Type C connector and 2 Type A ports on the front I/O port for fast and easy connectivity. A controller button cycles through the colors and modes for the fans that are connected to the ARGB hub, or can be set to sync the effects with a motherboard ARGB header.
Design | |
---|---|
Volume | 24.4 L |
Fan connector | 4-pin |
Anti-dust filter | Yes |
Material | Acrylonitrile butadiene styrene (ABS), Glass, Steel |
Number of 5.25" bays | 0 |
Number of 3.5" bays | 2 |
Number of 2.5" bays | 5 |
Supported motherboard form factors | ATX, micro ATX, Mini-ATX |
Side window | Yes |
Illumination location | Case fans |
Illumination colour | Multi |
Illumination | Yes |
Product colour | Black |
Number of expansion slots | 7 |
Maximum CPU cooler height | 17.8 cm |
Maximum graphics card length | 36.8 cm |
Maximum PSU length | 20 cm |
Type | PC |
Form factor | Midi Tower |
Technical details | |
Number of 5.25" bays | 0 |
Number of 3.5" bays | 2 |
Number of 2.5" bays | 5 |
Supported motherboard form factors | ATX, micro ATX, Mini-ATX |
Supported HDD sizes | 2.5,3.5" |
Side window | Yes |
Product colour | Black |
Number of expansion slots | 7 |
Maximum CPU cooler height | 17.8 cm |
Maximum graphics card length | 36.8 cm |
Maximum PSU length | 20 cm |
Type | PC |
Form factor | Midi Tower |
Sustainability certificates | Triman |
Warranty period | 3 year(s) |
Compliance certificates | CE, RoHS, UKCA, WEEE |
Material | |
Material | Acrylonitrile butadiene styrene (ABS), Glass, Steel |
Indication | |
Illumination location | Case fans |
Illumination colour | Multi |
Illumination | Yes |
Power supply | |
Supported power supply form factors | ATX, PS2 |
Power supply included | No |
Ports & interfaces | |
USB 3.2 Gen 2x2 Type-C ports quantity | 0 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
Fan connector | 4-pin |
Audio input | Yes |
Audio output | Yes |
USB 2.0 ports quantity | 0 |
Cooling | |
Front radiator sizes supported | 120,140,240,280,360 mm |
Rear radiator sizes supported | 120,140 mm |
Top radiator sizes supported | 120,240 mm |
Noise level (high speed) | 21.9 dB |
Maximum airflow | 51.5 cfm |
Fan rated voltage | 5 - 13.2 V |
Fan rated current | 0.06 A |
Fan power consumption | 3.8 W |
Front fans installed | 3x 120 mm |
Number of front fans supported (max) | 3 |
Front fans diameters supported | 120,140 mm |
Rear fans installed | 1x 140 mm |
Number of rear fans supported (max) | 1 |
Rear fans diameters supported | 120,140 mm |
Number of top fans supported (max) | 2 |
Top fans diameters supported | 120,140 mm |
Liquid cooling capability | Yes |
Maximum air pressure | 1.34 mmH2O |
Fan 2 maximum airflow | 56 cfm |
Fan 2 maximum air pressure | 0.9 mmH2O |
Pulse-width modulation (PWM) support | Yes |
Storage | |
Supported HDD sizes | 2.5,3.5" |
Weight & dimensions | |
Volume | 24.4 L |
Width | 231 mm |
Depth | 450 mm |
Height | 463 mm |
Weight | 7.8 kg |
Packaging data | |
Package width | 292 mm |
Package height | 503 mm |
Package depth | 518 mm |
Package weight | 9 kg |
Other features | |
Volume | 24.4 L |
Maximum airflow | 51.5 cfm |
Fan connector | 4-pin |
