EXCEPTIONAL QUIET, SUPERIOR FEATURES
Pure Power 12 M 550W is ATX 3.0 compliant and PCIe 5.0 compatible and offers peerless dependability with best-in-class features. Pure Power 12 M 550W offers the best combination of features with outstanding compatibility.
80 PLUS® GOLD CERTIFIED
Very high operating efficiency
Pure Power 12 M 550W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 92.8%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 12 M 550W is always the correct choice for quiet systems and gaming PCs!
FUTURE-PROOF YOUR SYSTEM
Fulfills all ATX 3.0 specifications
Pure Power 12 M 550W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful present systems.
THE NEW STANDARD OF POWER
For massive transient loads
Pure Power 12 M offers 550W of continuous power with 2 independent 12V rails. Even if the graphics card demands excessive power for a short time: Pure Power 12 M 550W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.
UNPRECEDENTED SILENT OPERATION
Achieved with a silence-optimized be quiet! fan
The exceptionally silent 120mm be quiet! fan is temperature-controlled to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class
quiet functionality.
HIGH-CLASS TECHNOLOGIES
Rock-solid stability
With its LLC topology Pure Power 12 M 550W provides a best-in-class voltage regulation and efficiency. That makes it perfect for building or upgrading very quiet systems as well as gaming and media creation PCs.

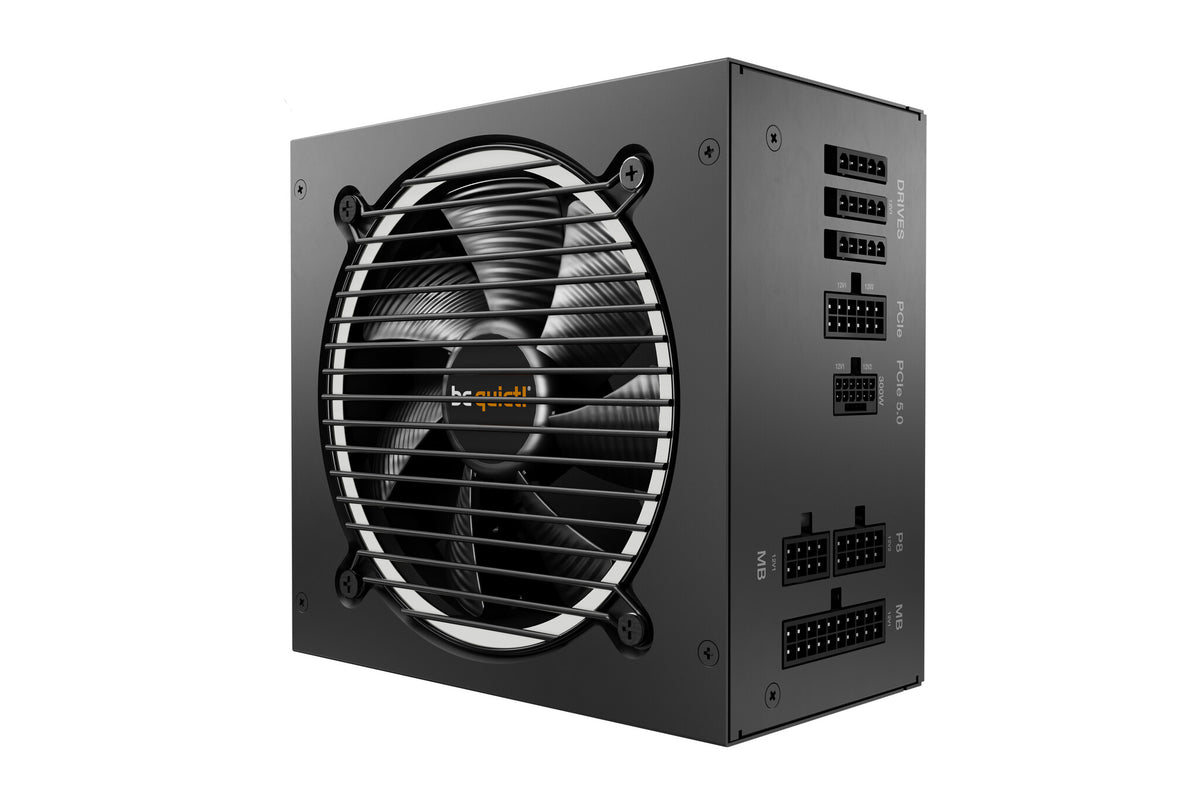

MODULAR CABLES
Utmost convenience and compatibility
Thanks to their modularity, all unnecessary cables in the system are left out. Pure Power 12 M 550W simplifies cable management and routing for a tidy-looking system. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures inside the case.
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit |
Efficiency | 92.8% |
Power Good signal delay range | 100 - 150 ms |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 20 A |
Max output current (+12V2) | 24 A |
Max output current (+12V1) | 28 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 15 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 120 W |
Combined power (+12V) | 550 W |
Combined power (+3.3V) | 120 W |
Power Factor Correction (PFC) type | Active |
Power factor | 0.98 |
Input current | 10/5 A |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Peak power | 600 W |
Total power | 550 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
PCI Express connector | Yes |
ATX power connector (20+4 pin) | Yes |
PCI Express power connectors (6+2 pin) | 2 |
EPS power connector (4+4 pin) | Yes |
Peripheral (Molex) power cable length | 550 mm |
Peripheral (Molex) power connectors (4-pin) | 1 |
SATA power cable length | 500,650,800,950 mm |
Number of SATA power connectors | 5 |
Number of PATA power connectors | 2 |
Motherboard power cable length | 55 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Mean time between failures (MTBF) | 100000 h |
Noise level | 17.1 dB |
EPS version | 2.92 |
ATX version | 3.0 |
80 PLUS certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Fan location | Top |
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Cooling type | Active |
Product colour | Black |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 - 40 °C |
Packaging content | |
---|---|

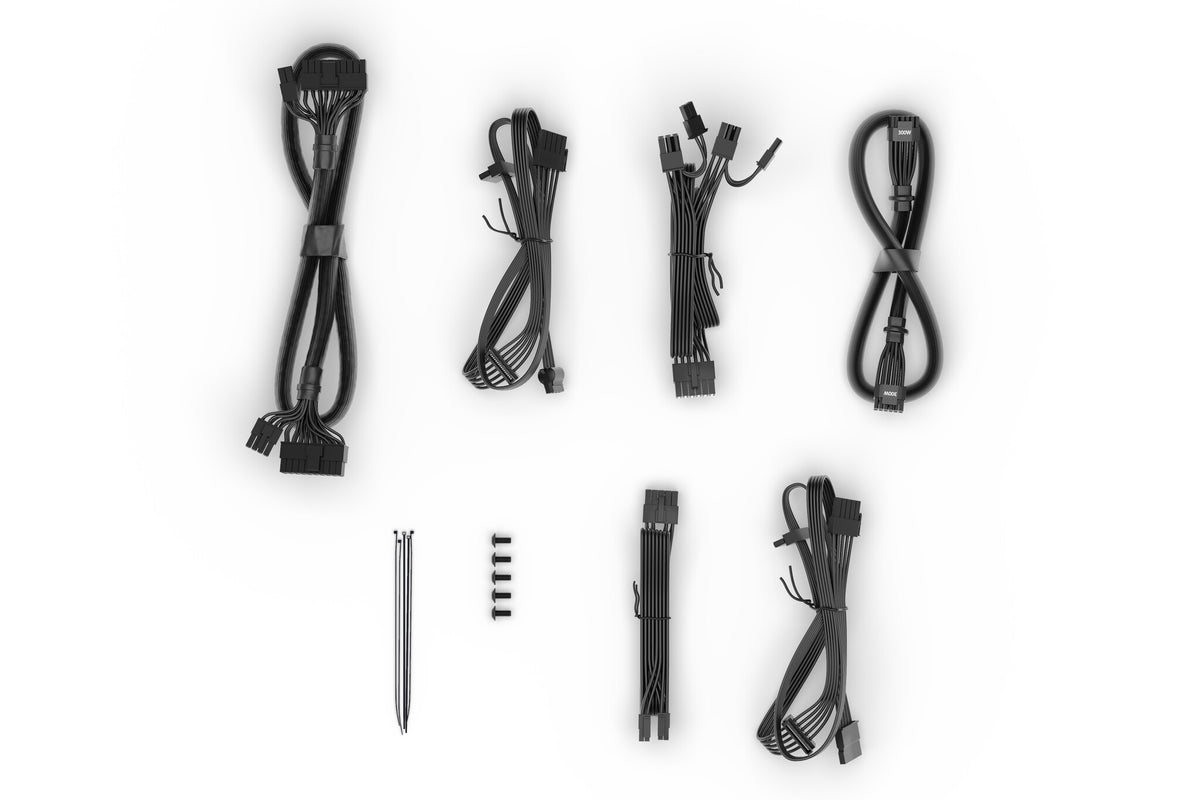

Cables included | PATA, PCIe, Peripheral (Molex), SATA |
Weight & dimensions | |
---|---|
Height | 86 mm |
Depth | 150 mm |
Width | 160 mm |
Packaging data | |
---|---|
Package type | Box |
Technical details | |
---|---|
Sustainability compliance | Yes |
Sustainability certificates | ENERGY STAR, ErP, RoHS |
Warranty period | 10 year(s) |
Other features | |
---|---|
Noise level (full-load mode, 100%) | 17.1 dB |
Noise level (quiet mode, 50%) | 8.2 dB |
Noise level (silent mode, | 8 dB |
Cable ties included | Yes |
Number of screws | 5 |
Screws included | Yes |
